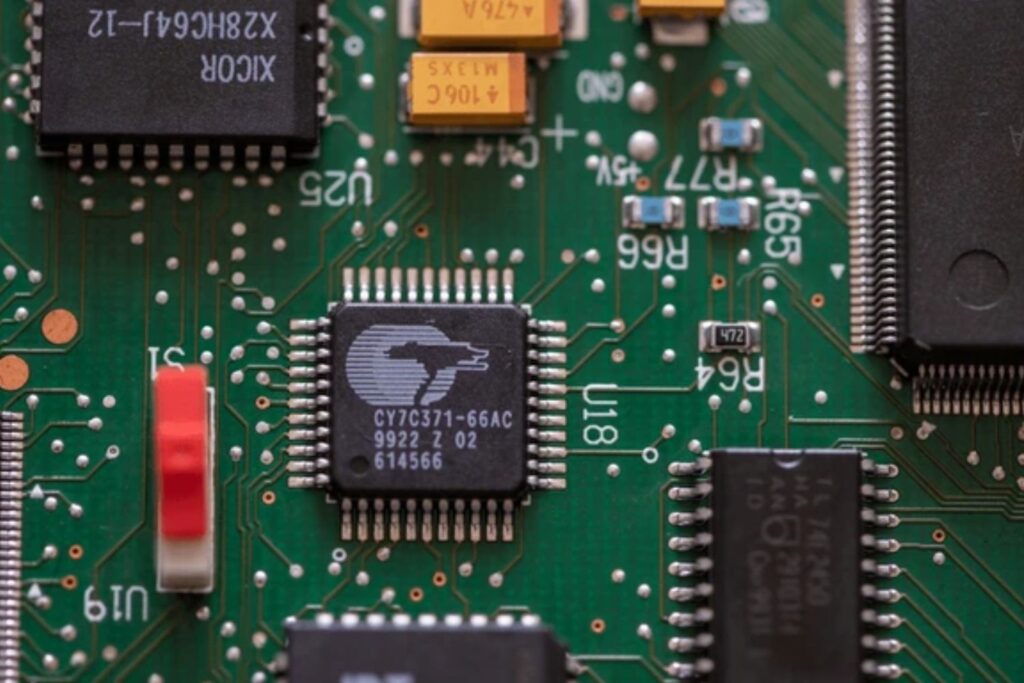

What is a CPLD?
A Complex Programmable Logic Device (CPLD) is a programmable logic chip used to implement digital logic functions. Unlike FPGAs, CPLDs have a more rigid internal architecture and fewer logic resources but offer faster and more deterministic performance for simpler tasks.
CPLDs consist of a limited number of logic blocks (or macrocells) connected via a predictable interconnect structure. These logic blocks can perform a variety of combinational and sequential functions and are typically programmed using HDL (Hardware Description Languages) like VHDL or Verilog.
Key Characteristics of CPLDs
- Non-volatile Configuration: Retains logic even after power-off
- Instant-on Capability: Boots immediately without external configuration memory
- Deterministic Timing: Provides predictable delays and timing behavior
- Simplified Architecture: Less complex routing, ideal for control logic
- Lower Logic Capacity: Suitable for designs requiring hundreds to a few thousand logic gates
- Low Power Consumption: Ideal for low-power and battery-operated systems
- Cost-Efficient: Lower cost in low-density applications compared to FPGAs

Real-World Applications & Use Scenarios
Consumer Electronics
CPLDs often serve in system glue logic, interface bridging, or power sequencing in devices like:
- Set-top boxes
- Printers
- Remote controls
- Portable media players
Automotive Electronics
Used for in-vehicle networking, sensor interfacing, and dashboard control, CPLDs provide:
- High reliability
- Instant-on behavior
- Deterministic logic control
Industrial & Embedded Systems
Deployed in control systems, motor control, and industrial interfaces due to:
- Extended temperature range support
- High I/O pin control
- Real-time response capability
Communication Equipment
CPLDs offer signal routing, encoding/decoding, and protocol management in:
- Routers
- Modems
- RF transceivers
Types of CPLDs
CPLDs can be categorized based on the underlying architecture and technology:
Based on Configuration Technology:
- EEPROM-Based CPLDs: Offer reprogrammability with non-volatility (e.g., Intel MAX series)
- Flash-Based CPLDs: Provide fast and reliable configuration with high endurance
- Anti-Fuse-Based CPLDs: One-time programmable, used for secure or radiation-hardened applications
Based on Logic Architecture:
- PAL-like Architecture: Fixed structure with multiple logic blocks connected via a global interconnect
- Macrocells-Based: Each logic block contains macrocells, which include AND/OR arrays and flip-flops for combinatorial and sequential logic

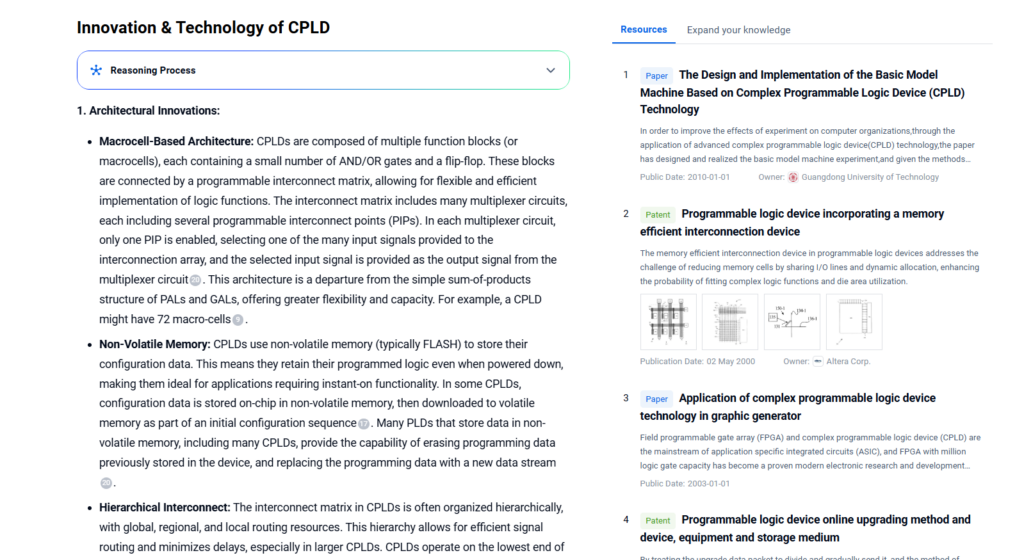

Innovation & Technology
1. Architectural Innovations
Macrocell-Based Architecture
CPLDs rely on multiple function blocks, also known as macrocells. Each macrocell includes a small number of AND/OR gates and a flip-flop. These blocks connect through a programmable interconnect matrix, which enables designers to implement complex logic functions flexibly and efficiently.
This matrix includes numerous multiplexer circuits. Each multiplexer contains several programmable interconnect points (PIPs). In every case, only one PIP is active at a time. It selects a specific input signal, then passes it as the output of that multiplexer.
This architecture goes beyond the simple sum-of-products structure used in older PALs and GALs. As a result, CPLDs offer more flexibility and greater capacity. For instance, a typical CPLD might include 72 macrocells to support broader logic designs.
Non-Volatile Memory
CPLDs use non-volatile memory, usually FLASH, to store configuration data. This allows them to retain their programmed logic even when the power is off—ideal for instant-on applications.
Some CPLDs store configuration data on-chip, then transfer it to volatile memory during initial power-up. Additionally, many CPLDs offer erasable and rewritable memory. Designers can easily replace old configurations with a new data stream without removing the device.
Hierarchical Interconnect
CPLDs often use a hierarchical routing structure, dividing interconnects into global, regional, and local networks. This structure ensures efficient signal flow and reduces propagation delay, especially in larger devices.
Operating at the low-density end of the programmable logic spectrum, CPLDs remain single-chip, non-volatile, and are known for their instant-on behavior and universal interconnect accessibility.
Input/Output Blocks (IOBs)
CPLDs feature dedicated IOBs that manage signal transmission in and out of the device. These IOBs handle buffering, level shifting, and support multiple voltage levels and signaling standards. Their programmable nature ensures that CPLDs can adapt easily to various external circuits.
2. Application-Specific Innovations
Low Power Consumption
CPLDs are built with energy efficiency in mind. This makes them perfect for portable and battery-powered devices. By reducing the memory requirements on-chip, CPLDs free up valuable die area for other logic components.
For example, Altera’s MAX V series consumes only one-tenth the power of previous-generation devices. A typical project using the 5M570T100C5N chip draws just 3mA at full speed.
High Speed
CPLDs support high-speed operation, with many chips handling clock frequencies above 100 MHz. A CPLD with 72 macrocells may run at 85 MHz, with pin-to-pin delays of 7ns. In another case, a CPLD built on CMOS EEPROM technology delivers 3.2ns delay and supports counters running at 200 MHz.
Non-Volatile Memory
Using non-volatile memory sets CPLDs apart from most FPGAs, which rely on volatile SRAM. This ensures logic retention even during power loss. CPLDs combine ultra-low power, solid performance, and low cost, making them a strong choice for reliable embedded designs.
In-System Programmability (ISP)
Many CPLDs support ISP, enabling engineers to reconfigure devices without removing them from the system. This capability allows for firmware updates, field upgrades, and bug fixes during product deployment.
One specific method enables online upgrading of CPLDs, solving the problem of unstable data transmission during reconfiguration.
Security Features
To protect IP and prevent reverse engineering, some CPLDs offer encryption, authentication, and other built-in security mechanisms. These features help ensure that the device operates only with trusted configurations.
3. Technological Advancements
Shrinking Process Nodes
CPLDs benefit from ongoing semiconductor scaling. Devices are now manufactured using smaller nodes like 90nm, 65nm, or 40nm. Shrinking the process node results in lower power, higher logic density, and improved speed. For instance, 0.35μm embedded flash processes were used for full-custom analog designs.
Increased Logic Density
Modern CPLDs pack in far more logic than earlier designs. They integrate several Simple PLDs (SPLDs) into one chip using programmable interconnects. As a result, a single CPLD can now replace tens of PAL or GAL devices, simplifying design and reducing board space.
Improved Interconnect
CPLDs now feature optimized interconnect networks. These use fixed-length internal wires, which make signal timing predictable and manageable. Compared to segmented interconnects (which often cause delay unpredictability), CPLDs allow designers to model logic accurately and efficiently.
Enhanced Development Tools
CPLD design tools have also improved dramatically. Today’s EDA tools support HDL synthesis, timing simulation, and real-time debugging. For example, Altera’s QUARTUS II provides an easy-to-learn platform that lets engineers design CPLDs or FPGAs without deep knowledge of internal chip architecture.
QUARTUS II also supports third-party tools, making it compatible with industry standards and accelerating development timelines.
Integration with Other Technologies
CPLDs increasingly integrate with other IC components, enhancing their value and expanding their functionality. For instance, they may include:
- Embedded microcontrollers
- Analog-to-Digital Converters (ADCs)
- Digital-to-Analog Converters (DACs)
These integrations enable more compact and multifunctional devices. A CPLD might act as an interface between FPGA and PCI bus, configure the FPGA from a PC, and also handle signal processing tasks using components like AD574 and LEDs. In high-speed systems, CompactPCI (CPCI) ensures rapid and reliable data transfer.
Advantages of CPLDs
- Reconfigurability
CPLDs are highly reconfigurable. Designers can modify their functionality even after deployment. This is possible by reprogramming the device with a new configuration file. As a result, updates and bug fixes no longer require hardware changes. For example, a CPLD can capture output signal values on the I/O pins before reconfiguration, then restore those values during the process. This ensures smooth transitions without interrupting system behavior.
- High Speed and Predictable Timing
CPLDs deliver fast performance and offer predictable timing. Their fixed routing resources make timing easier to analyze and more consistent. This predictability benefits time-critical applications, where delays can’t be tolerated. Unlike segmented interconnects, CPLDs avoid unpredictable timing paths. They support high-frequency operations, with some devices capable of running counters up to 200 MHz. This makes them ideal for fast logic control systems.
- Low Power Consumption (in Certain Contexts)
In some cases, CPLDs consume less power than certain types of FPGAs. Manufacturers have introduced low-power technologies in newer CPLD products to meet the demand for energy-efficient solutions. This aligns with global energy conservation goals. For instance, the Altera MAX V series uses about one-tenth the power of its previous generation—making it a preferred choice for portable or battery-operated devices.
- Ease of Use and Development Tools
CPLDs are generally easier to work with than FPGAs. Their design process is more straightforward, and their development tools are simpler. Tools like Altera’s QUARTUS II help designers build logic systems without needing to understand the complex internal architecture. The QUARTUS II compiler can automatically generate programming files, simulate waveforms, and analyze delays—streamlining the entire development workflow.
- Suitability for Specific Logic Designs
CPLDs work particularly well for combinatorial logic and small to medium-sized projects. They shine in designs with fewer registers but more product terms. In such scenarios, CPLDs can divide tasks, execute logic independently, and minimize signal interference. This makes them ideal for implementing clean, reliable control logic in embedded systems.
Limitations of CPLDs
- Higher Power Consumption (Compared to Some FPGAs)
Although CPLDs can be power-efficient in some cases, they generally consume more power than modern low-power FPGAs, especially in large or complex logic designs. Their architecture limits the ability to scale efficiently with increased complexity.
- Lower Integration Density
CPLDs typically offer lower integration density. They can implement fewer logic gates in the same physical area compared to FPGAs. This makes them less suitable for designs that require a high gate count or massive parallelism.
- Architectural Differences
CPLDs use product-term logic at their core. While this architecture works well for certain types of designs, it’s less efficient for applications needing a large number of registers or extensive sequential logic. CPLDs use block-level programming, and their logic blocks are interconnected as fixed units, limiting flexibility in certain scenarios.
- Potential Issues with Output Stability During Reconfiguration
During reconfiguration, conventional CPLDs may enter a sleep state. In this state, the input and output pins are disabled, leading to indeterminate signal behavior. This poses a problem in mission-critical systems, where stable outputs are essential—especially when the CPLD is part of a core logic path or safety control system.
- Higher Cost per Gate (for Large Designs)
For very large logic designs, CPLDs can become cost-inefficient. Their lower gate density drives up the cost per logic function compared to FPGAs, which scale better for high-complexity applications.
PatSnap Eureka AI Agent Capabilities
With PatSnap Eureka AI Agent, hardware design and strategy teams can:
- Identify top patent holders in CPLD innovations
- Track technological evolution across CPLD vendors
- Analyze competitive filing trends in non-volatile logic control
- Benchmark product portfolios with IP-based scoring
- Support go-to-market strategy through IP landscape insights
Eureka’s AI-driven data empowers decision-makers with intelligence on emerging CPLD applications, especially across automotive, medical, and IoT hardware design.
Conclusion
CPLDs continue to play a critical role in modern digital design. Their unique blend of reliability, deterministic timing, and low-power operation makes them ideal for control-centric and embedded applications. While their market is smaller than that of FPGAs, CPLDs hold a strong position in edge devices, automotive, and industrial automation.
Organizations that leverage PatSnap Eureka AI Agent gain access to deep insights into CPLD innovation, market trends, and competitive activity—ensuring informed decisions and strategic IP advantage.
FAQs
CPLDs offer simpler architecture, faster boot-up, and deterministic timing, while FPGAs provide higher logic density and flexibility.
Yes. Especially in automotive, industrial, and consumer products requiring low-power and instant-on control logic.
Most modern CPLDs (e.g., EEPROM/Flash-based) can be reprogrammed multiple times.
Vendors provide proprietary tools—e.g., Intel Quartus Prime, Lattice Diamond, Microchip WinCUPL.
