Solution Overview
Problem
Current RF power amplifiers in wireless communication systems face inefficiencies due to the inherent non-linearity of active devices, leading to low DC to RF power conversion efficiency, especially in portable devices and base stations, and are further challenged by high peak-to-average power ratio modulation schemes that reduce power efficiency and linearity.
Innovation Solution
The implementation of a wideband power supply architecture that modulates the power amplifier supply voltage to track the instantaneous RF envelope, using a combination of low-frequency and high-frequency power supply paths, including a switching regulator and a linear amplifier, to optimize voltage delivery and minimize excess voltage headroom.
Engineering Contradictions & Design Principles
Engineering Contradiction Analysis
1Object-affected harmful factors
If linear amplification is used to minimize out-of-band emissions, then spectral purity is improved, but DC to RF power conversion efficiency deteriorates
Solution Approach 1:
The patent applies dynamics by making the power amplifier supply voltage time-varying rather than fixed. The supply voltage dynamically tracks the instantaneous envelope of the RF signal, allowing the PA to operate efficiently across different output power levels while maintaining linear operation and minimizing out-of-band emissions.
Solution Approach 2:
The patent changes the parameter of supply voltage from a static DC level to a dynamic signal that varies with the RF envelope. This parameter change enables the PA to maintain optimal operating conditions throughout the signal cycle, improving both spectral purity and power efficiency simultaneously.
2Device complexity
If fixed supply voltage is used for power amplifier, then device complexity is reduced, but power efficiency deteriorates due to excess voltage headroom
Solution Approach 1:
The patent transforms the static power supply into a dynamic system where the supply voltage adapts in real-time to the signal envelope. This dynamic approach eliminates excess voltage headroom by providing exactly the voltage needed at each instant, significantly reducing energy loss without requiring overly complex additional circuitry.
Solution Approach 2:
The patent implements feedback by using a portion of the RF signal to generate an envelope signal that controls the power supply voltage. This feedback mechanism ensures the supply voltage precisely tracks the signal requirements, eliminating waste while maintaining system simplicity through elegant control theory.
3Productivity
If high peak-to-average power ratio modulation schemes are used to increase bit rate, then data transmission capability is improved, but power efficiency and linearity deteriorate
Solution Approach 1:
The patent applies dynamics by making the supply voltage track the high peak-to-average power ratio modulation envelope in real-time. This allows the PA to efficiently handle the large voltage swings required by high-order QAM schemes, maintaining both the high bit rate capability and power efficiency that would otherwise be contradictory.
Applied Scientific Principles
This section explains which scientific principles are used to turn an abstract innovation direction into a practical engineering solution.
Function Achieved in This Case
This approach enhances the efficiency and linearity of power amplifiers by allowing them to operate at higher output power levels with reduced heat loss and improved power factor, while maintaining efficient energy transfer and reducing electrical noise.
Implementation Method 1
a low-frequency power supply path comprising a switching regulator
Implementation Method 2
a high-frequency power supply path comprising an amplifier core arranged to drive a power supply signal on the high-frequency power supply path
Data Source
Figure 1

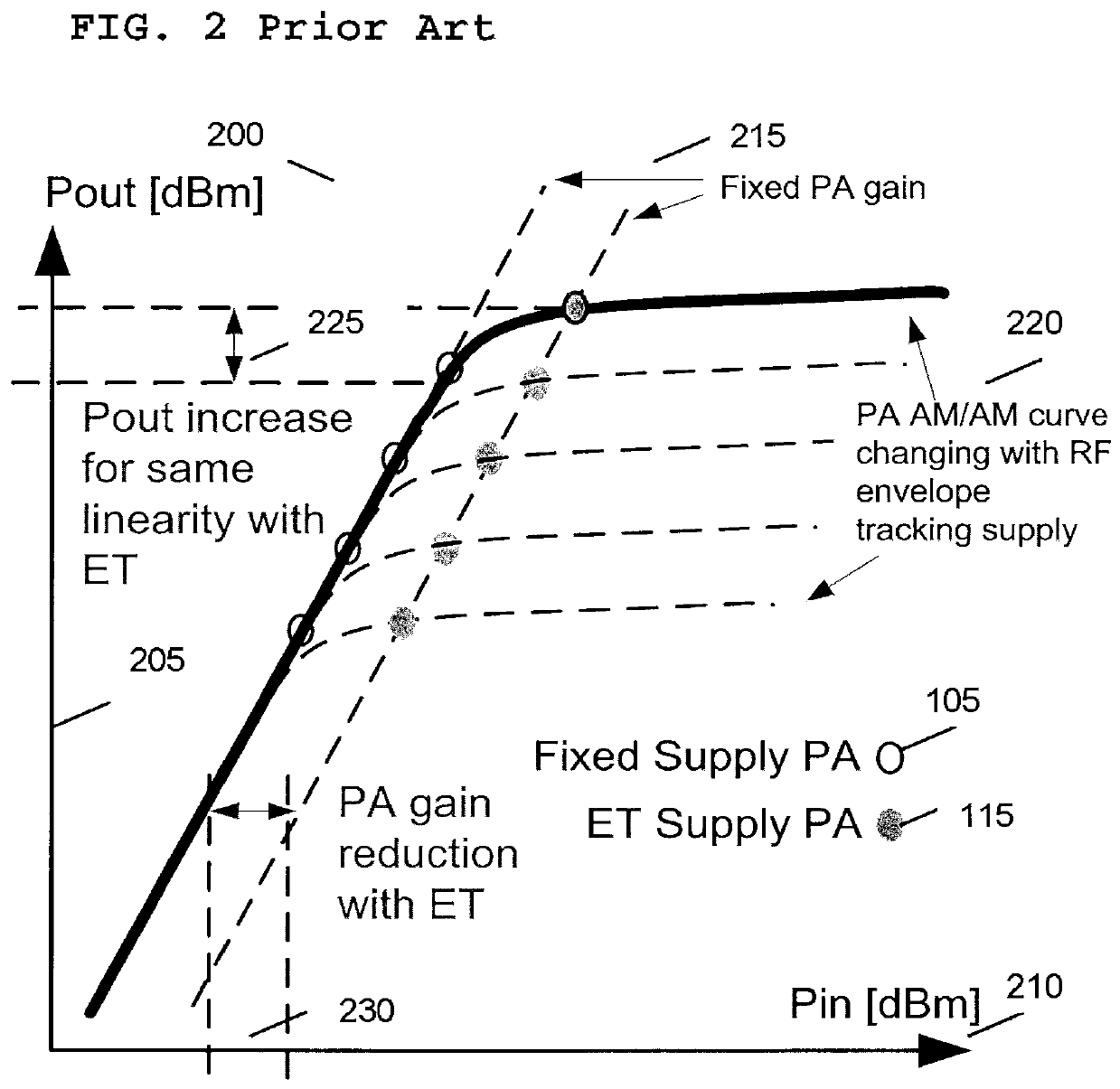

Figure 2
Figure 3
AI summary
An integrated circuit is described for providing a power supply to a radio frequency (RF) power amplifier (PA). The integrated circuit comprises a low-frequency power supply path comprising a switching regulator and a high-frequency power supply path arranged to regulate an output voltage of a combined power supply at an output port of the integrated circuit for coupling to a load. The high- frequency power supply path comprises: an amplifier comprising a voltage feedback and arranged to drive a power supply signal on the high-frequency power supply path; and a high-frequency-path supply module arranged to provide a high frequency supply to drive the amplifier, where the high-frequency-path supply module comprises a pulse-width modulator operably coupled to the high frequency supply via a filter and arranged to provide a filtered pulse-width modulated signal to the high frequency supply.
