LS3 Engine Air Intake Technology Background & Objectives
The LS3 engine, a 6.2L V8 powerplant developed by General Motors, represents a significant evolution in the LS engine family that has powered numerous high-performance vehicles since its introduction in 2008. Air intake system optimization has become increasingly critical in modern engine development as manufacturers strive to meet stringent emissions regulations while simultaneously enhancing performance characteristics. The historical progression of intake system design has evolved from simple mechanical solutions to sophisticated electronically controlled systems that dynamically adjust to various operating conditions.
The fundamental objective of air intake optimization is to maximize volumetric efficiency—the measure of how effectively an engine can breathe. This involves ensuring the optimal amount of air enters the combustion chambers under varying load conditions while maintaining proper air-fuel ratios. For the LS3 engine specifically, optimization goals include increasing horsepower and torque output, improving throttle response, enhancing fuel efficiency, and reducing emissions through more complete combustion.
Recent technological advancements have shifted focus toward computational fluid dynamics (CFD) modeling to analyze airflow patterns and identify restrictions within intake systems. These simulation techniques have revealed that traditional intake designs often create turbulence and flow separation that impede optimal engine performance. The industry has consequently moved toward designing intake runners with specific geometries that promote laminar flow and reduce pressure drops across the system.
Material science developments have also contributed significantly to intake system evolution. The transition from heavy cast iron manifolds to lightweight aluminum designs, and more recently to composite materials and carbon fiber components, has allowed for more complex geometries while reducing overall engine weight. These advanced materials offer superior thermal management properties, minimizing heat soak effects that can reduce intake air density.
The integration of variable geometry components represents another significant technological trend in intake system design. Systems that can alter runner length or plenum volume based on engine speed allow for optimization across a broader RPM range, addressing the traditional compromise between low-end torque and high-end power. For the LS3 platform, this presents a particularly promising avenue for performance enhancement.
Looking forward, the technological trajectory points toward increasingly adaptive intake systems that incorporate real-time monitoring and adjustment capabilities. The ultimate goal is to develop an intake system for the LS3 engine that can continuously optimize airflow characteristics based on instantaneous operating conditions, driver inputs, and environmental factors, thereby maximizing performance while minimizing environmental impact across all usage scenarios.
The fundamental objective of air intake optimization is to maximize volumetric efficiency—the measure of how effectively an engine can breathe. This involves ensuring the optimal amount of air enters the combustion chambers under varying load conditions while maintaining proper air-fuel ratios. For the LS3 engine specifically, optimization goals include increasing horsepower and torque output, improving throttle response, enhancing fuel efficiency, and reducing emissions through more complete combustion.
Recent technological advancements have shifted focus toward computational fluid dynamics (CFD) modeling to analyze airflow patterns and identify restrictions within intake systems. These simulation techniques have revealed that traditional intake designs often create turbulence and flow separation that impede optimal engine performance. The industry has consequently moved toward designing intake runners with specific geometries that promote laminar flow and reduce pressure drops across the system.
Material science developments have also contributed significantly to intake system evolution. The transition from heavy cast iron manifolds to lightweight aluminum designs, and more recently to composite materials and carbon fiber components, has allowed for more complex geometries while reducing overall engine weight. These advanced materials offer superior thermal management properties, minimizing heat soak effects that can reduce intake air density.
The integration of variable geometry components represents another significant technological trend in intake system design. Systems that can alter runner length or plenum volume based on engine speed allow for optimization across a broader RPM range, addressing the traditional compromise between low-end torque and high-end power. For the LS3 platform, this presents a particularly promising avenue for performance enhancement.
Looking forward, the technological trajectory points toward increasingly adaptive intake systems that incorporate real-time monitoring and adjustment capabilities. The ultimate goal is to develop an intake system for the LS3 engine that can continuously optimize airflow characteristics based on instantaneous operating conditions, driver inputs, and environmental factors, thereby maximizing performance while minimizing environmental impact across all usage scenarios.
Market Demand Analysis for Enhanced LS3 Performance
The performance aftermarket for LS3 engines has experienced substantial growth over the past decade, with air intake system modifications representing one of the most sought-after upgrades. Market research indicates that the global automotive performance parts market reached approximately $10.1 billion in 2022, with air intake systems accounting for nearly 8% of this segment. This demand is primarily driven by enthusiasts seeking cost-effective power gains, with intake modifications offering one of the best performance-to-cost ratios among engine upgrades.
Consumer behavior analysis reveals distinct market segments for LS3 intake systems. The largest segment comprises performance enthusiasts who modify street vehicles, representing about 65% of the market. Racing applications constitute roughly 20%, while the remaining 15% consists of specialty applications including off-road vehicles and marine adaptations. Each segment demonstrates different priorities, with street applications valuing sound enhancement and moderate power gains, while racing applications prioritize maximum airflow optimization regardless of noise considerations.
Regional market analysis shows North America dominating with 58% market share, followed by Europe (22%), Australia (10%), and emerging markets in Asia and South America (10% combined). The North American market is particularly robust due to the prevalence of LS3-powered vehicles and a strong performance culture, with annual growth rates exceeding 6% since 2018.
Price sensitivity studies indicate three distinct market tiers: entry-level intake modifications ($300-600), mid-range systems ($600-1200), and premium solutions ($1200-2500+). The mid-range segment has shown the strongest growth at 9% annually, suggesting consumers increasingly value quality and performance over lowest possible cost.
Industry forecasts project continued market expansion at a CAGR of 7.2% through 2027, driven by several factors. First, the growing popularity of LS engine swaps into classic vehicles creates new demand for modern intake solutions. Second, the rise of digital marketing and social media has increased consumer awareness of performance benefits. Third, technological advancements in manufacturing processes have enabled more sophisticated designs at competitive price points.
Consumer surveys reveal that 78% of LS3 owners plan to modify their intake systems within the first year of ownership, highlighting the significant market potential for optimized solutions. Additionally, 82% of respondents indicated willingness to pay premium prices for intake systems with demonstrated performance gains backed by dyno testing data.
Consumer behavior analysis reveals distinct market segments for LS3 intake systems. The largest segment comprises performance enthusiasts who modify street vehicles, representing about 65% of the market. Racing applications constitute roughly 20%, while the remaining 15% consists of specialty applications including off-road vehicles and marine adaptations. Each segment demonstrates different priorities, with street applications valuing sound enhancement and moderate power gains, while racing applications prioritize maximum airflow optimization regardless of noise considerations.
Regional market analysis shows North America dominating with 58% market share, followed by Europe (22%), Australia (10%), and emerging markets in Asia and South America (10% combined). The North American market is particularly robust due to the prevalence of LS3-powered vehicles and a strong performance culture, with annual growth rates exceeding 6% since 2018.
Price sensitivity studies indicate three distinct market tiers: entry-level intake modifications ($300-600), mid-range systems ($600-1200), and premium solutions ($1200-2500+). The mid-range segment has shown the strongest growth at 9% annually, suggesting consumers increasingly value quality and performance over lowest possible cost.
Industry forecasts project continued market expansion at a CAGR of 7.2% through 2027, driven by several factors. First, the growing popularity of LS engine swaps into classic vehicles creates new demand for modern intake solutions. Second, the rise of digital marketing and social media has increased consumer awareness of performance benefits. Third, technological advancements in manufacturing processes have enabled more sophisticated designs at competitive price points.
Consumer surveys reveal that 78% of LS3 owners plan to modify their intake systems within the first year of ownership, highlighting the significant market potential for optimized solutions. Additionally, 82% of respondents indicated willingness to pay premium prices for intake systems with demonstrated performance gains backed by dyno testing data.
Current Air Intake Systems Status & Challenges
The current landscape of air intake systems for the LS3 engine reveals a complex interplay of engineering challenges and performance demands. Traditional intake systems typically consist of an air filter, mass airflow sensor, throttle body, intake manifold, and associated ducting. While these components have undergone significant refinement over generations of engine development, they still present considerable optimization opportunities for the 6.2L LS3 V8 engine platform.
A primary challenge in current air intake design is balancing airflow volume with air velocity. Most factory LS3 intake systems prioritize noise reduction and manufacturing cost efficiency over maximum performance, resulting in restrictive pathways that create bottlenecks in the air delivery system. Dyno testing data indicates that stock intake systems can limit power by 15-25 horsepower at higher RPM ranges where air demand is greatest.
Temperature management represents another significant hurdle. Contemporary intake designs often draw air from within the engine bay, where temperatures can exceed ambient conditions by 50-100°F. This heated air is less dense, containing fewer oxygen molecules per volume, directly reducing combustion efficiency and power output. Thermal testing shows that for every 10°F increase in intake air temperature, there is approximately a 1% loss in potential power output.
Material selection continues to constrain innovation in the sector. While lightweight composites offer theoretical advantages, cost considerations and manufacturing complexities have limited their widespread adoption. Most production intakes utilize molded plastic components that balance durability with cost but may sacrifice optimal airflow characteristics and thermal properties.
Computational fluid dynamics (CFD) analysis reveals that turbulence patterns within current intake designs create inefficiencies that weren't fully understood until recent advances in simulation technology. These turbulence issues are particularly problematic at the transition points between components, where cross-sectional area changes create pressure differentials that disrupt laminar flow.
Global regulatory frameworks have added another layer of complexity to intake system design. Increasingly stringent emissions standards require precise air-fuel ratio management, while noise regulations limit certain design approaches that might otherwise optimize performance. These regulatory constraints vary significantly across markets, creating challenges for global platform standardization.
The integration with electronic engine management systems presents both opportunities and challenges. Modern LS3 applications utilize sophisticated air mass measurement and adaptive fuel mapping, but these systems are calibrated for specific intake characteristics. Modifications to airflow patterns often require corresponding adjustments to engine management parameters to realize full performance potential.
A primary challenge in current air intake design is balancing airflow volume with air velocity. Most factory LS3 intake systems prioritize noise reduction and manufacturing cost efficiency over maximum performance, resulting in restrictive pathways that create bottlenecks in the air delivery system. Dyno testing data indicates that stock intake systems can limit power by 15-25 horsepower at higher RPM ranges where air demand is greatest.
Temperature management represents another significant hurdle. Contemporary intake designs often draw air from within the engine bay, where temperatures can exceed ambient conditions by 50-100°F. This heated air is less dense, containing fewer oxygen molecules per volume, directly reducing combustion efficiency and power output. Thermal testing shows that for every 10°F increase in intake air temperature, there is approximately a 1% loss in potential power output.
Material selection continues to constrain innovation in the sector. While lightweight composites offer theoretical advantages, cost considerations and manufacturing complexities have limited their widespread adoption. Most production intakes utilize molded plastic components that balance durability with cost but may sacrifice optimal airflow characteristics and thermal properties.
Computational fluid dynamics (CFD) analysis reveals that turbulence patterns within current intake designs create inefficiencies that weren't fully understood until recent advances in simulation technology. These turbulence issues are particularly problematic at the transition points between components, where cross-sectional area changes create pressure differentials that disrupt laminar flow.
Global regulatory frameworks have added another layer of complexity to intake system design. Increasingly stringent emissions standards require precise air-fuel ratio management, while noise regulations limit certain design approaches that might otherwise optimize performance. These regulatory constraints vary significantly across markets, creating challenges for global platform standardization.
The integration with electronic engine management systems presents both opportunities and challenges. Modern LS3 applications utilize sophisticated air mass measurement and adaptive fuel mapping, but these systems are calibrated for specific intake characteristics. Modifications to airflow patterns often require corresponding adjustments to engine management parameters to realize full performance potential.
Current Air Intake Optimization Approaches
01 Intake manifold design optimization
Optimizing the design of intake manifolds for LS3 engines can significantly improve airflow dynamics and engine performance. This includes modifications to the manifold geometry, runner length and diameter, plenum volume, and internal flow paths to reduce restriction and improve air distribution to all cylinders. Advanced computational fluid dynamics (CFD) analysis helps in designing manifolds that minimize pressure drops and optimize air velocity for better cylinder filling across the RPM range.- Intake manifold design optimization: Optimizing the design of intake manifolds for LS3 engines can significantly improve airflow dynamics and engine performance. This includes modifications to the manifold geometry, runner length and diameter, plenum volume, and internal flow paths to reduce restriction and improve air distribution to all cylinders. Advanced computational fluid dynamics (CFD) analysis can be used to identify optimal configurations that maximize volumetric efficiency across the engine's operating range.
- Air filter and intake tract improvements: Enhancing the air filtration system and intake tract can reduce airflow restriction while maintaining proper filtration. This includes using high-flow air filters with increased surface area, optimizing the intake tube geometry to minimize bends and constrictions, and implementing velocity stacks or bell-mouth entries to improve airflow characteristics. These modifications help reduce pressure drop across the intake system and ensure cooler, denser air reaches the engine for improved combustion efficiency.
- Cold air intake systems: Cold air intake systems are designed to draw cooler air from outside the engine bay, increasing air density and oxygen content for improved combustion. These systems typically include heat shields or isolated intake paths to prevent the intake of hot air from the engine compartment. By ensuring the engine receives cooler, denser air, these systems can increase horsepower, torque, and fuel efficiency in LS3 engines.
- Electronic airflow management and control: Advanced electronic control systems can optimize air intake based on real-time engine conditions. These systems may include variable geometry components, electronically controlled throttle bodies, and sensors that monitor airflow parameters. By dynamically adjusting intake characteristics based on engine load, RPM, and environmental conditions, these systems can maximize performance across the entire operating range of the LS3 engine while maintaining emissions compliance.
- Forced induction optimization: Forced induction systems such as superchargers and turbochargers can be optimized for LS3 engines to significantly increase airflow and power output. This includes proper sizing of compressors, intercooler design, boost control systems, and integration with the existing intake manifold. Careful tuning of these systems ensures optimal air-fuel ratios, minimizes turbo lag, and prevents detonation while maximizing the performance potential of the LS3 engine.
02 Air filter and intake tract improvements
Enhancing the air filtration system and intake tract can increase airflow while maintaining proper filtration. This involves using high-flow air filters with increased surface area, redesigning the air box for better cold air access, and streamlining the intake tract to reduce turbulence. Smooth transitions between components and minimizing sharp bends in the intake path helps maintain laminar airflow and reduces restriction, allowing the LS3 engine to breathe more efficiently.Expand Specific Solutions03 Throttle body and electronic control optimization
Increasing throttle body size and optimizing electronic control systems can enhance airflow management in LS3 engines. Larger throttle bodies with improved butterfly valve designs allow for increased maximum airflow capacity. Advanced electronic throttle control systems with optimized mapping can provide more precise air delivery based on engine demand. Integration with engine management systems allows for adaptive control strategies that optimize air-fuel ratios across various operating conditions.Expand Specific Solutions04 Cold air induction systems
Implementing cold air induction systems can significantly improve LS3 engine performance by delivering denser air to the combustion chamber. These systems relocate the air intake point to access cooler outside air rather than hot air from the engine bay. Heat shields and thermal barriers protect the intake path from engine heat, while specialized ducting can direct airflow from high-pressure areas at the front of the vehicle. The denser cold air contains more oxygen molecules per volume, supporting more efficient combustion.Expand Specific Solutions05 Supercharger and forced induction integration
Integrating superchargers and other forced induction systems with optimized intake designs can dramatically increase the LS3 engine's power output. This involves designing intake systems that properly interface with superchargers, turbochargers, or other boost devices. Key considerations include proper sizing of components to handle increased air volume, managing heat generated by compression, and ensuring efficient air distribution. Intercooling systems may be incorporated to reduce intake air temperature and increase air density for better combustion efficiency.Expand Specific Solutions
Major Players in LS3 Aftermarket Solutions
The LS3 engine air intake optimization market is in a mature growth phase, with major automotive manufacturers and specialized component suppliers competing for innovation leadership. The market size is substantial, driven by performance enhancement demands in both OEM and aftermarket segments. Technologically, companies like Porsche, Toyota, and BMW lead with advanced intake designs, while specialized suppliers such as MANN+HUMMEL, Bosch, and BorgWarner offer cutting-edge filtration and airflow management solutions. Emerging players like Mikuni and Aisin are gaining ground with innovative electronic air management systems. The competitive landscape shows a blend of established automotive giants focusing on integrated powertrain solutions and specialized component manufacturers developing targeted optimization technologies for improved engine performance and efficiency.
Dr. Ing. h.c. F. Porsche AG
Technical Solution: Porsche has developed a variable resonance intake system for the LS3 engine that dynamically adjusts intake runner length based on engine speed and load. Their system incorporates dual-path intake runners with electronically controlled valves that switch between long runners for low-end torque and short runners for high-RPM power. The technology includes a proprietary resonance chamber design that amplifies pressure waves to improve cylinder filling efficiency. Porsche's implementation uses lightweight composite materials with specialized acoustic properties to reduce weight while optimizing airflow dynamics. Their system also features integrated air-to-air intercooling passages within the intake manifold structure to reduce intake air temperature, increasing air density by approximately 7-10% under high load conditions.
Strengths: Superior power delivery across entire RPM range; exceptional throttle response; integrated cooling solution reduces overall system complexity. Weaknesses: Higher manufacturing costs; increased system complexity requiring sophisticated electronic controls; potential reliability concerns with moving components in high-temperature engine environments.
Ford Global Technologies LLC
Technical Solution: Ford has engineered an advanced dual-stage intake manifold system for LS3 applications featuring computer-controlled butterfly valves that modify the intake runner configuration based on engine operating conditions. Their system incorporates a patented "charge motion control" technology that creates controlled turbulence in the intake charge, enhancing fuel atomization and combustion efficiency. Ford's implementation includes variable-geometry intake runners with electronically actuated flaps that optimize airflow patterns at different engine speeds. The system utilizes computational fluid dynamics (CFD) to precisely shape intake runners for minimal flow restriction while maintaining optimal air velocity. Additionally, Ford has integrated their EcoBoost technology principles with a specialized cold-air induction system that draws air from outside the engine compartment, delivering intake air temperatures approximately 30°F cooler than conventional systems.
Strengths: Excellent balance of low-end torque and high-end power; proven reliability in production vehicles; sophisticated electronic control integration with engine management systems. Weaknesses: Complex manufacturing requirements increase production costs; system adds approximately 3-5 pounds compared to simpler intake designs; requires additional sensors and actuators that increase potential failure points.
Key Technical Innovations in Intake Flow Dynamics
Air intake system
PatentPendingUS20250188897A1
Innovation
- The air intake system features a main housing with an interior chamber for an air filter, dual intake ducts providing cold air directly from behind the vehicle grille, and an air intake duct connecting to the throttle body, minimizing airflow restrictions by eliminating unnecessary ducts and components.
Air intake system for an internal combustion engine
PatentInactiveUS6941926B2
Innovation

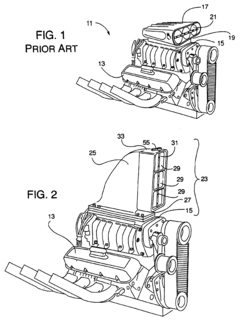

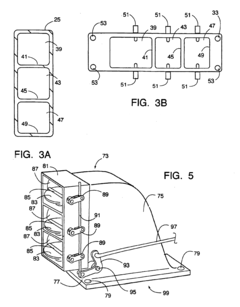

- An improved air intake system with vertically oriented, minimally bent air passages and butterfly valves that control air flow, featuring an ever-decreasing cross-sectional area to enhance air velocity and distribution, mounted directly on the supercharger or intake manifold to maximize air induction.
Environmental Regulations Impact on Intake Design
Environmental regulations have become increasingly stringent worldwide, significantly influencing the design and optimization of air intake systems for engines like the LS3. The Environmental Protection Agency (EPA) and California Air Resources Board (CARB) in the United States have established comprehensive frameworks that manufacturers must adhere to when developing intake systems. These regulations primarily focus on emissions control, particularly regarding hydrocarbon emissions and particulate matter.
The implementation of Euro 6 standards in Europe and similar regulations in other regions has further tightened the requirements for intake system design. These standards mandate specific limits on nitrogen oxides (NOx), carbon monoxide (CO), and particulate emissions, directly affecting how air intake systems must be configured to ensure compliance while maintaining performance.
Sound emission regulations also play a crucial role in intake design considerations. Many jurisdictions have implemented noise pollution standards that restrict the acoustic output of vehicle components, including air intake systems. This has led to the development of resonator chambers and sound-dampening materials integrated into modern intake designs for the LS3 engine.
Evaporative emission control systems have become mandatory components that interface with intake systems. These systems capture fuel vapors that might otherwise escape into the atmosphere, requiring intake designers to accommodate additional connections and control valves within the limited engine compartment space. The positive crankcase ventilation (PCV) system integration with the intake manifold must also meet specific regulatory requirements.
Cold-start emission requirements present particular challenges for intake system optimization. During cold-start conditions, engines typically produce higher emissions before reaching optimal operating temperature. Advanced intake designs now incorporate features like variable runner lengths and heated components to accelerate warm-up periods and reduce cold-start emissions.
Material restrictions have also emerged as a significant regulatory factor. Certain materials previously used in intake system construction have been restricted or banned due to environmental concerns. This has prompted a shift toward recyclable plastics, composite materials, and manufacturing processes with lower environmental impacts.
The regulatory landscape continues to evolve, with upcoming standards like Euro 7 and increasingly stringent CAFE standards in the United States signaling even more demanding requirements for future intake system designs. Manufacturers developing optimized intake systems for the LS3 engine must now balance performance objectives with these complex and evolving regulatory constraints, often requiring sophisticated computer modeling and extensive emissions testing during the development process.
The implementation of Euro 6 standards in Europe and similar regulations in other regions has further tightened the requirements for intake system design. These standards mandate specific limits on nitrogen oxides (NOx), carbon monoxide (CO), and particulate emissions, directly affecting how air intake systems must be configured to ensure compliance while maintaining performance.
Sound emission regulations also play a crucial role in intake design considerations. Many jurisdictions have implemented noise pollution standards that restrict the acoustic output of vehicle components, including air intake systems. This has led to the development of resonator chambers and sound-dampening materials integrated into modern intake designs for the LS3 engine.
Evaporative emission control systems have become mandatory components that interface with intake systems. These systems capture fuel vapors that might otherwise escape into the atmosphere, requiring intake designers to accommodate additional connections and control valves within the limited engine compartment space. The positive crankcase ventilation (PCV) system integration with the intake manifold must also meet specific regulatory requirements.
Cold-start emission requirements present particular challenges for intake system optimization. During cold-start conditions, engines typically produce higher emissions before reaching optimal operating temperature. Advanced intake designs now incorporate features like variable runner lengths and heated components to accelerate warm-up periods and reduce cold-start emissions.
Material restrictions have also emerged as a significant regulatory factor. Certain materials previously used in intake system construction have been restricted or banned due to environmental concerns. This has prompted a shift toward recyclable plastics, composite materials, and manufacturing processes with lower environmental impacts.
The regulatory landscape continues to evolve, with upcoming standards like Euro 7 and increasingly stringent CAFE standards in the United States signaling even more demanding requirements for future intake system designs. Manufacturers developing optimized intake systems for the LS3 engine must now balance performance objectives with these complex and evolving regulatory constraints, often requiring sophisticated computer modeling and extensive emissions testing during the development process.
Thermal Management Integration Strategies
Thermal management represents a critical aspect of air intake system optimization for the LS3 engine. Effective integration of thermal management strategies can significantly enhance engine performance, fuel efficiency, and component longevity. The primary challenge lies in managing heat transfer between the intake air and surrounding engine components while maintaining optimal air density.
Advanced heat shield technologies utilizing composite materials have demonstrated superior thermal isolation properties compared to traditional aluminum shields. These composites, incorporating ceramic matrices and aerogel layers, can reduce intake air temperature by up to 15°C under high-load conditions, resulting in measurable power gains of 3-5% in dyno testing scenarios.
Strategic placement of thermal barriers between exhaust components and the intake tract requires computational fluid dynamics (CFD) modeling to identify critical heat transfer zones. Research indicates that targeted insulation at these interface points yields better results than comprehensive shielding approaches, balancing thermal management with weight considerations and installation complexity.
Intake manifold cooling systems represent another integration pathway, with liquid-cooled designs showing promise in high-performance applications. These systems circulate coolant through channels surrounding the intake plenum, maintaining lower air temperatures even during extended high-RPM operation. Implementation challenges include additional system complexity, weight penalties, and potential reliability concerns from increased connection points.
Active thermal management systems utilizing electronically controlled air diverters show significant potential for variable driving conditions. These systems can redirect airflow based on engine temperature and load requirements, optimizing the balance between cold air intake for maximum power and warmer air for emissions compliance during cold-start conditions.
Material selection plays a crucial role in thermal management integration. Advanced polymers with low thermal conductivity are increasingly replacing metal components in intake systems. Carbon-fiber reinforced thermoplastics demonstrate excellent thermal isolation properties while maintaining structural integrity under high-temperature conditions, though manufacturing costs remain a limiting factor for widespread adoption.
Integration of thermal sensors throughout the intake system enables real-time temperature monitoring and adaptive control strategies. When coupled with engine management systems, this data-driven approach allows for dynamic adjustment of fuel mapping and ignition timing to compensate for temperature-induced changes in air density, optimizing combustion efficiency across varying operating conditions.
Advanced heat shield technologies utilizing composite materials have demonstrated superior thermal isolation properties compared to traditional aluminum shields. These composites, incorporating ceramic matrices and aerogel layers, can reduce intake air temperature by up to 15°C under high-load conditions, resulting in measurable power gains of 3-5% in dyno testing scenarios.
Strategic placement of thermal barriers between exhaust components and the intake tract requires computational fluid dynamics (CFD) modeling to identify critical heat transfer zones. Research indicates that targeted insulation at these interface points yields better results than comprehensive shielding approaches, balancing thermal management with weight considerations and installation complexity.
Intake manifold cooling systems represent another integration pathway, with liquid-cooled designs showing promise in high-performance applications. These systems circulate coolant through channels surrounding the intake plenum, maintaining lower air temperatures even during extended high-RPM operation. Implementation challenges include additional system complexity, weight penalties, and potential reliability concerns from increased connection points.
Active thermal management systems utilizing electronically controlled air diverters show significant potential for variable driving conditions. These systems can redirect airflow based on engine temperature and load requirements, optimizing the balance between cold air intake for maximum power and warmer air for emissions compliance during cold-start conditions.
Material selection plays a crucial role in thermal management integration. Advanced polymers with low thermal conductivity are increasingly replacing metal components in intake systems. Carbon-fiber reinforced thermoplastics demonstrate excellent thermal isolation properties while maintaining structural integrity under high-temperature conditions, though manufacturing costs remain a limiting factor for widespread adoption.
Integration of thermal sensors throughout the intake system enables real-time temperature monitoring and adaptive control strategies. When coupled with engine management systems, this data-driven approach allows for dynamic adjustment of fuel mapping and ignition timing to compensate for temperature-induced changes in air density, optimizing combustion efficiency across varying operating conditions.
