Scaling Dolby Vision for Large Format Digital Screens
JUL 30, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.
Dolby Vision Evolution
Dolby Vision has undergone significant evolution since its inception, marking key milestones in the advancement of high dynamic range (HDR) imaging technology. Initially introduced in 2014, Dolby Vision was designed to enhance the viewing experience by offering superior contrast, brightness, and color accuracy compared to standard dynamic range (SDR) content.
The early stages of Dolby Vision focused on content creation and mastering processes, enabling filmmakers and content producers to capture and preserve a wider range of colors and brightness levels. This phase emphasized the development of tools and workflows that could handle the increased data requirements of HDR content while maintaining creative intent throughout the production pipeline.
As the technology matured, Dolby Vision expanded its reach beyond professional content creation to consumer displays. This transition marked a crucial point in its evolution, as it required the development of efficient encoding and decoding methods to deliver HDR content to a variety of devices, including televisions, mobile phones, and tablets.
The next significant phase in Dolby Vision's evolution addressed the challenge of backward compatibility. Dolby introduced a dual-layer approach, where a base layer compatible with standard HDR10 was complemented by an enhancement layer containing Dolby Vision-specific metadata. This innovation allowed for wider adoption across different platforms and ensured that content could be displayed on both Dolby Vision-enabled and standard HDR devices.
Recent advancements in Dolby Vision have focused on real-time processing capabilities, enabling live broadcast applications and gaming experiences. This development has opened up new avenues for the technology, expanding its use beyond pre-recorded content to dynamic, interactive media.
The evolution of Dolby Vision has also seen improvements in efficiency and scalability. As the demand for higher resolution content grew, Dolby Vision adapted to support 4K and 8K resolutions while optimizing bandwidth usage. This scalability has become increasingly important as the technology is applied to larger format digital screens, where the benefits of enhanced dynamic range and color accuracy are even more pronounced.
Throughout its evolution, Dolby Vision has consistently pushed the boundaries of what is possible in digital imaging, driving the industry towards higher quality standards and more immersive viewing experiences. Its development trajectory has been closely aligned with advancements in display technology, content distribution methods, and consumer expectations, ensuring its relevance in an ever-changing digital landscape.
The early stages of Dolby Vision focused on content creation and mastering processes, enabling filmmakers and content producers to capture and preserve a wider range of colors and brightness levels. This phase emphasized the development of tools and workflows that could handle the increased data requirements of HDR content while maintaining creative intent throughout the production pipeline.
As the technology matured, Dolby Vision expanded its reach beyond professional content creation to consumer displays. This transition marked a crucial point in its evolution, as it required the development of efficient encoding and decoding methods to deliver HDR content to a variety of devices, including televisions, mobile phones, and tablets.
The next significant phase in Dolby Vision's evolution addressed the challenge of backward compatibility. Dolby introduced a dual-layer approach, where a base layer compatible with standard HDR10 was complemented by an enhancement layer containing Dolby Vision-specific metadata. This innovation allowed for wider adoption across different platforms and ensured that content could be displayed on both Dolby Vision-enabled and standard HDR devices.
Recent advancements in Dolby Vision have focused on real-time processing capabilities, enabling live broadcast applications and gaming experiences. This development has opened up new avenues for the technology, expanding its use beyond pre-recorded content to dynamic, interactive media.
The evolution of Dolby Vision has also seen improvements in efficiency and scalability. As the demand for higher resolution content grew, Dolby Vision adapted to support 4K and 8K resolutions while optimizing bandwidth usage. This scalability has become increasingly important as the technology is applied to larger format digital screens, where the benefits of enhanced dynamic range and color accuracy are even more pronounced.
Throughout its evolution, Dolby Vision has consistently pushed the boundaries of what is possible in digital imaging, driving the industry towards higher quality standards and more immersive viewing experiences. Its development trajectory has been closely aligned with advancements in display technology, content distribution methods, and consumer expectations, ensuring its relevance in an ever-changing digital landscape.
Large Screen Market Trends
The large screen market has been experiencing significant growth and transformation in recent years, driven by technological advancements and changing consumer preferences. This trend is particularly evident in the digital signage sector, where large format displays are becoming increasingly prevalent in various settings, from retail environments to public spaces and entertainment venues.
One of the key factors fueling this market expansion is the declining cost of large screen technologies, particularly LED and OLED displays. As manufacturing processes improve and economies of scale come into play, these once-prohibitively expensive technologies are becoming more accessible to a wider range of businesses and institutions. This cost reduction has opened up new opportunities for deployment in areas previously dominated by smaller screens or traditional signage.
The demand for immersive visual experiences is another crucial driver of the large screen market. Consumers and businesses alike are seeking more engaging and impactful ways to present information, advertise products, and entertain audiences. Large format digital screens offer a compelling solution, providing high-resolution, dynamic content that can capture attention and convey messages more effectively than static displays.
In the entertainment sector, the adoption of large screens in cinemas and theaters has been particularly noteworthy. Many venues are upgrading to state-of-the-art projection systems or LED walls to enhance the viewing experience and compete with home entertainment options. This trend has been accelerated by the need to differentiate the cinema experience from increasingly sophisticated home theater setups.
The retail industry has also embraced large format digital screens as a means of creating more interactive and personalized shopping experiences. From storefront displays to in-store digital signage, retailers are leveraging these technologies to showcase products, provide information, and create immersive brand environments that can drive customer engagement and sales.
Corporate and educational settings represent another growing market for large screen technologies. Boardrooms, conference centers, and lecture halls are increasingly equipped with high-resolution displays to facilitate presentations, video conferencing, and collaborative work. The shift towards hybrid work and learning models has further emphasized the importance of clear, large-scale visual communication tools.
As cities become smarter and more connected, the use of large format digital screens in public spaces is also on the rise. These displays are being integrated into transportation hubs, city centers, and sports venues to provide real-time information, wayfinding services, and entertainment content to large audiences.
Looking ahead, the large screen market is expected to continue its growth trajectory, with innovations in display technology, content creation, and interactivity driving further adoption across various sectors. The integration of advanced features such as touch capabilities, 3D visualization, and augmented reality overlays is likely to expand the potential applications and value proposition of large format digital screens in the coming years.
One of the key factors fueling this market expansion is the declining cost of large screen technologies, particularly LED and OLED displays. As manufacturing processes improve and economies of scale come into play, these once-prohibitively expensive technologies are becoming more accessible to a wider range of businesses and institutions. This cost reduction has opened up new opportunities for deployment in areas previously dominated by smaller screens or traditional signage.
The demand for immersive visual experiences is another crucial driver of the large screen market. Consumers and businesses alike are seeking more engaging and impactful ways to present information, advertise products, and entertain audiences. Large format digital screens offer a compelling solution, providing high-resolution, dynamic content that can capture attention and convey messages more effectively than static displays.
In the entertainment sector, the adoption of large screens in cinemas and theaters has been particularly noteworthy. Many venues are upgrading to state-of-the-art projection systems or LED walls to enhance the viewing experience and compete with home entertainment options. This trend has been accelerated by the need to differentiate the cinema experience from increasingly sophisticated home theater setups.
The retail industry has also embraced large format digital screens as a means of creating more interactive and personalized shopping experiences. From storefront displays to in-store digital signage, retailers are leveraging these technologies to showcase products, provide information, and create immersive brand environments that can drive customer engagement and sales.
Corporate and educational settings represent another growing market for large screen technologies. Boardrooms, conference centers, and lecture halls are increasingly equipped with high-resolution displays to facilitate presentations, video conferencing, and collaborative work. The shift towards hybrid work and learning models has further emphasized the importance of clear, large-scale visual communication tools.
As cities become smarter and more connected, the use of large format digital screens in public spaces is also on the rise. These displays are being integrated into transportation hubs, city centers, and sports venues to provide real-time information, wayfinding services, and entertainment content to large audiences.
Looking ahead, the large screen market is expected to continue its growth trajectory, with innovations in display technology, content creation, and interactivity driving further adoption across various sectors. The integration of advanced features such as touch capabilities, 3D visualization, and augmented reality overlays is likely to expand the potential applications and value proposition of large format digital screens in the coming years.
Technical Hurdles
Scaling Dolby Vision for large format digital screens presents several significant technical hurdles that need to be addressed. One of the primary challenges is maintaining the high dynamic range (HDR) and wide color gamut (WCG) that Dolby Vision is known for when projecting onto much larger screens. The increased screen size amplifies any imperfections in the image, making it crucial to develop advanced algorithms for upscaling and image processing.
Another major hurdle is the need for increased processing power and bandwidth to handle the massive amount of data required for Dolby Vision content on large screens. This becomes particularly challenging when dealing with real-time content or live broadcasts, where low latency is essential. The hardware infrastructure, including projectors and media servers, must be capable of processing and delivering this data-intensive content without compromising on quality or introducing lag.
Light management poses a significant challenge in large format digital screens. Achieving the deep blacks and high contrast ratios that Dolby Vision is known for becomes more difficult as screen size increases. This requires innovative solutions in both projection technology and screen materials to minimize light scatter and maintain image integrity across the entire display surface.
Color accuracy and consistency across the entire screen area is another technical hurdle. As the screen size grows, ensuring uniform color reproduction becomes more complex. This necessitates advanced color calibration techniques and potentially the development of new display technologies that can maintain consistent color performance at scale.
Heat management is a critical issue when scaling up Dolby Vision for large screens. The increased power requirements for brighter, larger displays can lead to significant heat generation, potentially affecting both image quality and hardware longevity. Developing efficient cooling systems and heat-resistant components is essential to address this challenge.
Content creation and mastering for large format screens present their own set of hurdles. Existing workflows and tools may need to be adapted or completely overhauled to accommodate the unique requirements of creating and optimizing content for these massive displays while preserving the Dolby Vision experience.
Lastly, the integration of Dolby Vision with other large format digital screen technologies, such as high frame rate (HFR) and 3D, presents additional complexities. Ensuring that these technologies work seamlessly together without compromising the core Dolby Vision experience requires significant research and development efforts.
Another major hurdle is the need for increased processing power and bandwidth to handle the massive amount of data required for Dolby Vision content on large screens. This becomes particularly challenging when dealing with real-time content or live broadcasts, where low latency is essential. The hardware infrastructure, including projectors and media servers, must be capable of processing and delivering this data-intensive content without compromising on quality or introducing lag.
Light management poses a significant challenge in large format digital screens. Achieving the deep blacks and high contrast ratios that Dolby Vision is known for becomes more difficult as screen size increases. This requires innovative solutions in both projection technology and screen materials to minimize light scatter and maintain image integrity across the entire display surface.
Color accuracy and consistency across the entire screen area is another technical hurdle. As the screen size grows, ensuring uniform color reproduction becomes more complex. This necessitates advanced color calibration techniques and potentially the development of new display technologies that can maintain consistent color performance at scale.
Heat management is a critical issue when scaling up Dolby Vision for large screens. The increased power requirements for brighter, larger displays can lead to significant heat generation, potentially affecting both image quality and hardware longevity. Developing efficient cooling systems and heat-resistant components is essential to address this challenge.
Content creation and mastering for large format screens present their own set of hurdles. Existing workflows and tools may need to be adapted or completely overhauled to accommodate the unique requirements of creating and optimizing content for these massive displays while preserving the Dolby Vision experience.
Lastly, the integration of Dolby Vision with other large format digital screen technologies, such as high frame rate (HFR) and 3D, presents additional complexities. Ensuring that these technologies work seamlessly together without compromising the core Dolby Vision experience requires significant research and development efforts.
Current Scaling Solutions
01 Dolby Vision scaling techniques
This category focuses on the specific techniques used in Dolby Vision scaling, which may include algorithms for upscaling or downscaling content to different resolutions while maintaining high dynamic range and color accuracy. These techniques are crucial for adapting Dolby Vision content to various display capabilities.- Image scaling techniques for Dolby Vision: This category focuses on advanced image scaling techniques specifically designed for Dolby Vision content. These methods aim to enhance the quality of scaled images while preserving the high dynamic range and wide color gamut characteristics of Dolby Vision. The techniques may involve adaptive algorithms that consider the unique properties of Dolby Vision content during the scaling process.
- Display device optimization for Dolby Vision: This category covers innovations in display devices optimized for Dolby Vision content. It includes hardware and software improvements to enhance the rendering of scaled Dolby Vision content on various display sizes and resolutions. These optimizations may involve specialized processors, color management systems, and adaptive backlight control to ensure accurate reproduction of Dolby Vision content across different scaling scenarios.
- Content-aware scaling for Dolby Vision: This category encompasses methods for content-aware scaling of Dolby Vision content. These techniques analyze the content characteristics, such as brightness, contrast, and color information, to apply optimized scaling algorithms. The goal is to maintain the visual integrity and artistic intent of the original Dolby Vision content when scaling to different resolutions or aspect ratios.
- Metadata handling in Dolby Vision scaling: This category focuses on the management and processing of Dolby Vision metadata during scaling operations. It includes methods for preserving, adapting, or regenerating metadata to ensure that scaled content maintains the intended Dolby Vision characteristics. These techniques may involve intelligent metadata interpolation or extrapolation to accommodate changes in resolution or frame rate.
- Real-time Dolby Vision scaling for broadcast and streaming: This category covers technologies for real-time scaling of Dolby Vision content in broadcast and streaming applications. It includes methods for efficient scaling and processing of Dolby Vision signals to accommodate various transmission bandwidths and display capabilities. These techniques aim to minimize latency while maintaining the high quality and dynamic range of Dolby Vision content across different delivery platforms.
02 Hardware implementation for Dolby Vision processing
This point covers the hardware aspects of implementing Dolby Vision scaling, including specialized chips, circuits, or modules designed to efficiently process and scale Dolby Vision content. These hardware solutions are essential for real-time processing of high-quality video signals.Expand Specific Solutions03 Integration of Dolby Vision with display technologies
This category explores how Dolby Vision scaling is integrated with various display technologies, such as OLED, QLED, or LCD. It may include methods for optimizing the scaled content for specific display characteristics to ensure the best possible image quality.Expand Specific Solutions04 Color management in Dolby Vision scaling
This point focuses on color management techniques specific to Dolby Vision scaling, ensuring accurate color reproduction across different devices and display capabilities. It may include color space conversions, gamut mapping, and preservation of wide color gamut information during scaling operations.Expand Specific Solutions05 Adaptive scaling for Dolby Vision content
This category covers adaptive scaling techniques that dynamically adjust the scaling parameters based on the content and display capabilities. These methods aim to optimize the visual quality of Dolby Vision content across a wide range of devices and viewing conditions.Expand Specific Solutions
Key Industry Players
The scaling of Dolby Vision for large format digital screens is currently in a growth phase, with increasing market demand driven by the rising popularity of high-quality visual experiences. The global market for this technology is expanding, particularly in the cinema and high-end consumer electronics sectors. Technologically, the field is advancing rapidly, with key players like Dolby Laboratories, Samsung Electronics, and Apple leading innovation. These companies are developing proprietary solutions to enhance image quality, color accuracy, and brightness for large-scale displays. Other significant contributors include Sharp, Intel, and Huawei, who are actively investing in research and development to improve the technology's scalability and performance on larger screens.
Samsung Electronics Co., Ltd.
Technical Solution: Samsung's approach to scaling HDR content for large format screens centers around their QLED technology and AI-powered upscaling. Their Quantum Processor utilizes deep learning algorithms to analyze and enhance content in real-time, optimizing it for different screen sizes and resolutions. Samsung's HDR10+ technology, a competitor to Dolby Vision, uses dynamic metadata to adjust brightness and contrast on a scene-by-scene basis. For large format displays, Samsung employs local dimming techniques with Mini-LED backlighting to achieve high contrast ratios and peak brightness levels exceeding 4,000 nits[4][5]. Their scaling solution also incorporates AI-based super-resolution technology to upscale lower resolution content to 4K and 8K without loss of quality.
Strengths: Proprietary QLED technology, AI-powered upscaling, wide range of display sizes. Weaknesses: HDR10+ has less industry adoption compared to Dolby Vision, potential inconsistencies across different content sources.
Dolby Laboratories Licensing Corp.
Technical Solution: Dolby Vision for large format digital screens utilizes advanced HDR technology to deliver superior image quality. The system employs dynamic metadata to optimize each frame, ensuring precise color accuracy and brightness levels across diverse display sizes. Dolby's scaling algorithm adapts content to various resolutions while preserving the creator's intent. The technology supports up to 12-bit color depth and peak brightness of 10,000 nits, significantly expanding the color gamut and contrast ratio[1][2]. Dolby Vision IQ further enhances the viewing experience by adjusting content based on ambient light conditions, ensuring optimal picture quality in any environment[3].
Strengths: Industry-leading HDR technology, wide adoption in consumer electronics, superior image quality. Weaknesses: Licensing costs for manufacturers, potential compatibility issues with non-Dolby systems.
Core Dolby Vision Patents
Layered representation and delivery of high dynamic range video
PatentActiveUS20190373290A1
Innovation
- The implementation of a layered representation and delivery system for HDR video, utilizing Dolby Vision technology, which includes a base layer and enhancement layer, along with metadata processing to reconstruct HDR signals, ensuring seamless playback on compatible displays.

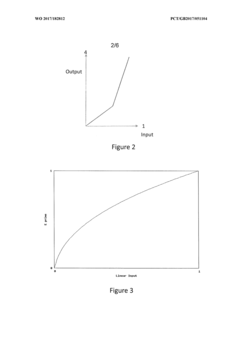

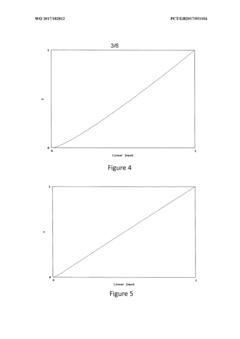

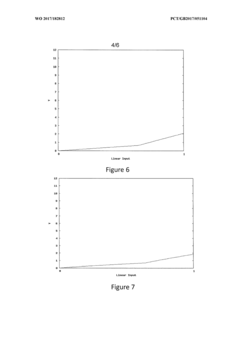

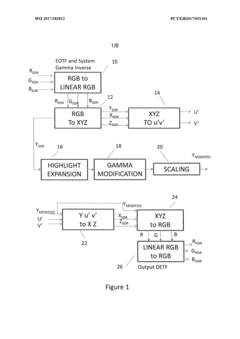

Method and apparatus for conversion of dynamic range of video signals
PatentWO2017182812A1
Innovation
- A method that expands the luminance component of SDR video signals above a threshold in a linear manner, allowing the signals to be usable on HDR devices without affecting other parts of the signal range, and is implemented using a pre-processor or converter that can be in hardware or software, utilizing a 3D look-up table for efficient conversion.
Content Creation Pipeline
The content creation pipeline for scaling Dolby Vision to large format digital screens involves several key stages and considerations. Initially, content creators must capture or generate high dynamic range (HDR) content that fully utilizes the expanded color gamut and luminance range offered by Dolby Vision technology. This often requires specialized cameras capable of capturing a wider range of light and color information than traditional equipment.
Once the raw footage is obtained, it undergoes a meticulous color grading process. This step is crucial for large format screens, as it ensures that the content's visual quality is maintained when displayed on expansive surfaces. Color graders must pay particular attention to how colors and contrasts translate across different viewing distances and angles, which are more varied in large format environments.
The next stage involves mastering the content specifically for Dolby Vision. This process creates multiple layers of metadata that dynamically adjust the image based on the display capabilities and ambient lighting conditions. For large format screens, this metadata becomes even more critical, as it helps maintain image consistency across the entire display area.
Post-production teams must also consider the increased resolution requirements of large format screens. This often necessitates working with 4K or even 8K content to ensure sharpness and detail are preserved when viewed up close or from a distance. The workflow may include upscaling techniques and advanced noise reduction to optimize the content for larger displays.
Encoding is another vital step in the pipeline. The content must be compressed efficiently to manage the substantial data volumes associated with high-resolution, HDR content, while still preserving the visual quality that Dolby Vision offers. This often involves using advanced codecs and carefully balancing file sizes with image quality.
Finally, the content undergoes rigorous quality control and testing on large format displays to ensure that the Dolby Vision experience is optimized for the target screens. This may involve adjustments to brightness levels, color saturation, and contrast to account for the unique characteristics of large format digital screens.
Throughout this pipeline, close collaboration between content creators, post-production specialists, and display technology experts is essential to achieve the best possible results when scaling Dolby Vision content for large format digital screens.
Once the raw footage is obtained, it undergoes a meticulous color grading process. This step is crucial for large format screens, as it ensures that the content's visual quality is maintained when displayed on expansive surfaces. Color graders must pay particular attention to how colors and contrasts translate across different viewing distances and angles, which are more varied in large format environments.
The next stage involves mastering the content specifically for Dolby Vision. This process creates multiple layers of metadata that dynamically adjust the image based on the display capabilities and ambient lighting conditions. For large format screens, this metadata becomes even more critical, as it helps maintain image consistency across the entire display area.
Post-production teams must also consider the increased resolution requirements of large format screens. This often necessitates working with 4K or even 8K content to ensure sharpness and detail are preserved when viewed up close or from a distance. The workflow may include upscaling techniques and advanced noise reduction to optimize the content for larger displays.
Encoding is another vital step in the pipeline. The content must be compressed efficiently to manage the substantial data volumes associated with high-resolution, HDR content, while still preserving the visual quality that Dolby Vision offers. This often involves using advanced codecs and carefully balancing file sizes with image quality.
Finally, the content undergoes rigorous quality control and testing on large format displays to ensure that the Dolby Vision experience is optimized for the target screens. This may involve adjustments to brightness levels, color saturation, and contrast to account for the unique characteristics of large format digital screens.
Throughout this pipeline, close collaboration between content creators, post-production specialists, and display technology experts is essential to achieve the best possible results when scaling Dolby Vision content for large format digital screens.
Viewing Experience Impact
The implementation of Dolby Vision technology on large format digital screens has a profound impact on the viewing experience, elevating it to new heights of visual immersion and realism. This advanced HDR (High Dynamic Range) imaging technology significantly enhances contrast, color accuracy, and brightness, resulting in a more lifelike and engaging visual presentation.
One of the primary benefits of scaling Dolby Vision for large format screens is the increased perception of depth and dimensionality. The expanded dynamic range allows for more nuanced gradations in both bright and dark areas of the image, creating a greater sense of three-dimensionality. This enhanced depth perception is particularly noticeable in scenes with complex lighting or those featuring a wide range of tonal values.
Color reproduction is another area where the viewing experience is markedly improved. Dolby Vision's wide color gamut capability ensures that colors are rendered with exceptional accuracy and vibrancy. This results in more natural-looking skin tones, richer landscapes, and more vivid special effects, all of which contribute to a more immersive and emotionally engaging viewing experience.
The increased brightness capabilities of Dolby Vision on large format screens also play a crucial role in enhancing the viewing experience. Highlights in the image can be rendered with greater intensity, closely mimicking the way the human eye perceives bright objects in the real world. This increased brightness range adds to the overall realism of the image and helps to maintain image quality even in environments with ambient light.
Furthermore, the improved contrast ratio offered by Dolby Vision technology on large screens significantly enhances the viewing experience by providing deeper blacks and brighter whites. This expanded contrast range allows for greater detail retention in both shadowy areas and bright highlights, resulting in a more nuanced and visually rich image that closely approximates human visual perception.
The scaling of Dolby Vision for large format digital screens also addresses issues related to screen size and viewing distance. The technology ensures that the enhanced visual qualities are maintained across the entire screen surface, providing a consistent and high-quality viewing experience regardless of where the viewer is seated in relation to the screen.
In conclusion, the implementation of Dolby Vision on large format digital screens represents a significant leap forward in viewing experience quality. By enhancing contrast, color accuracy, brightness, and overall image fidelity, this technology creates a more immersive, realistic, and emotionally engaging visual presentation that closely aligns with human visual perception capabilities.
One of the primary benefits of scaling Dolby Vision for large format screens is the increased perception of depth and dimensionality. The expanded dynamic range allows for more nuanced gradations in both bright and dark areas of the image, creating a greater sense of three-dimensionality. This enhanced depth perception is particularly noticeable in scenes with complex lighting or those featuring a wide range of tonal values.
Color reproduction is another area where the viewing experience is markedly improved. Dolby Vision's wide color gamut capability ensures that colors are rendered with exceptional accuracy and vibrancy. This results in more natural-looking skin tones, richer landscapes, and more vivid special effects, all of which contribute to a more immersive and emotionally engaging viewing experience.
The increased brightness capabilities of Dolby Vision on large format screens also play a crucial role in enhancing the viewing experience. Highlights in the image can be rendered with greater intensity, closely mimicking the way the human eye perceives bright objects in the real world. This increased brightness range adds to the overall realism of the image and helps to maintain image quality even in environments with ambient light.
Furthermore, the improved contrast ratio offered by Dolby Vision technology on large screens significantly enhances the viewing experience by providing deeper blacks and brighter whites. This expanded contrast range allows for greater detail retention in both shadowy areas and bright highlights, resulting in a more nuanced and visually rich image that closely approximates human visual perception.
The scaling of Dolby Vision for large format digital screens also addresses issues related to screen size and viewing distance. The technology ensures that the enhanced visual qualities are maintained across the entire screen surface, providing a consistent and high-quality viewing experience regardless of where the viewer is seated in relation to the screen.
In conclusion, the implementation of Dolby Vision on large format digital screens represents a significant leap forward in viewing experience quality. By enhancing contrast, color accuracy, brightness, and overall image fidelity, this technology creates a more immersive, realistic, and emotionally engaging visual presentation that closely aligns with human visual perception capabilities.
