How to Improve Peltier Module Longevity: Cycling Profiles, Current Limits and Failures Modes
AUG 21, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.
Peltier Module Technology Background and Objectives
Peltier modules, also known as thermoelectric coolers (TECs), have evolved significantly since their inception based on the Peltier effect discovered by Jean Charles Athanase Peltier in 1834. These solid-state devices, which create a temperature differential when electric current flows through them, have transitioned from scientific curiosities to practical thermal management solutions across multiple industries.
The technology has progressed through several distinct phases, beginning with early experimental applications in the mid-20th century, followed by commercial adoption in specialized cooling applications during the 1960s and 1970s. The 1980s and 1990s saw significant improvements in semiconductor materials and manufacturing techniques, leading to enhanced efficiency and reliability. Recent decades have witnessed further refinements in module design, thermal interface materials, and control systems.
Current Peltier modules typically employ bismuth telluride semiconductor materials arranged in p-n junctions, with copper conductors and ceramic substrates providing electrical connections and thermal transfer surfaces. While these devices offer advantages including compact size, no moving parts, precise temperature control, and reversible heating/cooling capabilities, they continue to face challenges related to efficiency limitations and longevity concerns.
The primary technical objective in Peltier module development is addressing the critical issue of limited operational lifespan, particularly under cycling conditions. Thermal cycling, current fluctuations, and mechanical stresses contribute significantly to premature failures. Understanding and mitigating these failure modes represents a key focus area for advancing the technology.
Industry trends indicate growing demand for more durable Peltier modules capable of withstanding thousands of thermal cycles without performance degradation. This is particularly relevant in applications requiring frequent temperature transitions, such as PCR thermal cyclers, semiconductor testing equipment, and precision temperature control systems in medical and laboratory environments.
The evolution of complementary technologies, including advanced thermal management systems, microprocessor-controlled power supplies, and sophisticated feedback control algorithms, has created new opportunities for extending Peltier module longevity through optimized operational parameters and protective measures.
Looking forward, the technical trajectory aims toward developing modules with significantly improved mean time between failures (MTBF), enhanced resistance to thermal fatigue, and greater tolerance for electrical and mechanical stresses. Achieving these objectives would expand the practical applications of Peltier technology into more demanding environments and mission-critical systems where reliability is paramount.
The technology has progressed through several distinct phases, beginning with early experimental applications in the mid-20th century, followed by commercial adoption in specialized cooling applications during the 1960s and 1970s. The 1980s and 1990s saw significant improvements in semiconductor materials and manufacturing techniques, leading to enhanced efficiency and reliability. Recent decades have witnessed further refinements in module design, thermal interface materials, and control systems.
Current Peltier modules typically employ bismuth telluride semiconductor materials arranged in p-n junctions, with copper conductors and ceramic substrates providing electrical connections and thermal transfer surfaces. While these devices offer advantages including compact size, no moving parts, precise temperature control, and reversible heating/cooling capabilities, they continue to face challenges related to efficiency limitations and longevity concerns.
The primary technical objective in Peltier module development is addressing the critical issue of limited operational lifespan, particularly under cycling conditions. Thermal cycling, current fluctuations, and mechanical stresses contribute significantly to premature failures. Understanding and mitigating these failure modes represents a key focus area for advancing the technology.
Industry trends indicate growing demand for more durable Peltier modules capable of withstanding thousands of thermal cycles without performance degradation. This is particularly relevant in applications requiring frequent temperature transitions, such as PCR thermal cyclers, semiconductor testing equipment, and precision temperature control systems in medical and laboratory environments.
The evolution of complementary technologies, including advanced thermal management systems, microprocessor-controlled power supplies, and sophisticated feedback control algorithms, has created new opportunities for extending Peltier module longevity through optimized operational parameters and protective measures.
Looking forward, the technical trajectory aims toward developing modules with significantly improved mean time between failures (MTBF), enhanced resistance to thermal fatigue, and greater tolerance for electrical and mechanical stresses. Achieving these objectives would expand the practical applications of Peltier technology into more demanding environments and mission-critical systems where reliability is paramount.
Market Demand Analysis for Long-lasting Thermoelectric Solutions
The global market for long-lasting thermoelectric solutions, particularly Peltier modules, has been experiencing significant growth driven by increasing applications across multiple industries. The demand for reliable thermoelectric cooling and heating solutions has expanded beyond traditional sectors into emerging fields such as medical devices, automotive systems, and renewable energy applications.
Consumer electronics represents one of the largest market segments, with manufacturers seeking efficient thermal management solutions for increasingly powerful and compact devices. The miniaturization trend in electronics has intensified cooling challenges, creating demand for durable Peltier modules that can maintain consistent performance over extended operational periods.
Medical and laboratory equipment constitutes another rapidly growing segment, where precise temperature control is critical for diagnostic equipment, sample storage, and patient care devices. These applications require exceptionally reliable thermoelectric solutions with minimal maintenance requirements and predictable lifespans, as equipment failure could compromise patient safety or research integrity.
The automotive industry has emerged as a significant market driver, particularly with the rise of electric vehicles. Thermal management for battery systems, cabin climate control, and electronic component cooling all benefit from long-lasting thermoelectric solutions. The harsh operating conditions in vehicles place extreme demands on component durability, making longevity a primary consideration.
Telecommunications infrastructure represents another substantial market, with cooling systems for data centers and network equipment requiring continuous operation with minimal downtime. The financial implications of cooling system failures in these environments are substantial, creating strong economic incentives for investing in more durable solutions.
Market analysis indicates that customers across all segments are increasingly prioritizing total cost of ownership over initial purchase price. This shift has created growing demand for premium thermoelectric solutions with documented longevity advantages, even at higher upfront costs. Industry surveys suggest that customers are willing to pay 15-30% more for modules that can demonstrate double the operational lifespan.
The renewable energy sector presents an emerging opportunity, with thermoelectric generators being explored for waste heat recovery applications. These systems must withstand harsh industrial environments while maintaining consistent performance over many years to achieve favorable return on investment calculations.
Geographic market distribution shows North America and Asia-Pacific leading in demand, with Europe following closely. China has emerged as both a major manufacturing hub and growing consumer market for thermoelectric technologies, while specialized applications continue to drive demand in established markets like the United States and Germany.
Consumer electronics represents one of the largest market segments, with manufacturers seeking efficient thermal management solutions for increasingly powerful and compact devices. The miniaturization trend in electronics has intensified cooling challenges, creating demand for durable Peltier modules that can maintain consistent performance over extended operational periods.
Medical and laboratory equipment constitutes another rapidly growing segment, where precise temperature control is critical for diagnostic equipment, sample storage, and patient care devices. These applications require exceptionally reliable thermoelectric solutions with minimal maintenance requirements and predictable lifespans, as equipment failure could compromise patient safety or research integrity.
The automotive industry has emerged as a significant market driver, particularly with the rise of electric vehicles. Thermal management for battery systems, cabin climate control, and electronic component cooling all benefit from long-lasting thermoelectric solutions. The harsh operating conditions in vehicles place extreme demands on component durability, making longevity a primary consideration.
Telecommunications infrastructure represents another substantial market, with cooling systems for data centers and network equipment requiring continuous operation with minimal downtime. The financial implications of cooling system failures in these environments are substantial, creating strong economic incentives for investing in more durable solutions.
Market analysis indicates that customers across all segments are increasingly prioritizing total cost of ownership over initial purchase price. This shift has created growing demand for premium thermoelectric solutions with documented longevity advantages, even at higher upfront costs. Industry surveys suggest that customers are willing to pay 15-30% more for modules that can demonstrate double the operational lifespan.
The renewable energy sector presents an emerging opportunity, with thermoelectric generators being explored for waste heat recovery applications. These systems must withstand harsh industrial environments while maintaining consistent performance over many years to achieve favorable return on investment calculations.
Geographic market distribution shows North America and Asia-Pacific leading in demand, with Europe following closely. China has emerged as both a major manufacturing hub and growing consumer market for thermoelectric technologies, while specialized applications continue to drive demand in established markets like the United States and Germany.
Current Challenges in Peltier Module Durability
Despite significant advancements in thermoelectric technology, Peltier modules continue to face substantial durability challenges that limit their widespread adoption in long-term applications. The primary obstacle remains the inherent thermal cycling stress that occurs during normal operation. When Peltier modules undergo repeated heating and cooling cycles, the different thermal expansion coefficients of materials within the module create mechanical stress at interfaces, particularly between the semiconductor pellets and metal conductors. This stress eventually leads to microcracks, delamination, and ultimately performance degradation.
Another critical challenge is current management across the operational lifetime. Many Peltier modules fail prematurely due to improper current control, where excessive current generates heat beyond design parameters, accelerating material degradation. Research indicates that modules operated consistently above 70% of their maximum rated current experience a 30-40% reduction in operational lifespan compared to those maintained within optimal ranges.
Moisture ingress represents a persistent threat to module longevity. Despite improvements in sealant technologies, the constant thermal cycling creates microscopic pathways for moisture penetration. Once inside, moisture initiates corrosion processes at electrical connections and semiconductor interfaces, dramatically accelerating failure rates. Studies show that modules operating in high-humidity environments without adequate protection may experience failure rates three times higher than those in controlled conditions.
Manufacturing inconsistencies continue to plague the industry, with variations in solder quality, pellet uniformity, and assembly precision directly impacting durability. The miniaturization trend in modern applications exacerbates these issues, as smaller modules with higher power densities face more severe thermal gradients and mechanical stresses within confined spaces.
Thermal interface degradation presents another significant challenge. The thermal interface materials (TIMs) used between Peltier modules and heat sinks gradually lose effectiveness through pump-out, dry-out, or chemical breakdown. This degradation increases thermal resistance, forcing modules to work harder to achieve the same cooling effect, thereby accelerating wear and reducing efficiency.
The lack of standardized testing protocols for durability assessment further complicates the landscape. Without industry-wide standards for accelerated life testing and failure analysis, manufacturers employ disparate methodologies, making it difficult for end-users to compare longevity claims across different products or to predict real-world performance accurately.
Another critical challenge is current management across the operational lifetime. Many Peltier modules fail prematurely due to improper current control, where excessive current generates heat beyond design parameters, accelerating material degradation. Research indicates that modules operated consistently above 70% of their maximum rated current experience a 30-40% reduction in operational lifespan compared to those maintained within optimal ranges.
Moisture ingress represents a persistent threat to module longevity. Despite improvements in sealant technologies, the constant thermal cycling creates microscopic pathways for moisture penetration. Once inside, moisture initiates corrosion processes at electrical connections and semiconductor interfaces, dramatically accelerating failure rates. Studies show that modules operating in high-humidity environments without adequate protection may experience failure rates three times higher than those in controlled conditions.
Manufacturing inconsistencies continue to plague the industry, with variations in solder quality, pellet uniformity, and assembly precision directly impacting durability. The miniaturization trend in modern applications exacerbates these issues, as smaller modules with higher power densities face more severe thermal gradients and mechanical stresses within confined spaces.
Thermal interface degradation presents another significant challenge. The thermal interface materials (TIMs) used between Peltier modules and heat sinks gradually lose effectiveness through pump-out, dry-out, or chemical breakdown. This degradation increases thermal resistance, forcing modules to work harder to achieve the same cooling effect, thereby accelerating wear and reducing efficiency.
The lack of standardized testing protocols for durability assessment further complicates the landscape. Without industry-wide standards for accelerated life testing and failure analysis, manufacturers employ disparate methodologies, making it difficult for end-users to compare longevity claims across different products or to predict real-world performance accurately.
Current Approaches to Peltier Module Lifetime Extension
01 Thermal management techniques for extending Peltier module life
Effective thermal management is crucial for extending the longevity of Peltier modules. This includes proper heat dissipation systems, temperature control mechanisms, and thermal interface materials that reduce thermal resistance between the module and heat sinks. By maintaining optimal operating temperatures and preventing thermal cycling stress, the lifespan of thermoelectric modules can be significantly increased. Advanced cooling techniques and thermal design considerations help prevent premature failure due to overheating.- Thermal management techniques for extending Peltier module life: Effective thermal management is crucial for extending the longevity of Peltier modules. This includes proper heat dissipation systems, temperature control mechanisms, and thermal interface materials that reduce thermal resistance between the module and heat sinks. By maintaining optimal operating temperatures and preventing thermal cycling stress, the lifespan of thermoelectric modules can be significantly increased. Advanced cooling techniques and thermal design considerations help prevent premature failure due to overheating.
- Structural design improvements for durability: Structural enhancements in Peltier module design contribute significantly to their longevity. These improvements include robust semiconductor element bonding techniques, reinforced electrical connections, and mechanical stress relief features. By addressing common failure points such as solder joint fatigue and mechanical fractures, these design modifications help withstand operational stresses and environmental conditions. Specialized packaging and assembly methods also protect sensitive components from moisture, oxidation, and physical damage.
- Power management and control systems: Advanced power management and control systems play a vital role in extending Peltier module lifespan. These systems include precise current regulation, voltage stabilization, and intelligent power cycling algorithms that prevent electrical overstress. By implementing sophisticated control circuits that adjust power input based on cooling demands and operating conditions, thermal shock and electrical degradation can be minimized. Protective circuitry that prevents reverse polarity and current surges further enhances module reliability and operational life.
- Material innovations for enhanced reliability: Material advancements have significantly improved Peltier module longevity. These innovations include high-performance thermoelectric materials with improved figure of merit, corrosion-resistant metallization layers, and specialized barrier coatings that prevent diffusion and oxidation. Novel semiconductor compositions with enhanced thermal stability and reduced degradation rates extend operational life under continuous use. Advanced interconnect materials and solder compositions with higher fatigue resistance also contribute to longer-lasting thermoelectric modules.
- Diagnostic and predictive maintenance systems: Diagnostic and predictive maintenance technologies help maximize Peltier module service life through early detection of performance degradation. These systems incorporate real-time monitoring of electrical parameters, temperature differentials, and efficiency metrics to identify potential failure modes before catastrophic failure occurs. Advanced algorithms analyze performance trends to schedule maintenance interventions and optimize operating conditions. Some systems include self-healing capabilities or automatic adjustment features that compensate for age-related performance changes.
02 Structural design improvements for durability
Structural enhancements in Peltier module design contribute significantly to their longevity. These improvements include robust semiconductor element bonding techniques, reinforced electrical connections, and mechanical stress relief features. Advanced packaging methods protect the module from environmental factors while allowing for thermal expansion. Optimized geometry and material selection for interconnects reduce mechanical fatigue during thermal cycling, resulting in more durable thermoelectric modules with extended operational lifespans.Expand Specific Solutions03 Electrical control strategies for prolonged operation
Sophisticated electrical control strategies can significantly extend Peltier module lifespan. These include current limiting circuits, pulse width modulation techniques, and intelligent power management systems that prevent electrical overstress. Gradual startup and shutdown procedures reduce thermal shock, while monitoring systems detect and respond to abnormal operating conditions. By optimizing the electrical parameters and implementing protective measures against voltage spikes and current surges, the degradation of thermoelectric materials can be minimized.Expand Specific Solutions04 Material innovations for enhanced reliability
Advanced material science plays a crucial role in improving Peltier module longevity. Novel semiconductor materials with higher temperature stability, improved solder compositions resistant to thermal fatigue, and specialized ceramic substrates with matched thermal expansion coefficients contribute to extended service life. Nano-enhanced thermoelectric materials demonstrate better resistance to degradation mechanisms, while advanced metallization techniques create more reliable electrical connections. These material innovations address the fundamental failure modes of thermoelectric modules.Expand Specific Solutions05 Testing and predictive maintenance approaches
Comprehensive testing methodologies and predictive maintenance strategies help maximize Peltier module lifespan. Accelerated life testing protocols identify potential failure mechanisms, while in-situ monitoring systems track performance degradation over time. Diagnostic algorithms can detect early signs of module deterioration, allowing for timely intervention. Performance characterization under various operating conditions enables more accurate lifetime predictions and maintenance scheduling, ultimately extending the useful service life of thermoelectric cooling systems.Expand Specific Solutions
Leading Manufacturers and Industry Landscape
The Peltier module longevity market is currently in a growth phase, with increasing applications across thermal management systems in electronics, automotive, and energy sectors. The global market size for thermoelectric cooling solutions is expanding at approximately 8-10% annually, driven by demand for precise temperature control in emerging technologies. From a technical maturity perspective, the landscape shows varying levels of advancement. Industry leaders like Huawei Technologies and Mitsubishi Electric have developed sophisticated cycling profile management systems, while Intel and Advantest focus on current limitation technologies to extend module lifespan. Companies including ZTE, Fuji Electric, and Robert Bosch are advancing failure mode analysis methodologies. Chinese players such as CATL and State Grid are increasingly investing in this space, particularly for energy storage applications, indicating a competitive market with significant innovation potential.
Mitsubishi Electric Corp.
Technical Solution: Mitsubishi Electric has developed a comprehensive Peltier module management system focused on extending operational lifespan in industrial and commercial applications. Their approach centers on a proprietary "Gentle Cycling" technology that implements carefully controlled temperature ramp rates during both heating and cooling phases. This system limits thermal shock by ensuring temperature changes never exceed 15°C per minute, significantly reducing mechanical stress on the thermoelectric junctions. Mitsubishi's solution incorporates advanced current regulation that dynamically adjusts power delivery based on real-time performance metrics and thermal load requirements. Their system also features an innovative "module rotation" algorithm that distributes operational time evenly across multiple modules in larger installations, preventing any single unit from experiencing premature wear. Additionally, Mitsubishi has developed specialized coating materials for the ceramic substrates that improve moisture resistance and reduce oxidation at electrical connection points, addressing two common failure modes in humid environments.
Strengths: Highly refined control algorithms based on extensive reliability testing data; excellent performance in variable load applications; comprehensive protection against environmental factors. Weaknesses: Higher initial cost compared to basic solutions; requires more complex installation with additional sensors; optimization primarily for industrial environments may limit applicability in consumer products.
Intel Corp.
Technical Solution: Intel has developed a sophisticated thermal management solution for Peltier modules used in high-performance computing and data center applications. Their approach focuses on precision current control through a dedicated microcontroller that implements adaptive current limiting based on workload patterns. Intel's system employs machine learning algorithms that analyze historical performance data to optimize cycling profiles, gradually learning the optimal operating parameters for each specific module installation. This self-optimizing system significantly reduces thermal fatigue by anticipating workload changes and preemptively adjusting current levels. Their solution also incorporates a novel "thermal balancing" technique that distributes cooling loads across multiple Peltier elements to prevent localized hotspots and ensure even wear patterns. Intel has additionally developed specialized mounting hardware that accommodates thermal expansion while maintaining optimal contact pressure, addressing mechanical stress issues that commonly lead to premature failure in high-power density applications.
Strengths: Advanced algorithmic approach that continuously improves over time; excellent integration with computing system power management; highly optimized for data center environments. Weaknesses: Solution primarily designed for controlled environments; higher computational overhead for control systems; requires integration with Intel management infrastructure for full functionality.
Key Research on Cycling Profiles and Current Management

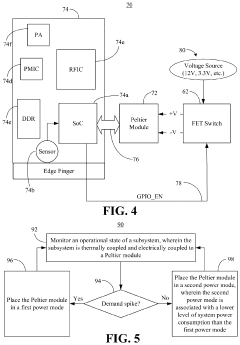

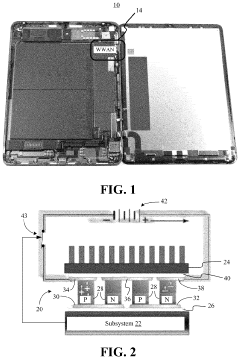

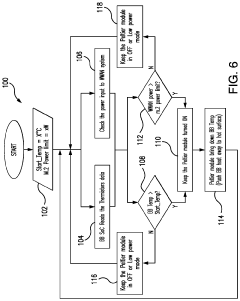

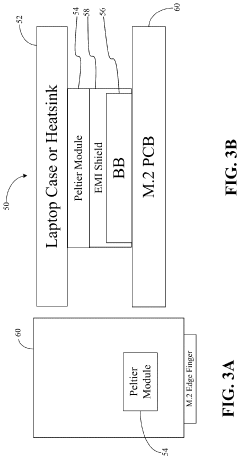

Peltier based active cooling for noiseless systems with efficient power and improved performance
PatentPendingUS20240102703A1
Innovation
- A Peltier module is thermally and electrically coupled to the WWAN module, controlled by system power to dynamically manage heat dissipation, eliminating the need for fan-based cooling by using system power to operate the Peltier module only when necessary, thus mitigating thermal issues and improving performance without noise or size limitations.
Method for the production of peltier modules, and peltier module
PatentInactiveEP1989741A2
Innovation
- The method involves direct sinter bonding of Peltier elements to ceramic substrates using a sinter layer, either directly or with intermediate layers, to simplify production and enhance thermal conductivity by eliminating the need for soft solder and improving the connection between Peltier elements and substrates.
Failure Mode Analysis and Reliability Testing Methods
Comprehensive failure mode analysis is essential for understanding the degradation mechanisms of Peltier modules and developing effective reliability testing protocols. The primary failure modes observed in thermoelectric cooling devices include thermal fatigue, electrical overstress, mechanical stress damage, and environmental degradation. Thermal fatigue occurs due to repeated thermal cycling, causing coefficient of thermal expansion (CTE) mismatches between different materials in the module structure, which leads to solder joint cracking and eventual electrical disconnection.
Electrical overstress represents another critical failure mechanism, typically manifesting when modules operate beyond their rated current limits. This causes accelerated degradation of semiconductor materials, increased internal resistance, and potential thermal runaway conditions. The relationship between current magnitude and failure rate follows an exponential rather than linear pattern, emphasizing the importance of strict current limitation protocols.
Mechanical stress-induced failures commonly result from improper mounting, excessive clamping force, or vibration exposure. These stresses can create microcracks in the ceramic plates or thermoelectric elements, progressively reducing performance before complete failure. Environmental factors, particularly moisture ingress and chemical contamination, contribute significantly to premature failures through corrosion of electrical connections and degradation of semiconductor properties.
Reliability testing methodologies for Peltier modules must incorporate accelerated life testing (ALT) protocols that accurately simulate real-world conditions while providing timely results. Temperature cycling tests between extreme operating temperatures (-40°C to +85°C) with controlled ramp rates effectively reveal thermal fatigue susceptibility. Current cycling tests that alternate between zero and maximum rated current help identify weaknesses in electrical connections and semiconductor material stability.
High-temperature operating life (HTOL) testing at elevated temperatures (typically 85-125°C) while applying moderate current provides insights into long-term degradation patterns. Thermal shock testing, involving rapid temperature transitions, helps evaluate the structural integrity of module components under extreme conditions. Humidity testing in controlled environmental chambers (85% relative humidity, 85°C) effectively identifies susceptibility to moisture-related failures.
Advanced analytical techniques including infrared thermography, acoustic microscopy, and impedance spectroscopy enable non-destructive evaluation of modules during testing. These methods provide early indicators of developing failure modes before catastrophic failure occurs. Statistical analysis of test results using Weibull distribution modeling helps establish meaningful reliability metrics including mean time between failures (MTBF) and failure rate predictions under various operating conditions.
Electrical overstress represents another critical failure mechanism, typically manifesting when modules operate beyond their rated current limits. This causes accelerated degradation of semiconductor materials, increased internal resistance, and potential thermal runaway conditions. The relationship between current magnitude and failure rate follows an exponential rather than linear pattern, emphasizing the importance of strict current limitation protocols.
Mechanical stress-induced failures commonly result from improper mounting, excessive clamping force, or vibration exposure. These stresses can create microcracks in the ceramic plates or thermoelectric elements, progressively reducing performance before complete failure. Environmental factors, particularly moisture ingress and chemical contamination, contribute significantly to premature failures through corrosion of electrical connections and degradation of semiconductor properties.
Reliability testing methodologies for Peltier modules must incorporate accelerated life testing (ALT) protocols that accurately simulate real-world conditions while providing timely results. Temperature cycling tests between extreme operating temperatures (-40°C to +85°C) with controlled ramp rates effectively reveal thermal fatigue susceptibility. Current cycling tests that alternate between zero and maximum rated current help identify weaknesses in electrical connections and semiconductor material stability.
High-temperature operating life (HTOL) testing at elevated temperatures (typically 85-125°C) while applying moderate current provides insights into long-term degradation patterns. Thermal shock testing, involving rapid temperature transitions, helps evaluate the structural integrity of module components under extreme conditions. Humidity testing in controlled environmental chambers (85% relative humidity, 85°C) effectively identifies susceptibility to moisture-related failures.
Advanced analytical techniques including infrared thermography, acoustic microscopy, and impedance spectroscopy enable non-destructive evaluation of modules during testing. These methods provide early indicators of developing failure modes before catastrophic failure occurs. Statistical analysis of test results using Weibull distribution modeling helps establish meaningful reliability metrics including mean time between failures (MTBF) and failure rate predictions under various operating conditions.
Thermal Management Systems Integration Considerations
The integration of Peltier modules into thermal management systems requires careful consideration of multiple factors to ensure optimal performance and longevity. When designing a system that incorporates thermoelectric cooling, engineers must account for the thermal interface between the Peltier module and both the heat source and heat sink. Proper thermal interface materials (TIMs) with low thermal resistance and appropriate compression are essential to minimize thermal bottlenecks that could force the module to operate at higher currents, thereby accelerating degradation.
Heat dissipation capabilities represent another critical integration factor. Peltier modules generate significant heat at the hot side that must be effectively removed. Undersized heat sinks or insufficient airflow can lead to thermal runaway conditions, where the module's efficiency decreases as temperature rises, causing it to draw more current and generate more heat in a destructive cycle. The heat sink design should account for the maximum heat load plus the electrical power input to the module.
Electrical integration considerations are equally important for module longevity. Power supply selection must provide stable, clean DC power with appropriate current limiting capabilities. Voltage spikes and electrical noise can damage the semiconductor junctions within the module. Additionally, implementing proper control algorithms that gradually ramp current up and down rather than applying sudden changes can significantly reduce thermal stress on the module during cycling operations.
Mechanical mounting deserves special attention as it directly impacts both thermal performance and mechanical stress on the module. Uniform pressure distribution across the module surface prevents localized stress concentrations that could lead to internal fractures or delamination. Mounting hardware should accommodate thermal expansion while maintaining consistent contact pressure.
Environmental factors within the integrated system also affect Peltier module lifespan. Exposure to condensation, particularly during thermal cycling that crosses the dew point, can lead to electrical shorts and corrosion. Proper sealing or conformal coating may be necessary in high-humidity applications. Similarly, vibration isolation may be required in systems subject to mechanical shock or continuous vibration.
Lastly, thermal management system designers must consider the operational profile of the entire system. Duty cycling strategies that allow recovery periods can significantly extend module life compared to continuous operation at maximum capacity. Implementing temperature feedback control rather than fixed current control enables the system to adjust power levels based on actual cooling demands, preventing unnecessary stress on the module during periods of lower thermal load.
Heat dissipation capabilities represent another critical integration factor. Peltier modules generate significant heat at the hot side that must be effectively removed. Undersized heat sinks or insufficient airflow can lead to thermal runaway conditions, where the module's efficiency decreases as temperature rises, causing it to draw more current and generate more heat in a destructive cycle. The heat sink design should account for the maximum heat load plus the electrical power input to the module.
Electrical integration considerations are equally important for module longevity. Power supply selection must provide stable, clean DC power with appropriate current limiting capabilities. Voltage spikes and electrical noise can damage the semiconductor junctions within the module. Additionally, implementing proper control algorithms that gradually ramp current up and down rather than applying sudden changes can significantly reduce thermal stress on the module during cycling operations.
Mechanical mounting deserves special attention as it directly impacts both thermal performance and mechanical stress on the module. Uniform pressure distribution across the module surface prevents localized stress concentrations that could lead to internal fractures or delamination. Mounting hardware should accommodate thermal expansion while maintaining consistent contact pressure.
Environmental factors within the integrated system also affect Peltier module lifespan. Exposure to condensation, particularly during thermal cycling that crosses the dew point, can lead to electrical shorts and corrosion. Proper sealing or conformal coating may be necessary in high-humidity applications. Similarly, vibration isolation may be required in systems subject to mechanical shock or continuous vibration.
Lastly, thermal management system designers must consider the operational profile of the entire system. Duty cycling strategies that allow recovery periods can significantly extend module life compared to continuous operation at maximum capacity. Implementing temperature feedback control rather than fixed current control enables the system to adjust power levels based on actual cooling demands, preventing unnecessary stress on the module during periods of lower thermal load.
