Novel High Pass Filtering Techniques in Synthetic Aperture Radar Imaging

JUL 28, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

SAR Imaging Background and Objectives

Synthetic Aperture Radar (SAR) imaging has revolutionized remote sensing capabilities since its inception in the 1950s. This technology utilizes the motion of a radar antenna over a target region to provide finer spatial resolution than conventional beam-scanning radars. SAR systems have become indispensable tools for Earth observation, military reconnaissance, and planetary exploration due to their ability to operate in all weather conditions and during both day and night.

The evolution of SAR technology has been marked by significant milestones, including the launch of the first spaceborne SAR system aboard Seasat in 1978 and the development of interferometric SAR techniques in the 1980s. Recent advancements have focused on improving resolution, reducing noise, and enhancing image quality through sophisticated signal processing techniques.

High-pass filtering in SAR imaging plays a crucial role in enhancing image quality by suppressing low-frequency components and accentuating high-frequency details. Traditional high-pass filtering methods, while effective, often struggle with preserving fine details and edge information while reducing noise. This has led to a growing interest in developing novel high-pass filtering techniques that can overcome these limitations.

The primary objectives of research into novel high-pass filtering techniques for SAR imaging are multifaceted. Firstly, there is a need to improve the signal-to-noise ratio without compromising spatial resolution. Secondly, researchers aim to enhance edge detection and preservation, which is critical for accurate feature extraction and object recognition in SAR images. Thirdly, there is a push towards developing adaptive filtering methods that can automatically adjust to varying terrain and atmospheric conditions.

Another key goal is to reduce computational complexity while maintaining or improving image quality. This is particularly important for real-time applications and onboard processing in satellite-based SAR systems. Additionally, there is a focus on developing techniques that can effectively handle the speckle noise inherent in SAR imagery, which poses unique challenges compared to optical imaging systems.

The technological trend in this field is moving towards the integration of machine learning and artificial intelligence algorithms with traditional signal processing techniques. This hybrid approach promises to leverage the strengths of both domains, potentially leading to more robust and efficient high-pass filtering solutions for SAR imaging.

As SAR technology continues to advance, the development of novel high-pass filtering techniques remains a critical area of research. These advancements are expected to significantly impact various applications, including environmental monitoring, disaster management, and global security, by providing clearer, more detailed, and more reliable SAR imagery.

Market Demand for Advanced SAR Imaging

The market demand for advanced Synthetic Aperture Radar (SAR) imaging technologies, particularly those incorporating novel high pass filtering techniques, has been steadily increasing across various sectors. This growth is primarily driven by the expanding applications of SAR in defense, environmental monitoring, and commercial industries.

In the defense sector, there is a growing need for high-resolution SAR imagery to enhance surveillance, reconnaissance, and target identification capabilities. Military organizations worldwide are investing heavily in advanced SAR systems that can provide clearer, more detailed images in all weather conditions and at night. The demand for SAR systems with improved high pass filtering is particularly strong in this sector, as it allows for better detection of small, fast-moving targets and reduces clutter in complex environments.

Environmental monitoring and disaster management agencies are another significant market for advanced SAR imaging. These organizations require precise and timely data for tracking changes in land use, monitoring deforestation, assessing natural disasters, and managing coastal zones. The ability of SAR systems with enhanced high pass filtering to penetrate cloud cover and vegetation makes them invaluable tools for these applications, driving demand in this sector.

The commercial sector, particularly in agriculture, oil and gas exploration, and urban planning, is also showing increased interest in advanced SAR imaging technologies. Precision agriculture benefits from high-resolution SAR data for crop monitoring and yield prediction. Oil and gas companies use SAR for pipeline monitoring and offshore platform surveillance. Urban planners leverage SAR data for infrastructure assessment and development planning.

The global SAR market is expected to experience significant growth in the coming years. This growth is fueled by the increasing adoption of SAR technologies in emerging economies, the rising demand for SAR in commercial applications, and the continuous technological advancements in SAR systems, including improvements in high pass filtering techniques.

However, the market for advanced SAR imaging faces some challenges. The high cost of SAR systems and the complexity of data interpretation remain significant barriers to wider adoption. Additionally, there are concerns about privacy and regulatory issues related to the use of high-resolution SAR imagery in certain applications.

Despite these challenges, the overall market outlook for advanced SAR imaging technologies remains positive. The continuous improvement in SAR capabilities, including novel high pass filtering techniques, is expected to open up new application areas and drive further market growth in the coming years.

Current Challenges in SAR High Pass Filtering

Synthetic Aperture Radar (SAR) imaging has become an indispensable tool in remote sensing, offering high-resolution imagery regardless of weather conditions or time of day. However, the current state of high pass filtering techniques in SAR imaging faces several significant challenges that hinder its full potential.

One of the primary challenges is the presence of speckle noise, an inherent characteristic of SAR images. This granular noise pattern, caused by the coherent nature of radar signals, significantly degrades image quality and complicates the interpretation of SAR data. Traditional high pass filtering methods often struggle to effectively remove speckle noise without compromising the underlying image details.

Another critical issue is the preservation of edge information during the filtering process. High pass filters, while effective at enhancing fine details and edges, can sometimes lead to over-sharpening or the creation of artificial edges. This is particularly problematic in SAR images where accurate edge detection is crucial for applications such as target recognition and change detection.

The computational complexity of advanced filtering techniques poses a significant challenge, especially when dealing with large-scale SAR datasets. As the resolution and coverage of SAR systems continue to improve, the volume of data that needs to be processed increases exponentially. This demands more efficient algorithms and hardware solutions to enable real-time or near-real-time processing of SAR imagery.

Adapting to the non-stationary nature of SAR images presents another hurdle. SAR data often exhibits varying statistical properties across different regions of the image, making it difficult to apply a single, uniform filtering approach. Developing adaptive filtering techniques that can adjust to local image characteristics remains an ongoing challenge in the field.

The suppression of sidelobes, which are artifacts inherent to SAR imaging, is yet another area of concern. These sidelobes can interfere with the main lobe of the target signal, leading to reduced image contrast and potential misinterpretation of the scene. Current high pass filtering techniques often struggle to effectively mitigate these sidelobes without introducing additional artifacts.

Furthermore, the integration of multi-temporal and multi-polarimetric SAR data into the filtering process presents both opportunities and challenges. While such integration can potentially enhance the quality and information content of the filtered images, it also introduces complexity in terms of data alignment, fusion, and interpretation.

Lastly, the validation and quantitative assessment of filtering results remain challenging due to the lack of ground truth data in many SAR applications. Developing robust metrics and methodologies for evaluating the performance of high pass filtering techniques in SAR imaging is crucial for advancing the field and ensuring the reliability of processed SAR data.

Existing High Pass Filtering Solutions

  • 01 High-pass filtering for image enhancement

    High-pass filtering techniques are used to enhance image quality by emphasizing high-frequency components. This process sharpens edges and fine details in the image, improving overall clarity and contrast. The technique involves applying a filter that attenuates low-frequency signals while allowing high-frequency signals to pass through, resulting in a more detailed and visually appealing image.
    • High-pass filtering for image enhancement: High-pass filtering techniques are used to enhance image quality by emphasizing high-frequency components. This process sharpens edges and fine details in the image, improving overall clarity and contrast. The technique involves applying a filter that attenuates low-frequency signals while allowing high-frequency signals to pass through, resulting in a more detailed and visually appealing image.
    • Adaptive high-pass filtering methods: Adaptive high-pass filtering techniques adjust the filter parameters based on local image characteristics. These methods analyze the image content and adapt the filtering process accordingly, allowing for more effective enhancement of different image regions. This approach can help preserve important details while reducing noise and artifacts in smooth areas, resulting in improved overall image quality.
    • High-pass filtering in image compression: High-pass filtering is utilized in image compression algorithms to separate high-frequency components from low-frequency components. This separation allows for more efficient encoding of image data, as high-frequency information can be compressed differently from low-frequency information. The technique helps achieve better compression ratios while maintaining image quality, particularly in areas with fine details and textures.
    • Multi-scale high-pass filtering: Multi-scale high-pass filtering techniques apply filters at different scales or resolutions to enhance image quality. This approach allows for the enhancement of both fine details and larger structures within the image. By combining the results from multiple scales, the method can achieve a more balanced and natural-looking enhancement, addressing various aspects of image quality simultaneously.
    • High-pass filtering in medical imaging: High-pass filtering techniques are applied in medical imaging to improve the visibility of fine structures and enhance diagnostic capabilities. These methods can help highlight subtle features in medical images, such as small blood vessels or tissue boundaries. By emphasizing high-frequency components, the technique aids in the detection and analysis of abnormalities, potentially improving the accuracy of medical diagnoses and treatment planning.
  • 02 Adaptive high-pass filtering methods

    Adaptive high-pass filtering techniques adjust the filter parameters based on local image characteristics. These methods analyze the image content and adapt the filtering process accordingly, allowing for more effective enhancement of different image regions. This approach can lead to improved image quality while minimizing artifacts and preserving important image features.
    Expand Specific Solutions
  • 03 Combination of high-pass filtering with other image processing techniques

    High-pass filtering is often combined with other image processing techniques to achieve optimal image quality. This may include integrating high-pass filtering with noise reduction algorithms, contrast enhancement methods, or color correction techniques. The combination of these processes can result in significantly improved image quality and visual appeal.
    Expand Specific Solutions
  • 04 High-pass filtering in medical imaging

    High-pass filtering techniques are applied in medical imaging to enhance the visibility of fine structures and improve diagnostic accuracy. These methods are particularly useful in modalities such as X-ray, CT, and MRI, where the ability to discern small details is crucial. The application of high-pass filtering in medical imaging can lead to better detection and characterization of pathological conditions.
    Expand Specific Solutions
  • 05 Real-time high-pass filtering for video processing

    Real-time high-pass filtering techniques are employed in video processing to enhance image quality in live or streaming video applications. These methods involve efficient algorithms that can apply high-pass filtering to each frame of a video stream with minimal latency. This approach improves the overall visual quality of video content, enhancing details and sharpness in real-time scenarios.
    Expand Specific Solutions

Key Players in SAR Technology

The field of novel high pass filtering techniques in Synthetic Aperture Radar (SAR) imaging is in a mature development stage, with ongoing research to enhance image quality and processing efficiency. The market for SAR technology is expanding, driven by increasing applications in defense, environmental monitoring, and disaster management. Major players like Raytheon, Boeing, and NEC are investing heavily in R&D, while academic institutions such as MIT, Tsinghua University, and Xidian University contribute significant research. Emerging companies like ICEYE and Ursa Space Systems are disrupting the market with innovative SAR satellite constellations. The technology's maturity is evident in the diverse range of organizations involved, from established aerospace giants to specialized startups, indicating a competitive and evolving landscape.

Institute of Electronics Chinese Academy of Sciences

Technical Solution: The Institute of Electronics Chinese Academy of Sciences has developed advanced high-pass filtering techniques for Synthetic Aperture Radar (SAR) imaging. Their approach utilizes a novel adaptive filtering algorithm that dynamically adjusts the filter parameters based on the local image characteristics[1]. This method effectively suppresses low-frequency noise while preserving high-frequency details, resulting in improved image clarity and reduced artifacts. The institute has also implemented a multi-scale decomposition technique that allows for selective filtering at different spatial scales, enhancing the overall image quality and facilitating better feature extraction in SAR images[3].
Strengths: Adaptive filtering capability, multi-scale analysis, and improved noise suppression. Weaknesses: Potentially higher computational complexity and the need for parameter tuning.

Raytheon Co.

Technical Solution: Raytheon Co. has developed a proprietary high-pass filtering technique for SAR imaging that incorporates machine learning algorithms. Their approach uses a convolutional neural network (CNN) trained on a large dataset of SAR images to optimize the filtering process[2]. The CNN learns to distinguish between noise and genuine high-frequency features, allowing for more accurate and context-aware filtering. Additionally, Raytheon has implemented a real-time processing pipeline that enables on-the-fly filtering of SAR data, making it suitable for time-critical applications such as military reconnaissance and disaster response[5].
Strengths: Machine learning-enhanced filtering, real-time processing capability, and adaptability to various SAR scenarios. Weaknesses: Reliance on training data quality and potential for overfitting in certain conditions.

Innovative High Pass Filtering Methods

Small maritime target detector
PatentActiveUS20170069062A1
Innovation

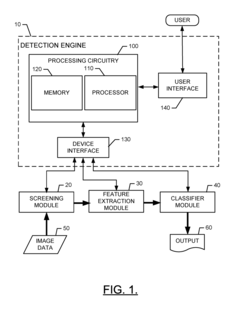

  • A multi-stage processing system that divides SAR image data into tiles, performs initial and advanced screening to reject non-relevant tiles, generates feature vectors for candidate objects, and uses a classifier to determine object classification, thereby reducing the information processed and focusing complex analysis on potential targets.
System and method for synthetic aperture radar image formation
PatentWO2019118050A1
Innovation

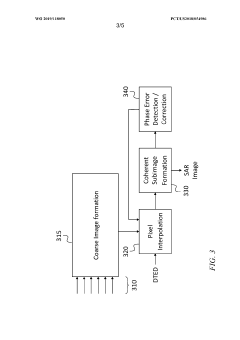

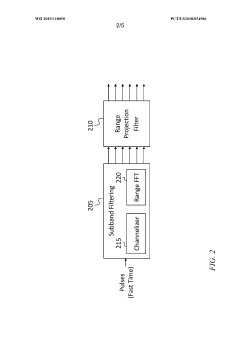

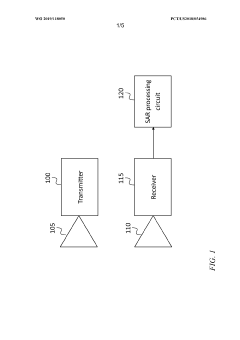

  • The method involves grouping radar return pulses into sub-dwells, separating their frequency content into sub-bands, forming coarse images, iteratively interpolating them to higher resolution, and combining these to create a high-resolution synthetic aperture radar image using direct backprojection or range migration algorithms, along with pixel interpolation and coherent subimage formation.

Environmental Impact of SAR Technology

Synthetic Aperture Radar (SAR) technology has become an indispensable tool in Earth observation and remote sensing. However, its environmental impact is a growing concern that warrants careful consideration. The use of SAR systems, particularly in airborne and spaceborne platforms, has both direct and indirect effects on the environment.

One of the primary environmental concerns associated with SAR technology is the emission of electromagnetic radiation. While SAR systems operate in the microwave spectrum, which is generally considered non-ionizing, there are ongoing studies to assess potential long-term effects on wildlife and ecosystems. The pulsed nature of SAR signals may cause disturbances to certain animal species, particularly those sensitive to electromagnetic fields.

The deployment of SAR systems often requires the establishment of ground stations and supporting infrastructure. This can lead to habitat fragmentation and disturbance, especially in remote or ecologically sensitive areas. The construction and maintenance of these facilities may result in localized environmental impacts, including vegetation clearance and potential soil erosion.

SAR technology's ability to penetrate cloud cover and operate in all-weather conditions has made it invaluable for monitoring environmental changes. Paradoxically, this capability also raises questions about the energy consumption and carbon footprint associated with continuous SAR operations. The power requirements for satellite-based SAR systems and the associated ground processing facilities contribute to overall energy demands and subsequent environmental implications.

On a positive note, SAR technology plays a crucial role in environmental monitoring and protection. It enables the detection and tracking of oil spills, deforestation, ice sheet dynamics, and other critical environmental phenomena. This information is vital for informed decision-making in environmental management and conservation efforts.

The development of novel high-pass filtering techniques in SAR imaging may have indirect environmental benefits. By improving image quality and reducing artifacts, these techniques can enhance the accuracy of environmental monitoring applications. This, in turn, can lead to more effective conservation strategies and resource management practices.

As SAR technology continues to evolve, there is a growing emphasis on developing more environmentally friendly systems. This includes efforts to reduce power consumption, minimize electromagnetic emissions, and optimize data processing algorithms to decrease the overall environmental footprint of SAR operations.

SAR Data Processing and Analysis

Synthetic Aperture Radar (SAR) data processing and analysis is a critical component in the field of remote sensing and radar imaging. It involves a series of complex operations to transform raw SAR data into meaningful and interpretable information. The process typically begins with the acquisition of raw SAR data, which is collected by satellite or airborne platforms.

The first step in SAR data processing is preprocessing, which includes radiometric calibration and geometric corrections. Radiometric calibration ensures that the intensity values in the SAR image accurately represent the radar backscatter from the Earth's surface. Geometric corrections address distortions caused by the SAR imaging geometry and terrain variations.

Following preprocessing, SAR image formation is performed using advanced signal processing techniques. This step involves focusing the raw SAR data to create a high-resolution image. Common algorithms for SAR image formation include Range-Doppler Algorithm (RDA), Chirp Scaling Algorithm (CSA), and Omega-K Algorithm.

Once the SAR image is formed, various analysis techniques can be applied to extract valuable information. These include image segmentation, feature extraction, and classification. SAR interferometry (InSAR) is a powerful technique that utilizes phase information from multiple SAR images to measure surface deformation and generate digital elevation models.

Advanced SAR data analysis often involves time-series analysis, which can reveal temporal changes in the Earth's surface. This is particularly useful for monitoring phenomena such as land subsidence, glacier movement, and urban development. Polarimetric SAR (PolSAR) analysis exploits the polarization information in SAR data to characterize surface properties and distinguish between different types of scattering mechanisms.

Recent advancements in SAR data processing and analysis have focused on improving resolution, reducing noise, and enhancing feature detection capabilities. Machine learning and artificial intelligence techniques are increasingly being integrated into SAR data analysis workflows, enabling more automated and sophisticated interpretation of SAR imagery.
