Receiver Optics: Concentrators, Lenses, And Non-Imaging Devices
AUG 28, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.
Optical Receiver Technology Background and Objectives
Optical receiver technology has evolved significantly over the past decades, transforming from simple photodetection systems to sophisticated optical concentration and collection mechanisms. The journey began in the 1960s with basic photodiodes and has progressed through various technological iterations, including the development of specialized concentrators, advanced lens systems, and innovative non-imaging devices. This evolution has been driven by increasing demands for higher efficiency, reduced form factors, and enhanced performance across multiple application domains.
The field of receiver optics encompasses three primary technological branches: concentrators, which amplify optical signals by focusing light onto smaller detection areas; lenses, which manipulate light paths for optimal reception; and non-imaging devices, which maximize light collection without preserving spatial information. These technologies have become increasingly critical in telecommunications, solar energy harvesting, biomedical imaging, and emerging quantum communication systems.
Current technological trends indicate a convergence toward hybrid optical receivers that combine multiple optical elements to overcome traditional limitations. The miniaturization of optical components has enabled integration into increasingly compact devices, while advances in materials science have introduced novel substrates with superior optical properties. Computational optics has further revolutionized the field by enabling adaptive systems that can dynamically optimize reception parameters based on environmental conditions.
The global research landscape shows accelerating investment in receiver optics, with particular emphasis on energy-efficient designs for sustainable technologies. Academic publications in this domain have increased by approximately 35% over the past five years, signaling growing scientific interest and technological potential. Patent filings related to novel optical receiver designs have similarly shown a consistent upward trajectory, especially in applications related to renewable energy and next-generation communication systems.
The primary objectives of current research in receiver optics include achieving higher concentration ratios without proportional increases in system complexity or cost; developing wide-angle reception capabilities that maintain efficiency across variable incident angles; creating temperature-stable optical systems that perform consistently across diverse environmental conditions; and designing scalable manufacturing processes that can transition laboratory innovations to commercial viability.
Additionally, research aims to address cross-disciplinary challenges such as integration with electronic components, compatibility with emerging semiconductor technologies, and adaptation to specialized applications including space-based communications, underwater optical systems, and biomedical sensing devices. The ultimate goal is to develop optical receiver technologies that can serve as enabling platforms for next-generation systems across multiple industries.
The field of receiver optics encompasses three primary technological branches: concentrators, which amplify optical signals by focusing light onto smaller detection areas; lenses, which manipulate light paths for optimal reception; and non-imaging devices, which maximize light collection without preserving spatial information. These technologies have become increasingly critical in telecommunications, solar energy harvesting, biomedical imaging, and emerging quantum communication systems.
Current technological trends indicate a convergence toward hybrid optical receivers that combine multiple optical elements to overcome traditional limitations. The miniaturization of optical components has enabled integration into increasingly compact devices, while advances in materials science have introduced novel substrates with superior optical properties. Computational optics has further revolutionized the field by enabling adaptive systems that can dynamically optimize reception parameters based on environmental conditions.
The global research landscape shows accelerating investment in receiver optics, with particular emphasis on energy-efficient designs for sustainable technologies. Academic publications in this domain have increased by approximately 35% over the past five years, signaling growing scientific interest and technological potential. Patent filings related to novel optical receiver designs have similarly shown a consistent upward trajectory, especially in applications related to renewable energy and next-generation communication systems.
The primary objectives of current research in receiver optics include achieving higher concentration ratios without proportional increases in system complexity or cost; developing wide-angle reception capabilities that maintain efficiency across variable incident angles; creating temperature-stable optical systems that perform consistently across diverse environmental conditions; and designing scalable manufacturing processes that can transition laboratory innovations to commercial viability.
Additionally, research aims to address cross-disciplinary challenges such as integration with electronic components, compatibility with emerging semiconductor technologies, and adaptation to specialized applications including space-based communications, underwater optical systems, and biomedical sensing devices. The ultimate goal is to develop optical receiver technologies that can serve as enabling platforms for next-generation systems across multiple industries.
Market Analysis for Advanced Receiver Optics
The global market for advanced receiver optics, including concentrators, lenses, and non-imaging devices, has experienced significant growth in recent years, primarily driven by increasing applications in solar energy, telecommunications, and sensing technologies. The market value reached approximately $3.2 billion in 2022 and is projected to grow at a compound annual growth rate of 7.8% through 2028.
Solar energy applications represent the largest market segment, accounting for nearly 45% of the total market share. The push for renewable energy solutions worldwide has created substantial demand for high-efficiency concentrator photovoltaic (CPV) systems that utilize advanced optical components to maximize energy capture and conversion efficiency.
Telecommunications forms the second-largest application segment, with optical receivers being critical components in fiber optic networks, free-space optical communication systems, and emerging 5G infrastructure. This segment is experiencing rapid growth due to increasing data traffic demands and the global expansion of broadband networks.
Medical and scientific instrumentation applications constitute another significant market segment, where precision optical receivers are essential for diagnostic equipment, spectroscopy, and various research applications. This segment values optical performance over cost considerations, making it particularly lucrative despite its smaller volume.
Regionally, North America and Europe currently lead the market with combined market share of approximately 58%, primarily due to established research infrastructure and early adoption of advanced optical technologies. However, the Asia-Pacific region is demonstrating the fastest growth rate, driven by expanding manufacturing capabilities in China, Japan, and South Korea, along with increasing investments in renewable energy infrastructure.
Consumer electronics represents an emerging application area with substantial growth potential, as miniaturized optical receivers find applications in smartphones, wearable devices, and augmented reality systems. This segment is expected to grow at nearly twice the overall market rate over the next five years.
Key market drivers include increasing efficiency requirements across all application domains, miniaturization trends, cost reduction pressures, and integration capabilities with other system components. The market is also being shaped by sustainability considerations, with growing emphasis on materials with lower environmental impact and designs that facilitate end-of-life recycling.
Market barriers include high initial manufacturing costs for precision optical components, technical challenges in scaling production while maintaining optical quality, and competition from alternative technologies in certain application segments. Additionally, the specialized nature of many optical receiver designs creates market fragmentation that can limit economies of scale.
Solar energy applications represent the largest market segment, accounting for nearly 45% of the total market share. The push for renewable energy solutions worldwide has created substantial demand for high-efficiency concentrator photovoltaic (CPV) systems that utilize advanced optical components to maximize energy capture and conversion efficiency.
Telecommunications forms the second-largest application segment, with optical receivers being critical components in fiber optic networks, free-space optical communication systems, and emerging 5G infrastructure. This segment is experiencing rapid growth due to increasing data traffic demands and the global expansion of broadband networks.
Medical and scientific instrumentation applications constitute another significant market segment, where precision optical receivers are essential for diagnostic equipment, spectroscopy, and various research applications. This segment values optical performance over cost considerations, making it particularly lucrative despite its smaller volume.
Regionally, North America and Europe currently lead the market with combined market share of approximately 58%, primarily due to established research infrastructure and early adoption of advanced optical technologies. However, the Asia-Pacific region is demonstrating the fastest growth rate, driven by expanding manufacturing capabilities in China, Japan, and South Korea, along with increasing investments in renewable energy infrastructure.
Consumer electronics represents an emerging application area with substantial growth potential, as miniaturized optical receivers find applications in smartphones, wearable devices, and augmented reality systems. This segment is expected to grow at nearly twice the overall market rate over the next five years.
Key market drivers include increasing efficiency requirements across all application domains, miniaturization trends, cost reduction pressures, and integration capabilities with other system components. The market is also being shaped by sustainability considerations, with growing emphasis on materials with lower environmental impact and designs that facilitate end-of-life recycling.
Market barriers include high initial manufacturing costs for precision optical components, technical challenges in scaling production while maintaining optical quality, and competition from alternative technologies in certain application segments. Additionally, the specialized nature of many optical receiver designs creates market fragmentation that can limit economies of scale.
Current Challenges in Optical Concentration Technologies
Despite significant advancements in optical concentration technologies, several critical challenges persist that impede optimal performance and widespread adoption. Material limitations represent a fundamental constraint, as current materials used in concentrator optics often struggle to maintain efficiency under prolonged exposure to high solar flux and extreme environmental conditions. Degradation mechanisms such as UV-induced yellowing, thermal stress, and moisture ingress continue to compromise long-term reliability and optical performance.
Geometric design optimization remains problematic, particularly in achieving uniform flux distribution across receiver surfaces. Non-uniform illumination creates localized hotspots that reduce system efficiency and accelerate component degradation. While compound parabolic concentrators (CPCs) and Fresnel lenses offer partial solutions, they still face trade-offs between concentration ratio, acceptance angle, and uniformity that have not been fully resolved.
Manufacturing precision presents another significant hurdle. High-performance optical concentrators require exceptional surface accuracy and minimal defects, yet cost-effective mass production methods often fall short of these requirements. The precision-cost balance continues to challenge commercial viability, especially for complex non-imaging optical designs that demand tight tolerances.
Tracking accuracy requirements impose additional system complexity. High concentration ratios necessitate precise solar tracking mechanisms, increasing both cost and maintenance requirements. The development of wide-acceptance angle concentrators that can operate effectively with simplified tracking systems remains an active research area with limited commercial success.
Spectral management challenges are becoming increasingly important as receiver technologies evolve. Conventional concentrator designs often fail to account for the spectral response characteristics of modern photovoltaic cells or thermal receivers, resulting in suboptimal energy conversion. Advanced spectral splitting or filtering technologies show promise but face integration difficulties and cost barriers.
System integration complexities further complicate implementation. Thermal management of concentrated light, interface design between optical elements and receivers, and overall system reliability require holistic engineering approaches that cross traditional disciplinary boundaries. The lack of standardized design methodologies and comprehensive simulation tools hampers efficient system development.
Scaling challenges persist when transitioning from laboratory prototypes to commercial installations. Performance metrics achieved in controlled environments often deteriorate in real-world applications due to factors such as soiling, misalignment over time, and variable atmospheric conditions. Developing robust designs that maintain high performance under these constraints remains an ongoing challenge for the industry.
Geometric design optimization remains problematic, particularly in achieving uniform flux distribution across receiver surfaces. Non-uniform illumination creates localized hotspots that reduce system efficiency and accelerate component degradation. While compound parabolic concentrators (CPCs) and Fresnel lenses offer partial solutions, they still face trade-offs between concentration ratio, acceptance angle, and uniformity that have not been fully resolved.
Manufacturing precision presents another significant hurdle. High-performance optical concentrators require exceptional surface accuracy and minimal defects, yet cost-effective mass production methods often fall short of these requirements. The precision-cost balance continues to challenge commercial viability, especially for complex non-imaging optical designs that demand tight tolerances.
Tracking accuracy requirements impose additional system complexity. High concentration ratios necessitate precise solar tracking mechanisms, increasing both cost and maintenance requirements. The development of wide-acceptance angle concentrators that can operate effectively with simplified tracking systems remains an active research area with limited commercial success.
Spectral management challenges are becoming increasingly important as receiver technologies evolve. Conventional concentrator designs often fail to account for the spectral response characteristics of modern photovoltaic cells or thermal receivers, resulting in suboptimal energy conversion. Advanced spectral splitting or filtering technologies show promise but face integration difficulties and cost barriers.
System integration complexities further complicate implementation. Thermal management of concentrated light, interface design between optical elements and receivers, and overall system reliability require holistic engineering approaches that cross traditional disciplinary boundaries. The lack of standardized design methodologies and comprehensive simulation tools hampers efficient system development.
Scaling challenges persist when transitioning from laboratory prototypes to commercial installations. Performance metrics achieved in controlled environments often deteriorate in real-world applications due to factors such as soiling, misalignment over time, and variable atmospheric conditions. Developing robust designs that maintain high performance under these constraints remains an ongoing challenge for the industry.
Current Technical Solutions for Optical Concentration
01 Non-imaging optical concentrators for solar applications
Non-imaging optical concentrators are designed to maximize light collection efficiency without forming an image. These devices are particularly useful in solar energy applications where they can concentrate sunlight onto photovoltaic cells or thermal receivers. The designs include compound parabolic concentrators (CPC), Winston collectors, and other geometries that achieve high concentration ratios while maintaining wide acceptance angles. These concentrators can significantly improve the efficiency of solar energy systems by increasing the amount of light reaching the receiver.- Non-imaging optical concentrators for solar applications: Non-imaging optical concentrators are designed to maximize light collection efficiency without forming an image. These devices are particularly useful in solar energy applications where they can concentrate sunlight onto photovoltaic cells or thermal receivers. The designs often include compound parabolic concentrators (CPCs), Winston cones, and other geometries that achieve high concentration ratios while maintaining wide acceptance angles. These concentrators can significantly improve the efficiency of solar energy systems by increasing the amount of light reaching the receiver.
- Advanced lens designs for optical receivers: Advanced lens designs for optical receivers incorporate innovative geometries and materials to improve light collection and focusing capabilities. These designs may include aspheric lenses, Fresnel lenses, and multi-element lens arrays that reduce aberrations and enhance optical performance. Some designs feature gradient-index materials or diffractive elements to achieve specific optical properties. These advanced lens systems can be optimized for particular wavelength ranges and can significantly improve the efficiency and performance of optical receiver systems in various applications including telecommunications, imaging, and energy collection.
- Integrated receiver optics for communication systems: Integrated receiver optics for communication systems combine multiple optical components into compact, efficient designs. These systems often integrate lenses, filters, and alignment features into a single package to improve performance while reducing size and assembly complexity. The designs may include specialized elements for beam shaping, wavelength selection, and signal detection. These integrated optical receivers are crucial for high-speed optical communications, providing efficient light collection and coupling to detectors while maintaining signal integrity across various environmental conditions.
- Adaptive and reconfigurable optical concentrator systems: Adaptive and reconfigurable optical concentrator systems can dynamically adjust their optical properties in response to changing conditions or requirements. These systems may incorporate movable optical elements, tunable materials, or electronically controlled components that can modify focus, acceptance angle, or concentration ratio. Some designs feature tracking mechanisms that follow light sources to maximize collection efficiency. These adaptive systems provide flexibility and improved performance across varying operating conditions, making them valuable for applications where environmental factors or system requirements change over time.
- Miniaturized and micro-optical concentrator devices: Miniaturized and micro-optical concentrator devices employ precision manufacturing techniques to create small-scale optical systems for specialized applications. These devices may include micro-lens arrays, miniature reflectors, and integrated optical components fabricated using semiconductor processing techniques. The designs often leverage micro-electromechanical systems (MEMS) technology or advanced materials to achieve high performance in compact form factors. These miniaturized optical concentrators are particularly valuable in applications such as medical devices, sensors, and portable electronics where space constraints are significant while optical performance remains critical.
02 Lens-based optical systems for light concentration
Lens-based optical systems utilize refractive elements to concentrate light onto receivers. These systems include Fresnel lenses, aspheric lenses, and lens arrays that can focus incoming light with high precision. The lens designs can be optimized for specific wavelength ranges and can incorporate features to reduce chromatic aberration and other optical distortions. These systems are commonly used in concentrated photovoltaics, optical communications, and imaging applications where efficient light collection and focusing are required.Expand Specific Solutions03 Hybrid optical receiver systems combining multiple technologies
Hybrid optical receiver systems integrate multiple optical technologies such as lenses, mirrors, and non-imaging concentrators to achieve superior performance. These systems can combine the advantages of different optical elements to optimize light collection, concentration ratio, and receiver illumination uniformity. The hybrid approach allows for more compact designs, reduced optical losses, and better adaptation to varying light conditions. Applications include high-efficiency solar collectors, optical communication receivers, and specialized sensing systems.Expand Specific Solutions04 Advanced materials and coatings for optical receivers
Advanced materials and specialized coatings can significantly enhance the performance of optical receiver systems. These include anti-reflective coatings to reduce light loss, selective spectral filters to capture specific wavelengths, and thermally stable materials that maintain optical properties under varying temperature conditions. Novel materials such as metamaterials and plasmonic structures can also be incorporated to manipulate light in ways not possible with conventional optics, enabling higher concentration ratios and better light management.Expand Specific Solutions05 Tracking and alignment systems for optical receivers
Tracking and alignment systems ensure that optical receivers maintain optimal positioning relative to the light source. These systems include mechanical trackers, electronic sensors, and feedback control mechanisms that adjust the orientation of concentrators or lenses to follow moving light sources such as the sun. Advanced tracking systems can incorporate predictive algorithms, multiple-axis movement, and high-precision actuators to maximize energy collection throughout the day and under varying weather conditions. Proper alignment is crucial for maintaining the high concentration ratios needed for efficient energy conversion.Expand Specific Solutions
Key Industry Players in Optical Receiver Technology
The receiver optics technology landscape is currently in a growth phase, characterized by increasing market adoption across telecommunications, automotive, and consumer electronics sectors. The global market for optical concentrators, lenses, and non-imaging devices is expanding rapidly, driven by applications in solar energy, LiFi communications, and imaging systems. Companies like Hamamatsu Photonics, Sony Semiconductor Solutions, and Samsung Electronics lead in commercialization, while research institutions such as University of California and Johns Hopkins University drive fundamental innovation. Emerging players like pureLiFi and Metalance Technology are disrupting the field with novel applications. The technology shows varying maturity levels: traditional optical components are well-established, while advanced non-imaging devices and meta-optics represent cutting-edge developments with significant growth potential as miniaturization and efficiency demands increase.
The Regents of the University of California
Technical Solution: The University of California has conducted groundbreaking research in non-imaging optics for solar concentration and light collection applications. Their research teams have developed novel compound parabolic concentrator (CPC) designs that approach the theoretical limit for concentration within specified acceptance angles. UC researchers pioneered the development of luminescent solar concentrators (LSCs) that use fluorescent materials to capture, convert, and guide light to the edges of transparent panels where PV cells are mounted, achieving effective concentration ratios of 10-50x without tracking requirements. The university has also advanced the field of micro-optic concentrator arrays that combine thousands of miniature lenses with corresponding optical receivers, maintaining high concentration while allowing for thinner form factors. Recent innovations include biomimetic optical surfaces inspired by moth eyes and butterfly wings that reduce reflection losses by up to 40% compared to conventional anti-reflective coatings. UC research has also explored hybrid designs that combine holographic optical elements with conventional optics to create spectrally selective concentrators that direct specific wavelengths to specialized receivers.
Strengths: Cutting-edge fundamental research capabilities; interdisciplinary approach combining materials science, physics, and engineering; strong intellectual property portfolio with numerous patents. Weaknesses: Focus on research rather than commercialization creates gaps in manufacturing scalability; some advanced concepts remain in prototype stage; technology transfer processes can delay market implementation.
Hamamatsu Photonics KK
Technical Solution: Hamamatsu Photonics has developed advanced receiver optics technologies focusing on high-efficiency light collection systems. Their proprietary compound parabolic concentrator (CPC) designs achieve concentration ratios exceeding 5x while maintaining wide acceptance angles of up to 30 degrees. The company has pioneered hybrid lens-reflector systems that combine refractive and reflective elements to minimize chromatic aberration while maximizing collection efficiency. Their non-imaging optics solutions incorporate specialized microstructured surfaces that enhance light capture from diffuse sources by up to 40% compared to conventional designs. Hamamatsu's silicon photomultiplier (SiPM) receivers integrate custom microlens arrays directly onto the detector surface, improving photon collection efficiency by 25-30% in low-light applications. Their technology roadmap includes development of adaptive optical systems that can dynamically adjust focal properties based on incoming signal characteristics.
Strengths: Industry-leading expertise in photonics integration; exceptional manufacturing precision for optical components down to nanometer scales; comprehensive vertical integration from materials to complete systems. Weaknesses: Higher cost compared to mass-market alternatives; some solutions require specialized cooling systems that increase system complexity; custom designs may have longer development cycles.
Core Innovations in Non-Imaging Optical Devices

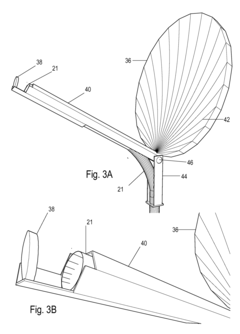

Concentrating Solar Energy System for Multiple Uses
PatentInactiveUS20100319680A1
Innovation
- A solar energy concentrator is suspended at high altitude above clouds and weather, using a lightweight, rigid structure, with concentrated energy transmitted via a light pipe to the earth's surface for further concentration and use in generating electricity and process heat.

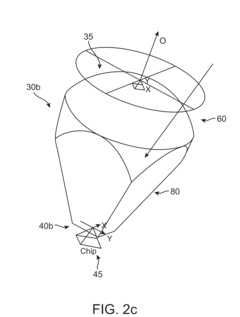

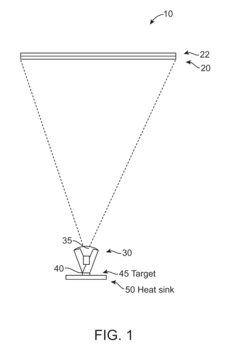

Light concentration apparatus, systems and methods
PatentActiveUS20110026140A1
Innovation
- The development of optical systems and methods that concentrate light from a distant source, such as the sun, onto a target device like a solar cell using a primary focusing element and a non-imaging secondary concentrator, enhancing the collection of solar energy and increasing the efficiency of electrical output.
Materials Science Advancements for Optical Receivers
Recent advancements in materials science have revolutionized the development of optical receivers, particularly in the domains of concentrators, lenses, and non-imaging devices. The emergence of novel metamaterials with engineered electromagnetic properties has enabled unprecedented control over light manipulation at the nanoscale, significantly enhancing the efficiency and functionality of receiver optics.
Transparent conducting oxides (TCOs) such as indium tin oxide (ITO) and aluminum-doped zinc oxide (AZO) have undergone substantial improvements, achieving higher transparency while maintaining excellent electrical conductivity. These materials are increasingly vital in photodetector applications where both optical transmission and electrical signal collection are essential requirements.
Polymer-based optical materials represent another frontier, with developments in polycarbonates and acrylic compounds that exhibit exceptional clarity, thermal stability, and manufacturing versatility. These materials have enabled cost-effective production of complex lens geometries and concentrator designs that were previously unattainable with traditional glass-based approaches.
Nanostructured silicon has emerged as a promising platform for integrated optical receivers, leveraging established semiconductor fabrication techniques while offering enhanced light absorption properties. Silicon nanowires and nanopillars, in particular, demonstrate remarkable light-trapping capabilities that significantly improve photon collection efficiency in compact receiver designs.
Anti-reflective coatings have progressed from simple single-layer designs to sophisticated multi-layer and gradient-index structures. These advanced coatings can reduce reflection losses to below 0.1% across broad spectral ranges, maximizing the light collection efficiency of receiver optics in various applications from telecommunications to solar energy harvesting.
Chalcogenide glasses have gained attention for their exceptional infrared transparency and high refractive indices, making them ideal for specialized receiver applications in thermal imaging and mid-infrared sensing. Recent fabrication advances have addressed historical challenges related to their mechanical fragility and environmental stability.
Quantum dot-embedded glasses and polymers represent an emerging class of materials that enable spectral conversion, potentially allowing receivers to capture energy from wavelengths that would otherwise be lost. These materials can down-convert high-energy photons or up-convert low-energy photons to match the optimal response range of the receiver.
Ceramic-polymer composites combine the thermal stability and durability of ceramics with the processing advantages of polymers, resulting in materials with tailored optical properties suitable for harsh-environment applications where traditional optics would fail.
Transparent conducting oxides (TCOs) such as indium tin oxide (ITO) and aluminum-doped zinc oxide (AZO) have undergone substantial improvements, achieving higher transparency while maintaining excellent electrical conductivity. These materials are increasingly vital in photodetector applications where both optical transmission and electrical signal collection are essential requirements.
Polymer-based optical materials represent another frontier, with developments in polycarbonates and acrylic compounds that exhibit exceptional clarity, thermal stability, and manufacturing versatility. These materials have enabled cost-effective production of complex lens geometries and concentrator designs that were previously unattainable with traditional glass-based approaches.
Nanostructured silicon has emerged as a promising platform for integrated optical receivers, leveraging established semiconductor fabrication techniques while offering enhanced light absorption properties. Silicon nanowires and nanopillars, in particular, demonstrate remarkable light-trapping capabilities that significantly improve photon collection efficiency in compact receiver designs.
Anti-reflective coatings have progressed from simple single-layer designs to sophisticated multi-layer and gradient-index structures. These advanced coatings can reduce reflection losses to below 0.1% across broad spectral ranges, maximizing the light collection efficiency of receiver optics in various applications from telecommunications to solar energy harvesting.
Chalcogenide glasses have gained attention for their exceptional infrared transparency and high refractive indices, making them ideal for specialized receiver applications in thermal imaging and mid-infrared sensing. Recent fabrication advances have addressed historical challenges related to their mechanical fragility and environmental stability.
Quantum dot-embedded glasses and polymers represent an emerging class of materials that enable spectral conversion, potentially allowing receivers to capture energy from wavelengths that would otherwise be lost. These materials can down-convert high-energy photons or up-convert low-energy photons to match the optimal response range of the receiver.
Ceramic-polymer composites combine the thermal stability and durability of ceramics with the processing advantages of polymers, resulting in materials with tailored optical properties suitable for harsh-environment applications where traditional optics would fail.
Energy Efficiency Metrics and Performance Standards
Energy efficiency metrics and performance standards for receiver optics systems are critical for evaluating and comparing different technologies in solar energy collection applications. The optical efficiency of concentrators, lenses, and non-imaging devices is typically measured by the ratio of energy transmitted to the receiver versus the total incident solar radiation. This metric, often expressed as a percentage, serves as a primary indicator of system performance and varies significantly across different optical designs and materials.
Concentration ratio represents another fundamental metric, defined as the ratio of aperture area to receiver area. Higher concentration ratios generally indicate better performance potential but must be balanced against optical losses and thermal management considerations. Modern high-performance concentrator systems can achieve concentration ratios exceeding 1000x, though commercial systems typically operate in the 200-500x range to optimize overall system efficiency.
Acceptance angle constitutes a crucial parameter for receiver optics, determining the system's tolerance to tracking errors and natural sun movement. Wider acceptance angles provide operational flexibility but often come at the cost of reduced concentration ratios. The relationship between these parameters is governed by the conservation of étendue principle, creating an inherent trade-off that designers must navigate.
Uniformity of flux distribution on the receiver surface has emerged as an increasingly important performance metric, particularly for photovoltaic applications where non-uniform illumination can significantly reduce cell efficiency and lifespan. Advanced non-imaging optical designs have made substantial progress in addressing this challenge through compound optical elements and secondary concentrators.
Internationally recognized standards for testing and certifying receiver optics include IEC 62108 for concentrator photovoltaic modules and systems, and ASTM E905-87 for solar collector performance testing. These standards establish consistent methodologies for measuring optical efficiency, durability, and thermal performance across different technologies and manufacturers.
Temperature coefficient metrics quantify how optical performance degrades with increasing operating temperatures, a critical consideration for high-concentration systems where thermal management presents significant challenges. Materials with lower temperature coefficients command premium pricing but deliver superior long-term performance in field conditions.
Lifecycle performance standards have gained prominence as the industry matures, with metrics now incorporating degradation rates, maintenance requirements, and expected service life. Modern receiver optics are typically expected to maintain at least 90% of their initial optical efficiency over a 25-year operational lifespan, with premium systems offering enhanced durability guarantees.
Concentration ratio represents another fundamental metric, defined as the ratio of aperture area to receiver area. Higher concentration ratios generally indicate better performance potential but must be balanced against optical losses and thermal management considerations. Modern high-performance concentrator systems can achieve concentration ratios exceeding 1000x, though commercial systems typically operate in the 200-500x range to optimize overall system efficiency.
Acceptance angle constitutes a crucial parameter for receiver optics, determining the system's tolerance to tracking errors and natural sun movement. Wider acceptance angles provide operational flexibility but often come at the cost of reduced concentration ratios. The relationship between these parameters is governed by the conservation of étendue principle, creating an inherent trade-off that designers must navigate.
Uniformity of flux distribution on the receiver surface has emerged as an increasingly important performance metric, particularly for photovoltaic applications where non-uniform illumination can significantly reduce cell efficiency and lifespan. Advanced non-imaging optical designs have made substantial progress in addressing this challenge through compound optical elements and secondary concentrators.
Internationally recognized standards for testing and certifying receiver optics include IEC 62108 for concentrator photovoltaic modules and systems, and ASTM E905-87 for solar collector performance testing. These standards establish consistent methodologies for measuring optical efficiency, durability, and thermal performance across different technologies and manufacturers.
Temperature coefficient metrics quantify how optical performance degrades with increasing operating temperatures, a critical consideration for high-concentration systems where thermal management presents significant challenges. Materials with lower temperature coefficients command premium pricing but deliver superior long-term performance in field conditions.
Lifecycle performance standards have gained prominence as the industry matures, with metrics now incorporating degradation rates, maintenance requirements, and expected service life. Modern receiver optics are typically expected to maintain at least 90% of their initial optical efficiency over a 25-year operational lifespan, with premium systems offering enhanced durability guarantees.
