How To Make PVDF Piezoelectric?
PVDF Piezoelectricity Background and Objectives
Polyvinylidene fluoride (PVDF) has emerged as a prominent piezoelectric polymer, attracting significant attention in the field of materials science and engineering. The journey of PVDF as a piezoelectric material began in the late 1960s when researchers discovered its unique ferroelectric properties. Since then, the development of PVDF-based piezoelectric materials has progressed rapidly, driven by the growing demand for flexible, lightweight, and biocompatible sensors and actuators.
The evolution of PVDF piezoelectricity has been marked by several key milestones. Initially, the focus was on understanding the fundamental mechanisms behind PVDF's piezoelectric behavior, which is attributed to its semi-crystalline structure and the alignment of dipoles within its polymer chains. Subsequent research efforts concentrated on enhancing the piezoelectric properties through various processing techniques and the incorporation of additives.
In recent years, the technological landscape has witnessed a surge in applications leveraging PVDF's piezoelectric characteristics. These range from energy harvesting devices and pressure sensors to acoustic transducers and tactile feedback systems. The versatility of PVDF has positioned it as a promising material for next-generation flexible electronics and wearable technologies.
The primary objective in the field of PVDF piezoelectricity is to optimize the material's performance for specific applications. This involves improving the piezoelectric coefficients, enhancing the mechanical properties, and developing scalable manufacturing processes. Researchers are exploring various strategies, including the development of PVDF copolymers, nanocomposites, and advanced poling techniques to achieve these goals.
Another crucial aim is to expand the temperature range and environmental conditions under which PVDF-based piezoelectric devices can operate effectively. This is particularly important for applications in harsh environments or those requiring long-term stability. Additionally, there is a growing interest in integrating PVDF piezoelectric materials with other functional components to create multifunctional smart systems.
The future trajectory of PVDF piezoelectricity research is expected to focus on nanoscale engineering of the polymer structure, development of novel composite materials, and exploration of unconventional fabrication methods such as 3D printing. These advancements aim to push the boundaries of PVDF's piezoelectric performance and open up new avenues for its application in emerging technologies.
As the field progresses, interdisciplinary collaboration between materials scientists, electrical engineers, and device manufacturers will be crucial in translating laboratory discoveries into practical, commercially viable products. The ultimate goal is to establish PVDF as a versatile, high-performance piezoelectric material that can meet the diverse needs of modern technological applications while offering advantages in terms of flexibility, cost-effectiveness, and environmental compatibility.
Market Analysis for PVDF Piezoelectric Applications
The PVDF piezoelectric market has shown significant growth potential in recent years, driven by increasing demand for smart and flexible electronic devices. The global market for PVDF piezoelectric materials and applications is expected to expand at a robust rate, with projections indicating substantial growth over the next decade.
One of the primary drivers of market demand is the consumer electronics sector, where PVDF piezoelectric materials are utilized in touchscreens, haptic feedback systems, and energy harvesting devices. The growing adoption of wearable technology and Internet of Things (IoT) devices has further fueled the demand for PVDF-based sensors and actuators.
In the healthcare industry, PVDF piezoelectric materials have found applications in medical imaging equipment, such as ultrasound transducers, and in implantable medical devices. The increasing focus on non-invasive diagnostic techniques and personalized medicine is likely to boost the demand for PVDF piezoelectric materials in this sector.
The automotive industry represents another significant market for PVDF piezoelectric applications. These materials are used in various automotive sensors, including pressure sensors, accelerometers, and parking assistance systems. As vehicles become more electrified and autonomous, the demand for advanced sensing technologies is expected to rise, benefiting the PVDF piezoelectric market.
Energy harvesting applications have also emerged as a promising area for PVDF piezoelectric materials. With the growing emphasis on sustainable energy solutions, PVDF-based energy harvesters are being developed to capture and convert mechanical energy from various sources, such as vibrations and human motion, into electrical energy.
The aerospace and defense sectors are also contributing to the market growth, with PVDF piezoelectric materials being used in structural health monitoring systems, vibration control, and acoustic sensors. The need for lightweight, durable, and high-performance materials in these industries aligns well with the properties of PVDF piezoelectric materials.
Geographically, North America and Europe currently dominate the PVDF piezoelectric market, owing to their advanced technological infrastructure and strong presence of key industry players. However, the Asia-Pacific region is expected to witness the fastest growth, driven by rapid industrialization, increasing adoption of smart devices, and growing investments in research and development.
Despite the positive outlook, challenges such as high production costs and competition from alternative piezoelectric materials may impact market growth. However, ongoing research and development efforts aimed at improving the performance and cost-effectiveness of PVDF piezoelectric materials are likely to address these challenges and open up new market opportunities.
Current PVDF Piezoelectric Technology Challenges
Despite the widespread adoption of PVDF (polyvinylidene fluoride) as a piezoelectric material, several significant challenges persist in its development and application. One of the primary obstacles is the relatively low piezoelectric coefficient of PVDF compared to ceramic alternatives. This limitation restricts the material's sensitivity and energy conversion efficiency, potentially hindering its performance in certain high-demand applications.
Another major challenge lies in the complex manufacturing process required to produce piezoelectric PVDF. The material must undergo specific treatments, including mechanical stretching and electrical poling, to achieve its piezoelectric properties. Ensuring consistency and uniformity in these processes across large-scale production remains a significant hurdle, often resulting in variations in performance and reliability.
The temperature sensitivity of PVDF presents an additional challenge. The material's piezoelectric properties can degrade at elevated temperatures, limiting its use in high-temperature environments. This thermal instability necessitates careful consideration in applications where temperature fluctuations are common, potentially restricting PVDF's versatility.
Durability and long-term stability are also areas of concern. PVDF, being a polymer, is susceptible to mechanical fatigue and environmental degradation over time. This can lead to a gradual decrease in piezoelectric performance, affecting the longevity and reliability of devices incorporating PVDF.
The integration of PVDF into complex systems and devices poses another set of challenges. Issues such as electrical interfacing, mechanical coupling, and overall system design must be carefully addressed to fully leverage PVDF's piezoelectric properties. This often requires interdisciplinary expertise and can complicate the development process.
Furthermore, the scalability of PVDF production for large-area applications remains a significant challenge. While the material shows promise for flexible and wearable technologies, producing large, uniform sheets of piezoelectric PVDF with consistent properties is still a complex task.
Lastly, the optimization of PVDF's piezoelectric properties through various methods, such as copolymerization or nanocomposite formation, is an ongoing challenge. While these approaches show promise for enhancing performance, they often introduce new complexities in material processing and characterization, requiring further research and development efforts.
Existing PVDF Piezoelectric Manufacturing Methods
01 Piezoelectric properties of PVDF
PVDF exhibits strong piezoelectric properties, making it suitable for various applications. The polymer's unique molecular structure allows it to generate an electric charge in response to mechanical stress and vice versa. This property is enhanced through specific processing techniques and the addition of certain additives, enabling the development of highly sensitive sensors and actuators.- Piezoelectric properties of PVDF: PVDF exhibits strong piezoelectric properties, making it suitable for various applications. The polymer's unique molecular structure allows it to generate an electric charge in response to mechanical stress and vice versa. This property is enhanced through specific processing techniques and the addition of certain additives, enabling the development of highly sensitive sensors and actuators.
- PVDF-based composite materials: Composite materials incorporating PVDF are developed to enhance piezoelectric performance. These composites often combine PVDF with other materials such as nanoparticles, ceramics, or other polymers. The resulting materials exhibit improved piezoelectric coefficients, flexibility, and durability, making them suitable for advanced sensing and energy harvesting applications.
- Fabrication methods for PVDF piezoelectric devices: Various fabrication techniques are employed to produce PVDF-based piezoelectric devices. These methods include electrospinning, solution casting, melt extrusion, and 3D printing. Each technique offers unique advantages in terms of controlling the crystal structure, orientation, and overall performance of the piezoelectric PVDF films or fibers.
- Applications of PVDF piezoelectric materials: PVDF piezoelectric materials find applications in diverse fields. They are used in energy harvesting devices, pressure sensors, acoustic transducers, and wearable electronics. The flexibility and biocompatibility of PVDF make it particularly suitable for medical applications, such as implantable sensors and drug delivery systems.
- Enhancing PVDF piezoelectric performance: Research focuses on improving the piezoelectric performance of PVDF through various methods. These include controlling the crystalline phase, optimizing the poling process, and developing new copolymers or terpolymers. Additionally, surface modification techniques and the incorporation of functional fillers are explored to enhance the piezoelectric response and stability of PVDF-based materials.
02 PVDF-based composite materials
Composite materials incorporating PVDF are developed to enhance piezoelectric performance. These composites often combine PVDF with other materials such as nanoparticles, ceramics, or other polymers. The resulting materials exhibit improved piezoelectric coefficients, flexibility, and durability, making them suitable for advanced sensing and energy harvesting applications.Expand Specific Solutions03 Fabrication methods for piezoelectric PVDF
Various fabrication methods are employed to optimize the piezoelectric properties of PVDF. These include electrospinning, solution casting, melt extrusion, and stretching techniques. Each method aims to align the polymer chains and enhance the β-phase content, which is responsible for the material's piezoelectric behavior. Post-processing treatments such as poling are also crucial in maximizing piezoelectric performance.Expand Specific Solutions04 Applications of piezoelectric PVDF
Piezoelectric PVDF finds applications in diverse fields due to its unique properties. It is used in sensors for pressure, vibration, and acoustic detection, as well as in energy harvesting devices that convert mechanical energy into electrical energy. Other applications include actuators, transducers, and flexible electronics. The material's biocompatibility also makes it suitable for medical devices and implantable sensors.Expand Specific Solutions05 Characterization and measurement of PVDF piezoelectric properties
Various techniques are employed to characterize and measure the piezoelectric properties of PVDF. These include X-ray diffraction (XRD) to determine crystal structure, Fourier-transform infrared spectroscopy (FTIR) to analyze molecular composition, and direct piezoelectric coefficient measurements. Advanced imaging techniques such as scanning electron microscopy (SEM) are also used to study the material's morphology and its relation to piezoelectric performance.Expand Specific Solutions
Key Players in PVDF Piezoelectric Industry
The development of PVDF piezoelectric technology is in a growth phase, with increasing market size and technological advancements. The global market for piezoelectric devices is expanding, driven by applications in sensors, actuators, and energy harvesting. The technology's maturity varies across different applications, with ongoing research to improve performance and manufacturing processes. Companies like Mitsui Chemicals, SABIC, and Eastman Chemical are actively involved in materials development, while academic institutions such as Kansai University, Sichuan University, and the University of Michigan are contributing to fundamental research. Collaborations between industry and academia, exemplified by partnerships involving CNRS and École Polytechnique, are accelerating innovation in this field.
Mitsui Chemicals, Inc.
Eastman Chemical Co.
Core Innovations in PVDF Piezoelectric Materials

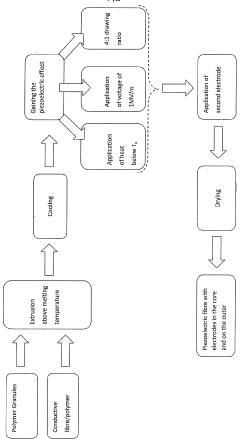

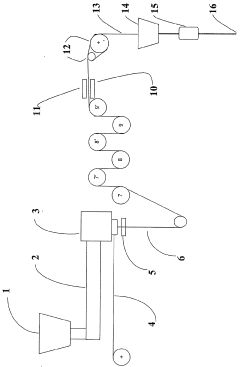

- A piezoelectric fiber with a conductive core and a polymer-based piezoelectric layer surrounded by an electrolyte-based outer layer, produced through a continuous process involving melting, extrusion, drawing, and poling at elevated temperatures, where the conductive core functions as an electrode, eliminating the need for additional electrode deposition.

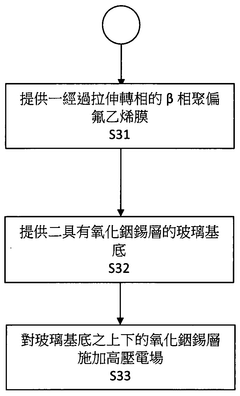

- Using ITO-coated glass substrates as electrodes for PVDF polarization, eliminating the need for direct metallization on the PVDF film.
- Applying a high DC polarizing electric field (400-900 kV/cm) to achieve piezoelectric properties without direct electrode contact.
- Producing a PVDF piezoelectric film without metallization electrodes, which may offer advantages in certain applications.
Environmental Impact of PVDF Piezoelectric Production
The production of PVDF piezoelectric materials has significant environmental implications that warrant careful consideration. The manufacturing process involves the use of various chemicals and energy-intensive procedures, which can contribute to environmental pollution and resource depletion if not managed properly.
One of the primary environmental concerns is the use of fluorine-containing compounds in the production of PVDF. These compounds, while essential for the material's properties, can be potentially harmful if released into the environment. Proper handling, containment, and disposal of these chemicals are crucial to prevent soil and water contamination. Additionally, the production of fluoropolymers often involves the use of fluorinated greenhouse gases, which have a high global warming potential and can contribute to climate change if emitted.
The energy consumption during the manufacturing process is another significant environmental factor. The production of PVDF piezoelectric materials typically requires high temperatures and pressures, leading to substantial energy use. This energy demand often relies on fossil fuel-based power sources, resulting in greenhouse gas emissions and contributing to air pollution. Implementing energy-efficient technologies and transitioning to renewable energy sources in the production process can help mitigate these impacts.
Water usage is also a concern in PVDF piezoelectric production. The manufacturing process may require substantial amounts of water for cooling, cleaning, and other purposes. Proper water management, including recycling and treatment of wastewater, is essential to reduce the strain on local water resources and prevent the release of pollutants into aquatic ecosystems.
The disposal and end-of-life management of PVDF piezoelectric products present additional environmental challenges. While PVDF is generally considered a durable and long-lasting material, it is not biodegradable. Improper disposal can lead to the accumulation of these materials in landfills or the environment. Developing effective recycling methods for PVDF piezoelectric materials is crucial to minimize waste and promote a circular economy approach.
To address these environmental concerns, manufacturers are increasingly focusing on sustainable production methods. This includes implementing closed-loop systems to minimize waste and emissions, adopting greener chemical alternatives where possible, and investing in more efficient production technologies. Additionally, life cycle assessments are being conducted to identify areas for improvement in the environmental performance of PVDF piezoelectric materials throughout their entire lifecycle, from raw material extraction to disposal or recycling.
Standardization and Quality Control in PVDF Piezoelectrics
Standardization and quality control are crucial aspects in the production of PVDF piezoelectrics, ensuring consistent performance and reliability across different batches and applications. The process begins with the establishment of clear specifications for raw materials, including the purity of PVDF polymer, the type and concentration of additives, and the acceptable levels of impurities. These specifications must be rigorously enforced through incoming material inspections and supplier qualifications.
During the manufacturing process, key parameters such as temperature, pressure, and stretching ratios must be carefully controlled and monitored. Implementing statistical process control (SPC) techniques helps maintain consistency and detect deviations early. Real-time monitoring systems and automated controls can be integrated to ensure precise adherence to established process parameters.
Quality control measures for PVDF piezoelectric films or components typically involve a combination of destructive and non-destructive testing methods. Non-destructive techniques may include capacitance measurements, impedance analysis, and optical inspections to assess film uniformity and defects. Destructive testing, performed on sample batches, often includes mechanical strength tests, piezoelectric coefficient measurements, and thermal analysis to verify the material's properties.
Standardization efforts in the field of PVDF piezoelectrics have led to the development of industry-wide testing protocols and performance metrics. Organizations such as IEEE and ASTM International have published standards for characterizing piezoelectric materials, including specific guidelines for polymer-based piezoelectrics. These standards provide a common framework for evaluating and comparing PVDF piezoelectric products across different manufacturers and applications.
To ensure long-term reliability, accelerated aging tests and environmental stress screening are often employed. These tests simulate various operating conditions and help predict the performance and lifespan of PVDF piezoelectric devices in real-world applications. The results of these tests feed back into the manufacturing process, driving continuous improvement in material formulations and processing techniques.
Documentation and traceability play a vital role in quality control. Implementing a robust quality management system, such as ISO 9001, helps maintain detailed records of raw materials, process parameters, and test results for each production batch. This documentation not only aids in troubleshooting and process optimization but also supports regulatory compliance in industries where PVDF piezoelectrics are used in critical applications.
