Silicon vs Graphite Anodes: Energy Density, Cycle Life and Practical Selection Guide

The evolution of anode materials in lithium-ion batteries has been a critical factor in advancing energy storage technology. Initially, lithium metal was used as the anode material due to its high theoretical capacity. However, safety concerns and poor cycling performance led to the search for alternative materials.

Graphite emerged as the dominant anode material in the 1990s, offering a good balance of energy density, cycle life, and safety. Its layered structure allows for efficient lithium intercalation and deintercalation, providing a stable performance over many charge-discharge cycles. Graphite anodes have been the industry standard for decades, powering countless electronic devices and electric vehicles.

Despite graphite's success, the demand for higher energy density batteries has driven research into silicon-based anodes. Silicon offers a theoretical capacity nearly ten times that of graphite, making it an attractive candidate for next-generation batteries. However, silicon anodes face significant challenges, primarily due to the massive volume expansion during lithium insertion, which can lead to structural degradation and rapid capacity fade.

To address these issues, researchers have explored various approaches, including silicon-carbon composites, silicon nanostructures, and silicon-graphite hybrid anodes. These strategies aim to leverage silicon's high capacity while mitigating its volume expansion problems. Silicon-carbon composites, for instance, use carbon to buffer the volume changes and improve conductivity.

The transition from graphite to silicon-based anodes has been gradual, with many commercial batteries now incorporating small amounts of silicon in their graphite anodes. This approach allows for incremental improvements in energy density without sacrificing the stability and reliability of graphite.

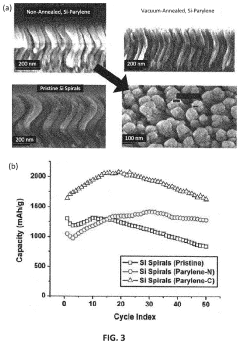

Recent advancements in nanotechnology have opened new possibilities for silicon anodes. Nanostructured silicon, such as silicon nanowires or porous silicon particles, can better accommodate volume changes and improve cycling stability. Additionally, novel electrolyte formulations and surface coatings have been developed to enhance the solid-electrolyte interphase (SEI) stability on silicon surfaces.

As research progresses, the focus has shifted towards optimizing the balance between graphite and silicon in hybrid anodes. These hybrid systems aim to combine the high capacity of silicon with the stability of graphite, potentially offering a practical solution for near-term commercial applications.

Looking ahead, the evolution of anode materials continues to be a dynamic field. While silicon-based anodes show promise, other materials such as lithium titanate and conversion-type anodes are also being explored for specific applications. The ultimate goal remains to develop anode materials that can deliver high energy density, long cycle life, and improved safety, paving the way for more efficient and powerful energy storage solutions.

The market demand for advanced battery technologies, particularly those involving silicon and graphite anodes, has been experiencing significant growth in recent years. This surge is primarily driven by the increasing adoption of electric vehicles (EVs) and the growing need for high-performance energy storage solutions in various sectors.

In the automotive industry, there is a strong push towards EVs as governments worldwide implement stricter emissions regulations and consumers become more environmentally conscious. This transition has created a substantial demand for batteries with higher energy density and longer cycle life. Silicon and graphite anodes are at the forefront of this technological race, as they offer potential improvements in both these critical areas.

The consumer electronics market is another major driver for advanced battery technologies. Smartphones, laptops, and wearable devices require batteries that can provide longer usage times while maintaining a compact form factor. Silicon anodes, in particular, have garnered attention due to their potential to significantly increase energy density compared to traditional graphite anodes.

In the renewable energy sector, the need for efficient energy storage systems to complement intermittent power sources like solar and wind has also contributed to the demand for advanced battery technologies. Grid-scale energy storage solutions benefit from batteries with high energy density and long cycle life, making silicon and graphite anode technologies relevant in this space as well.

The industrial and aerospace sectors are also showing increased interest in these advanced battery technologies. Drones, electric aircraft, and various industrial applications require high-performance batteries that can deliver both power and endurance.

Market analysts project that the global lithium-ion battery market, which encompasses these anode technologies, will continue to grow at a compound annual growth rate (CAGR) of over 10% in the coming years. The silicon anode battery market, in particular, is expected to see even higher growth rates as the technology matures and becomes more commercially viable.

However, the market demand is not without challenges. Cost considerations, manufacturing scalability, and the need for further technological improvements are factors that influence the adoption rate of these advanced anode materials. The industry is actively seeking solutions that balance performance enhancements with economic viability.

As research and development efforts intensify, the market is likely to see a gradual shift towards silicon-dominant anodes, especially in high-end applications where performance takes precedence over cost. Meanwhile, graphite anodes are expected to maintain a significant market share due to their established manufacturing processes and lower costs.

The development of silicon anodes for lithium-ion batteries presents several significant technical challenges that have hindered their widespread adoption. One of the primary issues is the substantial volume expansion of silicon during lithium insertion, which can reach up to 300-400%. This expansion leads to mechanical stress and strain, causing the anode to crack and pulverize over repeated charge-discharge cycles. Consequently, this results in a rapid capacity fade and shortened battery life.

Another critical challenge is the formation of an unstable solid-electrolyte interphase (SEI) layer on the silicon surface. The continuous expansion and contraction of silicon during cycling cause the SEI layer to break and reform repeatedly. This process consumes electrolyte and lithium ions, leading to increased internal resistance and reduced coulombic efficiency. The unstable SEI also contributes to the overall degradation of battery performance over time.

The high reactivity of silicon with the electrolyte poses an additional hurdle. This reactivity can lead to side reactions that further contribute to capacity loss and potential safety issues. Moreover, the low electrical conductivity of silicon compared to graphite necessitates the development of conductive coatings or additives to enhance electron transport within the anode structure.

Manufacturing scalability remains a significant challenge for silicon anodes. Current production methods for high-quality silicon nanostructures, which are essential for mitigating the volume expansion issue, are often complex and costly. This makes it difficult to produce silicon anodes at a scale and cost comparable to traditional graphite anodes.

Cycle life is another area where silicon anodes currently fall short compared to graphite. While graphite anodes can typically withstand thousands of charge-discharge cycles with minimal degradation, silicon anodes often show significant capacity loss after only a few hundred cycles. This limitation is particularly problematic for applications requiring long-term stability, such as electric vehicles and grid energy storage.

Lastly, the integration of silicon anodes into existing battery manufacturing processes presents its own set of challenges. The unique properties of silicon often require modifications to electrode formulation, cell design, and electrolyte composition. These changes can be costly and time-consuming to implement in established production lines, creating a barrier to the widespread adoption of silicon anode technology.

The competition landscape for silicon vs graphite anodes in lithium-ion batteries is evolving rapidly, with the industry in a transitional phase. The market size is expanding significantly, driven by the growing demand for high-energy-density batteries in electric vehicles and consumer electronics. While graphite anodes dominate current commercial applications, silicon anodes are gaining traction due to their potential for higher energy density. Companies like NanoGraf, BTR New Material Group, and Enevate are at the forefront of silicon anode development, with varying degrees of technological maturity. Established players such as LG Chem and emerging startups like StoreDot are also investing heavily in this space, indicating a competitive and dynamic market environment.

The environmental impact of battery anodes is a critical consideration in the ongoing debate between silicon and graphite materials. Graphite, the traditional choice for anodes, has a well-established production process but faces sustainability challenges. Mining and processing graphite can lead to significant land disturbance, water pollution, and greenhouse gas emissions. Moreover, the increasing demand for graphite in batteries has raised concerns about resource depletion and the environmental consequences of expanded mining operations.

Silicon anodes, while promising in terms of energy density, also present environmental considerations. The production of silicon for battery anodes typically involves energy-intensive processes, potentially offsetting some of the gains in battery performance. However, silicon is one of the most abundant elements in the Earth's crust, which could alleviate concerns about resource scarcity. Additionally, some silicon anode production methods utilize recycled silicon from the semiconductor industry, potentially reducing waste and environmental impact.

When comparing the two materials, lifecycle assessments become crucial. Silicon anodes may offer advantages in terms of battery longevity and energy density, potentially reducing the overall number of batteries needed and thus decreasing long-term environmental impact. However, the higher initial energy investment in silicon anode production must be weighed against these potential benefits.

Water usage is another significant factor. Graphite processing can be water-intensive, while silicon production methods vary in their water requirements. As water scarcity becomes an increasing global concern, this aspect of anode production will likely gain more attention in environmental assessments.

End-of-life considerations also play a role in the environmental impact of these anode materials. Recycling technologies for graphite anodes are more established, while silicon anode recycling is still in its early stages. The development of efficient recycling processes for silicon anodes could significantly improve their environmental profile.

Ultimately, the environmental impact of silicon versus graphite anodes depends on various factors, including production methods, energy sources, recycling capabilities, and the overall lifecycle of the batteries. As technology advances, it's likely that both materials will see improvements in their environmental performance, potentially leading to hybrid solutions that optimize both performance and sustainability.

The cost-performance analysis of silicon and graphite anodes is crucial for determining their practical application in lithium-ion batteries. Graphite anodes have long been the industry standard due to their low cost and stable performance. However, silicon anodes offer significantly higher energy density, making them an attractive alternative for next-generation batteries.

Graphite anodes typically cost between $10-15 per kg, while silicon anodes can range from $50-100 per kg. This substantial price difference is primarily due to the complex manufacturing processes required for silicon anodes, including nanostructuring and surface modification to mitigate volume expansion issues.

In terms of performance, silicon anodes can theoretically achieve up to 10 times the capacity of graphite anodes. Practically, current silicon-based anodes demonstrate 2-3 times higher capacity than graphite. This increased energy density translates to longer battery life and potentially smaller, lighter battery packs.

However, the cycle life of silicon anodes remains a significant challenge. While graphite anodes can maintain 80% capacity after 1000+ cycles, silicon anodes typically degrade much faster, often losing significant capacity within 100-300 cycles. This shorter lifespan impacts the overall cost-effectiveness of silicon anodes in long-term applications.

To balance cost and performance, many manufacturers are exploring silicon-graphite composite anodes. These composites aim to leverage the high capacity of silicon while maintaining the stability and lower cost of graphite. Typical compositions range from 5-20% silicon content, offering a 20-50% increase in capacity over pure graphite anodes at a more moderate cost increase.

The cost-performance trade-off also varies depending on the application. For consumer electronics, where frequent charging is acceptable, the higher energy density of silicon-based anodes may justify the increased cost and shorter cycle life. In contrast, electric vehicles and grid storage applications may prioritize long-term stability and lower costs, favoring graphite or low-silicon composite anodes.

As manufacturing processes improve and economies of scale are realized, the cost of silicon anodes is expected to decrease. Coupled with ongoing research to enhance cycle life, the cost-performance ratio of silicon anodes is likely to become increasingly favorable in the coming years, potentially leading to wider adoption across various applications.
