How to Enhance Molecular Weight Determination Using Gel Electrophoresis?

JUL 1, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

Gel Electrophoresis Evolution and Objectives

Gel electrophoresis has evolved significantly since its inception in the 1930s, revolutionizing molecular biology and biochemistry. Initially developed for protein separation, the technique has undergone numerous refinements to become a cornerstone in DNA and RNA analysis. The evolution of gel electrophoresis has been driven by the need for more precise molecular weight determination, higher resolution, and increased throughput.

In the early stages, starch gels were used, but they were soon replaced by polyacrylamide and agarose gels, which offered better resolution and easier handling. The introduction of sodium dodecyl sulfate (SDS) in the 1960s marked a significant milestone, allowing for the separation of proteins based solely on their molecular weight. This development greatly enhanced the accuracy of molecular weight determination.

The 1970s saw the advent of two-dimensional gel electrophoresis, which combined isoelectric focusing with SDS-PAGE, dramatically improving the resolution of complex protein mixtures. This technique became invaluable in proteomics research, enabling the separation and identification of thousands of proteins simultaneously.

The 1980s brought about pulsed-field gel electrophoresis (PFGE), a technique that allowed for the separation of much larger DNA fragments than conventional methods. This innovation was crucial for genome mapping and the analysis of chromosomal DNA.

Recent advancements have focused on miniaturization and automation. Capillary electrophoresis and microchip-based systems have emerged, offering higher speed, sensitivity, and the ability to integrate with other analytical techniques. These developments have significantly enhanced the throughput and reproducibility of molecular weight determinations.

The primary objectives in enhancing molecular weight determination using gel electrophoresis are multifaceted. Researchers aim to improve resolution, allowing for the separation of molecules with minimal differences in molecular weight. Increasing sensitivity is another key goal, enabling the detection and quantification of low-abundance molecules.

Enhancing the accuracy and precision of molecular weight measurements remains a central objective. This involves developing better calibration standards and improving data analysis methods to account for gel-to-gel variations and other sources of error.

Another important aim is to expand the range of molecular weights that can be accurately determined in a single run. This objective drives the development of gradient gels and novel gel compositions that can separate both very small and very large molecules simultaneously.

Researchers also strive to increase the throughput of gel electrophoresis systems, allowing for the analysis of more samples in less time. This goal is particularly important in clinical and industrial settings where rapid results are crucial.

Finally, there is a growing emphasis on developing more environmentally friendly and cost-effective electrophoresis methods. This includes exploring alternatives to toxic staining agents and reducing the overall resource consumption of the technique.

Market Analysis for Molecular Weight Determination

The market for molecular weight determination using gel electrophoresis has experienced significant growth in recent years, driven by increasing demand in various research fields, particularly in life sciences and biotechnology. This technique plays a crucial role in protein and nucleic acid analysis, making it indispensable for academic research institutions, pharmaceutical companies, and diagnostic laboratories.

The global market for gel electrophoresis equipment and consumables is projected to continue its upward trajectory, with a compound annual growth rate (CAGR) expected to remain strong over the next five years. This growth is primarily attributed to the rising investments in proteomics and genomics research, as well as the expanding applications of gel electrophoresis in clinical diagnostics and personalized medicine.

North America currently holds the largest market share, followed by Europe and Asia-Pacific. The dominance of North America can be attributed to the presence of well-established research infrastructure, substantial funding for life science research, and a high concentration of biotechnology and pharmaceutical companies. However, the Asia-Pacific region is anticipated to witness the fastest growth rate due to increasing government initiatives to support research activities and the rapid expansion of the biotechnology sector in countries like China and India.

Key market segments within the gel electrophoresis domain include equipment (power supplies, gel documentation systems, and electrophoresis chambers), reagents and consumables (gels, buffers, and stains), and software for image analysis. Among these, the reagents and consumables segment accounts for the largest market share due to their recurring nature and essential role in the electrophoresis process.

The market is characterized by intense competition among major players, including Bio-Rad Laboratories, Thermo Fisher Scientific, and Merck KGaA. These companies are continuously investing in research and development to enhance their product offerings and maintain their market positions. Emerging trends in the market include the development of automated and high-throughput systems, integration of advanced imaging technologies, and the introduction of novel gel matrices for improved resolution and sensitivity.

Despite the overall positive outlook, the market faces challenges such as the high cost of advanced gel electrophoresis systems and the growing adoption of alternative technologies like capillary electrophoresis and mass spectrometry. However, ongoing technological advancements aimed at improving the accuracy, speed, and ease of use of gel electrophoresis techniques are expected to sustain market growth and open new opportunities for enhancing molecular weight determination capabilities.

Current Challenges in Gel Electrophoresis Techniques

Gel electrophoresis remains a cornerstone technique in molecular biology for determining molecular weights of proteins and nucleic acids. However, several challenges persist in achieving accurate and reliable results. One of the primary issues is the non-linear relationship between molecular weight and migration distance, especially for larger molecules. This non-linearity can lead to inaccuracies in molecular weight estimation, particularly for high molecular weight species.

Another significant challenge is the limited resolution of traditional gel electrophoresis methods, especially when dealing with complex mixtures or closely related molecular species. The inability to distinguish between molecules with small differences in molecular weight can hinder precise determination and characterization of samples. This limitation becomes particularly problematic in applications such as protein isoform analysis or the study of post-translational modifications.

Gel-to-gel variability presents another obstacle in achieving consistent and comparable results across experiments. Factors such as gel composition, polymerization conditions, and running buffer composition can all contribute to variations in migration patterns and band resolution. This variability can make it difficult to reproduce results and compare data across different laboratories or experimental setups.

The time-consuming nature of gel electrophoresis techniques is also a significant drawback. Traditional methods often require lengthy preparation and running times, which can be a bottleneck in high-throughput applications. Additionally, the manual nature of gel preparation and analysis introduces the potential for human error and inconsistencies in results.

Sensitivity limitations pose challenges in detecting and quantifying low-abundance molecules. Standard gel electrophoresis techniques may struggle to visualize trace amounts of proteins or nucleic acids, potentially leading to false negatives or underestimation of molecular species present in a sample. This limitation is particularly problematic in applications such as biomarker discovery or the analysis of rare transcripts.

Environmental factors, such as temperature fluctuations during electrophoresis runs, can also impact the accuracy and reproducibility of molecular weight determinations. Joule heating within the gel can cause band distortion and affect migration patterns, leading to erroneous molecular weight estimations. Controlling these environmental variables consistently across experiments remains a challenge in many laboratory settings.

Lastly, the interpretation of gel electrophoresis results often relies heavily on visual analysis and manual measurements, which can be subjective and prone to inter-observer variability. The lack of standardized, automated analysis tools for gel image interpretation can lead to inconsistencies in molecular weight determinations and hinder the comparison of results across different studies or laboratories.

Existing Enhancements for Molecular Weight Determination

  • 01 Gel composition and preparation

    The composition and preparation of gels for electrophoresis are crucial for accurate molecular weight determination. This includes the selection of appropriate gel materials, such as polyacrylamide or agarose, and optimizing gel concentration to achieve the desired separation range. Additives and buffer systems can be incorporated to enhance resolution and separation efficiency.
    • Gel composition for molecular weight determination: Specialized gel compositions are developed for improved molecular weight determination in gel electrophoresis. These gels may include specific polymers, cross-linking agents, or additives that enhance separation and resolution of molecules based on their size and charge.
    • Calibration standards for molecular weight determination: The use of calibration standards with known molecular weights is crucial for accurate determination of sample molecular weights. These standards are run alongside samples to create a reference curve for molecular weight estimation.
    • Image analysis and software for molecular weight determination: Advanced image analysis techniques and specialized software are employed to analyze gel electrophoresis results. These tools can automatically detect bands, calculate their intensity, and determine molecular weights based on calibration standards.
    • Novel electrophoresis apparatus designs: Innovative electrophoresis apparatus designs are developed to improve the accuracy and efficiency of molecular weight determination. These may include modifications to electrode configurations, buffer systems, or gel casting methods.
    • Sample preparation techniques for accurate molecular weight determination: Specific sample preparation methods are crucial for accurate molecular weight determination. These may include techniques for protein denaturation, DNA fragmentation, or the addition of loading dyes to enhance band visibility and separation.
  • 02 Molecular weight markers and standards

    The use of molecular weight markers and standards is essential for accurate determination of sample molecular weights. These markers consist of proteins or DNA fragments of known sizes that are run alongside samples, allowing for comparison and calibration. Specialized markers can be designed for specific molecular weight ranges or applications.
    Expand Specific Solutions
  • 03 Image analysis and software algorithms

    Advanced image analysis techniques and software algorithms are employed to analyze gel electrophoresis results. These tools can automatically detect and quantify bands, calculate molecular weights based on marker positions, and generate calibration curves. Machine learning and artificial intelligence approaches may be used to improve accuracy and automate the analysis process.
    Expand Specific Solutions
  • 04 Novel electrophoresis techniques

    Innovative electrophoresis techniques have been developed to enhance molecular weight determination. These include pulsed-field gel electrophoresis for large DNA molecules, capillary electrophoresis for high-resolution separation, and 2D gel electrophoresis for complex protein mixtures. These methods can improve accuracy and expand the range of molecular weights that can be determined.
    Expand Specific Solutions
  • 05 Sample preparation and loading

    Proper sample preparation and loading techniques are critical for accurate molecular weight determination. This includes methods for protein or DNA extraction, purification, and denaturation. Specialized loading buffers and techniques can be used to ensure even sample distribution and prevent band distortion. Optimizing sample concentration and volume is also important for clear and accurate results.
    Expand Specific Solutions

Key Players in Gel Electrophoresis Industry

The gel electrophoresis market for molecular weight determination is in a mature stage, with a steady global market size estimated at over $1 billion. The technology is well-established, with ongoing incremental improvements in accuracy and efficiency. Key players like Agilent Technologies, Bio-Rad Laboratories, and Life Technologies dominate the market, offering advanced systems and reagents. These companies continually innovate to enhance resolution and sensitivity. Academic institutions such as Jilin University and Oregon Health & Science University contribute to research advancements. Emerging players like X-Body and CovalX are developing novel approaches to improve molecular weight analysis, potentially disrupting the market in the future.

Agilent Technologies, Inc.

Technical Solution: Agilent Technologies has developed the 2100 Bioanalyzer system, which utilizes microfluidic technology for molecular weight determination. This system employs lab-on-a-chip technology to perform electrophoresis on a miniaturized scale, allowing for rapid and accurate analysis of DNA, RNA, and proteins[1]. The system uses specialized chips with microchannels filled with a sieving polymer and fluorescent dye. Samples are separated electrophoretically and detected via laser-induced fluorescence[2]. Agilent's software automatically calculates the molecular weight of samples by comparing them to a ladder of known molecular weights. This approach offers higher sensitivity and requires significantly less sample volume compared to traditional gel electrophoresis[3]. Agilent has also developed high-sensitivity DNA chips that can detect concentrations as low as 5 pg/µL, enhancing the ability to work with limited sample quantities[4].
Strengths: High sensitivity, rapid analysis, minimal sample requirement, automated data analysis. Weaknesses: Higher initial investment, limited to smaller molecules (typically <10 kb for DNA), chip-based system may not be suitable for all applications.

Life Technologies Corp.

Technical Solution: Life Technologies, now part of Thermo Fisher Scientific, has developed several technologies to enhance molecular weight determination using gel electrophoresis. Their E-Gel™ system uses pre-cast agarose gels with integrated electrodes, allowing for rapid and convenient electrophoresis without the need for gel preparation or buffer pouring[1]. The company has also introduced the E-Gel™ Power Snap Electrophoresis Device, which combines electrophoresis and imaging in a single instrument, streamlining the workflow and improving reproducibility[2]. Life Technologies' SYBR™ Safe DNA gel stain offers a safer alternative to ethidium bromide, with comparable sensitivity for nucleic acid detection[3]. Additionally, they have developed the Novex™ line of pre-cast polyacrylamide gels, which provide high-resolution separation of proteins across a wide molecular weight range. Their NuPAGE™ Bis-Tris gels offer improved protein stability during electrophoresis, enhancing the accuracy of molecular weight determination for sensitive proteins[4].
Strengths: Comprehensive range of electrophoresis products, innovative pre-cast gel systems, integrated electrophoresis and imaging solutions. Weaknesses: Dependence on proprietary consumables, potentially higher ongoing costs compared to traditional methods.

Innovative Approaches in Gel Electrophoresis

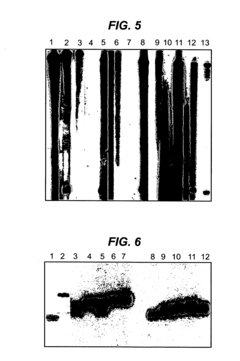

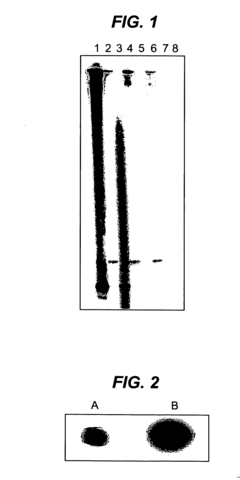

Modified polynucleotides and uses thereof
PatentInactiveUS20050272679A1
Innovation
  • A process involving the covalent modification of greater than 25% of the 2′-OH positions of ribose rings in RNA molecules, using a reaction system capable of achieving this modification in a reaction medium with at least 20% organic solvent, results in polynucleotides that are more stable against nuclease degradation and retain biological activity.
Gelling Electrophoresis Loading Buffer
PatentInactiveUS20070240991A1
Innovation
  • A sample buffer comprising a macromolecule, solvent, and solute is used, which remains in a liquid state until converted to a gel upon contact with the electrophoresis device, eliminating mixing with the running buffer and allowing for sharper, more concentrated sample application, especially suitable for multiple tray gel electrophoresis devices.

Standardization of Gel Electrophoresis Protocols

Standardization of gel electrophoresis protocols is crucial for enhancing molecular weight determination accuracy and reproducibility. This process involves establishing consistent procedures for sample preparation, gel casting, electrophoresis conditions, and data analysis. A key aspect of standardization is the selection and preparation of molecular weight markers, which serve as reference points for size estimation.

Gel composition and concentration play a significant role in resolution and separation. Standardizing the acrylamide percentage for protein gels or agarose concentration for DNA gels ensures consistent pore sizes and migration patterns. Buffer systems must also be standardized, with attention to pH, ionic strength, and composition, as these factors influence protein and DNA mobility.

Electrophoresis conditions, including voltage, current, and run time, require careful optimization and standardization. These parameters affect band resolution and the linearity of the size-mobility relationship. Temperature control during electrophoresis is another critical factor, as variations can lead to inconsistent migration patterns and band distortions.

Sample preparation protocols must be standardized to ensure uniform loading and prevent artifacts. This includes consistent methods for protein denaturation, reduction of disulfide bonds, and the use of loading dyes. For DNA samples, standardization of purification methods and the use of consistent DNA ladders are essential.

Staining and imaging procedures are integral to accurate molecular weight determination. Standardizing staining times, destaining protocols, and image acquisition settings helps minimize variability in band intensity and position. The use of digital imaging systems with calibrated software for band analysis further enhances reproducibility and precision.

Quality control measures should be implemented to monitor gel performance and detect deviations from established standards. This may include running control samples with known molecular weights in each gel and maintaining detailed records of gel preparation and running conditions.

Interlaboratory standardization efforts can significantly improve the comparability of results across different research groups. This may involve the development of shared protocols, the use of common reference materials, and participation in proficiency testing programs.

Emerging Applications of Enhanced Gel Electrophoresis

Enhanced gel electrophoresis techniques are opening up new avenues for molecular weight determination across various fields of research and industry. One emerging application is in the realm of proteomics, where enhanced gel electrophoresis methods are being employed to separate and analyze complex protein mixtures with unprecedented resolution. These advancements allow researchers to identify and characterize low-abundance proteins that were previously difficult to detect, leading to more comprehensive protein profiling in biological samples.

In the field of environmental science, enhanced gel electrophoresis is finding applications in the analysis of environmental DNA (eDNA). This technique enables scientists to detect and identify species present in an ecosystem by analyzing DNA fragments extracted from environmental samples such as water or soil. The improved resolution and sensitivity of enhanced gel electrophoresis methods allow for more accurate species identification and biodiversity assessments, contributing to conservation efforts and ecosystem monitoring.

The pharmaceutical industry is also benefiting from enhanced gel electrophoresis techniques in drug development and quality control processes. These methods are being used to analyze the purity and stability of protein-based drugs, ensuring that the molecular weight and integrity of therapeutic proteins are maintained throughout the production and storage processes. This application is particularly crucial for the development and manufacturing of biopharmaceuticals, where precise molecular weight determination is essential for product efficacy and safety.

In forensic science, enhanced gel electrophoresis is revolutionizing DNA profiling techniques. The improved resolution allows for more accurate separation of DNA fragments, leading to more reliable genetic fingerprinting. This advancement is particularly valuable in cases where limited or degraded DNA samples are available, enhancing the ability to solve cold cases and identify individuals in complex forensic investigations.

Another emerging application is in the field of nanotechnology, where enhanced gel electrophoresis is being used to characterize and purify nanoparticles and nanomaterials. The high-resolution separation capabilities of these techniques allow researchers to precisely determine the size distribution and purity of nanoparticles, which is crucial for their application in various fields, including medicine, electronics, and materials science.

In the food industry, enhanced gel electrophoresis is finding applications in food authenticity testing and allergen detection. These techniques are being used to identify specific proteins in food products, helping to detect food fraud and ensure proper labeling of allergens. This application is particularly important for consumer safety and regulatory compliance in the food industry.
