How to Improve PoE++ Data Rates — Enhancement Techniques

SEP 24, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

PoE++ Evolution and Enhancement Objectives

Power over Ethernet (PoE) technology has undergone significant evolution since its inception in the early 2000s. The original IEEE 802.3af standard, introduced in 2003, provided up to 15.4W of power. This was followed by IEEE 802.3at (PoE+) in 2009, which increased power delivery to 30W. The most recent standard, IEEE 802.3bt (PoE++), ratified in 2018, represents a substantial leap forward, enabling power delivery up to 60W (Type 3) and 100W (Type 4) while maintaining backward compatibility with previous iterations.

The evolution of PoE technology has been primarily driven by the increasing power demands of networked devices and the growing trend toward convergence of power and data networks. As Internet of Things (IoT) deployments expand and more sophisticated devices require network connectivity, the need for higher power delivery alongside data has become critical. This convergence offers significant advantages in terms of installation simplicity, operational flexibility, and potential cost savings.

Despite these advancements, current PoE++ implementations face limitations in data transmission rates. While the physical infrastructure can support up to 10 Gbps in theory, actual implementations often achieve lower throughput due to power-related constraints, electromagnetic interference, and cable quality limitations. These challenges become more pronounced as power levels increase, creating a technical tension between power delivery and data rate performance.

The primary objective for enhancing PoE++ data rates is to achieve reliable 10 Gbps transmission while maintaining or improving the current power delivery capabilities. This goal requires addressing several technical challenges, including signal integrity at higher frequencies, thermal management of cables carrying substantial power, and electromagnetic compatibility concerns. Additionally, any enhancements must maintain backward compatibility with existing PoE infrastructure to ensure seamless integration.

Future evolution paths for PoE++ technology include exploring advanced modulation techniques, improved cable designs with better shielding properties, and more sophisticated power management algorithms. Research is also focusing on adaptive systems that can dynamically balance power delivery and data rate requirements based on real-time conditions and device needs. These advancements aim to support emerging applications such as high-definition surveillance cameras, advanced wireless access points, and industrial automation systems.

The convergence of higher power delivery and increased data rates represents the next frontier in PoE technology development, potentially enabling a new generation of networked devices and applications that were previously impractical due to power or bandwidth limitations.

Market Demand Analysis for High-Speed PoE++ Solutions

The global market for Power over Ethernet (PoE++) solutions is experiencing unprecedented growth, driven by the increasing demand for high-speed data transmission alongside power delivery through a single cable. Current market research indicates that the PoE market is expanding at a compound annual growth rate of approximately 12% between 2022 and 2027, with the high-speed PoE++ segment growing even faster at nearly 15%.

This accelerated demand stems primarily from the rapid proliferation of Internet of Things (IoT) devices across various sectors. Enterprise networks are increasingly deploying high-bandwidth applications such as 4K/8K video surveillance cameras, advanced wireless access points, and digital signage systems that require both substantial power and high data rates. The IEEE 802.3bt standard (PoE++) has addressed the power requirements by enabling up to 90W power delivery, but data rate enhancement remains a critical market need.

Smart building infrastructure represents another significant market driver, with integrated systems for lighting, HVAC, security, and access control all converging on unified networks. Market analysis reveals that over 60% of new commercial building projects now specify PoE-enabled systems, with data rate requirements doubling approximately every three years as applications become more sophisticated.

Healthcare facilities are emerging as a particularly promising vertical market for high-speed PoE++ solutions. The integration of medical imaging equipment, patient monitoring systems, and telehealth platforms demands reliable, high-bandwidth connections with power redundancy. Market surveys indicate that healthcare IT decision-makers rank data transmission speed as the second most important factor when selecting PoE technology, just behind reliability.

Industrial automation applications present another substantial market opportunity, with manufacturing facilities increasingly adopting Industrial IoT (IIoT) solutions that require deterministic, high-speed data transmission alongside power delivery to distributed sensors and controllers. The industrial segment is projected to be the fastest-growing application area for high-speed PoE++ technology through 2026.

From a geographical perspective, North America currently leads in high-speed PoE++ adoption, accounting for approximately 38% of the global market. However, the Asia-Pacific region is expected to demonstrate the highest growth rate over the next five years, driven by rapid infrastructure development and smart city initiatives in China, India, and Southeast Asian nations.

Customer pain points consistently identified in market research include concerns about data rate limitations when deploying bandwidth-intensive applications, compatibility issues between different vendors' implementations, and the need for simplified network management solutions that can optimize both power delivery and data transmission parameters simultaneously.

Current PoE++ Technology Limitations and Challenges

Power over Ethernet Plus Plus (PoE++) technology, while revolutionary in delivering both power and data over standard Ethernet cables, faces several significant limitations and challenges that constrain its data rate capabilities. The IEEE 802.3bt standard (PoE++) currently supports power delivery up to 90W, but this advancement in power capability has not been matched by proportional improvements in data transmission rates.

One of the primary technical constraints is signal integrity degradation due to increased power transmission. As power levels increase in PoE++ systems, the resulting electromagnetic interference (EMI) and thermal effects can significantly degrade data signals, particularly at higher frequencies. This interference creates a fundamental trade-off between power delivery and data rate performance that engineers must carefully balance.

Cable quality and characteristics present another substantial challenge. The standard Cat5e/Cat6 cables used in most PoE++ installations have inherent bandwidth limitations. While Cat6A and Cat7 cables offer improved performance, their higher cost and installation complexity limit widespread adoption. Additionally, the maximum cable length of 100 meters for reliable PoE++ operation introduces signal attenuation issues that become more pronounced at higher data rates.

Power management circuitry in PoE++ systems introduces additional complexities. The sophisticated power negotiation protocols and power management circuits required for safe high-power delivery can introduce latency and overhead that impacts overall data throughput. These circuits also generate heat that can affect signal integrity and long-term reliability of network components.

Backward compatibility requirements with existing PoE standards (802.3af and 802.3at) create design constraints that limit innovation potential. Any enhancement to data rates must maintain interoperability with the installed base of equipment, which often results in conservative design approaches that prioritize reliability over maximum performance.

The physical layer interface design faces significant challenges in simultaneously handling high-power delivery and high-speed data transmission. Current PHY designs struggle to effectively filter power-related noise while maintaining signal integrity for multi-gigabit data rates, particularly in environments with varying cable qualities and lengths.

Thermal management represents another critical challenge. The heat generated by delivering up to 90W through Ethernet cables can affect both cable performance and connected equipment reliability. This thermal constraint becomes increasingly problematic as data rates increase, as higher-frequency signals are more susceptible to thermal effects on transmission media.

These technical limitations collectively create a complex engineering challenge that requires innovative approaches spanning multiple domains including signal processing, materials science, power electronics, and communication protocols to achieve meaningful improvements in PoE++ data rates.

Current Data Rate Enhancement Techniques

  • 01 PoE++ standards and data rate capabilities

    Power over Ethernet Plus Plus (PoE++) extends the capabilities of previous PoE standards by supporting higher power delivery while maintaining compatibility with high data rates. The IEEE 802.3bt standard defines PoE++ with support for data rates up to 10 Gbps on compatible network infrastructure. This allows for simultaneous high-speed data transmission and increased power delivery over the same Ethernet cable, supporting more power-hungry devices without compromising network performance.
    • PoE++ standards and data transmission rates: Power over Ethernet Plus Plus (PoE++) extends the capabilities of previous PoE standards by supporting higher power delivery while maintaining or improving data transmission rates. The technology allows for data rates up to multi-gigabit speeds while simultaneously delivering power over the same Ethernet cable. These standards define protocols for negotiating power requirements and data transmission parameters between powered devices and power sourcing equipment.
    • Power management and data rate optimization: PoE++ systems incorporate advanced power management techniques that dynamically balance power delivery and data transmission rates. These systems can adjust power allocation based on device requirements while maintaining optimal data throughput. Intelligent power management algorithms ensure that high-speed data transmission is not compromised even when delivering maximum power, allowing devices to operate at their full potential while efficiently utilizing available resources.
    • Network architecture for high-speed PoE++ implementations: Specialized network architectures have been developed to support high data rates in PoE++ environments. These architectures include modified physical layer interfaces, enhanced signal processing techniques, and specialized cabling requirements that enable simultaneous high-power delivery and high-speed data transmission. The network designs incorporate advanced noise cancellation and signal integrity features to maintain data rates even in high-power delivery scenarios.
    • PoE++ compatible devices and data throughput capabilities: Various devices have been specifically designed to leverage PoE++ technology while supporting high data rates. These include network switches, routers, access points, cameras, and other IoT devices that can operate at gigabit or multi-gigabit speeds while being powered through the Ethernet connection. The devices incorporate specialized hardware and firmware to negotiate appropriate power levels while maintaining maximum data throughput according to their operational requirements.
    • Integration of PoE++ with advanced communication protocols: PoE++ technology has been integrated with various advanced communication protocols to enhance data rates and functionality. These integrations include support for the latest Ethernet standards, Time-Sensitive Networking (TSN), and specialized industrial protocols. The implementations allow for prioritized data traffic, deterministic communication, and quality of service guarantees while still delivering high power levels to connected devices.
  • 02 Power management and data rate optimization

    PoE++ systems implement sophisticated power management techniques that dynamically balance power delivery and data transmission rates. These systems can adjust power allocation based on device requirements while maintaining optimal data throughput. Advanced power negotiation protocols ensure that devices receive appropriate power levels without interfering with data transmission, allowing for efficient operation of both power-intensive devices and high-bandwidth applications simultaneously over the same Ethernet infrastructure.
    Expand Specific Solutions
  • 03 Multi-gigabit transmission with PoE++ technology

    PoE++ supports multi-gigabit data transmission rates while delivering up to 100W of power. This capability enables deployment of high-performance devices such as advanced wireless access points, high-resolution security cameras, and IoT gateways that require both substantial power and high-bandwidth connections. The technology incorporates specialized signal processing and cable management techniques to minimize interference between power delivery and data transmission, ensuring reliable multi-gigabit performance even at maximum power levels.
    Expand Specific Solutions
  • 04 Network architecture for high-speed PoE++ deployment

    Specialized network architectures have been developed to optimize PoE++ deployments for maximum data rates. These architectures incorporate advanced switching fabrics, intelligent power distribution systems, and enhanced cabling specifications to support simultaneous high-power delivery and high-speed data transmission. The designs include considerations for heat management, signal integrity, and electromagnetic compatibility to ensure reliable operation at maximum data rates while delivering the full power capabilities of the PoE++ standard.
    Expand Specific Solutions
  • 05 Compatibility and integration with existing network infrastructure

    PoE++ technology is designed to be backward compatible with existing network infrastructure while supporting higher data rates. Implementation strategies include auto-negotiation protocols that detect device capabilities and adjust power and data parameters accordingly. This allows for gradual network upgrades where PoE++ devices can operate alongside older equipment while maintaining the highest possible data rates for each connection. The technology includes provisions for mixed deployments where some devices operate at gigabit speeds while others utilize multi-gigabit capabilities.
    Expand Specific Solutions

Key Industry Players in PoE++ Ecosystem

Power over Ethernet Plus Plus (PoE++) data rate enhancement is currently in a growth phase, with the market expanding rapidly due to increasing demand for higher power delivery and data speeds in networked devices. The global market size is projected to grow significantly as smart buildings, IoT devices, and industrial automation drive adoption. Technologically, the field is maturing with key players developing advanced solutions. Huawei Technologies and ZTE Corp lead with comprehensive PoE++ infrastructure innovations, while Cisco Systems and New H3C Technologies focus on enterprise-grade implementations. Qualcomm and STMicroelectronics are advancing semiconductor solutions for PoE++ applications. Research institutions like Tsinghua University and UESTC collaborate with industry leaders to overcome technical challenges in power management, heat dissipation, and data integrity at higher transmission rates.

Huawei Technologies Co., Ltd.

Technical Solution: Huawei has developed advanced PoE++ enhancement techniques focusing on multi-gigabit transmission capabilities. Their solution implements Digital Signal Processing (DSP) algorithms that optimize signal integrity across existing Cat5e/Cat6 cables, achieving data rates up to 10Gbps over distances of 100 meters. Huawei's approach incorporates adaptive equalization techniques that dynamically compensate for channel impairments and crosstalk cancellation algorithms to minimize interference between wire pairs. Additionally, they've implemented advanced Forward Error Correction (FEC) coding schemes that significantly improve bit error rates while maintaining backward compatibility with existing PoE standards. Their technology also features intelligent power management systems that optimize power delivery while maintaining thermal stability for high-speed data transmission.
Strengths: Superior signal processing capabilities allowing for higher data rates over standard cabling infrastructure; excellent backward compatibility with existing PoE deployments; comprehensive approach addressing both power and data aspects. Weaknesses: Proprietary elements may limit interoperability with other vendors' equipment; higher implementation complexity requiring more sophisticated hardware.

New H3C Technologies Co., Ltd.

Technical Solution: H3C has developed a comprehensive PoE++ enhancement solution called PowerBoost that focuses on maximizing data rates while ensuring reliable power delivery in enterprise environments. Their technology implements an innovative Adaptive Channel Equalization (ACE) system that continuously monitors cable characteristics and dynamically adjusts signal parameters to optimize transmission quality. H3C's approach incorporates advanced Forward Error Correction (FEC) coding combined with sophisticated interference cancellation algorithms, enabling data rates up to 7.5Gbps over distances of 120 meters using standard Cat6a cabling. Their solution features intelligent thermal management that monitors power dissipation across network devices and adjusts data rates to prevent performance degradation due to overheating. Additionally, H3C has implemented a unique Power-Data Coordination Protocol (PDCP) that synchronizes power delivery with data transmission patterns to minimize electromagnetic interference and maximize overall system efficiency. The technology also includes comprehensive diagnostics and monitoring capabilities that provide network administrators with detailed insights into both power and data performance metrics.
Strengths: Excellent thermal management capabilities ensuring sustained performance in dense deployments; strong diagnostic and monitoring features; good balance between performance enhancement and implementation complexity. Weaknesses: Somewhat conservative maximum data rates compared to leading competitors; requires H3C network management software to access advanced features.

Core Patents and Innovations in PoE++ Technology

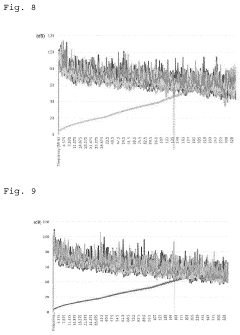

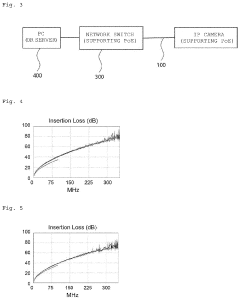

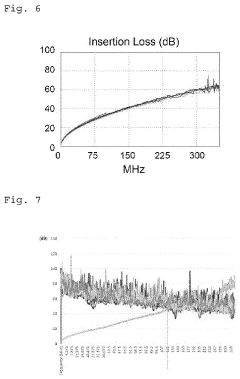

POE cable
PatentActiveUS20230335314A1
Innovation

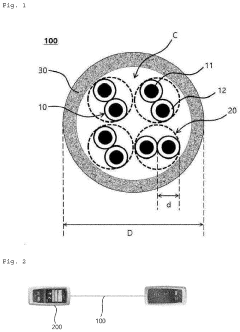

  • A PoE cable design with a conductor diameter of 23 AWG, insulator, and specific twist pair pitches that minimize outer diameter increase, allowing for PoE+ power transmission up to 200 meters without additional hubs, while maintaining compatibility with existing commercial connectors.
Dynamic current limits
PatentActiveEP2215819A1
Innovation
  • Implementing a method to dynamically allocate power by calculating the worst-case current draw during a maximum voltage slew rate and selectively providing or denying power based on the remaining power capacity, using a controller to manage power supply and network interface communication between Powered Devices (PDs) and Power Sourcing Equipment (PSEs).

Thermal Management Strategies for High-Power PoE++ Systems

Thermal management represents a critical challenge in the advancement of Power over Ethernet Plus Plus (PoE++) systems, particularly as data rates continue to increase. The IEEE 802.3bt standard enables power delivery up to 90W, creating significant heat dissipation concerns that directly impact data transmission performance. Without proper thermal management, high-power PoE++ systems experience increased resistance in conductors, leading to signal degradation and reduced data rates.

Current thermal management approaches for PoE++ systems employ multi-layered strategies. Passive cooling techniques utilize specialized PCB designs with thermal vias and copper planes to efficiently distribute heat away from critical components. These designs often incorporate heat sinks with optimized fin structures to maximize surface area for heat dissipation without increasing spatial requirements.

Active cooling solutions have become increasingly necessary for high-power PoE++ implementations. Micro-fans and blowers are strategically positioned to create airflow paths that target hotspots within the system. Advanced implementations utilize temperature-controlled fan speed regulation to balance cooling efficiency with power consumption and acoustic performance.

Thermal interface materials (TIMs) play a crucial role in heat transfer efficiency. Recent developments in nano-material enhanced thermal compounds have demonstrated up to 35% improvement in thermal conductivity compared to traditional materials. These advanced TIMs ensure optimal contact between heat-generating components and cooling structures, minimizing thermal resistance at critical junctions.

Software-based thermal management has emerged as an essential complement to hardware solutions. Dynamic Power Management (DPM) algorithms continuously monitor system temperatures and adjust power allocation across PoE++ ports to prevent thermal overload. These systems can intelligently redistribute power based on real-time thermal conditions, maintaining optimal data rates while preventing thermal throttling.

Environmental considerations also factor into comprehensive thermal management strategies. Enclosure design with strategic ventilation patterns optimizes natural convection cooling. For outdoor or industrial deployments, sealed systems with external heat exchangers provide protection against environmental contaminants while maintaining effective thermal regulation.

The relationship between thermal management and data rate performance is particularly evident in high-density PoE++ deployments. Research indicates that maintaining component temperatures below critical thresholds can improve signal integrity by reducing thermal noise, potentially increasing effective data rates by 8-12% in congested networks. This highlights the direct correlation between effective thermal management and the primary goal of enhancing PoE++ data transmission capabilities.

Interoperability Standards and Compliance Requirements

Interoperability across different Power over Ethernet (PoE) implementations is critical for ensuring seamless integration of devices in modern network infrastructures. The IEEE 802.3bt standard (PoE++) establishes the foundation for interoperability, but additional considerations are necessary when implementing enhanced data rate solutions.

The primary compliance requirement for PoE++ systems is adherence to IEEE 802.3bt specifications, which define power delivery up to 90W. When implementing data rate enhancements, systems must maintain backward compatibility with earlier PoE standards (802.3af, 802.3at) to ensure existing infrastructure investments remain viable. This backward compatibility extends to both power delivery mechanisms and data communication protocols.

For enhanced data rates beyond standard capabilities, manufacturers must ensure compliance with electromagnetic compatibility (EMC) standards, including FCC Part 15 in the United States and EN 55032 in Europe. These regulations become increasingly important as higher data rates generate more electromagnetic interference, potentially affecting nearby equipment.

Thermal management compliance is another critical consideration, as higher data rates typically generate additional heat. Systems must adhere to operational temperature specifications outlined in IEC 60950-1 or its successor IEC 62368-1 for IT equipment safety.

The Ethernet Alliance's PoE Certification Program provides a standardized testing methodology to verify interoperability between powered devices (PDs) and power sourcing equipment (PSE). This certification becomes particularly valuable when implementing proprietary data rate enhancement techniques that might otherwise create compatibility issues.

When deploying multi-gigabit data rates over PoE++ infrastructure, compliance with TIA/EIA cabling standards becomes essential. Category 6A or higher cabling is typically required to support enhanced data rates while maintaining power delivery capabilities. The TIA-568.2-D standard specifically addresses the requirements for supporting both power and high-speed data over the same cabling infrastructure.

Network management interoperability standards, such as LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery), enable intelligent power management across heterogeneous networks. These protocols must be properly implemented when enhancing data rates to ensure devices can negotiate appropriate power levels while maintaining optimal data throughput.

For industrial applications, additional compliance with IEC 61000-4-5 surge protection standards may be necessary, particularly when enhanced data rates are deployed in harsh electromagnetic environments where power and data integrity must be simultaneously maintained.
