Laminar Flow Aerospace Evolution and Objectives

Laminar flow technology has been a focal point in aerospace engineering for decades, with its potential to revolutionize aircraft performance and efficiency. The evolution of laminar flow in aerospace can be traced back to the early 20th century when researchers first recognized the significant drag reduction benefits of maintaining laminar flow over aircraft surfaces.

In the 1930s and 1940s, NACA (now NASA) conducted extensive research on laminar flow airfoils, leading to the development of the NACA 6-series airfoils. These airfoils were designed to maintain laminar flow over a larger portion of the wing surface, resulting in reduced drag and improved performance. However, practical implementation challenges limited their widespread adoption in commercial aviation.

The 1980s saw a resurgence of interest in laminar flow technology with the advent of advanced materials and manufacturing techniques. NASA's Aircraft Energy Efficiency (ACEE) program focused on developing natural laminar flow (NLF) and hybrid laminar flow control (HLFC) technologies. These efforts aimed to extend the region of laminar flow on aircraft surfaces, promising substantial reductions in fuel consumption and emissions.

Recent advancements in computational fluid dynamics (CFD) and materials science have further accelerated progress in laminar flow technology. Modern aircraft designs incorporate sophisticated surface geometries and coatings to promote laminar flow, while active flow control systems are being explored to maintain laminar flow under varying flight conditions.

The primary objective of laminar flow technology in aerospace is to significantly reduce skin friction drag, which accounts for a large portion of total aircraft drag. By maintaining laminar flow over larger areas of the aircraft surface, engineers aim to achieve remarkable improvements in fuel efficiency, range, and payload capacity. Additionally, reduced drag translates to lower engine thrust requirements, potentially leading to smaller, lighter engines and further weight savings.

Another crucial goal is to enhance the environmental sustainability of air travel. As the aviation industry faces increasing pressure to reduce its carbon footprint, laminar flow technology offers a promising path towards more eco-friendly aircraft designs. By reducing fuel consumption, laminar flow contributes directly to lower greenhouse gas emissions and operational costs for airlines.

Looking ahead, the aerospace industry is setting ambitious targets for laminar flow implementation. These include achieving laminar flow over 50% or more of wing surfaces on commercial aircraft, extending laminar flow to other aircraft components such as fuselages and engine nacelles, and developing robust, cost-effective laminar flow solutions suitable for a wide range of aircraft types and operating conditions.

Market Demand for Efficient Aircraft Design

The aerospace industry is witnessing a growing demand for more efficient aircraft designs, driven by economic and environmental pressures. Airlines and aircraft manufacturers are increasingly focused on reducing fuel consumption, operating costs, and environmental impact. This market demand is propelling research and development efforts in laminar flow technology, which promises significant improvements in aerodynamic efficiency.

Fuel costs remain a major concern for airlines, accounting for a substantial portion of their operating expenses. As such, there is a strong market pull for technologies that can reduce fuel burn. Laminar flow technology, by reducing drag on aircraft surfaces, offers the potential to decrease fuel consumption by up to 15% compared to conventional designs. This translates to substantial cost savings for airlines and reduced carbon emissions, aligning with both economic and sustainability goals.

The commercial aircraft market is projected to grow steadily over the next two decades, with thousands of new aircraft deliveries expected. This growth presents a significant opportunity for manufacturers to incorporate laminar flow technology into their designs, meeting the demand for more efficient aircraft. Moreover, the increasing focus on environmental regulations and carbon reduction targets in the aviation sector is creating additional market pressure for advanced aerodynamic solutions.

Military aerospace applications are also driving demand for efficient aircraft design. Defense organizations are seeking extended range and endurance capabilities for their aircraft, which can be achieved through improved aerodynamic efficiency. Laminar flow technology can contribute to these objectives by reducing drag and improving overall aircraft performance.

The market for retrofitting existing aircraft with laminar flow solutions is also emerging. Airlines looking to extend the service life and improve the efficiency of their current fleets are showing interest in aftermarket laminar flow technologies that can be applied to existing aircraft structures.

However, the market demand for laminar flow technology is tempered by challenges in implementation and maintenance. Airlines and manufacturers are cautious about adopting new technologies that may increase complexity or maintenance requirements. As such, there is a parallel demand for robust, practical laminar flow solutions that can withstand real-world operating conditions and integrate seamlessly into existing maintenance routines.

In conclusion, the market demand for efficient aircraft design, particularly through laminar flow technology, is strong and multifaceted. It is driven by economic imperatives, environmental regulations, and the pursuit of enhanced performance across both commercial and military sectors. The success of laminar flow technology in meeting this demand will depend on its ability to deliver tangible benefits while addressing practical implementation challenges.

Current Laminar Flow Technology Challenges

Laminar flow technology in aerospace faces several significant challenges that hinder its widespread implementation and effectiveness. One of the primary obstacles is the difficulty in maintaining laminar flow over large surface areas of aircraft. As aircraft size increases, the likelihood of flow transition from laminar to turbulent also increases, reducing the overall benefits of laminar flow technology.

Surface contamination presents another major hurdle. Even minor imperfections, such as insect residue or ice crystals, can trigger premature transition to turbulent flow. This necessitates stringent surface quality requirements and regular maintenance, which can be costly and time-consuming for airlines and operators.

Manufacturing precision poses a considerable challenge. Achieving the required surface smoothness and shape accuracy for laminar flow is extremely demanding. Current manufacturing processes struggle to consistently produce large-scale components with the necessary tolerances, limiting the application of laminar flow technology to smaller aircraft or specific components.

Environmental factors also play a crucial role in the effectiveness of laminar flow. Atmospheric conditions, such as humidity and temperature variations, can significantly impact the stability of laminar flow. This variability makes it challenging to design systems that perform optimally across a wide range of operating conditions.

The integration of laminar flow technology with other aircraft systems presents additional complexities. For instance, the need for smooth surfaces conflicts with requirements for access panels, antennas, and other necessary protrusions on the aircraft skin. Balancing these competing design requirements often results in compromises that reduce the overall effectiveness of laminar flow.

Cost considerations remain a significant barrier to widespread adoption. The development, implementation, and maintenance of laminar flow systems often require substantial investments, which can be difficult to justify in the highly competitive and cost-sensitive aerospace industry.

Lastly, the lack of comprehensive real-world data on long-term performance and reliability of laminar flow systems in commercial operations creates uncertainty. This gap in knowledge makes it challenging for manufacturers and airlines to accurately assess the true benefits and risks associated with implementing this technology on a large scale.

Existing Laminar Flow Implementation Strategies

  • 01 Laminar flow control for aircraft surfaces

    Techniques for maintaining laminar flow over aircraft surfaces to reduce drag and improve aerodynamic efficiency. This includes designing smooth surfaces, using suction or blowing systems, and implementing active flow control mechanisms to delay turbulent transition.
    • Airfoil design for laminar flow: Optimizing airfoil shapes to maintain laminar flow over a larger portion of the surface, reducing drag and improving aerodynamic efficiency. This includes careful consideration of curvature, thickness distribution, and surface smoothness to delay boundary layer transition.
    • Surface treatments for laminar flow: Applying specialized coatings or surface modifications to reduce skin friction and promote laminar flow. These treatments can include hydrophobic coatings, riblets, or other micro-textures that help maintain laminar flow and reduce drag.
    • Active flow control systems: Implementing systems that actively manipulate the boundary layer to maintain laminar flow. This can include suction or blowing mechanisms, plasma actuators, or other devices that energize or remove the boundary layer to prevent transition to turbulent flow.
    • Laminar flow control for marine vessels: Applying laminar flow principles to ship hulls and underwater structures to reduce drag and improve fuel efficiency in marine applications. This includes hull shaping, bubble generation systems, and other techniques to maintain laminar flow in water.
    • Computational methods for laminar flow analysis: Utilizing advanced computational fluid dynamics (CFD) techniques and algorithms to model and optimize laminar flow characteristics. This includes developing more accurate turbulence models, transition prediction methods, and design optimization tools for improving aerodynamic efficiency.
  • 02 Streamlined vehicle body design

    Optimizing vehicle body shapes to minimize air resistance and promote laminar flow. This involves using computational fluid dynamics to design aerodynamic profiles, reducing surface irregularities, and incorporating features like rounded edges and tapered rear sections.
    Expand Specific Solutions
  • 03 Boundary layer management

    Methods for controlling and manipulating the boundary layer to maintain laminar flow and reduce skin friction drag. This includes using vortex generators, riblets, or other surface treatments to influence the air flow close to the surface.
    Expand Specific Solutions
  • 04 Active flow control systems

    Implementation of dynamic systems that actively modify airflow to maintain laminar flow conditions. These may include adjustable surface geometries, plasma actuators, or synthetic jet actuators that can respond to changing flight conditions.
    Expand Specific Solutions
  • 05 Laminar flow wings and airfoils

    Specialized design of wings and airfoils to promote and maintain laminar flow. This involves careful shaping of the airfoil profile, surface smoothness considerations, and integration with other laminar flow control techniques to maximize aerodynamic efficiency.
    Expand Specific Solutions

Key Aerospace Players in Laminar Flow Research

The aerospace industry's pursuit of laminar flow technology is in a mature development stage, with significant market potential due to its promise of improved fuel efficiency and reduced emissions. The global market for this technology is estimated to be worth billions, driven by increasing demand for more eco-friendly aircraft. Major players like Airbus Operations GmbH, The Boeing Co., and NASA are at the forefront of research and development, with each investing heavily in laminar flow solutions. These companies are leveraging their extensive experience in aerospace engineering to overcome technical challenges and integrate laminar flow technology into next-generation aircraft designs, indicating a high level of technological maturity and competitive intensity in this field.

Airbus Operations GmbH

Technical Solution: Airbus has developed advanced laminar flow technology for its aircraft, particularly focusing on Natural Laminar Flow (NLF) and Hybrid Laminar Flow Control (HLFC) systems. Their BLADE (Breakthrough Laminar Aircraft Demonstrator in Europe) project demonstrated up to 50% laminar flow on the wing's outer panel[1]. Airbus utilizes computational fluid dynamics (CFD) and wind tunnel testing to optimize wing designs for laminar flow. They have implemented NLF on the A340 BLADE demonstrator and are working on integrating HLFC technology into future aircraft designs, potentially reducing drag by up to 10%[2][3].
Strengths: Extensive research and real-world testing experience, proven drag reduction capabilities. Weaknesses: Complexity in manufacturing and maintaining laminar flow surfaces, potential weight increase due to additional systems.

The Boeing Co.

Technical Solution: Boeing has been actively researching and implementing laminar flow technologies to improve aircraft efficiency. They have developed Hybrid Laminar Flow Control (HLFC) systems, which combine passive and active flow control methods. Boeing's approach includes using suction through tiny holes or slots on the wing surface to maintain laminar flow. They have tested HLFC on a Boeing 757 testbed, achieving up to 65% laminar flow on the wing's upper surface[4]. Boeing is also exploring the use of advanced materials and manufacturing techniques to create smoother surfaces that promote natural laminar flow. Their research indicates potential fuel savings of 6-12% for long-range aircraft implementing these technologies[5][6].
Strengths: Proven HLFC technology, significant potential for fuel savings. Weaknesses: Increased system complexity, potential maintenance challenges in operational environments.

Breakthrough Innovations in Laminar Flow Control

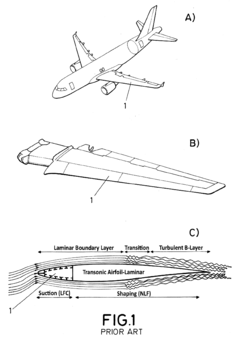

Leading edge with laminar flow control
PatentActiveEP3173328A1
Innovation

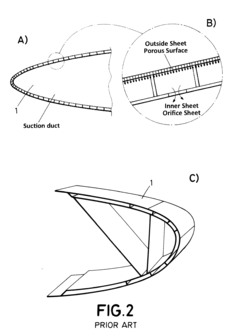

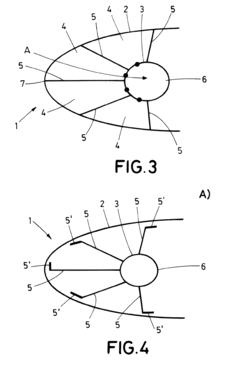

  • A leading edge section made from composite materials with a micro-drilled outer skin and perforated inner surface, featuring radial structural elements that form suction chambers for laminar flow control, allowing for integrated and optimized structural support and easier maintenance, using materials like Carbon Fiber Reinforced Plastic (CFRP) and metals.

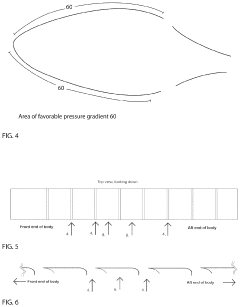

Methods for optimizing boundary layer control (BLC) systems and related systems
PatentPendingUS20240109646A1
Innovation
  • The integration of a bellows-based BLC air management system with suction-stabilized Laminar Flow and Static Pressure Thrust, combined with Wake Immersed Propulsion and Oversized internal ducting, to reduce energy consumption and maintain laminar flow over larger surfaces, optimizing aerodynamic geometries for improved performance.

Environmental Impact of Laminar Flow Technology

The implementation of laminar flow technology in aerospace has significant environmental implications, both positive and negative. On the positive side, the primary benefit is the substantial reduction in fuel consumption. By maintaining laminar flow over larger portions of aircraft surfaces, drag is significantly reduced, leading to improved fuel efficiency. This translates directly into lower greenhouse gas emissions, particularly carbon dioxide, which is a major contributor to global warming. Studies have shown that widespread adoption of laminar flow technology could potentially reduce aviation-related CO2 emissions by up to 15-20%.

Furthermore, the reduced fuel consumption also means less extraction and refining of fossil fuels, which has additional environmental benefits in terms of reduced air and water pollution associated with these processes. The decreased demand for fuel could also lead to less frequent oil spills and other environmental accidents related to fuel transportation and storage.

However, the environmental impact of laminar flow technology is not entirely positive. The manufacturing processes required to produce the highly precise surfaces necessary for laminar flow can be energy-intensive and may involve the use of specialized materials and coatings. These processes could potentially increase the carbon footprint of aircraft production, although this increase is likely to be offset by the long-term fuel savings during operation.

Another consideration is the potential increase in the use of de-icing fluids and cleaning agents. Laminar flow surfaces require extremely clean and smooth conditions to function optimally, which may lead to more frequent cleaning and de-icing operations. The chemicals used in these processes can have negative environmental impacts if not properly managed and disposed of.

There are also concerns about the end-of-life disposal of aircraft components designed for laminar flow. The specialized materials and coatings used may present challenges for recycling and could potentially contribute to increased waste in the aerospace industry.

Despite these challenges, the overall environmental impact of laminar flow technology is expected to be positive. The significant reduction in fuel consumption and associated emissions outweighs the potential negative impacts of production and maintenance. As the technology continues to evolve, it is likely that more environmentally friendly manufacturing processes and materials will be developed, further enhancing the positive environmental impact of laminar flow in aerospace applications.

Certification and Safety Standards for Laminar Flow Aircraft

The certification and safety standards for laminar flow aircraft represent a critical aspect of integrating this innovative technology into commercial aerospace. As laminar flow technology advances, regulatory bodies such as the Federal Aviation Administration (FAA) and the European Union Aviation Safety Agency (EASA) are working to develop comprehensive guidelines that ensure the safety and reliability of these aircraft.

One of the primary challenges in certifying laminar flow aircraft lies in the need to validate the performance and durability of laminar flow surfaces under various operational conditions. This includes assessing the impact of environmental factors such as rain, ice, and insect contamination on the maintenance of laminar flow. Regulatory agencies are developing new test protocols and performance criteria to address these unique considerations.

Structural integrity and fatigue resistance of laminar flow surfaces are also key areas of focus in the certification process. The smooth, precisely engineered surfaces required for laminar flow must maintain their shape and properties throughout the aircraft's operational life. This necessitates the development of new inspection techniques and maintenance procedures to ensure ongoing compliance with safety standards.

The certification process also addresses the potential impact of laminar flow technology on aircraft systems and overall flight characteristics. This includes evaluating the effects on aerodynamics, stability, and control, particularly during critical phases of flight such as takeoff and landing. Manufacturers must demonstrate that laminar flow aircraft meet or exceed existing safety standards for conventional aircraft in all aspects of operation.

Safety standards for laminar flow aircraft also encompass emergency procedures and contingency planning. This includes assessing the aircraft's performance in scenarios where laminar flow is disrupted or lost, and ensuring that pilots have the necessary training and procedures to manage such situations effectively.

As the technology matures, regulatory bodies are likely to refine and update certification requirements based on operational data and real-world experience. This iterative process will help to ensure that safety standards keep pace with technological advancements, fostering the safe integration of laminar flow aircraft into the global aviation fleet.
