Benchmarking SNSPDs Versus Avalanche Photodiodes For Telecom
AUG 28, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.
SNSPD and APD Technology Evolution and Objectives
Single-photon detection technology has evolved significantly over the past four decades, with two primary technologies emerging as frontrunners in telecommunications applications: Superconducting Nanowire Single-Photon Detectors (SNSPDs) and Avalanche Photodiodes (APDs). The evolution of these technologies represents a fascinating journey through quantum physics, materials science, and telecommunications engineering.
APDs were first developed in the 1960s and gained commercial traction in the 1980s as telecommunications networks expanded globally. These semiconductor devices operate by utilizing the avalanche effect, where a single photon triggers a cascade of electron-hole pairs through impact ionization. Early APDs suffered from high dark count rates and limited quantum efficiency, but continuous improvements in semiconductor manufacturing processes have enhanced their performance significantly.
SNSPDs, by contrast, represent a more recent technological development, emerging in the early 2000s. These detectors operate on superconducting principles, where a nanowire maintained at cryogenic temperatures experiences a temporary loss of superconductivity when struck by a photon. This technology has rapidly evolved from laboratory curiosities to practical devices with exceptional performance characteristics, particularly in quantum communication applications.
The technological objectives for both detection systems have been driven by telecommunications requirements: higher detection efficiency, lower timing jitter, reduced dark count rates, and faster recovery times. For quantum key distribution (QKD) and other quantum communication protocols, these parameters directly impact secure key rates and transmission distances. The telecom industry has particularly focused on detectors optimized for the 1310nm and 1550nm wavelength bands, where optical fiber transmission losses are minimized.
Recent technological milestones include the development of SNSPDs with detection efficiencies exceeding 98% at telecom wavelengths, timing jitter below 10 picoseconds, and dark count rates approaching zero. Meanwhile, APD technology has evolved toward InGaAs/InP structures with improved afterpulsing characteristics and higher count rates at non-cryogenic temperatures.
The evolution trajectory suggests a continued push toward integrating these detection technologies with existing telecommunications infrastructure. For SNSPDs, this includes developing more practical cryogenic systems and exploring materials beyond traditional niobium nitride. For APDs, research focuses on reducing noise characteristics while maintaining operational simplicity.
The ultimate objective for both technologies is to enable practical, cost-effective quantum-secured telecommunications networks that can operate alongside classical communications infrastructure. This goal necessitates continued improvements in detection efficiency, timing resolution, and system reliability while reducing implementation complexity and operational costs.
APDs were first developed in the 1960s and gained commercial traction in the 1980s as telecommunications networks expanded globally. These semiconductor devices operate by utilizing the avalanche effect, where a single photon triggers a cascade of electron-hole pairs through impact ionization. Early APDs suffered from high dark count rates and limited quantum efficiency, but continuous improvements in semiconductor manufacturing processes have enhanced their performance significantly.
SNSPDs, by contrast, represent a more recent technological development, emerging in the early 2000s. These detectors operate on superconducting principles, where a nanowire maintained at cryogenic temperatures experiences a temporary loss of superconductivity when struck by a photon. This technology has rapidly evolved from laboratory curiosities to practical devices with exceptional performance characteristics, particularly in quantum communication applications.
The technological objectives for both detection systems have been driven by telecommunications requirements: higher detection efficiency, lower timing jitter, reduced dark count rates, and faster recovery times. For quantum key distribution (QKD) and other quantum communication protocols, these parameters directly impact secure key rates and transmission distances. The telecom industry has particularly focused on detectors optimized for the 1310nm and 1550nm wavelength bands, where optical fiber transmission losses are minimized.
Recent technological milestones include the development of SNSPDs with detection efficiencies exceeding 98% at telecom wavelengths, timing jitter below 10 picoseconds, and dark count rates approaching zero. Meanwhile, APD technology has evolved toward InGaAs/InP structures with improved afterpulsing characteristics and higher count rates at non-cryogenic temperatures.
The evolution trajectory suggests a continued push toward integrating these detection technologies with existing telecommunications infrastructure. For SNSPDs, this includes developing more practical cryogenic systems and exploring materials beyond traditional niobium nitride. For APDs, research focuses on reducing noise characteristics while maintaining operational simplicity.
The ultimate objective for both technologies is to enable practical, cost-effective quantum-secured telecommunications networks that can operate alongside classical communications infrastructure. This goal necessitates continued improvements in detection efficiency, timing resolution, and system reliability while reducing implementation complexity and operational costs.
Telecom Market Requirements for Single-Photon Detection
The telecommunications industry has witnessed a significant shift towards higher data rates, longer transmission distances, and more complex network architectures, driving the need for advanced photon detection technologies. Single-photon detection capabilities have become increasingly critical in modern telecom infrastructure, particularly for quantum communication systems, secure key distribution, and ultra-sensitive optical signal detection in long-haul fiber networks.
Current telecom market requirements for single-photon detection are primarily defined by five key parameters: detection efficiency, dark count rate, timing jitter, maximum count rate, and operating conditions. Detection efficiency in the telecom wavelength bands (1310nm and 1550nm) must exceed 50% to ensure reliable signal reception in quantum communication protocols. This requirement is particularly stringent for quantum key distribution (QKD) systems where each photon carries valuable information.
Dark count rates must remain below 100 Hz to maintain high signal-to-noise ratios in low-light applications such as long-distance quantum communications. This becomes especially important as transmission distances increase and signal strength diminishes due to fiber attenuation. The telecom industry increasingly demands detectors with dark count rates approaching single-digit Hz levels for next-generation secure communication networks.
Timing jitter requirements have tightened considerably, with current market demands specifying sub-50 picosecond resolution for high-speed data transmission systems. This precision timing is essential for accurate synchronization in time-bin encoded quantum communications and high-bit-rate classical optical communications operating at the quantum limit.
Maximum count rate capabilities must support at least 100 MHz to accommodate growing data throughput requirements in modern telecom networks. This parameter directly impacts the maximum achievable data rate in quantum-secured communications and is becoming increasingly important as network speeds continue to escalate.
Operating conditions represent another critical market requirement, with strong preference for systems that can function at temperatures achievable with compact, low-maintenance cooling systems. Telecom providers strongly favor technologies that can operate at temperatures above 2K, ideally approaching 77K (liquid nitrogen temperature) or higher, to reduce operational complexity and deployment costs.
Additionally, the telecom market increasingly demands photon number resolution capabilities to support advanced quantum communication protocols and quantum networking applications. This requirement is driving interest in detector arrays and multiplexed configurations that can distinguish between single-photon and multi-photon events with high fidelity.
Current telecom market requirements for single-photon detection are primarily defined by five key parameters: detection efficiency, dark count rate, timing jitter, maximum count rate, and operating conditions. Detection efficiency in the telecom wavelength bands (1310nm and 1550nm) must exceed 50% to ensure reliable signal reception in quantum communication protocols. This requirement is particularly stringent for quantum key distribution (QKD) systems where each photon carries valuable information.
Dark count rates must remain below 100 Hz to maintain high signal-to-noise ratios in low-light applications such as long-distance quantum communications. This becomes especially important as transmission distances increase and signal strength diminishes due to fiber attenuation. The telecom industry increasingly demands detectors with dark count rates approaching single-digit Hz levels for next-generation secure communication networks.
Timing jitter requirements have tightened considerably, with current market demands specifying sub-50 picosecond resolution for high-speed data transmission systems. This precision timing is essential for accurate synchronization in time-bin encoded quantum communications and high-bit-rate classical optical communications operating at the quantum limit.
Maximum count rate capabilities must support at least 100 MHz to accommodate growing data throughput requirements in modern telecom networks. This parameter directly impacts the maximum achievable data rate in quantum-secured communications and is becoming increasingly important as network speeds continue to escalate.
Operating conditions represent another critical market requirement, with strong preference for systems that can function at temperatures achievable with compact, low-maintenance cooling systems. Telecom providers strongly favor technologies that can operate at temperatures above 2K, ideally approaching 77K (liquid nitrogen temperature) or higher, to reduce operational complexity and deployment costs.
Additionally, the telecom market increasingly demands photon number resolution capabilities to support advanced quantum communication protocols and quantum networking applications. This requirement is driving interest in detector arrays and multiplexed configurations that can distinguish between single-photon and multi-photon events with high fidelity.
Current Capabilities and Limitations of Quantum Detection Technologies
Quantum detection technologies have evolved significantly over the past decades, with Superconducting Nanowire Single Photon Detectors (SNSPDs) and Avalanche Photodiodes (APDs) emerging as leading solutions for telecom wavelength applications. These technologies represent different approaches to the fundamental challenge of detecting individual photons with high efficiency and reliability.
SNSPDs currently demonstrate superior performance in several critical metrics. They offer detection efficiencies exceeding 90% at telecom wavelengths (1550 nm), significantly outperforming InGaAs APDs which typically achieve 10-25% efficiency. The timing resolution of SNSPDs reaches below 20 picoseconds, enabling precise time-of-arrival measurements crucial for quantum communication protocols, while APDs are limited to hundreds of picoseconds.
Dark count rates in state-of-the-art SNSPDs can be as low as a few counts per second, compared to hundreds or thousands in APDs, providing cleaner signal detection. Additionally, SNSPDs exhibit negligible afterpulsing effects, whereas this phenomenon significantly impacts APD performance, requiring complex gating schemes that limit detection rates.
Despite these advantages, SNSPDs face substantial practical limitations. Their operation requires cryogenic cooling to temperatures below 4 Kelvin, necessitating bulky, expensive, and power-hungry cooling systems. This requirement severely restricts their deployment in field conditions, satellite platforms, or consumer applications. In contrast, APDs can operate at temperatures achievable with thermoelectric cooling or even at room temperature for silicon variants.
The scalability of SNSPD systems presents another challenge. While recent advances have demonstrated arrays of up to 64 pixels, scaling to thousands of detectors remains difficult due to thermal management and readout complexity. APDs benefit from mature semiconductor manufacturing processes, allowing for larger arrays and potential integration with other photonic components.
Cost considerations heavily favor APDs, with commercial InGaAs APD modules priced at a fraction of SNSPD systems. This economic factor, combined with operational simplicity, has maintained APDs as the predominant solution for many telecom applications despite their performance limitations.
Recovery time represents another trade-off between these technologies. While SNSPDs have made significant improvements, with recovery times now in the 10-50 nanosecond range, specialized APDs can achieve faster recovery, enabling higher count rates in specific applications where detection efficiency is less critical than speed.
The reliability and operational lifetime of these technologies also differ substantially. APDs have demonstrated robust performance over years of continuous operation in field deployments, while the long-term stability of SNSPDs in practical applications remains an active area of research, particularly regarding thermal cycling and environmental factors.
SNSPDs currently demonstrate superior performance in several critical metrics. They offer detection efficiencies exceeding 90% at telecom wavelengths (1550 nm), significantly outperforming InGaAs APDs which typically achieve 10-25% efficiency. The timing resolution of SNSPDs reaches below 20 picoseconds, enabling precise time-of-arrival measurements crucial for quantum communication protocols, while APDs are limited to hundreds of picoseconds.
Dark count rates in state-of-the-art SNSPDs can be as low as a few counts per second, compared to hundreds or thousands in APDs, providing cleaner signal detection. Additionally, SNSPDs exhibit negligible afterpulsing effects, whereas this phenomenon significantly impacts APD performance, requiring complex gating schemes that limit detection rates.
Despite these advantages, SNSPDs face substantial practical limitations. Their operation requires cryogenic cooling to temperatures below 4 Kelvin, necessitating bulky, expensive, and power-hungry cooling systems. This requirement severely restricts their deployment in field conditions, satellite platforms, or consumer applications. In contrast, APDs can operate at temperatures achievable with thermoelectric cooling or even at room temperature for silicon variants.
The scalability of SNSPD systems presents another challenge. While recent advances have demonstrated arrays of up to 64 pixels, scaling to thousands of detectors remains difficult due to thermal management and readout complexity. APDs benefit from mature semiconductor manufacturing processes, allowing for larger arrays and potential integration with other photonic components.
Cost considerations heavily favor APDs, with commercial InGaAs APD modules priced at a fraction of SNSPD systems. This economic factor, combined with operational simplicity, has maintained APDs as the predominant solution for many telecom applications despite their performance limitations.
Recovery time represents another trade-off between these technologies. While SNSPDs have made significant improvements, with recovery times now in the 10-50 nanosecond range, specialized APDs can achieve faster recovery, enabling higher count rates in specific applications where detection efficiency is less critical than speed.
The reliability and operational lifetime of these technologies also differ substantially. APDs have demonstrated robust performance over years of continuous operation in field deployments, while the long-term stability of SNSPDs in practical applications remains an active area of research, particularly regarding thermal cycling and environmental factors.
Comparative Analysis of SNSPD and APD Implementation Approaches
01 SNSPD Design and Fabrication Techniques
Various design and fabrication techniques for Superconducting Nanowire Single-Photon Detectors (SNSPDs) that enhance performance metrics. These include specialized nanowire geometries, material selection (such as NbN, NbTiN, or WSi), and fabrication processes that optimize superconducting properties. Advanced lithography techniques and multi-layer structures are employed to improve detection efficiency while maintaining low dark count rates. The nanowire dimensions and layout significantly impact the detector's quantum efficiency and timing resolution.- SNSPD Design and Fabrication Techniques: Various design and fabrication techniques for Superconducting Nanowire Single-Photon Detectors (SNSPDs) that enhance performance metrics. These include optimized nanowire geometries, material selection (such as NbN, NbTiN, or WSi), and advanced fabrication processes that improve detection efficiency while maintaining low dark count rates. Specific approaches include meandering patterns, multi-layer structures, and cavity-integrated designs that maximize photon absorption and conversion efficiency.
- Avalanche Photodiode Performance Optimization: Methods to optimize Avalanche Photodiode (APD) performance metrics, focusing on improving detection efficiency, timing resolution, and reducing dark count rates. Techniques include specialized doping profiles, temperature control mechanisms, and bias voltage optimization. Advanced APD designs incorporate guard ring structures to prevent edge breakdown, thin multiplication layers for improved timing resolution, and specialized materials for operation in different wavelength ranges while maintaining high detection efficiency.
- Comparative Analysis of SNSPD and APD Technologies: Direct comparisons between Superconducting Nanowire Single-Photon Detectors and Avalanche Photodiodes across key performance metrics. SNSPDs typically demonstrate superior detection efficiency (>90% possible), better timing resolution (<30ps), and lower dark count rates at telecom wavelengths, but require cryogenic cooling. APDs offer room-temperature operation with moderate performance metrics, making them suitable for different application scenarios. The analysis includes trade-offs between operating conditions, cost, and performance requirements for various quantum and photonic applications.
- Readout Electronics and Signal Processing: Advanced readout electronics and signal processing techniques designed specifically for SNSPDs and APDs to enhance performance metrics. These include low-noise amplifiers, specialized bias circuits, and timing electronics that improve timing resolution and reduce jitter. Digital signal processing algorithms help discriminate true detection events from noise, effectively reducing dark count rates. Time-correlated single photon counting systems and specialized pulse discrimination techniques further enhance the overall system performance and reliability.
- Integration in Quantum Communication and Computing Systems: Methods for integrating SNSPDs and APDs into practical quantum communication and computing systems, with emphasis on maintaining optimal performance metrics. Integration approaches include on-chip photonic circuits, fiber-coupled detector arrays, and specialized packaging techniques that preserve the detectors' intrinsic capabilities. System-level optimizations balance detection efficiency, timing resolution, and dark count rates to meet specific application requirements in quantum key distribution, quantum computing, and other quantum information processing applications.
02 Avalanche Photodiode Performance Optimization
Methods to optimize Avalanche Photodiode (APD) performance metrics, focusing on improving detection efficiency, timing resolution, and reducing dark count rates. This includes specialized doping profiles, guard ring structures, and temperature control mechanisms. Novel semiconductor materials and junction designs are implemented to enhance carrier multiplication while suppressing noise. Operating parameters such as bias voltage and temperature are carefully controlled to achieve optimal performance balance between sensitivity and noise characteristics.Expand Specific Solutions03 Comparative Analysis of SNSPD and APD Technologies
Direct comparison between Superconducting Nanowire Single-Photon Detectors and Avalanche Photodiodes across key performance metrics. SNSPDs generally offer superior timing resolution (down to tens of picoseconds) and lower dark count rates at the expense of requiring cryogenic cooling. APDs provide room-temperature operation with moderate performance metrics suitable for many applications. The analysis covers detection efficiency across different wavelength ranges, jitter characteristics, afterpulsing effects, and practical implementation considerations for various quantum and classical optical applications.Expand Specific Solutions04 Readout Electronics and Signal Processing
Advanced readout electronics and signal processing techniques designed specifically for SNSPDs and APDs to maximize performance metrics. These include low-noise amplification circuits, specialized bias networks, and high-speed timing electronics that minimize jitter. Digital signal processing algorithms are employed for pulse discrimination, timing extraction, and noise filtering. The integration of readout electronics with detector elements in compact packages reduces parasitic effects and improves overall system performance, particularly for timing-critical applications.Expand Specific Solutions05 Application-Specific Optimization Strategies
Tailored optimization strategies for SNSPDs and APDs based on specific application requirements in quantum communication, LIDAR, biomedical imaging, and astronomical observation. These strategies involve trade-offs between detection efficiency, timing resolution, and dark count rate depending on the application priorities. For quantum key distribution, emphasis is placed on minimizing dark counts and maximizing efficiency at telecom wavelengths. For LIDAR applications, timing resolution is prioritized. Custom cooling solutions, optical coupling methods, and array configurations are developed to meet specific application demands.Expand Specific Solutions
Leading Manufacturers and Research Institutions in Quantum Detection
The benchmarking of Superconducting Nanowire Single-Photon Detectors (SNSPDs) versus Avalanche Photodiodes (APDs) for telecom applications is currently in a growth phase, with the market expanding as quantum communications and secure telecommunications gain prominence. The global market for single-photon detection technologies is projected to reach significant scale as quantum networks develop. Technologically, SNSPDs offer superior performance metrics including higher detection efficiency and lower timing jitter, but face challenges in cost and cooling requirements. Companies like Intel, STMicroelectronics, and SensL Technologies are advancing APD technologies, while research institutions such as University of Science & Technology of China and Xidian University are pushing SNSPD development. Quantum technology companies like SuperQ Technologies are bridging the gap between academic research and commercial applications in this emerging field.
SensL Technologies Ltd.
Technical Solution: SensL Technologies has developed silicon-based avalanche photodiodes (APDs) and silicon photomultipliers (SiPMs) optimized for telecom applications. Their APD technology features proprietary guard ring structures that minimize edge breakdown effects and enhance reliability. SensL's telecom-focused APDs operate in both linear and Geiger modes, with the latter enabling single-photon detection capabilities. Their APDs achieve quantum efficiencies of 40-60% in the near-infrared region with gain factors of 50-200. SensL has conducted extensive benchmarking against SNSPDs, acknowledging SNSPDs' superior performance in quantum efficiency and timing resolution while emphasizing their own APDs' advantages in operational simplicity and cost-effectiveness. Their latest APD arrays incorporate on-chip temperature compensation and active quenching circuits to improve stability across varying environmental conditions.
Strengths: Room temperature operation eliminates need for cryogenic cooling, significantly lower cost than SNSPDs, and established manufacturing processes allow for scalable production and integration. Weaknesses: Lower detection efficiency (40-60% vs >90% for SNSPDs), higher dark count rates, and poorer timing resolution limit performance in ultra-sensitive quantum applications.
QinetiQ Ltd.
Technical Solution: QinetiQ has developed advanced SNSPD (Superconducting Nanowire Single-Photon Detector) systems optimized for telecom wavelengths (1310nm and 1550nm). Their technology utilizes superconducting niobium nitride (NbN) or niobium titanium nitride (NbTiN) nanowires cooled to approximately 2-4K. QinetiQ's SNSPDs achieve detection efficiencies exceeding 90% at telecom wavelengths with dark count rates below 100 Hz and timing jitter under 30ps. Their integrated closed-cycle cryocooling systems eliminate the need for liquid helium, making the technology more practical for field deployment. QinetiQ has benchmarked their SNSPDs against InGaAs/InP avalanche photodiodes, demonstrating superior sensitivity with NEP (Noise Equivalent Power) values below 10^-18 W/Hz^1/2, compared to APDs' typical 10^-16 W/Hz^1/2 at telecom wavelengths.
Strengths: Superior detection efficiency (>90%) at telecom wavelengths, extremely low dark count rates, and picosecond timing resolution provide significant advantages for quantum communications and optical sensing applications. Weaknesses: Requires cryogenic cooling (2-4K), which increases system complexity, power consumption, and cost compared to room-temperature APD solutions.
Key Patents and Breakthroughs in Single-Photon Detection
Metasurface-coupled Single Photon Avalanche Diode for High Temperature Operation
PatentPendingUS20230072648A1
Innovation
- A metasurface-coupled HgCdTe single-photon avalanche photodiode (M-SPAD) with a thin absorber layer and larger bandgap HgCdTe layers is developed, featuring a grid of pillars for enhanced light focusing and absorption, enabling near 100% absorption of 1550 nm light within a 100 nm-thick absorber, reducing dark current and jitter time, and allowing room-temperature operation.

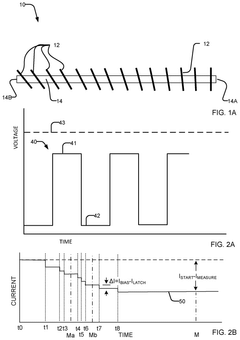

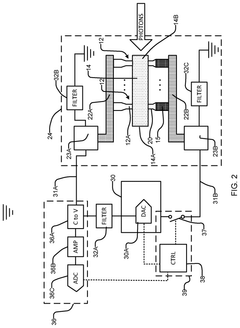

Superconducting single photon detector with photon number resolution
PatentActiveUS20240361181A1
Innovation
- A photon number resolving detector (PNRD) is designed with a waveguide and multiple nanowires connected in series with resistive components, where the nanowires are superconducting and have a small electrical time constant to latch into a resistive state upon photon absorption, allowing for accurate current measurement and photon counting.
Quantum-Secure Communication Standards and Protocols
Quantum-Secure Communication Standards and Protocols are evolving rapidly to address the security challenges posed by quantum computing advancements. When comparing Superconducting Nanowire Single-Photon Detectors (SNSPDs) and Avalanche Photodiodes (APDs) for telecommunications applications, these standards play a crucial role in determining appropriate detector specifications and performance requirements.
Current quantum communication protocols, such as Quantum Key Distribution (QKD), require single-photon detection capabilities with high efficiency and low noise. The BB84, E91, and COW protocols each place different demands on detector performance metrics, with SNSPDs generally meeting the more stringent requirements of advanced implementations. International standards bodies including ETSI, ISO, and ITU-T have established working groups specifically focused on quantum communications standardization.
The ETSI QKD Industry Specification Group has published several standards addressing detector requirements for secure quantum communications. These standards specify minimum detection efficiency thresholds (typically >25% for telecom wavelengths), maximum dark count rates (<1000 cps), and timing resolution requirements that impact system security. SNSPDs consistently outperform APDs in meeting these specifications, particularly at the 1550nm telecom wavelength.
Security certification frameworks such as Common Criteria and FIPS 140-3 are being extended to incorporate quantum-resistant components. These frameworks are beginning to include specific requirements for single-photon detectors used in quantum-secure systems. The detector timing jitter, which is significantly lower in SNSPDs (typically <30ps) compared to APDs (>300ps), directly impacts the secure key rate and vulnerability to timing-based attacks in QKD implementations.
Post-Quantum Cryptography (PQC) standards, while primarily focused on algorithmic approaches, also influence detector requirements when implemented in hybrid quantum-classical systems. The NIST PQC standardization process indirectly affects detector specifications by establishing security levels that quantum communication systems must achieve to remain competitive with classical approaches.
Emerging standards for Measurement-Device-Independent QKD (MDI-QKD) and Twin-Field QKD place even more demanding requirements on detector performance, particularly regarding timing synchronization and detection efficiency. These protocols aim to eliminate detector-based security vulnerabilities but require detectors with performance characteristics that currently only SNSPDs can reliably provide.
Industry consortia such as the Quantum Economic Development Consortium (QED-C) are working to establish testing and certification procedures for quantum communication components, including standardized benchmarking methodologies for comparing detector technologies like SNSPDs and APDs in telecom applications.
Current quantum communication protocols, such as Quantum Key Distribution (QKD), require single-photon detection capabilities with high efficiency and low noise. The BB84, E91, and COW protocols each place different demands on detector performance metrics, with SNSPDs generally meeting the more stringent requirements of advanced implementations. International standards bodies including ETSI, ISO, and ITU-T have established working groups specifically focused on quantum communications standardization.
The ETSI QKD Industry Specification Group has published several standards addressing detector requirements for secure quantum communications. These standards specify minimum detection efficiency thresholds (typically >25% for telecom wavelengths), maximum dark count rates (<1000 cps), and timing resolution requirements that impact system security. SNSPDs consistently outperform APDs in meeting these specifications, particularly at the 1550nm telecom wavelength.
Security certification frameworks such as Common Criteria and FIPS 140-3 are being extended to incorporate quantum-resistant components. These frameworks are beginning to include specific requirements for single-photon detectors used in quantum-secure systems. The detector timing jitter, which is significantly lower in SNSPDs (typically <30ps) compared to APDs (>300ps), directly impacts the secure key rate and vulnerability to timing-based attacks in QKD implementations.
Post-Quantum Cryptography (PQC) standards, while primarily focused on algorithmic approaches, also influence detector requirements when implemented in hybrid quantum-classical systems. The NIST PQC standardization process indirectly affects detector specifications by establishing security levels that quantum communication systems must achieve to remain competitive with classical approaches.
Emerging standards for Measurement-Device-Independent QKD (MDI-QKD) and Twin-Field QKD place even more demanding requirements on detector performance, particularly regarding timing synchronization and detection efficiency. These protocols aim to eliminate detector-based security vulnerabilities but require detectors with performance characteristics that currently only SNSPDs can reliably provide.
Industry consortia such as the Quantum Economic Development Consortium (QED-C) are working to establish testing and certification procedures for quantum communication components, including standardized benchmarking methodologies for comparing detector technologies like SNSPDs and APDs in telecom applications.
Cost-Performance Trade-offs in Commercial Deployment
When evaluating the commercial deployment of single-photon detection technologies in telecommunications, the cost-performance trade-offs between Superconducting Nanowire Single-Photon Detectors (SNSPDs) and Avalanche Photodiodes (APDs) represent a critical consideration for industry stakeholders.
The initial capital expenditure for SNSPD systems remains significantly higher than for APD-based solutions, with typical SNSPD systems costing $50,000-$200,000 compared to $5,000-$15,000 for high-performance APD modules. This substantial price differential stems primarily from the cryogenic cooling requirements of SNSPDs, which operate at temperatures below 4K, necessitating expensive closed-cycle refrigeration systems.
Operational expenses further widen this cost gap. SNSPDs consume approximately 1-2 kW of power continuously for cryogenic cooling, translating to annual electricity costs of $1,000-$2,000 per unit. In contrast, APDs operate at room temperature or with minimal thermoelectric cooling, requiring only 1-5W of power, resulting in negligible operational energy costs.
Maintenance considerations also favor APDs in commercial settings. SNSPD systems require specialized technical expertise for maintenance, with cryocoolers typically needing service every 10,000-20,000 hours. APD systems, conversely, can operate for years with minimal maintenance, significantly reducing total ownership costs and system downtime.
However, performance metrics reveal why SNSPDs remain compelling despite their cost disadvantages. In quantum key distribution (QKD) applications, the superior detection efficiency (>90% vs 30-40% for APDs) and lower dark count rates of SNSPDs enable secure key generation rates 5-10 times higher than APD-based systems. This performance advantage translates directly to higher data throughput and longer transmission distances.
The return on investment calculation varies significantly by application. For high-volume commercial telecommunications, APDs remain the economically viable choice due to their lower cost and adequate performance. However, for specialized applications like quantum-secured financial transactions or government communications, the enhanced performance of SNSPDs may justify their premium cost through improved security capabilities and extended network reach.
Market analysis indicates a gradual reduction in SNSPD costs, with prices decreasing approximately 15% annually as manufacturing processes improve and demand increases. This trend suggests that the cost-performance equation will continue to evolve, potentially expanding SNSPD adoption in commercial telecommunications as the technology matures and economies of scale develop.
The initial capital expenditure for SNSPD systems remains significantly higher than for APD-based solutions, with typical SNSPD systems costing $50,000-$200,000 compared to $5,000-$15,000 for high-performance APD modules. This substantial price differential stems primarily from the cryogenic cooling requirements of SNSPDs, which operate at temperatures below 4K, necessitating expensive closed-cycle refrigeration systems.
Operational expenses further widen this cost gap. SNSPDs consume approximately 1-2 kW of power continuously for cryogenic cooling, translating to annual electricity costs of $1,000-$2,000 per unit. In contrast, APDs operate at room temperature or with minimal thermoelectric cooling, requiring only 1-5W of power, resulting in negligible operational energy costs.
Maintenance considerations also favor APDs in commercial settings. SNSPD systems require specialized technical expertise for maintenance, with cryocoolers typically needing service every 10,000-20,000 hours. APD systems, conversely, can operate for years with minimal maintenance, significantly reducing total ownership costs and system downtime.
However, performance metrics reveal why SNSPDs remain compelling despite their cost disadvantages. In quantum key distribution (QKD) applications, the superior detection efficiency (>90% vs 30-40% for APDs) and lower dark count rates of SNSPDs enable secure key generation rates 5-10 times higher than APD-based systems. This performance advantage translates directly to higher data throughput and longer transmission distances.
The return on investment calculation varies significantly by application. For high-volume commercial telecommunications, APDs remain the economically viable choice due to their lower cost and adequate performance. However, for specialized applications like quantum-secured financial transactions or government communications, the enhanced performance of SNSPDs may justify their premium cost through improved security capabilities and extended network reach.
Market analysis indicates a gradual reduction in SNSPD costs, with prices decreasing approximately 15% annually as manufacturing processes improve and demand increases. This trend suggests that the cost-performance equation will continue to evolve, potentially expanding SNSPD adoption in commercial telecommunications as the technology matures and economies of scale develop.
