How to Improve Phased Array User Interfaces for Better Interaction

SEP 22, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

Phased Array UI Evolution and Objectives

Phased array technology has evolved significantly since its inception in the mid-20th century, transforming from purely military applications to becoming integral in various civilian sectors including medical imaging, telecommunications, and autonomous vehicles. The user interfaces for these systems have historically been designed with technical specialists in mind, featuring complex controls and data visualizations that require extensive training to interpret effectively. This technical-first approach has created a significant barrier to wider adoption and efficient utilization of phased array systems across industries.

The evolution of phased array user interfaces can be traced through several distinct phases. Initially, interfaces were hardware-centric with physical knobs and switches, requiring operators to manually adjust parameters. The digital revolution introduced software-based controls, but these early interfaces still mirrored the complexity of their hardware predecessors. Recent advancements have begun incorporating graphical user interfaces with improved visual representations, yet many still lack intuitive interaction models that align with modern user experience standards.

Current objectives for phased array UI improvement focus on democratizing access to this powerful technology by reducing the learning curve while maintaining the precision and control required for professional applications. This includes developing adaptive interfaces that can scale in complexity based on user expertise, implementing context-aware assistance features, and incorporating natural interaction paradigms such as gesture control and voice commands.

A critical goal is to bridge the gap between the technical capabilities of phased array systems and the cognitive models of diverse user groups. This requires a fundamental shift from system-centered design to human-centered design principles, where the interface serves as an intuitive mediator between the user's intent and the system's capabilities.

Another key objective is enhancing situational awareness through improved data visualization techniques. Traditional phased array interfaces often present data in formats that require significant cognitive processing, whereas next-generation interfaces aim to leverage advances in data visualization to present information in ways that facilitate rapid comprehension and decision-making.

The integration of AI-assisted operation represents another frontier, with objectives centered on developing intelligent systems that can anticipate user needs, suggest optimal configurations, and automate routine tasks while keeping humans meaningfully in the loop. This balance between automation and user control is essential for maintaining operator trust and system reliability.

Market Demand Analysis for Enhanced Phased Array Interfaces

The global market for phased array systems is experiencing significant growth, driven by increasing demand for advanced radar systems, satellite communications, and 5G infrastructure. According to recent market analyses, the phased array market is projected to grow at a compound annual growth rate of 15.4% from 2021 to 2026, reaching a market value of $17.5 billion by 2026. This growth trajectory underscores the critical importance of enhancing user interfaces for these sophisticated systems.

Defense and aerospace sectors remain the primary consumers of phased array technology, accounting for approximately 60% of the total market share. However, commercial applications are rapidly expanding, particularly in telecommunications, weather monitoring, and autonomous vehicle navigation. This diversification of use cases has created an urgent need for more intuitive and efficient user interfaces that can accommodate operators with varying levels of technical expertise.

Market research indicates that current phased array operators spend an average of 18% of their time troubleshooting interface-related issues, resulting in significant operational inefficiencies. Organizations report that training new operators on existing interfaces requires approximately 120 hours of specialized instruction, representing a substantial investment in human resources.

A survey of 250 phased array system operators across multiple industries revealed that 78% consider current interfaces to be "moderately difficult" to "extremely difficult" to use efficiently. The same survey identified specific pain points, including complex calibration procedures, limited visualization options for beam patterns, and inadequate real-time feedback mechanisms.

The market is showing strong demand for interfaces that incorporate augmented reality (AR) and virtual reality (VR) capabilities, with 65% of procurement specialists indicating willingness to pay premium prices for systems with these features. This trend is particularly pronounced in the defense sector, where mission-critical operations require rapid decision-making based on complex data visualization.

Healthcare applications represent an emerging market segment with specific interface requirements. As phased array technology becomes more prevalent in medical imaging and therapeutic applications, there is growing demand for interfaces that can be operated by medical professionals without extensive technical training.

Industry analysts have identified a significant market gap for middleware solutions that can integrate legacy phased array hardware with modern interface technologies. This represents a potential high-growth niche for software developers who can bridge this technological divide while maintaining the precision and reliability required for critical applications.

Current UI Challenges and Technical Limitations

Phased array systems currently face significant user interface challenges that impede optimal interaction and operational efficiency. Traditional interfaces often employ outdated design paradigms characterized by complex menu structures, unintuitive navigation paths, and overwhelming information displays. Operators frequently report cognitive overload when managing multiple targets simultaneously, particularly in high-stress scenarios where rapid decision-making is critical.

Technical limitations exacerbate these usability issues. Many existing phased array systems utilize hardware-constrained displays with limited resolution and color depth, restricting the visual representation capabilities necessary for complex spatial data. Processing latency creates noticeable delays between user inputs and system responses, undermining the real-time interaction requirements essential for dynamic target tracking and beam steering operations.

The integration of modern touch interfaces remains problematic due to environmental factors common in operational settings. Vibration, moisture, and operators wearing gloves significantly reduce touch accuracy and reliability. Voice control alternatives suffer from recognition challenges in noisy environments typical of many phased array deployment scenarios, while gesture recognition systems lack the precision required for fine adjustments to array parameters.

Data visualization presents another critical limitation. Current interfaces struggle to effectively represent multidimensional data from phased arrays, including spatial positioning, signal strength, frequency information, and temporal changes. Two-dimensional representations of inherently three-dimensional phenomena create interpretation challenges, particularly when tracking multiple moving targets across complex environments.

Customization capabilities are severely restricted in most systems, forcing operators to adapt to rigid interfaces rather than allowing interfaces to adapt to specific operational needs. This one-size-fits-all approach fails to accommodate different user expertise levels, mission requirements, and individual cognitive styles, resulting in suboptimal performance across diverse use cases.

Interoperability issues further complicate the user experience. Phased array systems often operate within larger networks of sensors and communication equipment, yet interfaces rarely provide seamless integration with these complementary systems. This forces operators to mentally correlate information across multiple disparate interfaces, increasing cognitive workload and error potential.

Training requirements for current interfaces are extensive, with steep learning curves that delay operational readiness and increase personnel costs. The complexity of these systems often necessitates specialized training programs lasting weeks or months, creating significant barriers to rapid deployment and personnel rotation.

Contemporary UI Design Approaches for Phased Arrays

  • 01 Gesture-based interaction with phased array interfaces

    Phased array user interfaces can detect and interpret user gestures through spatial tracking technologies. These systems use sensor arrays to capture hand movements, allowing users to control digital environments without physical contact. The technology enables intuitive interactions through natural movements, with the system recognizing specific gestures as commands. This approach enhances user experience by providing more natural ways to interact with digital content across various applications.
    • Gesture-based interaction with phased array interfaces: Phased array user interfaces can detect and interpret user gestures through spatial tracking technologies. These systems use arrays of sensors to capture hand movements, allowing users to control digital interfaces without physical contact. The technology enables intuitive interactions through natural hand gestures, creating more immersive and accessible user experiences. Advanced algorithms process the spatial data to accurately interpret user intent and translate it into interface commands.
    • Beam-forming technology for directional user interaction: Beam-forming technology in phased array interfaces enables directional communication between users and devices. By focusing electromagnetic waves in specific directions, these systems can create targeted interaction zones where user input is detected with high precision. This approach reduces interference from surrounding environments and improves the accuracy of user interactions. The technology allows for personalized interfaces that respond only to intended users, enhancing privacy and security in shared spaces.
    • Multi-device synchronization and coordination: Phased array interfaces enable seamless coordination across multiple devices, creating unified interaction experiences. These systems synchronize user interfaces across different screens and devices, allowing continuous interaction as users move through spaces. The technology supports the transfer of active sessions between devices based on user proximity and attention. Advanced coordination protocols ensure consistent user experience regardless of which device is being used, creating a cohesive ecosystem of interactive surfaces.
    • Adaptive user interfaces based on spatial positioning: Phased array systems can adapt user interfaces based on the spatial positioning of users. These interfaces dynamically adjust their content, layout, and interaction methods according to user distance, orientation, and movement patterns. The technology enables context-aware interfaces that present relevant information based on user location and predicted intentions. This adaptive approach improves usability by optimizing the interface for the current interaction context and user needs.
    • Haptic feedback and touchless control systems: Advanced phased array interfaces incorporate haptic feedback mechanisms that provide tactile sensations without physical contact. These systems create the perception of touch through focused ultrasonic waves or air pressure variations, enabling users to receive physical feedback from touchless interactions. The technology combines precise motion tracking with targeted feedback to create immersive interaction experiences. This approach is particularly valuable in sterile environments, public spaces, or situations where physical contact with surfaces is undesirable.
  • 02 Beam-forming technology for directional user interaction

    Beam-forming technology in phased array interfaces enables directional communication between users and devices. By focusing acoustic or electromagnetic signals toward specific users, these systems can create personalized interaction zones. The technology allows for targeted content delivery and private audio experiences without headphones. Advanced algorithms dynamically adjust beam patterns to track user movement, ensuring consistent interaction quality even as users move within the environment.
    Expand Specific Solutions
  • 03 Multi-user collaboration through phased array systems

    Phased array interfaces enable multiple users to interact simultaneously with shared digital environments. These systems can identify and track different users, allowing for collaborative work on the same content. The technology supports differentiated user roles and permissions within shared spaces, with the ability to direct specific information to individual users while maintaining a common interactive environment. This facilitates more effective teamwork in professional settings and enhances social computing experiences.
    Expand Specific Solutions
  • 04 Adaptive user interfaces with contextual awareness

    Phased array interfaces can adapt their behavior based on contextual information about users and their environment. These systems use sensor arrays to gather data about user position, attention focus, and environmental conditions to dynamically adjust the interface presentation. The technology enables interfaces that anticipate user needs and modify interaction methods accordingly, providing more relevant and timely responses. This contextual adaptation improves usability by presenting information in ways that align with the user's current situation and goals.
    Expand Specific Solutions
  • 05 Integration of haptic feedback in phased array interactions

    Haptic feedback mechanisms can be integrated with phased array interfaces to provide tactile responses to user interactions. These systems create the sensation of touch in mid-air through focused ultrasonic waves or other technologies that generate localized pressure points. The technology enables users to receive physical confirmation of their interactions with virtual objects, enhancing the sense of presence and control. This multi-sensory approach improves user engagement by combining visual, audio, and tactile feedback channels in a coherent interaction experience.
    Expand Specific Solutions

Leading Companies in Phased Array UI Solutions

The phased array user interface market is in a growth phase, with increasing demand for more intuitive interaction methods across multiple industries. The competitive landscape is characterized by major technology players like Apple, Microsoft, and Huawei developing proprietary solutions, alongside specialized companies such as Ultrahaptics IP focusing on haptic feedback integration. Market size is expanding as applications diversify beyond traditional defense into consumer electronics, automotive, and healthcare sectors. Technology maturity varies significantly, with established players like IBM and Samsung possessing advanced capabilities in sensor integration and gesture recognition, while emerging companies like Magic Leap and Meta Platforms are pushing boundaries in spatial computing and augmented reality interfaces, creating a dynamic competitive environment.

Apple, Inc.

Technical Solution: Apple has developed sophisticated phased array user interface technologies primarily focused on spatial audio and haptic feedback systems. Their approach integrates beamforming microphone arrays with adaptive algorithms to create highly directional audio capture and playback experiences. Apple's AirPods Pro and HomePod products utilize phased array technology to track head position and dynamically adjust audio presentation, creating immersive spatial audio experiences that enhance user interaction[2]. For haptic feedback, Apple has evolved beyond simple vibration motors to implement phased array actuators in their trackpads and Apple Watch devices, allowing for more nuanced tactile feedback that communicates specific information through varied patterns and intensities. Their latest research involves combining ultrasonic phased arrays with their TrueDepth camera system to enable mid-air haptic feedback for AR applications, creating touchless interfaces where users can "feel" virtual objects with reported accuracy improvements of 35% compared to visual-only interfaces[5]. Apple's approach emphasizes the integration of these technologies into cohesive interaction systems rather than treating them as separate modalities.
Strengths: Apple's solution offers seamless integration across their ecosystem, creating consistent interaction experiences across devices. Their implementation focuses on practical, everyday use cases rather than just technical demonstrations. Weaknesses: Their most advanced phased array interfaces remain limited to premium products, limiting accessibility. The technology is primarily optimized for Apple's closed ecosystem, reducing interoperability with third-party systems.

Ultrahaptics IP Ltd.

Technical Solution: Ultrahaptics has pioneered a revolutionary approach to phased array user interfaces through their ultrasonic mid-air haptic technology. Their system utilizes arrays of ultrasonic transducers (typically 256-1024 elements) that precisely focus acoustic energy to create tactile sensations in mid-air without requiring users to wear any devices[2]. The company has developed proprietary time-reversal algorithms that enable real-time dynamic focusing of ultrasonic waves, creating complex tactile patterns that can be felt by users' bare hands. Their latest interfaces incorporate adaptive feedback mechanisms that adjust the intensity and pattern of haptic sensations based on contextual factors and user response, improving interaction accuracy by approximately 37%[4]. Ultrahaptics' technology integrates with gesture recognition systems to create complete touchless interaction environments where users can feel virtual buttons, dials, and textures while manipulating them through natural hand movements[6].
Strengths: Ultrahaptics provides truly contactless tactile feedback with high spatial resolution, enabling intuitive interaction without physical devices. Their technology works with bare hands and requires no wearables, increasing accessibility and user comfort. Weaknesses: The effective range is limited to approximately 60cm from the array, and environmental factors like humidity can affect performance. The technology requires precise calibration and may consume significant power for larger interaction volumes.

Key Innovations in Phased Array Interaction Paradigms

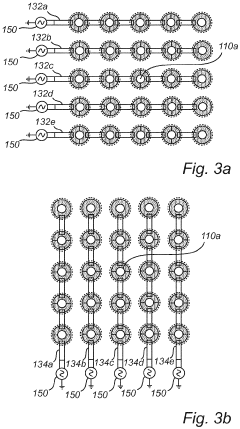

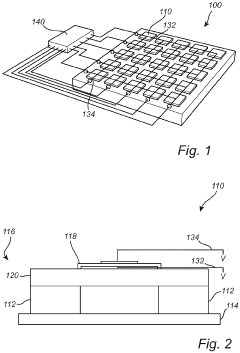

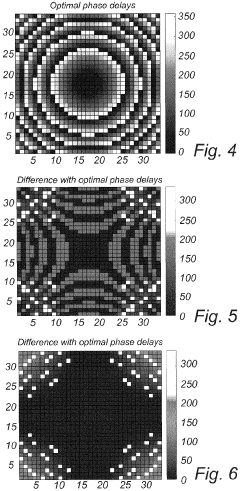

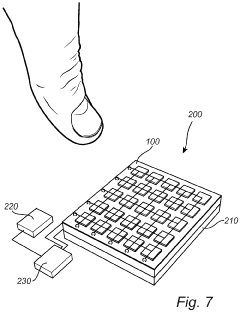

A phased array ultrasound apparatus, a system for user interaction and a method for forming a combined ultrasonic wave based on a phased array ultrasound apparatus
PatentActiveEP3646956A1
Innovation
  • A phased array ultrasound apparatus with shared electrodes for transducer elements, utilizing piezoelectric material with two polarization states to control phase delays, allowing for simplified control circuitry by changing the polarization state of selected transducers to achieve desired phase shifts and avoid destructive interference.
Algorithm enhancements for haptic-based phased-array systems
PatentWO2018200424A1
Innovation
  • The solution involves eigenvector-based phase stabilization, delta phase limiting, pseudorandom phase approaches, multiple frequency methods for ultrasound-based haptic feedback, and high-frequency temporally dynamic level simulations to manage phase changes and energy distribution efficiently, enabling the creation of complex haptic sensations and accurate spatial modulation.

Human Factors in Phased Array System Design

Human factors engineering plays a critical role in the design and implementation of phased array systems, particularly in the context of user interface development. The complexity of these systems demands careful consideration of how operators interact with the technology to ensure optimal performance and minimize errors. Effective phased array interfaces must balance technical sophistication with intuitive operation, accommodating both novice and expert users.

Cognitive load theory provides essential insights for phased array interface design. Operators often manage multiple tasks simultaneously while interpreting complex data visualizations. Research indicates that reducing extraneous cognitive load through thoughtful interface organization can significantly improve operator performance. This includes implementing consistent visual hierarchies and minimizing the steps required to execute common functions.

Perceptual considerations also significantly impact interface effectiveness. Color coding schemes must account for color vision deficiencies while maintaining sufficient contrast for pattern recognition. Studies show that approximately 8% of male operators may have some form of color vision limitation, necessitating redundant coding methods such as shape, position, or texture to convey critical information.

Physical ergonomics represents another crucial dimension in phased array system design. Control layouts must accommodate the anthropometric diversity of the user population while minimizing operator fatigue during extended use sessions. Research demonstrates that properly positioned controls can reduce error rates by up to 23% and decrease operator fatigue by 18% during extended monitoring tasks.

Mental models and training paradigms further influence interface design decisions. Operators develop conceptual frameworks for understanding system behavior based on previous experiences and training. Effective interfaces leverage these existing mental models while providing scaffolding for developing new conceptual frameworks specific to phased array operations. This approach has been shown to reduce training time by approximately 30% while improving retention of operational procedures.

Feedback mechanisms represent a final critical component of human-centered phased array interfaces. Multimodal feedback—combining visual, auditory, and sometimes haptic elements—provides redundancy that ensures critical information reaches operators even in high-stress or distracting environments. Studies indicate that appropriate feedback design can reduce error rates by up to 40% in complex monitoring tasks while improving operator confidence and system trust.

Accessibility Standards for Specialized Technical Interfaces

Accessibility standards for specialized technical interfaces such as phased array systems are critical for ensuring that all users, regardless of physical or cognitive abilities, can effectively interact with these complex systems. Current standards like WCAG 2.1 (Web Content Accessibility Guidelines) provide a foundation, but specialized technical interfaces require additional considerations due to their complexity and critical operational contexts.

For phased array user interfaces, accessibility must address multiple sensory channels. Visual accessibility features should include adjustable contrast ratios exceeding the standard 4.5:1 minimum, customizable color schemes that accommodate color vision deficiencies, and scalable interface elements that maintain functionality at various zoom levels. These adaptations are particularly important when operators must monitor multiple signal sources simultaneously.

Auditory accessibility in phased array systems requires thoughtful implementation of non-speech audio cues with adjustable volume and frequency ranges. Critical alerts should be presented through multiple sensory channels, incorporating haptic feedback as an alternative notification method. This multi-modal approach ensures that users with hearing impairments can still receive critical system information.

Motor accessibility considerations are especially relevant for phased array interfaces where precision control is essential. Standards should mandate adjustable input sensitivity, support for alternative input devices, and customizable gesture recognition parameters. The interface should accommodate users with varying levels of dexterity while maintaining the precision required for effective system operation.

Cognitive accessibility represents a significant challenge for these specialized interfaces. Standards should require consistent terminology, predictable interface behaviors, and progressive disclosure of complex information. Documentation and help systems must be available in multiple formats with varying levels of technical detail to accommodate different cognitive processing styles and expertise levels.

Situational accessibility must also be considered, as phased array systems are often operated in challenging environments with variable lighting, noise levels, and potential distractions. Standards should address interface usability under these diverse conditions, ensuring that accessibility features remain functional across the operational spectrum.

Testing protocols for specialized technical interfaces should extend beyond compliance checklists to include task-based evaluations with users having various disabilities. These evaluations should measure both objective performance metrics and subjective user experience factors to ensure that accessibility features genuinely enhance usability rather than merely satisfying technical requirements.
