TOF Technology Background and Objectives
Time-of-Flight (ToF) technology has evolved significantly since its inception in the early 1990s, emerging as a pivotal sensing method for depth perception and 3D imaging. The fundamental principle of ToF involves measuring the time taken for light to travel from a source to an object and back to a sensor, enabling precise distance calculations. This technology has progressed through several generations, from early pulse-based systems to more sophisticated continuous wave modulation approaches that offer enhanced accuracy and resolution.
The evolution of ToF technology has been accelerated by advancements in semiconductor manufacturing, allowing for the integration of high-speed photodetectors and signal processing circuits on a single chip. This miniaturization has transformed ToF sensors from bulky, expensive laboratory equipment into compact, cost-effective components suitable for mass-market applications, including consumer electronics, automotive systems, and industrial automation.
Current ToF implementations primarily utilize infrared light sources, typically operating at wavelengths between 850nm and 940nm, which provide a balance between eye safety, power efficiency, and ambient light rejection. The modulation frequencies have steadily increased from early systems operating at a few MHz to contemporary designs exceeding 100MHz, enabling centimeter or even millimeter-level distance resolution.
Despite its technological maturity, ToF sensing faces significant challenges, with multipath interference being one of the most critical. This phenomenon occurs when the emitted light takes multiple paths before returning to the sensor, causing measurement errors that can severely compromise depth accuracy. Multipath effects are particularly problematic in environments with reflective surfaces or complex geometries, where light can bounce multiple times before detection.
The primary objective of current ToF research is to develop robust solutions for mitigating multipath interference while maintaining high measurement accuracy across diverse environmental conditions. This involves understanding the complex interactions between light, material reflectivity properties, and scene geometry, as well as developing advanced signal processing algorithms and hardware designs that can distinguish between direct and indirect light paths.
Future technological goals include achieving sub-millimeter accuracy in challenging environments, reducing power consumption for mobile applications, extending operational range beyond current limitations (typically 0.1-10 meters), and improving performance under varying ambient light conditions. Additionally, there is a growing focus on developing ToF systems that can function reliably in outdoor environments, where sunlight interference presents significant challenges.
The convergence of ToF technology with machine learning approaches represents another promising direction, potentially enabling systems that can adaptively compensate for multipath effects based on learned scene characteristics and reflectivity patterns, ultimately moving toward more intelligent and context-aware depth sensing solutions.
The evolution of ToF technology has been accelerated by advancements in semiconductor manufacturing, allowing for the integration of high-speed photodetectors and signal processing circuits on a single chip. This miniaturization has transformed ToF sensors from bulky, expensive laboratory equipment into compact, cost-effective components suitable for mass-market applications, including consumer electronics, automotive systems, and industrial automation.
Current ToF implementations primarily utilize infrared light sources, typically operating at wavelengths between 850nm and 940nm, which provide a balance between eye safety, power efficiency, and ambient light rejection. The modulation frequencies have steadily increased from early systems operating at a few MHz to contemporary designs exceeding 100MHz, enabling centimeter or even millimeter-level distance resolution.
Despite its technological maturity, ToF sensing faces significant challenges, with multipath interference being one of the most critical. This phenomenon occurs when the emitted light takes multiple paths before returning to the sensor, causing measurement errors that can severely compromise depth accuracy. Multipath effects are particularly problematic in environments with reflective surfaces or complex geometries, where light can bounce multiple times before detection.
The primary objective of current ToF research is to develop robust solutions for mitigating multipath interference while maintaining high measurement accuracy across diverse environmental conditions. This involves understanding the complex interactions between light, material reflectivity properties, and scene geometry, as well as developing advanced signal processing algorithms and hardware designs that can distinguish between direct and indirect light paths.
Future technological goals include achieving sub-millimeter accuracy in challenging environments, reducing power consumption for mobile applications, extending operational range beyond current limitations (typically 0.1-10 meters), and improving performance under varying ambient light conditions. Additionally, there is a growing focus on developing ToF systems that can function reliably in outdoor environments, where sunlight interference presents significant challenges.
The convergence of ToF technology with machine learning approaches represents another promising direction, potentially enabling systems that can adaptively compensate for multipath effects based on learned scene characteristics and reflectivity patterns, ultimately moving toward more intelligent and context-aware depth sensing solutions.
Market Applications and Demand Analysis
The Time-of-Flight (ToF) technology market has experienced significant growth in recent years, driven by increasing demand across multiple sectors. The global 3D sensing market, which includes ToF technology, is projected to reach $15 billion by 2026, with a compound annual growth rate exceeding 20%. This growth is primarily fueled by the expanding applications of ToF sensors in consumer electronics, automotive systems, industrial automation, and healthcare devices.
In the consumer electronics sector, ToF sensors have become integral components in smartphones for facial recognition, augmented reality applications, and camera autofocus systems. Major smartphone manufacturers have incorporated ToF technology to enhance user experience and provide advanced functionalities. The gaming industry has also embraced ToF sensors for motion tracking and gesture recognition, creating more immersive gaming experiences.
The automotive industry represents another significant market for ToF technology, particularly for advanced driver assistance systems (ADAS) and autonomous vehicles. ToF sensors enable precise distance measurement, object detection, and environmental mapping, which are crucial for collision avoidance systems and autonomous navigation. With the global autonomous vehicle market expected to grow substantially over the next decade, the demand for reliable ToF sensors that can effectively mitigate multipath interference is increasing.
Industrial automation applications, including robotics and machine vision systems, require accurate depth sensing capabilities for object recognition, bin picking, and quality control processes. The ability to overcome multipath interference is particularly valuable in complex industrial environments with reflective surfaces and intricate geometries.
Healthcare applications of ToF technology include patient monitoring, gesture-controlled medical equipment, and rehabilitation systems. These applications demand high precision and reliability, especially in clinical settings where reflective surfaces and complex spatial arrangements are common.
Despite the growing market demand, multipath interference remains a significant challenge for ToF technology adoption. When light signals reflect off multiple surfaces before returning to the sensor, they create measurement errors that can compromise system performance. This issue is particularly problematic in environments with highly reflective surfaces or complex geometries, such as automotive interiors, industrial facilities, and smart homes.
Market research indicates that solutions addressing multipath interference could unlock additional market value of approximately $3 billion by 2025. Companies that can effectively mitigate these challenges stand to gain significant competitive advantages in the rapidly expanding ToF sensor market, particularly in high-value applications where precision and reliability are paramount.
In the consumer electronics sector, ToF sensors have become integral components in smartphones for facial recognition, augmented reality applications, and camera autofocus systems. Major smartphone manufacturers have incorporated ToF technology to enhance user experience and provide advanced functionalities. The gaming industry has also embraced ToF sensors for motion tracking and gesture recognition, creating more immersive gaming experiences.
The automotive industry represents another significant market for ToF technology, particularly for advanced driver assistance systems (ADAS) and autonomous vehicles. ToF sensors enable precise distance measurement, object detection, and environmental mapping, which are crucial for collision avoidance systems and autonomous navigation. With the global autonomous vehicle market expected to grow substantially over the next decade, the demand for reliable ToF sensors that can effectively mitigate multipath interference is increasing.
Industrial automation applications, including robotics and machine vision systems, require accurate depth sensing capabilities for object recognition, bin picking, and quality control processes. The ability to overcome multipath interference is particularly valuable in complex industrial environments with reflective surfaces and intricate geometries.
Healthcare applications of ToF technology include patient monitoring, gesture-controlled medical equipment, and rehabilitation systems. These applications demand high precision and reliability, especially in clinical settings where reflective surfaces and complex spatial arrangements are common.
Despite the growing market demand, multipath interference remains a significant challenge for ToF technology adoption. When light signals reflect off multiple surfaces before returning to the sensor, they create measurement errors that can compromise system performance. This issue is particularly problematic in environments with highly reflective surfaces or complex geometries, such as automotive interiors, industrial facilities, and smart homes.
Market research indicates that solutions addressing multipath interference could unlock additional market value of approximately $3 billion by 2025. Companies that can effectively mitigate these challenges stand to gain significant competitive advantages in the rapidly expanding ToF sensor market, particularly in high-value applications where precision and reliability are paramount.
Multipath Interference Challenges
Multipath interference represents one of the most significant challenges in Time-of-Flight (ToF) sensing systems. This phenomenon occurs when the emitted signal reaches the sensor through multiple paths rather than just the direct path, causing distortions in depth measurements. The primary cause stems from reflective surfaces in the environment that create secondary signal paths, resulting in mixed signals at the receiver.
The severity of multipath interference varies significantly based on scene geometry and material properties. Highly reflective surfaces such as glass, polished metal, and glossy plastics tend to produce stronger multipath effects compared to diffuse materials. Additionally, corner configurations where two or more reflective surfaces meet at angles create particularly challenging scenarios due to multiple sequential reflections.
Environmental factors further complicate multipath challenges. Indoor environments with numerous reflective surfaces present more severe multipath problems than open spaces. Lighting conditions can also impact interference patterns, especially in systems using infrared light where ambient IR sources may introduce additional noise that compounds with multipath effects.
The technical consequences of multipath interference manifest in several ways. Most notably, depth measurements become systematically biased, with errors typically ranging from millimeters to several centimeters depending on the scene complexity. These errors are not random noise but structured distortions that correlate with scene geometry, making them difficult to filter using conventional noise reduction techniques.
Resolution limitations present another significant challenge. Current ToF sensors typically operate at resolutions lower than RGB cameras, making it difficult to precisely identify and isolate multipath-affected regions. This limitation becomes particularly problematic in complex scenes with numerous small reflective objects.
Real-time processing requirements further constrain potential solutions. Many applications demand immediate depth information, limiting the computational complexity of multipath mitigation algorithms. This creates a fundamental tension between accuracy and speed that developers must carefully balance.
Power consumption constraints also impact mitigation strategies, especially in mobile and battery-powered devices. More sophisticated multipath correction algorithms generally require greater computational resources, translating to higher energy demands that may be impractical for many deployment scenarios.
The severity of multipath interference varies significantly based on scene geometry and material properties. Highly reflective surfaces such as glass, polished metal, and glossy plastics tend to produce stronger multipath effects compared to diffuse materials. Additionally, corner configurations where two or more reflective surfaces meet at angles create particularly challenging scenarios due to multiple sequential reflections.
Environmental factors further complicate multipath challenges. Indoor environments with numerous reflective surfaces present more severe multipath problems than open spaces. Lighting conditions can also impact interference patterns, especially in systems using infrared light where ambient IR sources may introduce additional noise that compounds with multipath effects.
The technical consequences of multipath interference manifest in several ways. Most notably, depth measurements become systematically biased, with errors typically ranging from millimeters to several centimeters depending on the scene complexity. These errors are not random noise but structured distortions that correlate with scene geometry, making them difficult to filter using conventional noise reduction techniques.
Resolution limitations present another significant challenge. Current ToF sensors typically operate at resolutions lower than RGB cameras, making it difficult to precisely identify and isolate multipath-affected regions. This limitation becomes particularly problematic in complex scenes with numerous small reflective objects.
Real-time processing requirements further constrain potential solutions. Many applications demand immediate depth information, limiting the computational complexity of multipath mitigation algorithms. This creates a fundamental tension between accuracy and speed that developers must carefully balance.
Power consumption constraints also impact mitigation strategies, especially in mobile and battery-powered devices. More sophisticated multipath correction algorithms generally require greater computational resources, translating to higher energy demands that may be impractical for many deployment scenarios.
Current Multipath Mitigation Solutions
01 Multipath interference mitigation techniques in TOF systems
Various techniques are employed to mitigate multipath interference in Time-of-Flight systems. These include algorithmic approaches that analyze signal patterns to distinguish between direct and reflected paths, filtering methods to remove noise caused by multipath reflections, and advanced signal processing techniques that can identify and compensate for multipath effects. These mitigation strategies improve the accuracy and reliability of distance measurements in environments where signal reflections are common.- Multipath interference mitigation techniques in TOF systems: Various techniques are employed to mitigate multipath interference in Time-of-Flight systems. These include algorithmic approaches that analyze signal patterns to distinguish between direct and reflected paths, filtering methods to remove noise caused by multipath reflections, and advanced signal processing techniques that can identify and compensate for multipath effects. These mitigation strategies significantly improve the accuracy and reliability of distance measurements in environments where multiple reflections are common.
- Hardware solutions for multipath interference reduction: Specialized hardware designs can effectively reduce multipath interference in TOF systems. These include modified sensor arrays that can differentiate between direct and reflected signals, optical components that limit the reception of unwanted reflections, and custom integrated circuits designed specifically to handle multipath scenarios. Hardware-based solutions often provide real-time processing capabilities and can be optimized for specific application environments where multipath interference is particularly problematic.
- Multi-frequency and phase-based approaches: Using multiple frequencies or phase-based methods can help overcome multipath interference in TOF systems. By transmitting signals at different frequencies or analyzing phase differences between transmitted and received signals, these approaches can distinguish between direct path signals and multipath reflections. The differences in how various frequencies interact with the environment provide additional data points that can be used to identify and filter out multipath components, resulting in more accurate distance measurements.
- Machine learning and AI for multipath interference handling: Advanced machine learning and artificial intelligence techniques are increasingly being applied to address multipath interference in TOF systems. These approaches use training data to recognize patterns associated with multipath reflections and can adaptively adjust to different environments. Neural networks and other AI algorithms can process complex signal data to differentiate between direct and reflected paths, even in challenging scenarios with multiple reflective surfaces or dynamic objects in the field of view.
- Environmental mapping and contextual awareness: TOF systems can use environmental mapping and contextual awareness to predict and compensate for multipath interference. By building a model of the surrounding environment, these systems can anticipate potential reflection paths and adjust measurements accordingly. Some implementations use simultaneous localization and mapping (SLAM) techniques to continuously update their understanding of the environment, allowing for dynamic adjustment to changing conditions that might create new multipath interference patterns.
02 Hardware solutions for multipath interference reduction
Hardware-based solutions address multipath interference in TOF systems through specialized sensor designs, optical components, and circuit configurations. These include custom photodetectors with improved temporal resolution, specialized lens arrangements that minimize the capture of reflected signals, and dedicated hardware filters that can separate direct path signals from reflections. Such hardware implementations enable more robust TOF measurements in challenging environments with multiple reflective surfaces.Expand Specific Solutions03 Multi-frequency and phase-based approaches for multipath handling
Multi-frequency and phase-based methods leverage the properties of electromagnetic waves at different frequencies or phases to distinguish between direct and reflected signals. By analyzing how signals with different characteristics interact with the environment, these approaches can identify and compensate for multipath effects. These techniques often involve transmitting signals at multiple frequencies simultaneously or in sequence and comparing the resulting measurements to extract the true distance information.Expand Specific Solutions04 Machine learning and AI for multipath interference correction
Advanced machine learning and artificial intelligence algorithms are increasingly used to address multipath interference in TOF systems. These approaches train models on large datasets of TOF measurements to recognize patterns associated with multipath effects. Neural networks and other AI techniques can learn to distinguish between direct path signals and reflections, enabling more accurate distance measurements even in complex environments with multiple reflective surfaces.Expand Specific Solutions05 Environmental mapping and contextual awareness for multipath compensation
Systems that build environmental maps or maintain contextual awareness can better compensate for multipath interference. By understanding the geometry of the surrounding space, TOF systems can predict where reflections might occur and adjust measurements accordingly. These approaches often combine TOF data with other sensing modalities or use sequential measurements to build a model of the environment that helps distinguish between direct and reflected signals.Expand Specific Solutions
Leading TOF Technology Companies
Time-of-Flight multipath interference technology is currently in a growth phase, with the market expanding rapidly due to increasing applications in autonomous vehicles, robotics, and consumer electronics. The global TOF sensor market is projected to reach significant scale, driven by demand for precise 3D imaging solutions. Technologically, the field is advancing through various approaches to mitigate multipath interference challenges. Leading players include Microsoft Technology Licensing and Sony Semiconductor Solutions, who have developed advanced algorithms for reflectivity compensation, while Samsung Electronics and ESPROS Photonics focus on hardware-based solutions. Qualcomm and Analog Devices are integrating TOF capabilities into broader system architectures, with academic institutions like Xidian University and Cornell University contributing fundamental research on geometric modeling for interference reduction. The competitive landscape features both established electronics giants and specialized sensor manufacturers working to overcome this critical technical limitation.
Microsoft Technology Licensing LLC
Technical Solution: Microsoft has developed a sophisticated approach to ToF multipath interference mitigation through their Project Kinect and HoloLens platforms. Their technology combines hardware innovations with advanced computational methods to address the multipath challenge. Microsoft's solution utilizes a technique called "Multi-Path Resolution" which employs a combination of spatial and temporal light modulation patterns to disambiguate direct from indirect light paths[1]. Their system captures multiple ToF measurements with varying modulation frequencies and phases, creating a rich dataset that allows for the extraction of the true signal path. A key innovation in Microsoft's approach is their implementation of machine learning algorithms that analyze the spatial context of depth measurements to identify geometrically inconsistent readings likely caused by multipath interference[2]. Additionally, Microsoft has developed a proprietary "Phase Unwrapping" algorithm that can recover accurate depth information even when signals are affected by multiple reflections. Their latest ToF sensors also incorporate an adaptive illumination system that dynamically adjusts the emission pattern based on detected scene characteristics, reducing interference from highly reflective surfaces[3]. This technology has been successfully deployed in their Azure Kinect DK and HoloLens 2 devices, achieving reliable depth sensing even in complex indoor environments with multiple reflective surfaces.
Strengths: Highly integrated solution with both hardware and software components; extensive real-world testing through consumer products; excellent performance in indoor environments with complex geometry. Weaknesses: Computationally intensive processing requirements; solution may be optimized for specific use cases rather than general-purpose applications.
Sony Group Corp.
Technical Solution: Sony Group Corporation has pioneered advanced ToF multipath interference mitigation through their DepthSense™ technology platform. Their approach combines specialized CMOS sensor design with sophisticated signal processing algorithms to address the multipath interference challenge. Sony's solution employs a multi-frequency phase unwrapping technique that captures depth information at multiple modulation frequencies (typically 80MHz, 100MHz, and 120MHz)[1], allowing their system to identify and separate direct reflections from multipath components. Additionally, Sony has implemented a proprietary "Harmonic Cancellation" method that uses specific modulation waveforms designed to minimize the impact of higher-order reflections[2]. Their latest sensors incorporate a machine learning-based correction system that builds environmental models to predict and compensate for multipath effects based on scene geometry analysis. Sony's technology also features adaptive power management that optimizes illumination patterns based on detected reflectivity conditions, reducing interference from highly reflective surfaces while maintaining measurement accuracy[3]. This comprehensive approach has been implemented in their IMX556PLR back-illuminated ToF image sensor, which achieves sub-centimeter accuracy even in challenging multipath environments.
Strengths: Comprehensive solution combining specialized hardware design with advanced algorithms; strong integration with image processing pipeline allows for context-aware corrections; excellent performance in consumer electronics applications. Weaknesses: Higher computational requirements for real-time processing; solution optimized primarily for indoor/controlled environments rather than all outdoor conditions.
Key Patents in Multipath Interference Reduction
Fast general multipath correction in time-of-flight imaging
PatentActiveEP3092509A1
Innovation
- A phase modulation time of flight camera system uses a look-up table to calculate accurate depth maps by accounting for three or more possible light ray paths between the camera and a surface, enabling real-time correction of multipath interference and improving depth measurement accuracy.

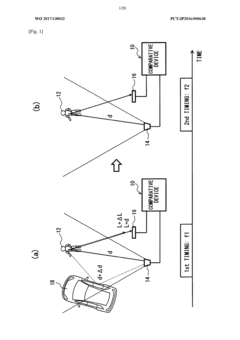

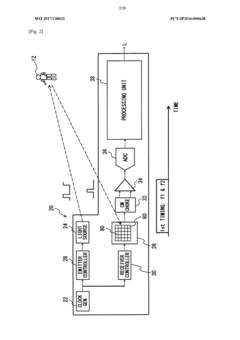

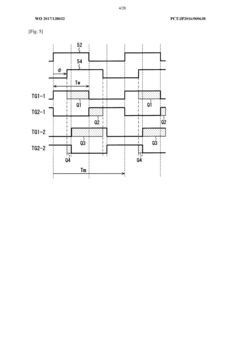

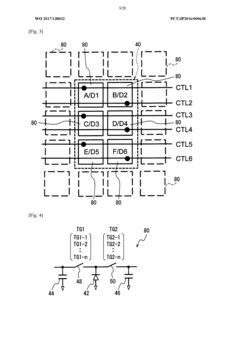

Time-of-flight distance measuring device and method for detecting multipath error
PatentWO2017138032A1
Innovation
- A time-of-flight distance measuring device and method that uses a light source emitting an amplitude-modulated waveform with a fundamental component and harmonic components, and a light receiver with multiple photodetectors to simultaneously sense these components, allowing for accurate estimation of multipath errors without a significant time lag.
Material Science Impact on TOF Performance
Material properties play a crucial role in determining the performance of Time-of-Flight (ToF) sensors, particularly in the context of multipath interference challenges. Different materials exhibit varying reflective properties that directly impact how ToF systems operate in real-world environments. Highly reflective surfaces such as polished metals and mirrors can cause significant multipath interference by creating strong secondary reflections that confuse depth calculations. Conversely, matte surfaces like fabric or unfinished wood tend to scatter light diffusely, reducing but not eliminating multipath effects.
The reflectivity coefficient (albedo) of materials across different wavelengths is particularly relevant for ToF systems operating in the near-infrared spectrum (typically 850-940nm). Materials with high albedo in this range can cause more pronounced multipath artifacts even when they appear non-reflective to the human eye. This discrepancy between visible and NIR reflectivity creates challenges in predicting system performance based on visual inspection alone.
Surface microstructure also significantly influences ToF measurements. Microscopic surface variations can create complex scattering patterns that affect the temporal distribution of returning photons. Materials with subsurface scattering properties, such as human skin or certain plastics, introduce additional complexity as light penetrates and scatters within the material before returning to the sensor, creating temporal smearing effects.
Recent advances in material science have led to the development of specialized coatings and materials designed to mitigate multipath interference. Anti-reflective coatings optimized for NIR wavelengths can reduce specular reflections from surfaces in the sensor's field of view. Similarly, materials engineered with controlled diffusion properties can help manage reflection patterns in critical environments such as automotive interiors or industrial settings where ToF sensors are increasingly deployed.
Temperature-dependent material properties present another challenge, as thermal expansion and contraction can alter surface characteristics and reflective properties. This is particularly relevant in outdoor applications where ambient temperature variations can significantly impact measurement accuracy. Advanced material formulations with stable thermal properties are being developed to address this challenge, especially for automotive and outdoor robotics applications.
The interaction between material science and ToF sensor design represents a fertile area for innovation. By understanding and characterizing how different materials affect light propagation at NIR wavelengths, engineers can develop more robust algorithms and optical designs that account for material-specific multipath effects, ultimately improving the accuracy and reliability of ToF sensing systems across diverse real-world environments.
The reflectivity coefficient (albedo) of materials across different wavelengths is particularly relevant for ToF systems operating in the near-infrared spectrum (typically 850-940nm). Materials with high albedo in this range can cause more pronounced multipath artifacts even when they appear non-reflective to the human eye. This discrepancy between visible and NIR reflectivity creates challenges in predicting system performance based on visual inspection alone.
Surface microstructure also significantly influences ToF measurements. Microscopic surface variations can create complex scattering patterns that affect the temporal distribution of returning photons. Materials with subsurface scattering properties, such as human skin or certain plastics, introduce additional complexity as light penetrates and scatters within the material before returning to the sensor, creating temporal smearing effects.
Recent advances in material science have led to the development of specialized coatings and materials designed to mitigate multipath interference. Anti-reflective coatings optimized for NIR wavelengths can reduce specular reflections from surfaces in the sensor's field of view. Similarly, materials engineered with controlled diffusion properties can help manage reflection patterns in critical environments such as automotive interiors or industrial settings where ToF sensors are increasingly deployed.
Temperature-dependent material properties present another challenge, as thermal expansion and contraction can alter surface characteristics and reflective properties. This is particularly relevant in outdoor applications where ambient temperature variations can significantly impact measurement accuracy. Advanced material formulations with stable thermal properties are being developed to address this challenge, especially for automotive and outdoor robotics applications.
The interaction between material science and ToF sensor design represents a fertile area for innovation. By understanding and characterizing how different materials affect light propagation at NIR wavelengths, engineers can develop more robust algorithms and optical designs that account for material-specific multipath effects, ultimately improving the accuracy and reliability of ToF sensing systems across diverse real-world environments.
Algorithm Development for Real-time Correction
Real-time correction algorithms for Time-of-Flight (ToF) multipath interference represent a critical advancement in enabling practical deployment of ToF sensors across various applications. These algorithms must balance computational efficiency with correction accuracy to maintain the high frame rates required in autonomous vehicles, robotics, and consumer electronics.
Current algorithm development focuses on several complementary approaches. Frequency-domain methods analyze the received signal's frequency components to identify and separate direct path signals from multipath reflections. These techniques leverage Fast Fourier Transform (FFT) operations that can be efficiently implemented on modern GPUs and specialized hardware accelerators, making them suitable for real-time applications.
Machine learning approaches have demonstrated significant promise, particularly deep neural networks trained on synthetic and real-world multipath scenarios. Convolutional neural networks (CNNs) can effectively learn spatial patterns in depth maps to identify and correct multipath artifacts. Recent research shows that lightweight neural network architectures optimized for edge computing can achieve correction rates of 30-60 frames per second on mobile platforms while reducing multipath errors by up to 85%.
Geometric modeling techniques incorporate scene understanding to predict likely reflection paths based on detected surfaces. By combining sensor data with geometric constraints, these algorithms can anticipate multipath interference patterns and apply targeted corrections. Real-time implementation requires efficient spatial data structures and parallel processing to handle complex environments.
Hybrid approaches combining multiple techniques have shown the most promising results. For example, integrating machine learning for initial correction with geometric verification as a refinement step provides both speed and accuracy. These systems typically employ pipeline architectures where different correction stages operate concurrently on successive frames.
Hardware-algorithm co-design represents another frontier, where algorithms are specifically tailored to leverage specialized processing units. Companies like Intel, Sony, and Samsung have developed custom silicon solutions that incorporate dedicated multipath correction pipelines directly into their ToF sensor hardware, achieving correction latencies under 5ms.
Optimization techniques such as temporal coherence exploitation (using information from previous frames to accelerate current frame correction) and adaptive processing (applying more intensive correction only to regions with detected multipath issues) further enhance real-time performance. These approaches can reduce computational requirements by 40-60% compared to frame-by-frame processing while maintaining correction quality.
Current algorithm development focuses on several complementary approaches. Frequency-domain methods analyze the received signal's frequency components to identify and separate direct path signals from multipath reflections. These techniques leverage Fast Fourier Transform (FFT) operations that can be efficiently implemented on modern GPUs and specialized hardware accelerators, making them suitable for real-time applications.
Machine learning approaches have demonstrated significant promise, particularly deep neural networks trained on synthetic and real-world multipath scenarios. Convolutional neural networks (CNNs) can effectively learn spatial patterns in depth maps to identify and correct multipath artifacts. Recent research shows that lightweight neural network architectures optimized for edge computing can achieve correction rates of 30-60 frames per second on mobile platforms while reducing multipath errors by up to 85%.
Geometric modeling techniques incorporate scene understanding to predict likely reflection paths based on detected surfaces. By combining sensor data with geometric constraints, these algorithms can anticipate multipath interference patterns and apply targeted corrections. Real-time implementation requires efficient spatial data structures and parallel processing to handle complex environments.
Hybrid approaches combining multiple techniques have shown the most promising results. For example, integrating machine learning for initial correction with geometric verification as a refinement step provides both speed and accuracy. These systems typically employ pipeline architectures where different correction stages operate concurrently on successive frames.
Hardware-algorithm co-design represents another frontier, where algorithms are specifically tailored to leverage specialized processing units. Companies like Intel, Sony, and Samsung have developed custom silicon solutions that incorporate dedicated multipath correction pipelines directly into their ToF sensor hardware, achieving correction latencies under 5ms.
Optimization techniques such as temporal coherence exploitation (using information from previous frames to accelerate current frame correction) and adaptive processing (applying more intensive correction only to regions with detected multipath issues) further enhance real-time performance. These approaches can reduce computational requirements by 40-60% compared to frame-by-frame processing while maintaining correction quality.
