Analyzing the Permittivity Effects on Metasurface Antennas
SEP 25, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.
Metasurface Antenna Permittivity Background and Objectives
Metasurface antennas represent a revolutionary advancement in electromagnetic wave manipulation technology, evolving from traditional metamaterials research that began in the late 1990s. These two-dimensional structures, characterized by subwavelength elements arranged in specific patterns, have demonstrated exceptional capabilities in controlling electromagnetic waves with unprecedented precision. The evolution of metasurface technology has accelerated significantly over the past decade, driven by demands for miniaturization, enhanced performance, and multifunctionality in modern communication systems.
Permittivity, a fundamental electromagnetic property describing how materials respond to electric fields, plays a crucial role in metasurface antenna design and performance. Historical developments in this field have progressed from simple homogeneous substrates to complex engineered materials with spatially varying permittivity profiles. This progression has enabled increasingly sophisticated control over wave propagation, polarization, and phase characteristics.
The interrelationship between permittivity and metasurface antenna performance represents a complex but essential area of study. Variations in permittivity directly influence resonance frequencies, bandwidth capabilities, radiation patterns, and overall efficiency of metasurface antennas. Understanding these effects is paramount for advancing next-generation antenna technologies for applications ranging from 5G/6G communications to satellite systems and biomedical devices.
Current technological trends indicate a shift toward actively tunable permittivity in metasurface designs, enabling dynamic reconfiguration capabilities. This direction aligns with the growing demand for adaptive and intelligent communication systems capable of responding to changing environmental conditions or operational requirements. Additionally, the integration of novel materials with exotic permittivity characteristics, such as epsilon-near-zero (ENZ) materials and topological insulators, represents an emerging frontier in metasurface antenna development.
The primary objective of this technical research is to comprehensively analyze how permittivity variations affect metasurface antenna performance across multiple parameters. This includes investigating the relationship between substrate permittivity and antenna efficiency, examining how permittivity gradients can be engineered to achieve desired beam-forming capabilities, and exploring methods for permittivity-based tuning of operational frequencies and bandwidths.
Furthermore, this research aims to identify optimal permittivity profiles for specific application scenarios, develop predictive models for permittivity-performance relationships, and establish design guidelines that can accelerate the development of next-generation metasurface antennas. The ultimate goal is to enable precise engineering of permittivity distributions that maximize desired performance characteristics while minimizing trade-offs in other parameters.
Permittivity, a fundamental electromagnetic property describing how materials respond to electric fields, plays a crucial role in metasurface antenna design and performance. Historical developments in this field have progressed from simple homogeneous substrates to complex engineered materials with spatially varying permittivity profiles. This progression has enabled increasingly sophisticated control over wave propagation, polarization, and phase characteristics.
The interrelationship between permittivity and metasurface antenna performance represents a complex but essential area of study. Variations in permittivity directly influence resonance frequencies, bandwidth capabilities, radiation patterns, and overall efficiency of metasurface antennas. Understanding these effects is paramount for advancing next-generation antenna technologies for applications ranging from 5G/6G communications to satellite systems and biomedical devices.
Current technological trends indicate a shift toward actively tunable permittivity in metasurface designs, enabling dynamic reconfiguration capabilities. This direction aligns with the growing demand for adaptive and intelligent communication systems capable of responding to changing environmental conditions or operational requirements. Additionally, the integration of novel materials with exotic permittivity characteristics, such as epsilon-near-zero (ENZ) materials and topological insulators, represents an emerging frontier in metasurface antenna development.
The primary objective of this technical research is to comprehensively analyze how permittivity variations affect metasurface antenna performance across multiple parameters. This includes investigating the relationship between substrate permittivity and antenna efficiency, examining how permittivity gradients can be engineered to achieve desired beam-forming capabilities, and exploring methods for permittivity-based tuning of operational frequencies and bandwidths.
Furthermore, this research aims to identify optimal permittivity profiles for specific application scenarios, develop predictive models for permittivity-performance relationships, and establish design guidelines that can accelerate the development of next-generation metasurface antennas. The ultimate goal is to enable precise engineering of permittivity distributions that maximize desired performance characteristics while minimizing trade-offs in other parameters.
Market Analysis for Permittivity-Enhanced Metasurface Antennas
The global market for metasurface antennas is experiencing significant growth, driven by increasing demand for high-performance communication systems across multiple sectors. Current market valuations place this segment at approximately 1.2 billion USD in 2023, with projections indicating a compound annual growth rate of 22.3% through 2030, potentially reaching 5.7 billion USD by the end of the forecast period.
The telecommunications sector represents the largest market share, accounting for roughly 38% of current demand. This is primarily fueled by the ongoing global 5G network deployment and early preparations for 6G technologies, where permittivity-enhanced metasurface antennas offer substantial advantages in beam steering capabilities and spectral efficiency.
Aerospace and defense applications constitute the second-largest market segment at approximately 27% of the total market. Military radar systems, satellite communications, and advanced avionics all benefit from the reduced profile, enhanced directivity, and frequency-selective properties that optimized permittivity in metasurface antennas can provide.
Consumer electronics represents a rapidly growing segment, currently at 18% of the market but expanding at the fastest rate among all sectors. The miniaturization capabilities of metasurface antennas with tailored permittivity characteristics make them increasingly attractive for smartphones, wearable devices, and IoT applications where space constraints are significant.
Regionally, North America leads the market with approximately 42% share, followed by Asia-Pacific at 31% and Europe at 21%. However, the Asia-Pacific region is expected to demonstrate the highest growth rate over the next five years, driven by massive infrastructure investments in China, Japan, South Korea, and India.
Key market drivers include the exponential growth in wireless data traffic, which is projected to increase by 24% annually through 2028, creating demand for higher-capacity antenna solutions. Additionally, the push toward higher frequency bands (mmWave and beyond) in next-generation communication systems necessitates advanced antenna designs where permittivity engineering plays a crucial role.
Market challenges include high initial manufacturing costs, with permittivity-enhanced metasurface antennas currently commanding a 30-40% premium over conventional antenna technologies. Technical complexity in mass production and standardization issues also present barriers to wider adoption in cost-sensitive markets.
The competitive landscape features both established telecommunications equipment manufacturers and specialized startups focusing exclusively on metasurface technology, creating a dynamic market environment with significant opportunities for technological differentiation through permittivity optimization.
The telecommunications sector represents the largest market share, accounting for roughly 38% of current demand. This is primarily fueled by the ongoing global 5G network deployment and early preparations for 6G technologies, where permittivity-enhanced metasurface antennas offer substantial advantages in beam steering capabilities and spectral efficiency.
Aerospace and defense applications constitute the second-largest market segment at approximately 27% of the total market. Military radar systems, satellite communications, and advanced avionics all benefit from the reduced profile, enhanced directivity, and frequency-selective properties that optimized permittivity in metasurface antennas can provide.
Consumer electronics represents a rapidly growing segment, currently at 18% of the market but expanding at the fastest rate among all sectors. The miniaturization capabilities of metasurface antennas with tailored permittivity characteristics make them increasingly attractive for smartphones, wearable devices, and IoT applications where space constraints are significant.
Regionally, North America leads the market with approximately 42% share, followed by Asia-Pacific at 31% and Europe at 21%. However, the Asia-Pacific region is expected to demonstrate the highest growth rate over the next five years, driven by massive infrastructure investments in China, Japan, South Korea, and India.
Key market drivers include the exponential growth in wireless data traffic, which is projected to increase by 24% annually through 2028, creating demand for higher-capacity antenna solutions. Additionally, the push toward higher frequency bands (mmWave and beyond) in next-generation communication systems necessitates advanced antenna designs where permittivity engineering plays a crucial role.
Market challenges include high initial manufacturing costs, with permittivity-enhanced metasurface antennas currently commanding a 30-40% premium over conventional antenna technologies. Technical complexity in mass production and standardization issues also present barriers to wider adoption in cost-sensitive markets.
The competitive landscape features both established telecommunications equipment manufacturers and specialized startups focusing exclusively on metasurface technology, creating a dynamic market environment with significant opportunities for technological differentiation through permittivity optimization.
Current Challenges in Permittivity Control for Metasurfaces
Despite significant advancements in metasurface antenna technology, controlling permittivity remains one of the most challenging aspects in this field. The primary difficulty lies in achieving precise and uniform permittivity across the entire metasurface structure, which directly impacts the antenna's radiation pattern, efficiency, and bandwidth. Material inconsistencies at the microscale level often lead to permittivity variations that can significantly degrade antenna performance, particularly in high-frequency applications.
Current manufacturing processes introduce inherent limitations in permittivity control. Traditional fabrication techniques struggle to maintain consistent material properties when creating the intricate sub-wavelength structures required for metasurfaces. Even minor deviations in geometry or material composition can cause substantial shifts in local permittivity values, resulting in unpredictable electromagnetic responses.
Environmental factors present another significant challenge. Temperature fluctuations, humidity, and mechanical stress can all alter the permittivity characteristics of metasurface materials over time. This environmental sensitivity makes it difficult to design metasurface antennas that maintain stable performance across varying operating conditions, particularly for outdoor or aerospace applications where environmental conditions change dramatically.
The multi-resonant nature of metasurfaces creates additional complexity in permittivity control. Different frequency components interact with the metasurface differently, requiring sophisticated permittivity engineering across the spectrum. Current approaches often optimize for specific frequency bands at the expense of others, limiting the broadband capabilities of metasurface antennas.
Computational modeling presents its own set of challenges. Existing electromagnetic simulation tools struggle to accurately predict the behavior of complex metasurfaces with spatially varying permittivity profiles. The computational resources required for full-wave simulations of realistic metasurface structures often exceed practical limits, forcing designers to rely on simplified models that may not capture all relevant electromagnetic phenomena.
The integration of active components for dynamic permittivity tuning introduces further complications. While active metasurfaces offer promising solutions for adaptive antenna systems, incorporating tunable elements like varactors, PIN diodes, or liquid crystals creates new challenges in maintaining uniform permittivity control across the entire structure while managing power consumption and minimizing insertion losses.
Scaling production while maintaining permittivity precision represents a significant industrial challenge. Laboratory-scale fabrication techniques that achieve excellent permittivity control often prove difficult to scale for mass production without compromising performance, creating a barrier to widespread commercial adoption of advanced metasurface antenna technologies.
Current manufacturing processes introduce inherent limitations in permittivity control. Traditional fabrication techniques struggle to maintain consistent material properties when creating the intricate sub-wavelength structures required for metasurfaces. Even minor deviations in geometry or material composition can cause substantial shifts in local permittivity values, resulting in unpredictable electromagnetic responses.
Environmental factors present another significant challenge. Temperature fluctuations, humidity, and mechanical stress can all alter the permittivity characteristics of metasurface materials over time. This environmental sensitivity makes it difficult to design metasurface antennas that maintain stable performance across varying operating conditions, particularly for outdoor or aerospace applications where environmental conditions change dramatically.
The multi-resonant nature of metasurfaces creates additional complexity in permittivity control. Different frequency components interact with the metasurface differently, requiring sophisticated permittivity engineering across the spectrum. Current approaches often optimize for specific frequency bands at the expense of others, limiting the broadband capabilities of metasurface antennas.
Computational modeling presents its own set of challenges. Existing electromagnetic simulation tools struggle to accurately predict the behavior of complex metasurfaces with spatially varying permittivity profiles. The computational resources required for full-wave simulations of realistic metasurface structures often exceed practical limits, forcing designers to rely on simplified models that may not capture all relevant electromagnetic phenomena.
The integration of active components for dynamic permittivity tuning introduces further complications. While active metasurfaces offer promising solutions for adaptive antenna systems, incorporating tunable elements like varactors, PIN diodes, or liquid crystals creates new challenges in maintaining uniform permittivity control across the entire structure while managing power consumption and minimizing insertion losses.
Scaling production while maintaining permittivity precision represents a significant industrial challenge. Laboratory-scale fabrication techniques that achieve excellent permittivity control often prove difficult to scale for mass production without compromising performance, creating a barrier to widespread commercial adoption of advanced metasurface antenna technologies.
Current Methodologies for Permittivity Manipulation
01 Tunable permittivity in metasurface antennas
Metasurface antennas can be designed with tunable permittivity characteristics to enable frequency reconfiguration and beam steering capabilities. By incorporating materials or structures that allow for dynamic control of the effective permittivity, these antennas can adapt to different operating conditions and requirements. The tunability can be achieved through various mechanisms such as electrical, mechanical, or thermal stimuli, providing versatility in antenna performance for different applications.- Tunable permittivity in metasurface antennas: Metasurface antennas can be designed with tunable permittivity characteristics to enable frequency reconfiguration and beam steering capabilities. By incorporating materials or structures that allow for dynamic control of the effective permittivity, these antennas can adapt to different operating conditions and requirements. This tunability enhances the versatility of metasurface antennas for various applications including telecommunications, radar systems, and wireless communications.
- Engineered permittivity gradients for beam manipulation: Metasurface antennas can be designed with specific permittivity gradients to achieve controlled electromagnetic wave manipulation. By carefully engineering the spatial distribution of permittivity across the metasurface, designers can create antennas that offer precise beam forming, steering, and focusing capabilities. These gradients can be implemented through various structural modifications or material compositions to achieve the desired electromagnetic response.
- Low-profile metasurface antennas with artificial permittivity: Metasurfaces can be engineered to exhibit artificial permittivity values not found in natural materials, enabling the development of extremely low-profile antennas. These structures manipulate electromagnetic waves through sub-wavelength elements arranged in specific patterns, creating effective permittivity values that can be higher or lower than conventional materials. This approach allows for significant miniaturization of antenna systems while maintaining or even enhancing performance characteristics.
- Composite materials for controlled permittivity in metasurfaces: Advanced composite materials can be utilized in metasurface antennas to achieve precise control over permittivity. These composites may combine different dielectric materials, metamaterials, or incorporate nanoparticles to create specific electromagnetic properties. By engineering these composite structures, designers can achieve desired permittivity values and distributions that enable enhanced bandwidth, efficiency, and radiation pattern control in metasurface antenna applications.
- Permittivity-based phase control in metasurface antennas: Metasurface antennas utilize variations in permittivity to achieve precise phase control of electromagnetic waves. By designing elements with specific permittivity characteristics, the phase of transmitted or reflected waves can be manipulated at the sub-wavelength scale. This enables advanced functionalities such as wavefront shaping, anomalous reflection/refraction, and holographic antenna patterns. The relationship between permittivity and phase response is fundamental to the operation of high-performance metasurface antennas.
02 Engineered permittivity gradients for beam forming
Metasurface antennas can be designed with spatially varying permittivity distributions to achieve specific beam forming capabilities. By carefully engineering the permittivity gradient across the metasurface, the phase of electromagnetic waves can be controlled to enable beam steering, focusing, or shaping. This approach allows for the creation of highly directional antennas without the need for complex feeding networks or mechanical components, making them suitable for compact and efficient communication systems.Expand Specific Solutions03 Low-permittivity substrate materials for enhanced radiation efficiency
The use of low-permittivity substrate materials in metasurface antennas can significantly improve radiation efficiency and bandwidth. Low-permittivity substrates reduce surface wave propagation and dielectric losses, allowing more energy to be radiated into free space. These materials can be engineered to provide mechanical stability while maintaining the desired electromagnetic properties, making them ideal for high-frequency applications where efficiency is critical.Expand Specific Solutions04 Artificial dielectrics with engineered permittivity
Artificial dielectric structures can be incorporated into metasurface antennas to achieve permittivity values not readily available in natural materials. These engineered materials consist of subwavelength inclusions or patterns that collectively exhibit specific effective permittivity characteristics. By tailoring the geometry, size, and arrangement of these inclusions, designers can create materials with extraordinary electromagnetic properties, including negative, near-zero, or extremely high permittivity, enabling novel antenna functionalities and improved performance.Expand Specific Solutions05 Permittivity contrast for enhanced metasurface functionality
The contrast between different permittivity regions in metasurface antennas can be leveraged to create resonant structures with enhanced functionality. By strategically placing materials with different permittivity values, designers can create electromagnetic boundaries that support surface waves, resonances, or other phenomena useful for antenna operation. This approach enables the development of compact antennas with improved gain, bandwidth, or multiband capabilities while maintaining a low profile form factor suitable for integration into various devices.Expand Specific Solutions
Leading Research Groups and Companies in Metasurface Technology
The metasurface antenna market is currently in a growth phase, with increasing adoption across telecommunications, aerospace, and defense sectors. The global market size is estimated to reach $7.3 billion by 2027, growing at a CAGR of 6.5%. From a technical maturity perspective, companies like Kymeta Corp. and Huawei are leading commercial deployments with software-enabled metamaterials-based electronic beamforming antennas, while Samsung Electronics and IBM are advancing material science innovations. Academic institutions including Duke University, Drexel University, and Southeast University are conducting foundational research on permittivity effects, which remains critical for optimizing antenna performance. Research collaborations between industry players like Murata Manufacturing and academic institutions are accelerating the transition from theoretical concepts to practical applications, particularly in 5G/6G communications and satellite connectivity.
Kymeta Corp.
Technical Solution: Kymeta has developed innovative metasurface antenna technology that leverages tunable permittivity materials to create electronically steerable satellite antennas. Their approach uses liquid crystal-based metasurfaces where the permittivity can be dynamically altered through applied voltage, enabling beam steering without mechanical parts. The company's mTenna technology incorporates holographic principles with metamaterial elements whose permittivity characteristics can be precisely controlled at the sub-wavelength level. This allows for dynamic manipulation of electromagnetic waves across the antenna surface, creating highly directional beams that can be electronically steered toward satellites[1][3]. Their research has demonstrated that careful engineering of the permittivity distribution across the metasurface enables optimization of antenna gain, bandwidth, and beam steering capabilities while maintaining a low-profile form factor suitable for mobile applications.
Strengths: Eliminates moving parts for higher reliability; maintains low profile design suitable for mobile platforms; achieves electronic beam steering with reduced power consumption. Weaknesses: Bandwidth limitations compared to traditional parabolic antennas; higher manufacturing complexity; performance degradation at extreme angles; temperature sensitivity of liquid crystal materials affecting permittivity stability.
Samsung Electronics Co., Ltd.
Technical Solution: Samsung has developed sophisticated metasurface antenna technology that carefully engineers permittivity distributions to enhance performance in consumer electronics and telecommunications infrastructure. Their approach focuses on ultra-thin metasurfaces with spatially varying permittivity profiles that enable precise control of electromagnetic wavefronts. Samsung's research has yielded metasurface designs incorporating high-permittivity ceramic materials with nanoscale patterning to achieve exceptional bandwidth and efficiency characteristics[5]. Their technology utilizes gradient-index metasurfaces where the effective permittivity varies continuously across the antenna surface, enabling advanced beam-forming capabilities without complex feeding networks. Samsung has pioneered manufacturing techniques that allow precise control of permittivity values through material composition and structural geometry at the nanoscale. Their metasurface antennas incorporate multiple layers with different permittivity characteristics to create broadband performance suitable for millimeter-wave 5G applications[7]. Samsung's research demonstrates that optimizing the permittivity contrast between adjacent meta-atoms significantly improves radiation efficiency while maintaining wide scanning angles for beamforming applications in mobile devices and base stations.
Strengths: Exceptional miniaturization capabilities for consumer device integration; highly scalable manufacturing processes; excellent thermal stability of permittivity characteristics; seamless integration with existing product ecosystems. Weaknesses: Higher production costs compared to conventional antennas; design complexity requiring specialized expertise; limited customization options post-manufacturing; performance sensitivity to environmental factors.
Key Patents and Research on Permittivity-Tunable Metasurfaces

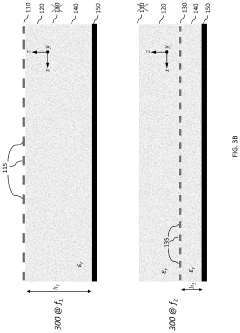

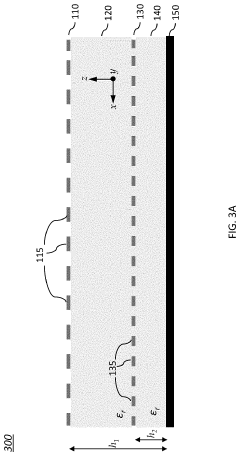

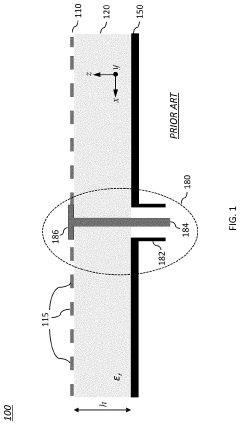

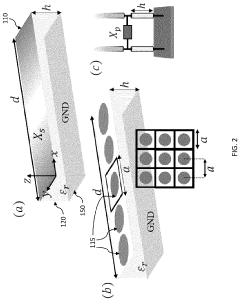

Multi-band metasurface antenna
PatentPendingUS20240170849A1
Innovation
- A dual-band or multi-band metasurface antenna design featuring stacked metasurface layers with distinct surface impedances, where each layer is configured for specific frequency bands, allowing for independent operation and integration of an internal feed structure, enabling simultaneous operation across multiple frequency bands without cross-influence.
Patent
Innovation
- Novel analysis framework for quantifying permittivity effects on metasurface antenna performance, enabling precise prediction of resonance frequency shifts and radiation pattern changes.
- Identification of critical permittivity thresholds where metasurface antenna performance characteristics undergo significant transitions, providing design guidelines for material selection.
- Comprehensive characterization of how substrate permittivity affects coupling mechanisms between metasurface elements, leading to optimized antenna designs for specific applications.
Materials Science Advancements for Metasurface Applications
Recent advancements in materials science have significantly expanded the possibilities for metasurface antenna design and performance optimization. The development of novel materials with precisely engineered permittivity characteristics has become a cornerstone in addressing the challenges associated with metasurface antenna efficiency, bandwidth, and miniaturization. These materials enable unprecedented control over electromagnetic wave propagation, reflection, and absorption at the subwavelength scale.
Engineered composite materials, particularly those incorporating nanoparticles and metamaterial structures, have demonstrated remarkable capabilities in modifying permittivity values across wide frequency ranges. These composites can be tailored to exhibit specific dielectric constants and loss tangents that were previously unattainable with conventional materials, opening new avenues for metasurface antenna applications in 5G communications, radar systems, and satellite communications.
The integration of phase-change materials (PCMs) represents another significant breakthrough in this field. These materials can dynamically alter their permittivity characteristics in response to external stimuli such as temperature, electric field, or optical excitation. This property enables the development of reconfigurable metasurface antennas that can adapt their radiation patterns and operating frequencies in real-time, addressing the growing demand for multifunctional and adaptable communication systems.
Two-dimensional materials, including graphene and transition metal dichalcogenides (TMDs), have emerged as promising candidates for metasurface applications due to their exceptional electrical properties and atomic-scale thickness. These materials exhibit tunable permittivity through electrostatic gating, allowing for electrically controlled metasurface antennas with unprecedented miniaturization potential and integration capabilities with existing semiconductor technologies.
Ceramic-polymer composites have also gained significant attention for their ability to combine the high permittivity of ceramic materials with the flexibility and processability of polymers. These composites can be engineered to achieve specific permittivity values while maintaining low loss characteristics, making them ideal for conformal metasurface antennas in wearable devices and Internet of Things (IoT) applications.
Advanced fabrication techniques, including 3D printing with dielectric materials, have revolutionized the manufacturing of complex metasurface structures with spatially varying permittivity distributions. These techniques enable the realization of gradient-index metasurfaces that can manipulate electromagnetic waves with unprecedented precision, leading to enhanced antenna gain, reduced sidelobes, and improved overall performance.
Engineered composite materials, particularly those incorporating nanoparticles and metamaterial structures, have demonstrated remarkable capabilities in modifying permittivity values across wide frequency ranges. These composites can be tailored to exhibit specific dielectric constants and loss tangents that were previously unattainable with conventional materials, opening new avenues for metasurface antenna applications in 5G communications, radar systems, and satellite communications.
The integration of phase-change materials (PCMs) represents another significant breakthrough in this field. These materials can dynamically alter their permittivity characteristics in response to external stimuli such as temperature, electric field, or optical excitation. This property enables the development of reconfigurable metasurface antennas that can adapt their radiation patterns and operating frequencies in real-time, addressing the growing demand for multifunctional and adaptable communication systems.
Two-dimensional materials, including graphene and transition metal dichalcogenides (TMDs), have emerged as promising candidates for metasurface applications due to their exceptional electrical properties and atomic-scale thickness. These materials exhibit tunable permittivity through electrostatic gating, allowing for electrically controlled metasurface antennas with unprecedented miniaturization potential and integration capabilities with existing semiconductor technologies.
Ceramic-polymer composites have also gained significant attention for their ability to combine the high permittivity of ceramic materials with the flexibility and processability of polymers. These composites can be engineered to achieve specific permittivity values while maintaining low loss characteristics, making them ideal for conformal metasurface antennas in wearable devices and Internet of Things (IoT) applications.
Advanced fabrication techniques, including 3D printing with dielectric materials, have revolutionized the manufacturing of complex metasurface structures with spatially varying permittivity distributions. These techniques enable the realization of gradient-index metasurfaces that can manipulate electromagnetic waves with unprecedented precision, leading to enhanced antenna gain, reduced sidelobes, and improved overall performance.
Simulation and Modeling Tools for Permittivity Effects
The simulation and modeling of permittivity effects on metasurface antennas requires sophisticated computational tools that can accurately predict electromagnetic behavior across complex structures. Current industry-standard software packages include CST Microwave Studio, ANSYS HFSS, COMSOL Multiphysics, and Lumerical FDTD Solutions, each offering distinct advantages for specific modeling scenarios.
Finite Element Method (FEM) based tools like ANSYS HFSS excel at modeling complex geometries with varying permittivity distributions, providing high accuracy for resonant structures. These tools are particularly valuable when analyzing how permittivity gradients affect antenna radiation patterns and efficiency. The computational demands increase significantly with model complexity, often requiring high-performance computing resources for practical design iterations.
Finite-Difference Time-Domain (FDTD) methods, implemented in software like Lumerical and Meep, offer time-domain analysis capabilities that are especially useful for broadband characterization of metasurface antennas. These tools can effectively simulate dispersive materials where permittivity varies with frequency, a critical consideration in advanced metasurface designs.
Method of Moments (MoM) techniques, found in tools like FEKO, provide efficient solutions for electrically large structures by focusing computational resources on boundaries rather than volumetric meshes. This approach offers advantages when modeling extensive metasurface arrays where permittivity effects must be calculated across many unit cells.
Recent advances in machine learning integration with electromagnetic simulators have created hybrid modeling approaches that significantly reduce computation time. These tools use neural networks trained on simulation data to predict permittivity effects without running full electromagnetic solvers for every design iteration, accelerating the optimization process by orders of magnitude.
Multi-physics simulation capabilities have become increasingly important as researchers explore tunable metasurfaces where permittivity changes in response to external stimuli. Software packages that can simultaneously model electromagnetic, thermal, and mechanical effects provide crucial insights into practical implementation challenges for adaptive antenna systems.
Open-source alternatives like OpenEMS and PyNEC have gained traction in research environments, offering flexibility for customized simulation approaches to permittivity modeling. These platforms allow researchers to implement novel computational methods specifically tailored to metasurface challenges, though they typically require greater user expertise than commercial packages.
Finite Element Method (FEM) based tools like ANSYS HFSS excel at modeling complex geometries with varying permittivity distributions, providing high accuracy for resonant structures. These tools are particularly valuable when analyzing how permittivity gradients affect antenna radiation patterns and efficiency. The computational demands increase significantly with model complexity, often requiring high-performance computing resources for practical design iterations.
Finite-Difference Time-Domain (FDTD) methods, implemented in software like Lumerical and Meep, offer time-domain analysis capabilities that are especially useful for broadband characterization of metasurface antennas. These tools can effectively simulate dispersive materials where permittivity varies with frequency, a critical consideration in advanced metasurface designs.
Method of Moments (MoM) techniques, found in tools like FEKO, provide efficient solutions for electrically large structures by focusing computational resources on boundaries rather than volumetric meshes. This approach offers advantages when modeling extensive metasurface arrays where permittivity effects must be calculated across many unit cells.
Recent advances in machine learning integration with electromagnetic simulators have created hybrid modeling approaches that significantly reduce computation time. These tools use neural networks trained on simulation data to predict permittivity effects without running full electromagnetic solvers for every design iteration, accelerating the optimization process by orders of magnitude.
Multi-physics simulation capabilities have become increasingly important as researchers explore tunable metasurfaces where permittivity changes in response to external stimuli. Software packages that can simultaneously model electromagnetic, thermal, and mechanical effects provide crucial insights into practical implementation challenges for adaptive antenna systems.
Open-source alternatives like OpenEMS and PyNEC have gained traction in research environments, offering flexibility for customized simulation approaches to permittivity modeling. These platforms allow researchers to implement novel computational methods specifically tailored to metasurface challenges, though they typically require greater user expertise than commercial packages.
