Comparative Review of Neuromorphic Materials for Electronic Applications

Neuromorphic computing represents a paradigm shift in electronic systems, drawing inspiration from the human brain's neural architecture to create more efficient and adaptive computational platforms. The evolution of neuromorphic materials has been marked by significant milestones over the past three decades, transitioning from conceptual frameworks to practical implementations that challenge conventional von Neumann architectures.

The field originated in the late 1980s when Carver Mead introduced the concept of neuromorphic engineering, proposing electronic systems that mimic neuro-biological architectures. Early developments focused primarily on silicon-based implementations, with pioneering work at Caltech establishing fundamental principles for analog VLSI systems that emulate neural functions.

By the early 2000s, research expanded beyond silicon to explore alternative materials with properties more conducive to mimicking synaptic behavior. This period saw the emergence of memristive materials, phase-change materials, and organic semiconductors as potential candidates for neuromorphic applications. The discovery of the physical memristor in 2008 by HP Labs marked a watershed moment, providing tangible evidence for theoretical concepts proposed decades earlier.

Recent years have witnessed an acceleration in materials innovation, with two-dimensional materials, metal-oxide interfaces, and ferroelectric compounds emerging as promising platforms for neuromorphic devices. These materials exhibit properties such as non-volatile memory, tunable resistance states, and inherent plasticity that align closely with biological neural mechanisms.

The technical objectives in this field are multifaceted and ambitious. Primary goals include developing materials that can simultaneously process and store information, mirroring the brain's efficiency in handling complex cognitive tasks. Researchers aim to create systems capable of unsupervised learning, pattern recognition, and adaptive behavior while consuming orders of magnitude less power than conventional computing architectures.

Another critical objective is to overcome the limitations of current materials, particularly regarding operational stability, switching endurance, and integration compatibility with existing semiconductor technologies. The field seeks materials that can maintain consistent performance over billions of switching cycles while operating at speeds comparable to biological systems.

Long-term research goals extend to creating fully autonomous neuromorphic systems capable of real-time learning and decision-making in dynamic environments. This includes developing materials that support spike-timing-dependent plasticity, homeostasis, and other complex neural behaviors essential for advanced cognitive functions.

The convergence of material science, neuroscience, and electronic engineering in this domain presents unprecedented opportunities for innovation, potentially revolutionizing applications ranging from edge computing and IoT devices to autonomous systems and artificial intelligence platforms.

The brain-inspired computing market is experiencing unprecedented growth, driven by the increasing demand for efficient processing of complex data patterns and the limitations of traditional von Neumann computing architectures. Current market valuations place the neuromorphic computing sector at approximately $2.5 billion in 2023, with projections indicating a compound annual growth rate of 24% through 2030, potentially reaching $12 billion by the end of the decade.

Key market segments for neuromorphic materials and brain-inspired computing include autonomous vehicles, robotics, healthcare diagnostics, and advanced security systems. The automotive sector represents the fastest-growing application area, with major manufacturers investing heavily in neuromorphic sensors for real-time environmental perception and decision-making capabilities that mimic human cognitive processes.

Healthcare applications are emerging as another significant market driver, particularly in medical imaging and diagnostic systems where pattern recognition is crucial. The ability of neuromorphic systems to process complex sensory data while consuming minimal power makes them ideal for portable medical devices and implantable technologies, a market segment expected to grow at 28% annually.

From a geographical perspective, North America currently dominates the market with approximately 40% share, followed by Europe and Asia-Pacific. However, the Asia-Pacific region is demonstrating the most aggressive growth trajectory, fueled by substantial government investments in China, South Korea, and Japan aimed at establishing technological sovereignty in advanced computing architectures.

Consumer demand for more intelligent edge devices is creating a substantial market opportunity for neuromorphic materials and computing solutions. The inherent energy efficiency of brain-inspired architectures addresses a critical pain point in mobile and IoT applications, where power consumption remains a significant constraint. Market research indicates that devices incorporating neuromorphic elements can achieve 50-100x improvement in energy efficiency for specific AI workloads compared to traditional computing approaches.

Enterprise adoption is accelerating as organizations seek competitive advantages through more efficient data processing capabilities. Financial services, in particular, have emerged as early adopters, implementing neuromorphic systems for fraud detection and algorithmic trading applications where real-time pattern recognition delivers measurable business value.

The market landscape is characterized by a mix of established semiconductor companies pivoting toward neuromorphic solutions and specialized startups focused exclusively on brain-inspired computing architectures. This competitive dynamic is driving rapid innovation in neuromorphic materials and integration techniques, further accelerating market expansion.

The neuromorphic materials landscape is currently dominated by several key categories, each with distinct properties and applications. Traditional CMOS-based neuromorphic systems remain prevalent due to their compatibility with existing semiconductor manufacturing infrastructure. However, these silicon-based implementations face significant limitations in power efficiency and neural density compared to biological systems. The energy consumption per synaptic operation in CMOS systems typically ranges from 10-100 picojoules, orders of magnitude higher than the human brain's approximately 1-10 femtojoules per operation.

Phase-change materials (PCMs) represent another important category, utilizing chalcogenide compounds like Ge2Sb2Te5 that can switch between amorphous and crystalline states. These materials offer excellent scalability down to nanometer dimensions and multi-level resistance states, making them suitable for synaptic weight implementation. However, PCMs face challenges with drift in resistance values over time and relatively high programming currents, typically requiring 50-200 μA for reliable switching operations.

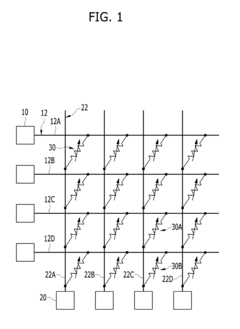

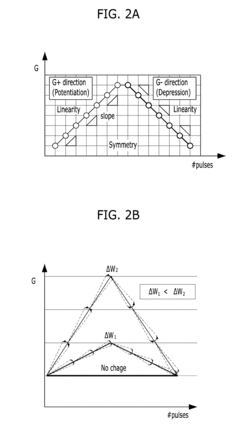

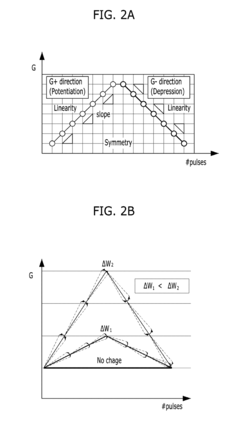

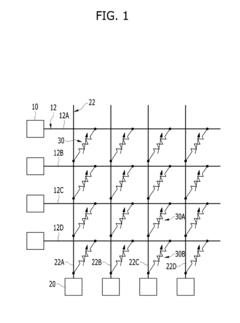

Resistive random-access memory (RRAM) materials, including metal oxides such as HfO2, TiO2, and Ta2O5, have gained significant attention due to their simple structure and CMOS compatibility. These materials can achieve sub-nanosecond switching speeds and retention times exceeding 10 years. The primary technical barriers include cycle-to-cycle and device-to-device variability, with resistance variations often exceeding 20%, which complicates reliable neural network implementation.

Ferroelectric materials, particularly hafnium zirconium oxide (HZO), have emerged as promising candidates due to their non-volatile polarization states and low switching energy. Recent advancements have demonstrated sub-100 picosecond switching times and endurance exceeding 10^11 cycles. However, integration challenges with standard CMOS processes and scaling limitations below 10nm remain significant hurdles.

Magnetic materials, including magnetic tunnel junctions (MTJs) and spintronic devices, offer non-volatility and potentially unlimited endurance. These materials can achieve switching energies as low as 100 femtojoules per operation. The technical barriers include thermal stability at reduced dimensions and the requirement for specialized fabrication equipment not commonly found in standard semiconductor facilities.

Two-dimensional materials like graphene and transition metal dichalcogenides (TMDs) represent the cutting edge of neuromorphic materials research. Their atomic-scale thickness enables extreme scaling potential and unique electronic properties. However, large-scale manufacturing remains challenging, with current wafer-scale production showing defect densities orders of magnitude higher than required for commercial applications.

The integration of these diverse materials into practical neuromorphic systems faces additional challenges, including interface engineering between dissimilar materials, 3D integration techniques, and the development of appropriate peripheral circuitry. Addressing these barriers requires interdisciplinary approaches combining materials science, device physics, circuit design, and neuromorphic computing algorithms.

The neuromorphic materials market for electronic applications is in an early growth phase, characterized by significant research activity but limited commercial deployment. The global market is projected to expand rapidly, driven by increasing demand for energy-efficient computing solutions and artificial intelligence applications. From a technological maturity perspective, the field shows varying development stages across different players. Industry leaders like Samsung Electronics and SK Hynix are advancing memory-based neuromorphic solutions, while IBM and Hewlett Packard Enterprise focus on developing integrated neuromorphic computing architectures. Academic institutions including MIT, USC, and KAIST are pioneering fundamental materials research, often collaborating with industry partners. Research organizations like Electronics & Telecommunications Research Institute and CEA are bridging the gap between academic discovery and commercial implementation through applied research initiatives.

Energy efficiency represents a critical benchmark for evaluating neuromorphic materials in electronic applications. Current silicon-based computing architectures consume significant power, with data centers alone accounting for approximately 1-2% of global electricity consumption. Neuromorphic materials offer promising alternatives with substantially lower energy requirements, potentially reducing power consumption by several orders of magnitude compared to conventional CMOS technologies.

When benchmarking energy efficiency, the most common metric is energy per synaptic operation, typically measured in femtojoules (fJ) or picojoules (pJ). Traditional von Neumann architectures require 10-100 pJ per operation, while biological neurons operate at approximately 1-10 fJ per synaptic event. Current neuromorphic materials demonstrate varying levels of efficiency within this spectrum.

Phase-change materials (PCMs) like Ge2Sb2Te5 exhibit energy consumption in the range of 0.1-10 pJ per synaptic operation. While this represents significant improvement over conventional computing, PCMs still face challenges with high programming currents during the crystallization process. Resistive random-access memory (RRAM) materials, particularly metal oxides like HfO2 and Ta2O5, demonstrate better efficiency with 0.01-1 pJ per operation, approaching biological levels.

Spintronic materials, leveraging magnetic domain switching, show promising results with energy consumption as low as 1-100 fJ per operation. Recent advances in antiferromagnetic materials have pushed these boundaries even further. Meanwhile, organic neuromorphic materials present a sustainable alternative with moderate energy efficiency (typically 1-10 pJ per operation) but offer advantages in flexibility and biocompatibility.

Emerging two-dimensional materials like graphene and MoS2 demonstrate theoretical energy efficiencies approaching 0.1 fJ per operation under optimal conditions, though practical implementations currently operate in the 10-100 fJ range. These materials benefit from atomically thin profiles that minimize electron transport distances and reduce capacitance.

Temperature sensitivity significantly impacts energy efficiency benchmarks across all material categories. Most neuromorphic materials show optimal performance within specific temperature ranges, with efficiency degradation of 10-30% observed outside these optimal zones. This presents particular challenges for applications in extreme environments or those requiring passive cooling solutions.

Scaling considerations also affect energy efficiency metrics, with many materials showing improved efficiency at smaller node sizes until quantum effects begin to dominate. The trade-off between reliability and energy consumption remains a critical challenge, as lower-energy operations often correlate with higher error rates and reduced retention times.

The integration of neuromorphic materials with conventional CMOS electronics represents one of the most significant challenges in advancing brain-inspired computing systems. Traditional silicon-based electronics operate on fundamentally different principles than neuromorphic materials, creating compatibility issues at multiple levels. The voltage requirements present a primary concern, as neuromorphic devices often require higher operating voltages than standard low-power CMOS circuits, necessitating complex level-shifting circuitry that increases power consumption and chip area.

Thermal management emerges as another critical challenge, particularly for phase-change materials and certain oxide-based memristors that generate considerable heat during switching operations. This thermal load can affect nearby conventional transistors, potentially compromising their reliability and performance characteristics over time. Conventional cooling solutions designed for CMOS may prove inadequate for hybrid neuromorphic-CMOS systems.

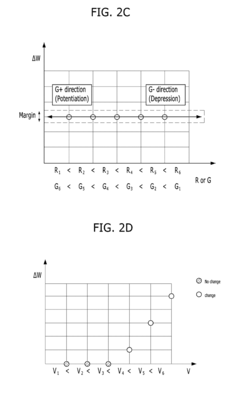

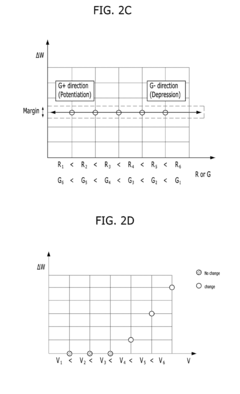

Signal integrity issues arise from the analog nature of many neuromorphic devices versus the digital domain of conventional electronics. The conversion between these domains introduces noise, latency, and potential information loss. Additionally, the variable resistance states in memristive devices require precise sensing circuits that can distinguish between multiple resistance levels reliably, adding complexity to interface design.

Fabrication compatibility presents substantial manufacturing hurdles. Many promising neuromorphic materials require processing conditions incompatible with standard CMOS fabrication flows. For example, high-temperature annealing steps needed for certain oxide-based memristors can damage previously fabricated CMOS layers. Alternative approaches like 3D integration through chip stacking introduce their own challenges related to alignment precision, thermal management, and interconnect density.

Long-term reliability disparities between neuromorphic materials and silicon transistors create system-level concerns. While modern CMOS devices have well-characterized aging mechanisms and can operate reliably for decades, many neuromorphic materials exhibit drift in their electrical properties over time. This temporal mismatch in reliability characteristics complicates system design and may necessitate additional compensation circuits or error-correction mechanisms.

Standardization remains largely absent in the neuromorphic materials space, with different research groups and companies pursuing proprietary solutions. This fragmentation impedes the development of unified design tools, models, and fabrication processes that could accelerate integration efforts. The lack of standardized interfaces between neuromorphic components and conventional electronics further complicates system-level integration and interoperability.
