Effects of ambient light variation on photodiode accuracy

Photodiodes play a crucial role in various applications, from optical communication systems to light detection in consumer electronics. However, the accuracy of these devices is significantly influenced by variations in ambient light conditions. This technological challenge has become increasingly important as photodiodes are integrated into more sophisticated and sensitive systems.

The evolution of photodiode technology has been driven by the need for higher accuracy and reliability across diverse lighting environments. From early silicon-based designs to modern multi-junction structures, the industry has continuously sought to improve photodiode performance. Current trends indicate a growing demand for photodiodes that can maintain high accuracy despite fluctuations in ambient light, particularly in applications such as automotive sensors, medical devices, and industrial automation.

The primary objective in addressing the effects of ambient light variation on photodiode accuracy is to develop robust solutions that ensure consistent and reliable performance across a wide range of lighting conditions. This involves enhancing the signal-to-noise ratio, improving dynamic range, and implementing advanced compensation techniques to mitigate the impact of ambient light fluctuations.

Key technical goals include the development of photodiodes with improved spectral selectivity, allowing them to distinguish between the desired signal and ambient light more effectively. Additionally, there is a focus on creating integrated solutions that combine photodiodes with sophisticated signal processing algorithms to dynamically adjust for changing light conditions in real-time.

Another critical objective is to miniaturize photodiode systems while maintaining or improving their accuracy. This is particularly important for applications in portable devices and wearable technology, where space constraints are significant. The challenge lies in balancing size reduction with the need for high performance and reliability.

Furthermore, the industry aims to develop photodiodes that consume less power while offering enhanced sensitivity. This is crucial for battery-operated devices and energy-efficient systems, where power consumption is a key consideration. The goal is to create photodiodes that can operate accurately in low-light conditions without compromising their ability to handle sudden changes in ambient brightness.

As we look towards future developments, the objectives extend to creating multi-functional photodiodes that can adapt to various applications with minimal modifications. This versatility would allow for more cost-effective production and wider adoption across different industries. The ultimate aim is to establish a new generation of photodiodes that can provide consistent, high-accuracy performance regardless of the ambient light environment, thus expanding their potential applications and reliability in critical systems.

The market demand for precise light sensing has been steadily increasing across various industries, driven by the growing need for accurate and reliable photodiode-based measurements in diverse applications. This demand is particularly evident in sectors such as consumer electronics, automotive, healthcare, and industrial automation, where the ability to accurately measure and respond to ambient light variations is crucial for product performance and user experience.

In the consumer electronics sector, smartphones, tablets, and wearable devices heavily rely on precise light sensing for automatic brightness adjustment and power optimization. As users become more conscious of eye strain and battery life, manufacturers are under pressure to improve the accuracy of ambient light sensors, creating a significant market opportunity for advanced photodiode technologies that can maintain accuracy despite varying light conditions.

The automotive industry has also emerged as a major driver for precise light sensing technologies. Advanced driver assistance systems (ADAS) and autonomous vehicles require highly accurate light sensors for functions such as automatic headlight control, rain sensing, and object detection. The ability to maintain sensor accuracy under diverse lighting conditions, from bright sunlight to dim twilight, is critical for ensuring vehicle safety and performance.

In healthcare and medical devices, precise light sensing plays a vital role in diagnostic and monitoring equipment. From pulse oximeters to blood glucose monitors, these devices depend on accurate photodiode measurements to provide reliable health data. The market demand in this sector is fueled by the increasing adoption of telemedicine and remote patient monitoring, where consistent and accurate readings are essential for proper diagnosis and treatment.

Industrial automation and smart manufacturing systems represent another significant market for precise light sensing technologies. In these environments, photodiodes are used for quality control, process monitoring, and safety systems. The demand for sensors that can maintain accuracy in challenging industrial settings, often with rapidly changing light conditions, is driving innovation in photodiode design and signal processing techniques.

The Internet of Things (IoT) and smart home technologies have also contributed to the growing market for precise light sensing. Smart lighting systems, energy management solutions, and environmental monitoring devices all benefit from accurate ambient light detection, creating opportunities for photodiode manufacturers to develop sensors optimized for these applications.

As the market continues to evolve, there is an increasing emphasis on miniaturization, energy efficiency, and cost-effectiveness of light sensing solutions. This trend is pushing manufacturers to develop more sophisticated photodiodes and accompanying signal processing algorithms that can compensate for ambient light variations while maintaining high accuracy and reliability.

Ambient light compensation in photodiode-based systems faces several significant challenges that limit its effectiveness in ensuring accurate measurements. One of the primary limitations is the dynamic range of ambient light conditions that can be encountered in real-world applications. Photodiodes are designed to operate optimally within a specific range of light intensities, and extreme variations in ambient light can push the sensor beyond its linear response region, leading to inaccurate readings.

The speed at which ambient light conditions can change poses another substantial challenge. Rapid fluctuations in light intensity, such as those caused by passing clouds or artificial light sources, can occur faster than many compensation algorithms can adapt. This lag in response time can result in temporary inaccuracies that may be critical in certain applications, such as medical diagnostics or industrial process control.

Furthermore, the spectral composition of ambient light can vary significantly, affecting the photodiode's response in ways that are difficult to predict and compensate for. Different light sources (e.g., sunlight, fluorescent, LED) have distinct spectral profiles, and the interaction between these spectra and the photodiode's spectral sensitivity can lead to measurement errors that are not easily corrected by simple intensity-based compensation techniques.

Temperature dependence of photodiodes adds another layer of complexity to ambient light compensation. As ambient temperature fluctuates, it can affect the photodiode's dark current and responsivity, potentially introducing errors that are difficult to distinguish from changes in ambient light levels. This interdependence between temperature and light sensitivity requires sophisticated compensation algorithms that can account for both factors simultaneously.

The physical design and placement of photodiodes within a system can also limit the effectiveness of ambient light compensation. Factors such as the angle of incidence of ambient light, reflections from nearby surfaces, and shadowing effects can all influence the amount of ambient light reaching the sensor. These geometric considerations are often challenging to model accurately and can vary depending on the specific application and environment.

Additionally, the power consumption requirements of continuous ambient light monitoring and compensation can be a limiting factor, especially in battery-operated or low-power devices. Implementing robust compensation techniques often requires frequent sampling and complex calculations, which can significantly impact energy efficiency and battery life.

Lastly, the cost and complexity of implementing advanced ambient light compensation techniques can be prohibitive for some applications. High-performance compensation may require additional sensors, sophisticated signal processing hardware, and complex software algorithms, all of which can increase the overall system cost and development time.

The effects of ambient light variation on photodiode accuracy represent a critical challenge in the optoelectronics industry, which is currently in a mature growth phase. The global photodiode market is expected to reach significant size, driven by increasing demand in various applications. Technologically, the field is advancing rapidly, with companies like Sharp Corp., Sony Semiconductor Solutions, and Hamamatsu Photonics KK leading innovation. These firms are developing sophisticated solutions to mitigate ambient light interference, including advanced filtering techniques and adaptive calibration algorithms. Other players like Raytheon Co. and trinamiX GmbH are also contributing to the technological landscape, focusing on specialized applications in defense and consumer electronics, respectively.

Photodiodes are sensitive electronic components widely used in various applications for light detection and measurement. However, their accuracy can be significantly affected by environmental factors, particularly variations in ambient light. Understanding these environmental influences is crucial for optimizing photodiode performance and ensuring reliable measurements across different conditions.

One of the primary environmental factors impacting photodiode accuracy is ambient light intensity. Fluctuations in natural or artificial lighting can introduce noise and interference to the photodiode's output signal. This is especially problematic in outdoor applications or environments with varying light sources. The photodiode may struggle to distinguish between the target light signal and background illumination, leading to measurement errors and reduced sensitivity.

Temperature variations also play a significant role in photodiode performance. As ambient temperature changes, it can affect the photodiode's dark current, responsivity, and overall sensitivity. Higher temperatures typically result in increased dark current, which can mask weak light signals and reduce the signal-to-noise ratio. Conversely, extremely low temperatures may alter the photodiode's spectral response and potentially cause mechanical stress on the device.

Humidity is another environmental factor that can impact photodiode accuracy. High humidity levels may lead to condensation on the photodiode's surface, affecting its optical properties and potentially causing short circuits or corrosion over time. This is particularly relevant in outdoor applications or industrial environments with fluctuating humidity levels.

Atmospheric conditions, such as dust, fog, or air pollution, can also influence photodiode performance. Particulate matter in the air can scatter or absorb light, altering the intensity and spectral composition of the incident light reaching the photodiode. This can result in measurement inaccuracies and reduced sensitivity, especially in applications requiring precise light detection over long distances.

Electromagnetic interference (EMI) from nearby electronic devices or power sources can introduce noise to the photodiode's output signal. This interference can manifest as fluctuations or distortions in the measured light intensity, potentially leading to erroneous readings. Proper shielding and filtering techniques are often necessary to mitigate EMI effects and maintain photodiode accuracy.

Mechanical vibrations and shocks can also affect photodiode performance, particularly in industrial or automotive applications. These physical disturbances may cause misalignment of optical components or introduce noise to the photodiode's output signal, compromising measurement accuracy and reliability.

To address these environmental challenges and maintain photodiode accuracy, various strategies can be employed. These include implementing temperature compensation techniques, using optical filters to reduce ambient light interference, employing hermetic packaging to protect against humidity and contaminants, and implementing robust signal processing algorithms to enhance signal-to-noise ratio and compensate for environmental variations.

Calibration techniques for varying light conditions are crucial in maintaining the accuracy of photodiode measurements across different ambient light environments. These techniques aim to compensate for the effects of changing light conditions on photodiode performance, ensuring reliable and consistent readings.

One common approach is dynamic range adjustment, which involves automatically adjusting the sensitivity of the photodiode based on the ambient light level. This technique utilizes a feedback loop that continuously monitors the ambient light and adjusts the gain or integration time of the photodiode accordingly. By doing so, it prevents saturation in bright conditions and maintains sensitivity in low-light environments.

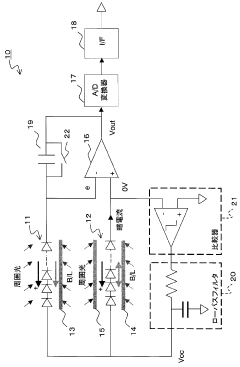

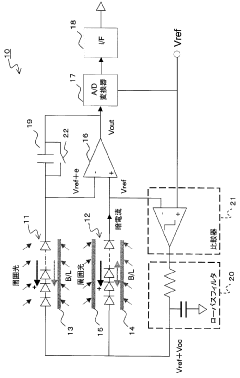

Another effective method is background subtraction, which involves measuring the ambient light level separately from the signal of interest. This can be achieved by using a reference photodiode or by periodically measuring the background light when the signal source is off. The measured background is then subtracted from the total signal to isolate the desired measurement.

Wavelength-specific calibration is particularly useful when dealing with varying spectral compositions of ambient light. This technique involves using optical filters or multiple photodiodes with different spectral sensitivities to isolate specific wavelengths of interest. By calibrating each wavelength independently, the system can account for changes in the spectral distribution of ambient light.

Temperature compensation is another critical aspect of calibration, as photodiode response can vary with temperature changes often associated with varying light conditions. This typically involves incorporating temperature sensors and applying correction factors based on characterized temperature-dependent behavior of the photodiode.

Multi-point calibration is a comprehensive technique that involves calibrating the photodiode at multiple light intensities and potentially across different temperatures. This creates a calibration map that can be used to interpolate accurate readings across a wide range of ambient conditions.

Adaptive sampling techniques can also be employed to optimize measurement accuracy in varying light conditions. These methods adjust the sampling rate or integration time based on the rate of change in ambient light, allowing for more frequent measurements during rapid light fluctuations and longer integration times in stable conditions.

Lastly, software-based correction algorithms can be implemented to further refine measurements. These algorithms can incorporate historical data, environmental models, and machine learning techniques to predict and compensate for the effects of varying light conditions on photodiode accuracy.
