Kiln Atmosphere Control For Reduced NOx: Design And Retrofit Tips

AUG 22, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

Kiln NOx Reduction Background and Objectives

Nitrogen oxides (NOx) emissions from cement and lime kilns have become a critical environmental concern over the past decades. These emissions contribute significantly to air pollution, acid rain, and the formation of ground-level ozone, posing serious threats to both human health and ecosystems. The regulatory landscape has evolved considerably, with increasingly stringent emission standards being implemented globally to mitigate these environmental impacts.

The evolution of kiln technology has paralleled these environmental concerns. Traditional kilns operated with little consideration for NOx formation, focusing primarily on production efficiency and product quality. However, as environmental awareness grew in the late 20th century, the industry began recognizing the need for cleaner production methods. The 1990s marked a turning point with the introduction of the first dedicated NOx reduction technologies in kiln operations.

Current technological trends in the cement and lime industry are moving toward integrated systems that simultaneously address multiple emission concerns while maintaining operational efficiency. Advanced process control, alternative fuels, and innovative burner designs represent the cutting edge of this technological evolution. The industry is witnessing a paradigm shift from end-of-pipe solutions to process-integrated approaches that prevent NOx formation at the source.

The primary objective of kiln atmosphere control for NOx reduction is to minimize emissions while maintaining or improving production efficiency and product quality. Specifically, this involves developing and implementing technologies that can achieve NOx reductions of 30-70% compared to conventional operations, depending on kiln type and production parameters. These reductions must be achieved without significant negative impacts on energy consumption or clinker quality.

Secondary objectives include cost-effectiveness in both new installations and retrofits, operational flexibility to accommodate varying production demands, and compatibility with existing pollution control systems. The ideal solution should offer a balanced approach that addresses the technical, economic, and environmental aspects of kiln operation.

Long-term goals extend beyond mere compliance with current regulations to anticipate future requirements and position facilities advantageously in an increasingly carbon-constrained economy. This includes developing technologies that can be readily adapted to more stringent future standards and potentially integrate with carbon capture systems as these become economically viable.

The cement and lime industries face the challenge of balancing these environmental improvements with economic sustainability, particularly in regions with intense market competition. Therefore, solutions must be scalable and adaptable to various facility sizes and operational contexts, from large modern plants to smaller legacy operations requiring cost-effective retrofits.

Market Demand for Low-NOx Kiln Technologies

The global market for low-NOx kiln technologies has experienced significant growth over the past decade, driven primarily by increasingly stringent environmental regulations across major industrial economies. The cement and lime production industries, which account for approximately 5-8% of global CO2 emissions, are facing mounting pressure to reduce their nitrogen oxide emissions, creating substantial demand for advanced kiln atmosphere control solutions.

In North America, the market is largely shaped by EPA regulations, with many states implementing even stricter standards than federal requirements. California's South Coast Air Quality Management District (SCAQMD) has established some of the most demanding NOx emission limits globally, creating a premium market for retrofit solutions. The European market is similarly robust, guided by the Industrial Emissions Directive (IED) and Best Available Techniques Reference Documents (BREFs), which continue to lower acceptable emission thresholds.

The Asia-Pacific region represents the fastest-growing market segment, with China's recent environmental policy shifts creating unprecedented demand for low-NOx technologies. The Chinese government's Blue Sky Defense initiative has accelerated the adoption of cleaner production methods across thousands of cement and ceramic manufacturing facilities. India is following a similar trajectory, though at a more measured pace, with its National Clean Air Programme driving gradual market expansion.

Market analysis indicates that the global low-NOx kiln technology market was valued at approximately $3.2 billion in 2022, with projections suggesting growth to $5.7 billion by 2028, representing a compound annual growth rate of 10.1%. This growth is particularly concentrated in retrofit solutions, which account for nearly 60% of market value, as operators seek to extend the operational life of existing infrastructure while meeting new emission standards.

Customer demand patterns show increasing sophistication, with buyers now prioritizing integrated solutions that address multiple pollutants simultaneously while optimizing energy efficiency. This trend is creating premium market segments for technologies that can demonstrate measurable reductions in both emissions and operational costs. The return on investment timeline is a critical factor, with most industrial customers expecting payback periods of less than three years for major retrofits.

The competitive landscape is evolving rapidly, with traditional equipment manufacturers facing new competition from specialized environmental technology firms and innovative startups. This has accelerated the pace of innovation, particularly in digital control systems that enable more precise atmosphere management and real-time emissions monitoring, further stimulating market growth and segmentation.

Current Challenges in Kiln Atmosphere Control

The cement and lime manufacturing industry faces significant challenges in controlling kiln atmospheres to reduce NOx emissions while maintaining product quality and operational efficiency. Current control systems often struggle with the complex dynamics of combustion processes, leading to suboptimal performance in emission reduction. Real-time monitoring capabilities remain limited, with many facilities relying on periodic sampling rather than continuous measurement systems, creating gaps in data that hinder precise atmosphere control.

Temperature distribution inconsistencies within kilns present a major technical obstacle. Hot spots can lead to increased NOx formation, while cooler zones may result in incomplete combustion and product quality issues. The industry lacks cost-effective solutions for achieving uniform temperature profiles, particularly in older kiln designs that weren't originally engineered with low-NOx operation in mind.

Fuel flexibility represents another significant challenge. As manufacturers increasingly adopt alternative and mixed fuels to reduce costs and carbon footprints, kiln atmosphere control systems must adapt to varying combustion characteristics. Current control algorithms often fail to optimize for these dynamic fuel properties, resulting in fluctuating NOx emissions and operational instability during fuel transitions.

Retrofitting existing kilns with advanced atmosphere control technologies presents substantial engineering difficulties. Space constraints, integration with legacy systems, and minimizing production downtime during upgrades all complicate implementation. Many facilities operate with outdated control infrastructure that lacks the processing power and sensor integration capabilities required for sophisticated atmosphere management.

The regulatory landscape adds further complexity, with emissions standards becoming increasingly stringent across global markets. Many current control systems struggle to consistently meet these evolving requirements, especially during operational transients such as startup, shutdown, and load changes. The industry faces a significant technology gap in developing control strategies that can maintain compliance across all operational states.

Economic barriers also impede progress, as many advanced control technologies require substantial capital investment with uncertain return timelines. Manufacturers must balance emission reduction goals against production economics, often resulting in compromised solutions that achieve neither optimal environmental performance nor operational efficiency.

Existing NOx Control Solutions and Implementation

  • 01 Selective Catalytic Reduction (SCR) Systems for NOx Control

    SCR systems are employed in kiln operations to reduce NOx emissions by injecting ammonia or urea into the flue gas stream, which reacts with NOx in the presence of a catalyst to form nitrogen and water. These systems can achieve high NOx reduction rates while maintaining optimal kiln operation conditions. Advanced SCR technologies include improved catalyst designs and precise reagent injection control systems that enhance efficiency and reduce ammonia slip.
    • Selective Catalytic Reduction (SCR) Systems: SCR systems are used to control NOx emissions in kiln operations by injecting ammonia or urea into the exhaust gas stream, which reacts with NOx in the presence of a catalyst to form nitrogen and water. These systems can achieve high NOx reduction rates and can be optimized for different kiln operating conditions. The catalyst composition and placement are critical factors affecting the efficiency of NOx reduction.
    • Combustion Control and Optimization: Advanced combustion control techniques involve optimizing air-to-fuel ratios, staged combustion, and fuel distribution to minimize NOx formation during the kiln operation. By controlling the combustion temperature and oxygen concentration in critical zones of the kiln, thermal NOx formation can be significantly reduced. These methods often employ sophisticated monitoring systems to provide real-time feedback for combustion parameter adjustments.
    • Flue Gas Recirculation (FGR) Systems: FGR systems reduce NOx emissions by recirculating a portion of the exhaust gases back into the combustion zone. This lowers the peak flame temperature and oxygen concentration in the combustion zone, which are key factors in NOx formation. The recirculated flue gas acts as a diluent, and when properly implemented, can achieve significant NOx reductions without major impacts on kiln efficiency.
    • Low-NOx Burner Technologies: Specialized low-NOx burners are designed to control the mixing of fuel and air to create staged combustion zones within the kiln. These burners often feature multiple fuel injection points and air distribution systems that optimize the combustion process to minimize NOx formation while maintaining efficient heat transfer. Advanced burner designs may incorporate fuel staging, air staging, or both to achieve ultra-low NOx emissions.
    • Monitoring and Control Systems: Sophisticated monitoring and control systems are employed to continuously measure and adjust kiln atmosphere parameters that affect NOx emissions. These systems utilize sensors for real-time monitoring of oxygen levels, temperature profiles, and NOx concentrations throughout the kiln. Advanced control algorithms process this data to automatically adjust operating parameters, ensuring optimal combustion conditions and minimal NOx formation while maintaining product quality and production efficiency.
  • 02 Combustion Optimization Techniques

    Various combustion optimization techniques are implemented to control NOx formation at the source. These include low-NOx burners, staged combustion, flue gas recirculation, and precise air-to-fuel ratio control. By managing the combustion temperature and oxygen availability in the kiln, these methods effectively reduce thermal NOx formation while maintaining production efficiency and product quality. Advanced monitoring systems enable real-time adjustments to combustion parameters based on operating conditions.
    Expand Specific Solutions
  • 03 Oxygen Concentration Management Systems

    Controlling oxygen concentration in the kiln atmosphere is crucial for NOx emission reduction. These systems precisely monitor and adjust oxygen levels throughout the kiln to create optimal combustion conditions that minimize NOx formation while maintaining product quality. Advanced oxygen sensors and automated control systems enable dynamic adjustment of air flow based on process requirements, creating zones with specific oxygen concentrations to inhibit NOx formation while ensuring complete combustion.
    Expand Specific Solutions
  • 04 Integrated Monitoring and Control Systems

    Comprehensive monitoring and control systems integrate multiple sensors and controllers to optimize kiln atmosphere conditions. These systems collect real-time data on temperature, pressure, gas composition, and other parameters to make automated adjustments that minimize NOx emissions while maintaining production efficiency. Advanced predictive algorithms and machine learning techniques enable proactive control strategies that anticipate changes in operating conditions and adjust parameters accordingly.
    Expand Specific Solutions
  • 05 Post-Combustion Treatment Technologies

    Various post-combustion treatment technologies are employed to remove NOx from flue gases after they exit the kiln. These include non-catalytic reduction systems, wet scrubbers, and hybrid approaches that combine multiple treatment methods. These technologies can be retrofitted to existing kilns to achieve significant NOx reductions without major modifications to the core production process. Advanced sorbent materials and injection systems enhance the efficiency of these post-combustion treatments while minimizing operational costs.
    Expand Specific Solutions

Leading Manufacturers and Technology Providers

The NOx reduction kiln atmosphere control technology market is currently in a growth phase, driven by increasing environmental regulations and sustainability initiatives. The market size is expanding as industries seek to comply with stricter emission standards, particularly in cement, steel, and chemical manufacturing sectors. From a technical maturity perspective, the landscape shows varying degrees of advancement. Industry leaders like thyssenkrupp AG, FLSmidth A/S, and Air Products & Chemicals have developed mature solutions with proven track records, while companies such as KHD Humboldt Wedag and Holcim Technology are advancing specialized technologies for specific industrial applications. Asian players including Miura Co. and Taiheiyo Engineering are rapidly gaining market share with cost-effective innovations. The competitive environment is characterized by a mix of established engineering conglomerates and specialized environmental technology providers, with increasing collaboration between academic institutions like Zhengzhou University and industrial partners to develop next-generation NOx reduction technologies.

Holcim Technology Ltd.

Technical Solution: Holcim Technology has pioneered the EcoNOx system, an integrated approach to kiln atmosphere control for NOx reduction in cement manufacturing. Their technology combines process modifications and combustion optimization techniques to minimize NOx formation at the source. The system features staged combustion in the precalciner with carefully controlled fuel distribution that creates reducing zones where NOx is converted back to molecular nitrogen. Holcim's approach includes implementing Low-NOx burners with adjustable flame patterns that reduce peak temperatures in the burning zone. Their technology incorporates flue gas recirculation (FGR) where a portion of oxygen-depleted exhaust gas is reintroduced to the combustion zone, lowering flame temperature and oxygen concentration. Holcim has also developed specialized refractory materials and kiln geometry modifications that optimize heat transfer while minimizing hot spots that contribute to thermal NOx formation. The company's process control system utilizes artificial intelligence algorithms to continuously monitor and adjust multiple parameters including oxygen levels, temperature profiles, and fuel distribution across different zones of the kiln system.
Strengths: Comprehensive approach addressing both thermal and fuel NOx formation; extensive real-world implementation data from Holcim's global plant network; integration with existing plant automation systems; demonstrated NOx reductions of 30-50% without additional reagents. Weaknesses: Requires significant process knowledge and operator expertise; some solutions may impact production capacity; implementation complexity varies significantly based on existing plant configuration.

KHD Humboldt Wedag GmbH

Technical Solution: KHD Humboldt Wedag has developed the PYRORAPID low-NOx kiln system specifically designed to minimize nitrogen oxide emissions in cement production. Their technology employs a staged combustion approach in the PYROCLON calciner where fuel is introduced in multiple zones to create reducing conditions that break down already formed NOx. The system features the PYROTOP compact preheater design with optimized gas flow patterns that maintain precise temperature control in critical zones. KHD's PYROJET kiln burner technology utilizes multiple concentric channels for fuel and air injection, allowing for flame shape modification and oxygen distribution control that reduces peak flame temperatures. Their approach includes implementing a Low-NOx Calciner (LNC) with a separate tertiary air duct system that creates distinct combustion zones with controlled stoichiometry. The PYROBOX clinker cooler design enhances heat recovery while maintaining optimal temperature profiles throughout the system. KHD's process control system continuously monitors oxygen levels, temperature profiles, and emissions data to dynamically adjust combustion parameters for minimal NOx formation while maintaining production efficiency.
Strengths: Modular design allowing for phased implementation; lower capital investment compared to complete system replacements; proven technology with multiple successful installations worldwide; can achieve up to 40-60% NOx reduction in existing facilities. Weaknesses: May require additional modifications to existing air ducting systems; optimal performance requires consistent raw material quality; increased complexity in system operation requiring specialized training.

Key Patents and Innovations in Kiln Atmosphere Management

Plant for production of cement with reduced emission of pollutant gases
PatentInactiveEP3283834A1
Innovation
  • A reactor is introduced between the rotary kiln and calciner, where fresh air from a tertiary air line is supplied to produce carbon monoxide (CO) for reducing NOx, and the process is controlled to maintain autothermal conditions, optimizing fuel gasification and pyrolysis with sub-stoichiometric fuel and super-stoichiometric oxygen, using CO as a reducing agent to convert NOx into N2 and CO2.

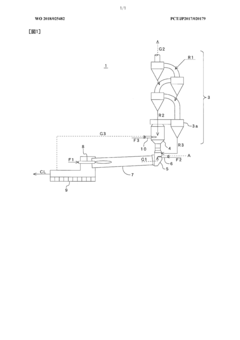

Method for operating cement kiln
PatentWO2018025482A1
Innovation
  • Adjusting the oxygen partial pressure at the cement kiln's bottom to between 4% and 7% and controlling fuel and combustion air through burners to suppress SOx production while transferring NOx to the kiln bottom for decomposition and removal, using multiple burners to enhance NOx decomposition.

Regulatory Compliance and Emission Standards

The regulatory landscape for NOx emissions from kilns has evolved significantly over the past decades, with increasingly stringent standards being implemented worldwide. In the United States, the Clean Air Act and its amendments have established National Ambient Air Quality Standards (NAAQS) that directly impact kiln operations. The Environmental Protection Agency (EPA) has set specific NOx emission limits for various industrial sectors, with cement and lime kilns facing particularly strict requirements under the New Source Performance Standards (NSPS) and Maximum Achievable Control Technology (MACT) standards.

The European Union has implemented the Industrial Emissions Directive (IED), which establishes emission limit values for NOx from industrial installations, including kilns. These standards are typically more stringent than those in many other regions, with limits often set below 200 mg/Nm³ for new installations. The Best Available Techniques Reference Documents (BREFs) provide guidance on compliance strategies that balance environmental protection with economic feasibility.

In rapidly industrializing nations, particularly China and India, regulatory frameworks are evolving quickly to address severe air quality concerns. China's Ultra-Low Emission standards have set ambitious targets for industrial facilities, including kilns, with some regions implementing NOx limits as low as 50 mg/Nm³ for new installations.

Compliance verification methodologies have also become more sophisticated, with continuous emission monitoring systems (CEMS) now standard requirements in many jurisdictions. These systems provide real-time data on emission levels, allowing for immediate adjustments to kiln atmosphere control systems when approaching regulatory thresholds.

The economic implications of non-compliance have increased substantially, with penalties ranging from significant fines to mandatory production curtailment or facility closure. Many regulatory frameworks now incorporate market-based mechanisms, such as emissions trading schemes, which create financial incentives for emissions reduction beyond minimum compliance levels.

Future regulatory trends indicate a continued tightening of NOx emission standards globally. The implementation timelines for new standards typically include phase-in periods that consider the technical and economic challenges of retrofitting existing kilns. Industry stakeholders are increasingly engaging in collaborative regulatory development processes to ensure that new standards are both environmentally effective and technically achievable.

Cross-border regulatory harmonization efforts are gaining momentum, particularly in regions with integrated economies. This trend is creating pressure for standardized approaches to emission control and measurement, which may simplify compliance for multinational operators but could pose challenges for facilities in regions with historically less stringent requirements.

Cost-Benefit Analysis of Retrofit Solutions

The implementation of NOx reduction technologies in kiln systems requires substantial investment, making a thorough cost-benefit analysis essential for decision-makers. Initial capital expenditures for retrofit solutions vary significantly based on the chosen technology and existing infrastructure. Selective Catalytic Reduction (SCR) systems typically represent the highest investment at $10-15 million for a medium-sized cement plant, while Selective Non-Catalytic Reduction (SNCR) systems generally range from $1-3 million. Low-NOx burners and combustion optimization systems fall in the $500,000-2 million range, offering a more accessible entry point for facilities with limited capital.

Operational expenses must be carefully considered alongside capital costs. SCR systems incur higher maintenance costs due to catalyst replacement (approximately $200,000-500,000 every 2-3 years) and increased energy consumption (2-3% production energy penalty). SNCR systems require ongoing reagent costs, typically $300,000-700,000 annually depending on plant capacity and NOx reduction targets. These operational expenditures significantly impact the total cost of ownership over the technology lifecycle.

The benefits side of the equation includes both quantifiable and qualitative factors. Direct financial benefits stem primarily from regulatory compliance, avoiding potential fines that can exceed $10,000 per day of violation in some jurisdictions. Plants in emissions trading schemes may realize additional financial benefits through reduced need for purchasing credits or potential for selling surplus allowances, valued at $2,000-5,000 per ton of NOx in current markets.

Return on investment timelines vary considerably by technology. Low-NOx burners typically achieve ROI within 2-4 years, while SNCR systems require 3-5 years. SCR installations, despite higher efficiency, may need 7-10 years to reach ROI without regulatory incentives. These calculations are heavily influenced by local energy costs, reagent prices, and regulatory frameworks.

Long-term strategic benefits extend beyond immediate financial returns. Facilities implementing advanced NOx control technologies report improved community relations, enhanced corporate sustainability profiles, and greater operational flexibility. Early adopters also gain valuable experience with technologies that may become mandatory as regulations tighten, potentially reducing future compliance costs by 15-25% compared to reactive implementations.

The optimal retrofit strategy often involves phased implementation, beginning with combustion optimization and low-NOx burners before progressing to more capital-intensive solutions as regulatory requirements intensify or as capital becomes available. This approach maximizes NOx reduction per dollar invested while distributing capital expenditures over a longer timeframe.
