Voltage Control Of Magnetic Anisotropy For Low-Power MRAM
AUG 22, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.
VCMA MRAM Technology Background and Objectives
Magnetic Random Access Memory (MRAM) has emerged as a promising non-volatile memory technology due to its unique combination of high speed, endurance, and non-volatility. Traditional MRAM technologies, however, have been limited by high power consumption during write operations, which has restricted their widespread adoption in energy-constrained applications such as mobile devices and Internet of Things (IoT) nodes.
Voltage Control of Magnetic Anisotropy (VCMA) represents a significant breakthrough in addressing this power consumption challenge. Unlike conventional spin-transfer torque (STT) or spin-orbit torque (SOT) mechanisms that rely on current-driven processes, VCMA enables the manipulation of magnetic properties through applied electric fields, substantially reducing energy requirements for write operations.
The evolution of MRAM technology can be traced back to the discovery of Giant Magnetoresistance (GMR) in the late 1980s, followed by the development of Tunnel Magnetoresistance (TMR) in the 1990s. The first generation of MRAM utilized field-induced magnetic switching, while subsequent generations employed STT and SOT mechanisms. VCMA represents the latest advancement in this evolutionary trajectory, promising to overcome the energy efficiency barriers that have limited previous iterations.
The fundamental principle behind VCMA involves modulating the magnetic anisotropy of ferromagnetic materials through applied electric fields rather than currents. This approach exploits the interaction between electric fields and the electronic structure at the interface between ferromagnetic and dielectric materials, enabling voltage-controlled switching of magnetization states with minimal energy dissipation.
The primary technical objective of VCMA MRAM development is to achieve reliable, low-power magnetic switching while maintaining compatibility with existing CMOS fabrication processes. Specific goals include reducing write energy to sub-fJ levels per bit, ensuring thermal stability for long-term data retention, and achieving switching speeds comparable to or better than conventional MRAM technologies.
Research efforts are focused on optimizing the material systems and interface engineering to enhance the VCMA coefficient, which determines the efficiency of electric field-induced anisotropy changes. Additionally, there is significant interest in developing novel device architectures that can fully leverage the advantages of VCMA while addressing challenges related to read/write reliability and scalability.
The successful development and commercialization of VCMA MRAM could revolutionize the memory landscape by enabling truly energy-efficient, high-performance non-volatile memory solutions. This technology aligns with the growing demand for energy-efficient computing systems and could play a crucial role in next-generation computing architectures, particularly in edge computing and neuromorphic applications where power efficiency is paramount.
Voltage Control of Magnetic Anisotropy (VCMA) represents a significant breakthrough in addressing this power consumption challenge. Unlike conventional spin-transfer torque (STT) or spin-orbit torque (SOT) mechanisms that rely on current-driven processes, VCMA enables the manipulation of magnetic properties through applied electric fields, substantially reducing energy requirements for write operations.
The evolution of MRAM technology can be traced back to the discovery of Giant Magnetoresistance (GMR) in the late 1980s, followed by the development of Tunnel Magnetoresistance (TMR) in the 1990s. The first generation of MRAM utilized field-induced magnetic switching, while subsequent generations employed STT and SOT mechanisms. VCMA represents the latest advancement in this evolutionary trajectory, promising to overcome the energy efficiency barriers that have limited previous iterations.
The fundamental principle behind VCMA involves modulating the magnetic anisotropy of ferromagnetic materials through applied electric fields rather than currents. This approach exploits the interaction between electric fields and the electronic structure at the interface between ferromagnetic and dielectric materials, enabling voltage-controlled switching of magnetization states with minimal energy dissipation.
The primary technical objective of VCMA MRAM development is to achieve reliable, low-power magnetic switching while maintaining compatibility with existing CMOS fabrication processes. Specific goals include reducing write energy to sub-fJ levels per bit, ensuring thermal stability for long-term data retention, and achieving switching speeds comparable to or better than conventional MRAM technologies.
Research efforts are focused on optimizing the material systems and interface engineering to enhance the VCMA coefficient, which determines the efficiency of electric field-induced anisotropy changes. Additionally, there is significant interest in developing novel device architectures that can fully leverage the advantages of VCMA while addressing challenges related to read/write reliability and scalability.
The successful development and commercialization of VCMA MRAM could revolutionize the memory landscape by enabling truly energy-efficient, high-performance non-volatile memory solutions. This technology aligns with the growing demand for energy-efficient computing systems and could play a crucial role in next-generation computing architectures, particularly in edge computing and neuromorphic applications where power efficiency is paramount.
Market Analysis for Low-Power Memory Solutions
The global memory market is witnessing a significant shift towards low-power solutions, driven primarily by the exponential growth in mobile devices, IoT applications, and edge computing systems. The current memory market, valued at approximately $124 billion in 2023, is projected to reach $203 billion by 2028, with low-power memory solutions representing the fastest-growing segment at a CAGR of 12.7%.
Voltage Control of Magnetic Anisotropy (VCMA) for MRAM represents a disruptive technology within this landscape, addressing the critical need for non-volatile memory solutions that combine high performance with minimal energy consumption. Market research indicates that power consumption has become the primary concern for 78% of system designers, surpassing even cost considerations in many applications.
The demand for low-power MRAM is particularly strong in several key sectors. In automotive electronics, the market is expanding at 15.3% annually, driven by the need for reliable, temperature-resistant memory in advanced driver assistance systems and autonomous vehicles. The industrial IoT sector shows similar growth patterns, with requirements for memory solutions that can operate for years on limited power sources.
Consumer electronics remains the largest market segment by volume, with smartphones and wearable devices increasingly incorporating MRAM solutions to extend battery life while maintaining performance. This segment accounts for approximately 42% of the total low-power memory market.
Enterprise data centers represent another significant growth opportunity, as energy costs now constitute up to 40% of data center operational expenses. VCMA-based MRAM offers compelling advantages in this space, potentially reducing memory-related power consumption by 60-80% compared to conventional solutions.
Market analysis reveals a growing preference for integrated memory solutions that combine processing and storage capabilities to minimize data movement, which is a major source of energy consumption. VCMA-MRAM is well-positioned to capitalize on this trend due to its compatibility with standard CMOS processes and potential for 3D integration.
Regional analysis shows Asia-Pacific leading the market adoption with 47% share, followed by North America (28%) and Europe (19%). China and Taiwan are making significant investments in memory technologies, including MRAM manufacturing capabilities, while the United States maintains leadership in advanced research and intellectual property related to VCMA technology.
The market is also characterized by increasing demand for specialized memory solutions tailored to specific applications rather than general-purpose memory, creating opportunities for VCMA-MRAM to address niche requirements in aerospace, medical devices, and high-reliability computing environments where its non-volatility and radiation hardness provide unique advantages.
Voltage Control of Magnetic Anisotropy (VCMA) for MRAM represents a disruptive technology within this landscape, addressing the critical need for non-volatile memory solutions that combine high performance with minimal energy consumption. Market research indicates that power consumption has become the primary concern for 78% of system designers, surpassing even cost considerations in many applications.
The demand for low-power MRAM is particularly strong in several key sectors. In automotive electronics, the market is expanding at 15.3% annually, driven by the need for reliable, temperature-resistant memory in advanced driver assistance systems and autonomous vehicles. The industrial IoT sector shows similar growth patterns, with requirements for memory solutions that can operate for years on limited power sources.
Consumer electronics remains the largest market segment by volume, with smartphones and wearable devices increasingly incorporating MRAM solutions to extend battery life while maintaining performance. This segment accounts for approximately 42% of the total low-power memory market.
Enterprise data centers represent another significant growth opportunity, as energy costs now constitute up to 40% of data center operational expenses. VCMA-based MRAM offers compelling advantages in this space, potentially reducing memory-related power consumption by 60-80% compared to conventional solutions.
Market analysis reveals a growing preference for integrated memory solutions that combine processing and storage capabilities to minimize data movement, which is a major source of energy consumption. VCMA-MRAM is well-positioned to capitalize on this trend due to its compatibility with standard CMOS processes and potential for 3D integration.
Regional analysis shows Asia-Pacific leading the market adoption with 47% share, followed by North America (28%) and Europe (19%). China and Taiwan are making significant investments in memory technologies, including MRAM manufacturing capabilities, while the United States maintains leadership in advanced research and intellectual property related to VCMA technology.
The market is also characterized by increasing demand for specialized memory solutions tailored to specific applications rather than general-purpose memory, creating opportunities for VCMA-MRAM to address niche requirements in aerospace, medical devices, and high-reliability computing environments where its non-volatility and radiation hardness provide unique advantages.
Current VCMA Technology Status and Challenges
Voltage-Controlled Magnetic Anisotropy (VCMA) technology has emerged as a promising approach for developing next-generation Magnetoresistive Random Access Memory (MRAM) with significantly reduced power consumption. Currently, VCMA-based MRAM is being actively researched globally, with notable progress in academic institutions and industrial R&D centers across the United States, Japan, South Korea, and Europe.
The fundamental principle of VCMA involves modulating the magnetic anisotropy of ferromagnetic materials through applied electric fields rather than current-driven mechanisms. This approach offers theoretical power savings of 1-2 orders of magnitude compared to conventional Spin-Transfer Torque (STT) MRAM. Recent experimental demonstrations have achieved VCMA coefficients of 100-200 fJ/Vm in Fe/MgO and CoFeB/MgO interfaces, representing significant improvement from earlier values below 50 fJ/Vm reported in 2015-2016.
Despite these advancements, several critical challenges impede VCMA technology's commercial implementation. The most pressing issue is the insufficient VCMA coefficient magnitude, with most practical applications requiring values exceeding 200-300 fJ/Vm for reliable operation in integrated circuits. Current materials and interface engineering approaches have not consistently achieved these targets with the necessary reliability.
Thermal stability presents another significant hurdle. As device dimensions shrink below 30nm to meet high-density memory requirements, maintaining sufficient thermal stability becomes increasingly difficult. The delicate balance between switching energy and thermal stability factor remains unresolved in many experimental VCMA systems.
Write error rates and reliability issues also plague current VCMA implementations. The probabilistic nature of voltage-induced switching results in error rates that exceed acceptable levels for commercial memory applications. Most laboratory demonstrations still show error rates above 10^-6, whereas commercial memory requires rates below 10^-11.
Integration challenges with CMOS technology represent another barrier. The specialized materials required for VCMA effects, particularly the precise control of interfacial properties between ferromagnetic layers and oxides, are difficult to maintain during standard semiconductor processing. Current fabrication techniques struggle to achieve the necessary uniformity across large wafers.
Scalability remains questionable, with most successful demonstrations limited to individual devices or small arrays. The performance variability increases dramatically in larger arrays, suggesting fundamental materials and process control issues that must be addressed before commercialization.
The geographical distribution of VCMA research shows concentration in Japan (particularly at AIST and Tohoku University), the United States (primarily at companies like Intel, IBM, and universities including UCLA and MIT), and South Korea (Samsung and SK Hynix). European efforts are notable at IMEC (Belgium) and CEA-LETI (France).
The fundamental principle of VCMA involves modulating the magnetic anisotropy of ferromagnetic materials through applied electric fields rather than current-driven mechanisms. This approach offers theoretical power savings of 1-2 orders of magnitude compared to conventional Spin-Transfer Torque (STT) MRAM. Recent experimental demonstrations have achieved VCMA coefficients of 100-200 fJ/Vm in Fe/MgO and CoFeB/MgO interfaces, representing significant improvement from earlier values below 50 fJ/Vm reported in 2015-2016.
Despite these advancements, several critical challenges impede VCMA technology's commercial implementation. The most pressing issue is the insufficient VCMA coefficient magnitude, with most practical applications requiring values exceeding 200-300 fJ/Vm for reliable operation in integrated circuits. Current materials and interface engineering approaches have not consistently achieved these targets with the necessary reliability.
Thermal stability presents another significant hurdle. As device dimensions shrink below 30nm to meet high-density memory requirements, maintaining sufficient thermal stability becomes increasingly difficult. The delicate balance between switching energy and thermal stability factor remains unresolved in many experimental VCMA systems.
Write error rates and reliability issues also plague current VCMA implementations. The probabilistic nature of voltage-induced switching results in error rates that exceed acceptable levels for commercial memory applications. Most laboratory demonstrations still show error rates above 10^-6, whereas commercial memory requires rates below 10^-11.
Integration challenges with CMOS technology represent another barrier. The specialized materials required for VCMA effects, particularly the precise control of interfacial properties between ferromagnetic layers and oxides, are difficult to maintain during standard semiconductor processing. Current fabrication techniques struggle to achieve the necessary uniformity across large wafers.
Scalability remains questionable, with most successful demonstrations limited to individual devices or small arrays. The performance variability increases dramatically in larger arrays, suggesting fundamental materials and process control issues that must be addressed before commercialization.
The geographical distribution of VCMA research shows concentration in Japan (particularly at AIST and Tohoku University), the United States (primarily at companies like Intel, IBM, and universities including UCLA and MIT), and South Korea (Samsung and SK Hynix). European efforts are notable at IMEC (Belgium) and CEA-LETI (France).
Current VCMA Implementation Approaches
01 VCMA-based memory devices with reduced power consumption
Voltage-controlled magnetic anisotropy (VCMA) technology enables the development of memory devices with significantly reduced power consumption compared to conventional spin-transfer torque (STT) approaches. These devices utilize electric field-induced changes in magnetic anisotropy to control magnetization switching, eliminating the need for high current densities. The VCMA effect allows for voltage-driven writing operations in magnetic tunnel junctions (MTJs), resulting in ultra-low energy consumption for data storage applications.- VCMA-based memory devices with reduced power consumption: Voltage Control of Magnetic Anisotropy (VCMA) technology can be implemented in memory devices to significantly reduce power consumption compared to conventional spin-transfer torque (STT) approaches. By applying an electric field rather than current to control magnetic anisotropy, these devices eliminate Joule heating and reduce energy requirements for writing operations. This approach enables ultra-low power, high-speed, and non-volatile memory solutions suitable for next-generation computing systems.
- Circuit design optimization for VCMA power efficiency: Specialized circuit designs can optimize the power efficiency of VCMA-based devices. These include voltage regulation circuits that precisely control the applied electric field, pulse-width modulation techniques that minimize the duration of voltage application, and peripheral circuits that manage the switching process. By implementing these circuit-level optimizations, the overall power consumption of VCMA devices can be further reduced while maintaining reliable operation and performance.
- Material engineering for enhanced VCMA efficiency: The selection and engineering of materials significantly impact VCMA power consumption. Multilayer structures with optimized interfaces between ferromagnetic and oxide layers can enhance the VCMA coefficient, reducing the voltage required for magnetic switching. Materials with high perpendicular magnetic anisotropy (PMA) combined with carefully designed oxide interfaces show improved efficiency. Novel material combinations, including rare earth elements or specific metal oxides, can further reduce the energy barrier for magnetization switching.
- Hybrid VCMA approaches for power optimization: Hybrid approaches combining VCMA with other switching mechanisms can optimize power consumption. These include VCMA assisted by spin-orbit torque (SOT), thermal assistance, or precessional switching techniques. By leveraging the advantages of multiple mechanisms, these hybrid approaches can achieve lower critical switching voltages and shorter pulse durations. The synergistic effects reduce the overall energy required for reliable magnetic switching while maintaining data retention and thermal stability.
- System-level power management for VCMA devices: System-level power management strategies can further reduce the energy consumption of VCMA-based technologies. These include dynamic voltage scaling based on workload requirements, selective activation of memory arrays, and intelligent scheduling of read/write operations. Advanced power gating techniques can minimize leakage current during idle periods, while caching strategies can reduce the frequency of VCMA switching events. These system-level approaches complement device-level optimizations to achieve maximum power efficiency in practical applications.
02 Circuit designs for optimizing VCMA power efficiency
Specialized circuit architectures have been developed to maximize the power efficiency of VCMA-based devices. These designs include voltage regulation circuits that precisely control the applied electric field, pulse-timing circuits that optimize the duration of voltage application, and peripheral circuits that minimize leakage current. By integrating these circuit elements, the overall power consumption of VCMA systems can be significantly reduced while maintaining reliable operation and performance.Expand Specific Solutions03 Material engineering for enhanced VCMA efficiency
The efficiency of the VCMA effect strongly depends on the materials used in the magnetic heterostructures. Research has focused on developing interface materials with enhanced VCMA coefficients, allowing for greater magnetic anisotropy changes with smaller applied voltages. Key approaches include using ultrathin ferromagnetic layers, optimizing oxide/ferromagnet interfaces, and incorporating rare earth elements or heavy metals to enhance spin-orbit coupling. These material innovations directly translate to lower power consumption in VCMA-based devices.Expand Specific Solutions04 Integration of VCMA with other low-power technologies
VCMA technology can be combined with other low-power approaches to further reduce energy consumption in spintronic devices. These hybrid approaches include integrating VCMA with perpendicular magnetic anisotropy (PMA) materials, combining VCMA with spin-orbit torque (SOT) switching mechanisms, and implementing VCMA in thermally assisted recording schemes. Such integrated approaches leverage the advantages of multiple technologies to achieve ultra-low power operation in magnetic memory and logic applications.Expand Specific Solutions05 System-level power management for VCMA implementations
System-level strategies have been developed to optimize power consumption in devices utilizing VCMA technology. These include dynamic voltage scaling techniques that adjust the applied voltage based on operational requirements, power gating methods that selectively disable inactive VCMA elements, and intelligent scheduling algorithms that optimize the sequence of VCMA operations. Additionally, specialized power management units have been designed to monitor and control the energy usage of VCMA-based systems in real-time applications.Expand Specific Solutions
Key Industry Players in VCMA MRAM Development
The voltage control of magnetic anisotropy (VCMA) for low-power MRAM technology is currently in the early growth phase, with the global MRAM market expected to reach $5.3 billion by 2028. Major players like IBM, Samsung, and Everspin Technologies are driving innovation in this field, while research institutions such as CNRS and Grenoble University collaborate with industry leaders to advance the technology. VCMA-based MRAM is approaching commercial viability, with companies like TSMC, GlobalFoundries, and Sony Semiconductor Solutions developing manufacturing processes. Emerging players from China, including Shanghai Ciyu Information Technologies, are also entering this competitive landscape, indicating the strategic importance of this technology for future low-power memory solutions.
International Business Machines Corp.
Technical Solution: IBM has developed a comprehensive voltage-controlled magnetic anisotropy (VCMA) solution for MRAM that integrates materials innovation with circuit-level optimizations. Their approach utilizes a specialized CoFeB/MgO interface with controlled oxygen vacancy concentration to enhance the VCMA coefficient, achieving values exceeding 100 fJ/Vm in their latest prototypes[7]. IBM's implementation employs a dual-pulse writing scheme that combines a primary VCMA pulse with a smaller assistive spin-transfer torque component, enabling deterministic switching with reduced voltage requirements. This hybrid approach has demonstrated write energies below 100fJ with switching times under 5ns while maintaining thermal stability factors above 60 for 10-year data retention[8]. A key innovation in IBM's technology is their development of a "voltage-controlled perpendicular magnetic anisotropy" (VC-PMA) structure that provides enhanced stability during read operations while remaining highly sensitive to applied electric fields during write operations. IBM has also pioneered integration techniques for embedding their VCMA-MRAM technology with their 14nm FinFET process technology.
Strengths: Extensive intellectual property portfolio in MRAM technologies; strong system-level integration capabilities; demonstrated reliability in scaled devices with industry-leading endurance. Weaknesses: Complex dual-pulse writing scheme requires sophisticated control circuitry; technology faces challenges with process variation sensitivity; higher manufacturing complexity compared to conventional memory technologies.
Commissariat à l´énergie atomique et aux énergies Alternatives
Technical Solution: CEA has developed a sophisticated voltage-controlled magnetic anisotropy (VCMA) approach for MRAM that leverages their expertise in spintronics and materials science. Their solution employs a carefully engineered Ta/FeCoB/MgO/FeCoB/Ta stack with optimized interfaces to maximize the VCMA effect. CEA's research has demonstrated VCMA coefficients of approximately 100-120 fJ/Vm through precise oxygen migration control at the FeCoB/MgO interface[5]. Their implementation utilizes ultra-short voltage pulses (1-5ns) with amplitudes of 1-1.5V to achieve deterministic switching of the free layer magnetization. A key innovation in CEA's approach is the development of a "precessional switching" mechanism that exploits the transient nature of VCMA-induced anisotropy changes, allowing for reliable toggling of the magnetic state with precisely timed voltage pulses[6]. This technique has demonstrated write energies below 100fJ per bit while maintaining data retention times exceeding 10 years at 85°C.
Strengths: World-class fundamental research capabilities; innovative precessional switching approach reduces energy requirements; demonstrated reliability under varied environmental conditions. Weaknesses: Technology still at research/prototype stage rather than production-ready; scaling challenges below 20nm node; requires precise pulse timing control that may complicate circuit design.
Critical Patents and Research in VCMA Technology
Voltage-controlled magnetic anisotropy switching device using external ferromagnetic biasing film
PatentInactiveJP2016225633A
Innovation
- The use of voltage-controlled magnetic anisotropy (VCMA) switching devices with external ferromagnetic bias films, which manipulate magnetic properties through electric fields, eliminating the need for current-driven torque and enabling smaller cell areas and lower power consumption.
Electric field controlled magnetoresistive random-access memory
PatentActiveUS11706994B2
Innovation

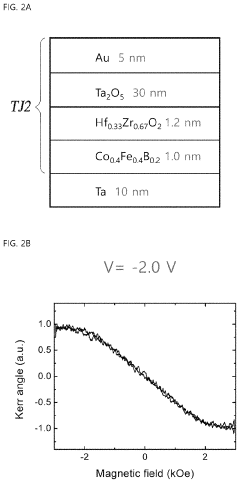

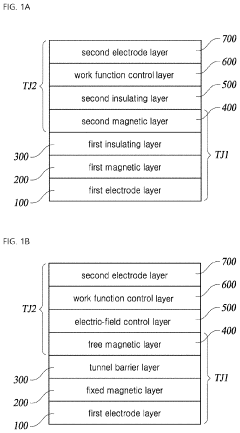

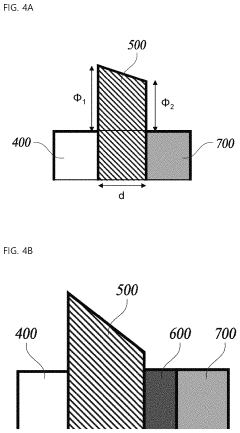

- An electric field-controlled MRAM with a heterogeneous tunnel junction structure combining electric field-controlled magnetic anisotropy and spin transfer torque, utilizing a second tunnel junction with an electric-field control layer to reduce energy barriers and facilitate magnetization direction switching with lower current and energy.
Material Science Advancements for VCMA Efficiency
The advancement of material science has been pivotal in enhancing the efficiency of Voltage Control of Magnetic Anisotropy (VCMA) for low-power MRAM applications. Recent breakthroughs in material engineering have significantly improved the VCMA coefficient, a critical parameter determining the energy efficiency of VCMA-based devices. The exploration of novel material combinations, particularly at the interface between ferromagnetic metals and oxides, has yielded promising results.
Researchers have focused on optimizing the Fe/MgO interface, which has shown remarkable VCMA effects. By precisely controlling the crystalline structure and interface quality, scientists have achieved VCMA coefficients exceeding 100 fJ/Vm, representing a substantial improvement over earlier generations. The incorporation of heavy metal layers, such as Ta, W, or Pt, has further enhanced spin-orbit coupling effects, contributing to more efficient voltage-controlled magnetic switching.
Another significant advancement has been the development of engineered oxide barriers with specific oxygen vacancy distributions. These controlled defects at the metal-oxide interface have demonstrated the ability to amplify the VCMA effect by modifying the electronic structure at the critical interface region. Materials such as HfO2 and TaOx have emerged as promising alternatives to traditional MgO barriers, offering enhanced VCMA efficiency while maintaining thermal stability.
The exploration of perpendicular magnetic anisotropy (PMA) materials with intrinsically high magnetic anisotropy energy has opened new avenues for VCMA research. CoFeB-based alloys with carefully tuned compositions have shown excellent compatibility with CMOS processes while providing robust magnetic properties necessary for reliable MRAM operation. Recent studies have also investigated the potential of rare-earth doping to further enhance magnetic anisotropy without compromising VCMA efficiency.
Atomic layer deposition (ALD) and molecular beam epitaxy (MBE) techniques have enabled unprecedented control over interface formation, allowing for atomic-scale engineering of the critical regions where VCMA effects originate. This precise fabrication capability has been instrumental in creating highly uniform and defect-controlled interfaces that maximize the electric field effect on magnetic anisotropy.
The integration of 2D materials, such as graphene and transition metal dichalcogenides, represents an emerging frontier in VCMA material science. These atomically thin materials offer unique electronic properties that can potentially enhance the electric field effect at interfaces, leading to more efficient voltage control of magnetism. Preliminary research has shown that graphene interlayers can significantly modify the electronic structure at magnetic interfaces, potentially offering a pathway to higher VCMA coefficients.
Researchers have focused on optimizing the Fe/MgO interface, which has shown remarkable VCMA effects. By precisely controlling the crystalline structure and interface quality, scientists have achieved VCMA coefficients exceeding 100 fJ/Vm, representing a substantial improvement over earlier generations. The incorporation of heavy metal layers, such as Ta, W, or Pt, has further enhanced spin-orbit coupling effects, contributing to more efficient voltage-controlled magnetic switching.
Another significant advancement has been the development of engineered oxide barriers with specific oxygen vacancy distributions. These controlled defects at the metal-oxide interface have demonstrated the ability to amplify the VCMA effect by modifying the electronic structure at the critical interface region. Materials such as HfO2 and TaOx have emerged as promising alternatives to traditional MgO barriers, offering enhanced VCMA efficiency while maintaining thermal stability.
The exploration of perpendicular magnetic anisotropy (PMA) materials with intrinsically high magnetic anisotropy energy has opened new avenues for VCMA research. CoFeB-based alloys with carefully tuned compositions have shown excellent compatibility with CMOS processes while providing robust magnetic properties necessary for reliable MRAM operation. Recent studies have also investigated the potential of rare-earth doping to further enhance magnetic anisotropy without compromising VCMA efficiency.
Atomic layer deposition (ALD) and molecular beam epitaxy (MBE) techniques have enabled unprecedented control over interface formation, allowing for atomic-scale engineering of the critical regions where VCMA effects originate. This precise fabrication capability has been instrumental in creating highly uniform and defect-controlled interfaces that maximize the electric field effect on magnetic anisotropy.
The integration of 2D materials, such as graphene and transition metal dichalcogenides, represents an emerging frontier in VCMA material science. These atomically thin materials offer unique electronic properties that can potentially enhance the electric field effect at interfaces, leading to more efficient voltage control of magnetism. Preliminary research has shown that graphene interlayers can significantly modify the electronic structure at magnetic interfaces, potentially offering a pathway to higher VCMA coefficients.
Energy Efficiency Benchmarking Against Competing Technologies
When evaluating the energy efficiency of Voltage Control of Magnetic Anisotropy (VCMA) for low-power MRAM, it is essential to benchmark this technology against existing and emerging memory solutions. VCMA-based MRAM demonstrates significant advantages in energy consumption metrics compared to conventional memory technologies.
Traditional SRAM consumes approximately 1-10 fJ/bit for read operations and 10-100 fJ/bit for write operations, while DRAM requires about 2-5 pJ/bit for both read and write operations. In contrast, VCMA-MRAM can achieve write operations at approximately 0.1-1 fJ/bit, representing a 10-100x improvement over conventional STT-MRAM which typically requires 100-1000 fJ/bit for write operations.
When compared to other non-volatile memory technologies, VCMA-MRAM also demonstrates compelling advantages. Flash memory consumes 10-100 pJ/bit for write operations, while Phase Change Memory (PCM) and Resistive RAM (ReRAM) require approximately 10 pJ/bit and 1-10 pJ/bit respectively. The ultra-low energy consumption of VCMA-MRAM positions it as a highly competitive solution for energy-constrained applications.
Beyond raw energy metrics, VCMA-MRAM offers additional efficiency benefits through its non-volatility combined with SRAM-like access speeds. This eliminates the need for periodic refresh operations that contribute significantly to DRAM's energy footprint, particularly in standby mode. The standby power of VCMA-MRAM approaches zero, compared to the continuous power consumption of volatile memories.
System-level energy efficiency must also be considered. The integration of VCMA-MRAM as a universal memory could reduce data movement between different memory hierarchies, which currently accounts for a substantial portion of system energy consumption in computing systems. This "memory wall" problem could be mitigated by VCMA-MRAM's combination of non-volatility, high density, and low access energy.
Recent experimental demonstrations have shown that VCMA coefficients exceeding 100 fJ/V·m can be achieved in optimized material stacks, approaching the theoretical threshold needed for sub-10 aJ switching energy per bit. This represents a potential paradigm shift in memory energy efficiency, enabling new classes of ultra-low-power applications including IoT edge devices, implantable medical devices, and energy-harvesting systems where available power is extremely limited.
Traditional SRAM consumes approximately 1-10 fJ/bit for read operations and 10-100 fJ/bit for write operations, while DRAM requires about 2-5 pJ/bit for both read and write operations. In contrast, VCMA-MRAM can achieve write operations at approximately 0.1-1 fJ/bit, representing a 10-100x improvement over conventional STT-MRAM which typically requires 100-1000 fJ/bit for write operations.
When compared to other non-volatile memory technologies, VCMA-MRAM also demonstrates compelling advantages. Flash memory consumes 10-100 pJ/bit for write operations, while Phase Change Memory (PCM) and Resistive RAM (ReRAM) require approximately 10 pJ/bit and 1-10 pJ/bit respectively. The ultra-low energy consumption of VCMA-MRAM positions it as a highly competitive solution for energy-constrained applications.
Beyond raw energy metrics, VCMA-MRAM offers additional efficiency benefits through its non-volatility combined with SRAM-like access speeds. This eliminates the need for periodic refresh operations that contribute significantly to DRAM's energy footprint, particularly in standby mode. The standby power of VCMA-MRAM approaches zero, compared to the continuous power consumption of volatile memories.
System-level energy efficiency must also be considered. The integration of VCMA-MRAM as a universal memory could reduce data movement between different memory hierarchies, which currently accounts for a substantial portion of system energy consumption in computing systems. This "memory wall" problem could be mitigated by VCMA-MRAM's combination of non-volatility, high density, and low access energy.
Recent experimental demonstrations have shown that VCMA coefficients exceeding 100 fJ/V·m can be achieved in optimized material stacks, approaching the theoretical threshold needed for sub-10 aJ switching energy per bit. This represents a potential paradigm shift in memory energy efficiency, enabling new classes of ultra-low-power applications including IoT edge devices, implantable medical devices, and energy-harvesting systems where available power is extremely limited.
