3D Printing Nitinol: Background and Objectives

Nitinol, an alloy of nickel and titanium, has revolutionized various industries due to its unique shape memory and superelastic properties. The evolution of 3D printing technology has opened new avenues for manufacturing complex Nitinol structures, particularly for customized applications. This convergence of advanced materials and additive manufacturing techniques marks a significant milestone in the field of materials science and engineering.

The journey of Nitinol began in the 1960s when it was discovered by William Buehler and Frederick Wang at the Naval Ordnance Laboratory. Initially, its applications were limited due to manufacturing constraints. However, as manufacturing processes improved, Nitinol found its way into various sectors, including aerospace, medical devices, and consumer electronics. The advent of 3D printing technology in the late 20th century set the stage for a new era in Nitinol manufacturing.

3D printing, also known as additive manufacturing, has undergone rapid development since its inception. The ability to create complex geometries layer by layer has transformed product design and manufacturing across industries. When applied to Nitinol, 3D printing offers unprecedented opportunities for creating intricate, customized structures that fully exploit the material's unique properties.

The primary objective of innovations in 3D printing Nitinol for customized applications is to overcome the limitations of traditional manufacturing methods. These innovations aim to enable the production of patient-specific medical devices, highly efficient actuators, and complex aerospace components. By combining the shape memory effect of Nitinol with the design freedom of 3D printing, researchers and engineers seek to create structures that can respond to environmental stimuli in precisely controlled ways.

Another crucial goal is to improve the precision and reliability of 3D printed Nitinol structures. This involves developing advanced printing techniques that can accurately control the microstructure and composition of the alloy, ensuring consistent shape memory and superelastic behavior throughout the printed part. Achieving this level of control is essential for applications in critical fields such as medical implants and aerospace components.

Furthermore, researchers are exploring ways to expand the range of Nitinol compositions that can be 3D printed. This includes investigating new alloy formulations and printing parameters to tailor the material properties for specific applications. The ultimate aim is to create a versatile manufacturing platform that can produce Nitinol components with customized transformation temperatures, mechanical properties, and biocompatibility.

As we look towards the future, the integration of 3D printing and Nitinol technology holds immense potential for innovation. From self-assembling structures to adaptive medical devices, the possibilities are vast. The ongoing research and development in this field are paving the way for a new generation of smart materials and products that can revolutionize industries and improve lives.

Market Analysis for 3D Printed Nitinol Applications

The market for 3D printed Nitinol applications is experiencing significant growth, driven by the unique properties of Nitinol and the increasing adoption of additive manufacturing technologies. Nitinol, a nickel-titanium alloy known for its shape memory and superelastic properties, has found extensive use in various industries, particularly in medical devices and aerospace applications.

In the medical sector, 3D printed Nitinol is revolutionizing the production of customized implants, stents, and surgical instruments. The global market for 3D printed medical devices is projected to expand rapidly, with Nitinol-based products playing a crucial role. This growth is fueled by the rising demand for personalized healthcare solutions and minimally invasive surgical procedures.

The aerospace industry is another key market for 3D printed Nitinol applications. The material's high strength-to-weight ratio and ability to withstand extreme temperatures make it ideal for aircraft components and space exploration equipment. As the aerospace sector continues to seek innovative materials for lightweighting and performance enhancement, the demand for 3D printed Nitinol parts is expected to surge.

Consumer electronics and automotive industries are also showing increased interest in 3D printed Nitinol applications. From smart wearables to advanced sensors and actuators, Nitinol's unique properties are enabling the development of novel products with enhanced functionality and durability.

Market trends indicate a shift towards more complex and customized Nitinol components, which 3D printing is uniquely positioned to deliver. The ability to create intricate geometries and optimize material usage through additive manufacturing is driving innovation across industries.

However, challenges remain in the widespread adoption of 3D printed Nitinol. These include the high cost of raw materials, the need for specialized 3D printing equipment, and the complexity of post-processing techniques required to achieve desired material properties. Overcoming these barriers will be crucial for market expansion.

Geographically, North America and Europe lead in the adoption of 3D printed Nitinol applications, with Asia-Pacific regions showing rapid growth potential. The increasing investment in research and development, coupled with supportive regulatory frameworks in these regions, is expected to drive market growth further.

As the technology matures and becomes more accessible, new applications for 3D printed Nitinol are likely to emerge, potentially disrupting traditional manufacturing processes and opening up new market opportunities. The convergence of 3D printing technology with advances in material science and design optimization software is expected to accelerate innovation in this field, leading to a more diverse and robust market for 3D printed Nitinol applications.

Current Challenges in 3D Printing Nitinol

Despite the promising potential of 3D printing Nitinol for customized applications, several significant challenges currently hinder its widespread adoption and advancement. One of the primary obstacles is the complex thermal management required during the printing process. Nitinol's unique shape memory and superelastic properties are highly sensitive to temperature variations, making it difficult to maintain precise control over the material's microstructure and resulting properties.

Another major challenge lies in achieving consistent material properties throughout the printed structure. The layer-by-layer nature of 3D printing can lead to anisotropic behavior, where the mechanical properties vary depending on the direction of the applied force. This inconsistency can compromise the functionality and reliability of the final product, especially in critical applications such as medical devices or aerospace components.

The high melting point of Nitinol, approximately 1310°C, poses significant challenges for conventional 3D printing technologies. Most commercially available 3D printers are not equipped to handle such high temperatures, limiting the options for Nitinol printing to specialized, often costly, equipment. This high-temperature requirement also increases the risk of oxidation and contamination during the printing process, potentially affecting the material's properties and performance.

Powder handling and recycling present another set of challenges in 3D printing Nitinol. The fine Nitinol powder used in additive manufacturing processes can be highly reactive and potentially hazardous if not handled properly. Additionally, the high cost of Nitinol powder necessitates efficient recycling methods to minimize waste and reduce production costs. However, developing effective recycling processes while maintaining powder quality and consistency remains a significant challenge.

Post-processing of 3D printed Nitinol components is another area of concern. The as-printed parts often require additional heat treatment to achieve the desired shape memory or superelastic properties. However, optimizing these post-processing parameters for complex 3D printed geometries can be challenging and time-consuming, potentially limiting the ability to produce customized Nitinol components efficiently.

Lastly, the lack of standardization and quality control measures specific to 3D printed Nitinol poses challenges for widespread industrial adoption. Without established guidelines and testing protocols, it becomes difficult to ensure consistent quality and performance across different manufacturing runs and between different producers. This uncertainty can hinder the acceptance of 3D printed Nitinol components in regulated industries such as healthcare and aerospace.

Existing 3D Printing Solutions for Nitinol

  • 01 3D printing methods for Nitinol

    Various 3D printing techniques are employed for fabricating Nitinol structures, including selective laser melting (SLM), direct metal laser sintering (DMLS), and electron beam melting (EBM). These methods allow for the creation of complex geometries and customized Nitinol components with specific properties.
    • 3D printing methods for Nitinol: Various 3D printing techniques are employed for fabricating Nitinol structures, including selective laser melting (SLM), direct metal laser sintering (DMLS), and electron beam melting (EBM). These methods allow for the creation of complex geometries and customized Nitinol components with specific shape memory and superelastic properties.
    • Post-processing of 3D printed Nitinol: After 3D printing, Nitinol parts often require post-processing treatments to achieve desired mechanical and functional properties. This may include heat treatment, surface finishing, and shape setting procedures to optimize the shape memory effect and superelasticity of the printed Nitinol components.
    • Applications of 3D printed Nitinol: 3D printed Nitinol finds applications in various fields, including medical devices, aerospace, and robotics. The ability to create patient-specific implants, actuators, and complex mechanical structures with shape memory properties makes 3D printed Nitinol particularly valuable in these industries.
    • Powder preparation for Nitinol 3D printing: The preparation of Nitinol powder for 3D printing is crucial for achieving high-quality prints. Techniques such as gas atomization and plasma rotating electrode process (PREP) are used to produce spherical Nitinol powders with controlled particle size distribution and chemical composition, optimized for various 3D printing processes.
    • Process parameters optimization for 3D printing Nitinol: Optimizing process parameters is essential for successful 3D printing of Nitinol. This includes adjusting laser power, scanning speed, layer thickness, and build chamber atmosphere to control the microstructure, porosity, and mechanical properties of the printed Nitinol parts. Careful tuning of these parameters helps to minimize defects and achieve desired material characteristics.
  • 02 Post-processing of 3D printed Nitinol

    After 3D printing, Nitinol components often require post-processing treatments to achieve desired shape memory and superelastic properties. This may include heat treatment, surface finishing, and shape setting procedures to optimize the material's performance for specific applications.
    Expand Specific Solutions
  • 03 Applications of 3D printed Nitinol

    3D printed Nitinol finds applications in various fields, including medical devices, aerospace, and robotics. The ability to create patient-specific implants, actuators, and complex mechanical components with shape memory properties makes it particularly valuable in these industries.
    Expand Specific Solutions
  • 04 Powder characteristics for 3D printing Nitinol

    The properties of Nitinol powder used in 3D printing processes significantly impact the final product quality. Factors such as particle size distribution, powder morphology, and chemical composition are crucial for achieving optimal printing results and desired material properties.
    Expand Specific Solutions
  • 05 Process parameters optimization for 3D printing Nitinol

    Optimizing process parameters such as laser power, scanning speed, layer thickness, and build orientation is essential for successful 3D printing of Nitinol. These parameters influence the microstructure, mechanical properties, and shape memory behavior of the printed components.
    Expand Specific Solutions

Key Players in Nitinol 3D Printing Industry

The 3D printing of Nitinol for customized applications is an emerging field in advanced manufacturing, currently in its early growth stage. The market size is expanding rapidly, driven by increasing demand in medical devices, aerospace, and automotive industries. The technology's maturity is progressing, with key players like Massachusetts Institute of Technology, University College Dublin, and Central South University leading research efforts. Companies such as Farsoon Technologies and Solvay Specialty Polymers are developing specialized equipment and materials. While still evolving, the technology shows promise for revolutionizing personalized medical implants and complex industrial components, with ongoing challenges in process control and material optimization.

University College Dublin

Technical Solution: University College Dublin has developed an innovative approach to 3D printing Nitinol using a modified fused deposition modeling (FDM) technique. Their method involves creating a Nitinol-polymer composite filament that can be extruded through a heated nozzle. The polymer acts as a binder and is later removed through a carefully controlled thermal debinding process. UCD researchers have optimized the filament composition and printing parameters to achieve consistent shape memory properties in the final parts. They have also implemented a novel post-processing technique that combines heat treatment with mechanical training to enhance the functional properties of the printed Nitinol structures[8]. This approach allows for the creation of complex Nitinol geometries with fine features and controlled porosity[9].
Strengths: Low-cost printing hardware, ability to create complex geometries with fine features. Weaknesses: Limited mechanical strength compared to laser-based methods, potential for residual polymer contamination.

Massachusetts Institute of Technology

Technical Solution: MIT has developed a novel 3D printing technique for Nitinol, utilizing a laser-based process called directed energy deposition (DED). This method allows for precise control over the material's microstructure and shape memory properties. The process involves melting Nitinol powder with a high-powered laser, depositing it layer by layer to create complex geometries. MIT researchers have optimized the printing parameters to achieve consistent phase transformation temperatures and mechanical properties throughout the printed structure[1][3]. They have also implemented in-situ monitoring systems to ensure quality control during the printing process, resulting in Nitinol parts with superior fatigue resistance and biocompatibility compared to traditionally manufactured components[2].
Strengths: Precise control over microstructure, improved fatigue resistance, and biocompatibility. Weaknesses: High equipment costs and complexity of the printing process may limit widespread adoption.

Innovative Approaches in Nitinol 3D Printing

Memory metal 3-d model
PatentInactiveGB2549289A
Innovation

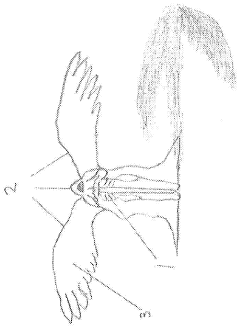

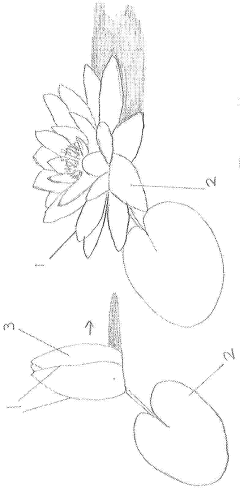

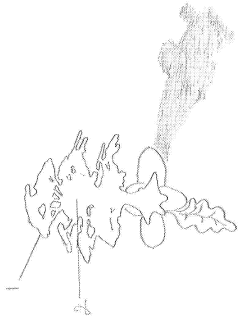

  • Utilizing shape memory alloy Nitinol wire or foil, which changes shape when heated, allowing for the creation of 3D models that can replicate various objects by welding or gluing the Nitinol frame into a design and covering it with fabric, enabling transformation into a predefined shape memory form.
Nitinol alloy for with good mechanical stability and a good superelastic operating window
PatentWO2006081011A2
Innovation
  • A nickel-titanium alloy with a ternary element such as platinum or palladium is used to enhance radiopacity while maintaining superelastic properties, allowing for a thinner strut design that maintains flexibility and mechanical stability.

Regulatory Framework for 3D Printed Medical Devices

The regulatory framework for 3D printed medical devices is a complex and evolving landscape that aims to ensure the safety and efficacy of these innovative products. As 3D printing technology, particularly for materials like Nitinol, continues to advance, regulatory bodies worldwide are adapting their approaches to address the unique challenges posed by these customized applications.

In the United States, the Food and Drug Administration (FDA) has taken a proactive stance in developing guidelines for 3D printed medical devices. The FDA's guidance document, "Technical Considerations for Additive Manufactured Medical Devices," provides a comprehensive overview of the regulatory considerations for manufacturers. This guidance covers various aspects, including design and manufacturing process validation, material controls, and post-processing procedures specific to 3D printed devices.

The European Union has implemented the Medical Device Regulation (MDR) and In Vitro Diagnostic Regulation (IVDR), which came into effect in 2021 and 2022, respectively. These regulations include specific provisions for custom-made devices, which are particularly relevant for 3D printed medical devices. Manufacturers must demonstrate compliance with essential safety and performance requirements, conduct thorough risk assessments, and maintain detailed documentation throughout the product lifecycle.

In Japan, the Pharmaceuticals and Medical Devices Agency (PMDA) has established guidelines for the evaluation of 3D printed medical devices. These guidelines emphasize the importance of quality control in the manufacturing process and the need for comprehensive validation of the 3D printing technology used.

Regulatory bodies are particularly focused on addressing the challenges associated with patient-specific devices, such as those made from 3D printed Nitinol. Key considerations include ensuring the consistency and reliability of the manufacturing process, validating the mechanical properties of the printed Nitinol structures, and establishing protocols for sterilization and biocompatibility testing.

As the field of 3D printed medical devices continues to evolve, regulatory frameworks are likely to undergo further refinement. Collaborative efforts between regulatory agencies, industry stakeholders, and research institutions are crucial in developing standards and best practices that can keep pace with technological advancements. This ongoing dialogue will be essential in striking the right balance between fostering innovation and ensuring patient safety in the rapidly expanding field of 3D printed medical devices, particularly those utilizing advanced materials like Nitinol.

Sustainability in Nitinol 3D Printing Processes

Sustainability in Nitinol 3D printing processes has become a critical focus as the technology advances and finds wider applications in customized medical devices and other industries. The environmental impact of Nitinol production and 3D printing processes presents significant challenges that need to be addressed to ensure long-term viability and eco-friendliness.

One of the primary concerns in Nitinol 3D printing is the high energy consumption associated with the process. The melting point of Nitinol is relatively high, requiring substantial energy input during the printing process. Researchers are exploring ways to optimize energy usage through improved printer designs and more efficient heating mechanisms. Some promising approaches include the use of localized laser heating and advanced thermal management systems to minimize heat loss.

Material waste reduction is another key aspect of sustainability in Nitinol 3D printing. Traditional subtractive manufacturing methods often result in significant material waste, whereas additive manufacturing techniques like 3D printing can potentially reduce waste. However, challenges remain in maximizing material utilization and minimizing support structures. Ongoing research focuses on developing advanced software algorithms for optimized part orientation and support generation, as well as recycling unused Nitinol powder.

The production of Nitinol itself also presents environmental concerns. The extraction and processing of nickel and titanium, the primary components of Nitinol, can have significant environmental impacts. Efforts are being made to develop more sustainable sourcing practices and to improve the efficiency of the alloying process. Some researchers are exploring the potential of using recycled materials in Nitinol production to reduce the demand for virgin resources.

Water usage in the Nitinol 3D printing process, particularly for post-processing and cleaning, is another area of focus for sustainability improvements. Closed-loop water recycling systems and more efficient cleaning methods are being developed to minimize water consumption and reduce the environmental footprint of the manufacturing process.

Lifecycle assessment of Nitinol 3D printed products is gaining importance in evaluating overall sustainability. This includes considering the environmental impact from raw material extraction to end-of-life disposal or recycling. Researchers are working on developing comprehensive lifecycle models specific to Nitinol 3D printing to guide more sustainable design and manufacturing decisions.

As the field of Nitinol 3D printing continues to evolve, integrating sustainability principles into every aspect of the process will be crucial. This includes not only the printing process itself but also the entire supply chain, from material sourcing to product design and end-of-life considerations. By addressing these sustainability challenges, the industry can ensure that the benefits of customized Nitinol applications are realized without compromising environmental responsibility.
