Optical Pumping Evolution and Objectives
Optical pumping, a quantum mechanical process first demonstrated in the 1950s, has evolved significantly over the decades to become a cornerstone technology in atomic timekeeping. The technique involves using resonant light to manipulate the distribution of atoms among their energy levels, creating population inversions that are essential for precision frequency standards. Early implementations utilized rudimentary lamp-based systems with limited efficiency and substantial power requirements, making miniaturization impractical.
The 1980s marked a pivotal shift with the introduction of laser-based optical pumping, dramatically improving pumping efficiency and spectral purity. This advancement enabled the first generation of compact atomic clocks, though still far from today's miniaturization goals. The subsequent development of vertical-cavity surface-emitting lasers (VCSELs) in the 1990s provided a pathway toward truly miniaturized systems, offering low power consumption and compatibility with semiconductor manufacturing processes.
Recent technological evolution has focused on coherent population trapping (CPT) schemes, which eliminate the need for microwave cavities and enable significant size reduction. Concurrently, advances in MEMS technology have facilitated the integration of vapor cells with photonic components, leading to chip-scale atomic clocks (CSACs) with volumes under 15 cm³. Despite these achievements, current miniaturized clocks still face limitations in long-term stability and power efficiency.
The primary objective for next-generation optical pumping schemes is to achieve an optimal balance between miniaturization, power consumption, and performance metrics. Specifically, the industry aims to develop clocks with volumes below 5 cm³, power consumption under 30 mW, and stability better than 1×10⁻¹¹ at one day—a challenging combination that requires fundamental innovations in pumping techniques.
Technical goals include developing novel dual-frequency optical pumping methods that maximize the contrast of CPT resonances while minimizing light shifts that degrade long-term stability. Additionally, there is significant interest in exploring pulsed optical pumping schemes that could reduce power requirements by up to 70% compared to continuous operation, while potentially improving signal-to-noise ratios through reduced light-shift effects.
Another critical objective is the integration of advanced semiconductor laser sources specifically designed for optical pumping applications, featuring precise wavelength control, narrow linewidths, and ultra-low power consumption. The ultimate aim is to enable a new class of miniaturized atomic clocks that can maintain performance comparable to larger systems while operating in mobile and space-constrained environments, thus expanding applications in telecommunications, navigation systems, and distributed network synchronization.
The 1980s marked a pivotal shift with the introduction of laser-based optical pumping, dramatically improving pumping efficiency and spectral purity. This advancement enabled the first generation of compact atomic clocks, though still far from today's miniaturization goals. The subsequent development of vertical-cavity surface-emitting lasers (VCSELs) in the 1990s provided a pathway toward truly miniaturized systems, offering low power consumption and compatibility with semiconductor manufacturing processes.
Recent technological evolution has focused on coherent population trapping (CPT) schemes, which eliminate the need for microwave cavities and enable significant size reduction. Concurrently, advances in MEMS technology have facilitated the integration of vapor cells with photonic components, leading to chip-scale atomic clocks (CSACs) with volumes under 15 cm³. Despite these achievements, current miniaturized clocks still face limitations in long-term stability and power efficiency.
The primary objective for next-generation optical pumping schemes is to achieve an optimal balance between miniaturization, power consumption, and performance metrics. Specifically, the industry aims to develop clocks with volumes below 5 cm³, power consumption under 30 mW, and stability better than 1×10⁻¹¹ at one day—a challenging combination that requires fundamental innovations in pumping techniques.
Technical goals include developing novel dual-frequency optical pumping methods that maximize the contrast of CPT resonances while minimizing light shifts that degrade long-term stability. Additionally, there is significant interest in exploring pulsed optical pumping schemes that could reduce power requirements by up to 70% compared to continuous operation, while potentially improving signal-to-noise ratios through reduced light-shift effects.
Another critical objective is the integration of advanced semiconductor laser sources specifically designed for optical pumping applications, featuring precise wavelength control, narrow linewidths, and ultra-low power consumption. The ultimate aim is to enable a new class of miniaturized atomic clocks that can maintain performance comparable to larger systems while operating in mobile and space-constrained environments, thus expanding applications in telecommunications, navigation systems, and distributed network synchronization.
Market Analysis for Miniaturized Atomic Clocks
The global market for miniaturized atomic clocks has been experiencing significant growth, driven by increasing demand for precise timing solutions in various applications. The market size was valued at approximately $400 million in 2022 and is projected to reach $700 million by 2028, representing a compound annual growth rate (CAGR) of 9.8% during the forecast period. This growth trajectory is primarily fueled by expanding applications in telecommunications, defense systems, satellite navigation, and emerging IoT networks.
The telecommunications sector currently represents the largest market segment, accounting for roughly 35% of the total market share. The implementation of 5G networks worldwide has created substantial demand for high-precision timing solutions, as these networks require synchronization accuracy in the nanosecond range. This trend is expected to continue as 6G research advances, potentially creating even more stringent timing requirements.
Defense applications constitute the second-largest market segment at approximately 30%. Military systems, including secure communications, radar systems, and electronic warfare equipment, rely heavily on precise timing for effective operation. Government defense budgets in major economies like the United States, China, and European nations continue to allocate significant funding for advanced timing technologies.
The GNSS/satellite navigation segment represents about 20% of the market. As satellite-based positioning systems become more sophisticated and widespread, the demand for miniaturized atomic clocks for both ground stations and satellite payloads continues to grow. The emergence of private space companies and satellite constellations has further expanded this market segment.
Emerging applications in autonomous vehicles, smart grid infrastructure, and financial trading systems collectively account for the remaining 15% of the market. These sectors are showing the fastest growth rates, with autonomous vehicles particularly poised for explosive growth as the technology matures toward commercial deployment.
Geographically, North America dominates the market with approximately 40% share, followed by Europe (30%) and Asia-Pacific (25%). However, the Asia-Pacific region is expected to witness the highest growth rate during the forecast period, driven by increasing investments in telecommunications infrastructure and defense modernization programs in countries like China, Japan, and India.
Customer requirements are increasingly focused on size reduction, power efficiency, and cost optimization while maintaining high performance standards. Current miniaturized atomic clocks typically consume 120-150 mW of power, but market research indicates strong demand for solutions that can operate below 100 mW while maintaining stability performance of 10^-11 or better.
The telecommunications sector currently represents the largest market segment, accounting for roughly 35% of the total market share. The implementation of 5G networks worldwide has created substantial demand for high-precision timing solutions, as these networks require synchronization accuracy in the nanosecond range. This trend is expected to continue as 6G research advances, potentially creating even more stringent timing requirements.
Defense applications constitute the second-largest market segment at approximately 30%. Military systems, including secure communications, radar systems, and electronic warfare equipment, rely heavily on precise timing for effective operation. Government defense budgets in major economies like the United States, China, and European nations continue to allocate significant funding for advanced timing technologies.
The GNSS/satellite navigation segment represents about 20% of the market. As satellite-based positioning systems become more sophisticated and widespread, the demand for miniaturized atomic clocks for both ground stations and satellite payloads continues to grow. The emergence of private space companies and satellite constellations has further expanded this market segment.
Emerging applications in autonomous vehicles, smart grid infrastructure, and financial trading systems collectively account for the remaining 15% of the market. These sectors are showing the fastest growth rates, with autonomous vehicles particularly poised for explosive growth as the technology matures toward commercial deployment.
Geographically, North America dominates the market with approximately 40% share, followed by Europe (30%) and Asia-Pacific (25%). However, the Asia-Pacific region is expected to witness the highest growth rate during the forecast period, driven by increasing investments in telecommunications infrastructure and defense modernization programs in countries like China, Japan, and India.
Customer requirements are increasingly focused on size reduction, power efficiency, and cost optimization while maintaining high performance standards. Current miniaturized atomic clocks typically consume 120-150 mW of power, but market research indicates strong demand for solutions that can operate below 100 mW while maintaining stability performance of 10^-11 or better.
Current Limitations in Optical Pumping Technology
Despite significant advancements in optical pumping technology for miniaturized atomic clocks, several critical limitations continue to impede further progress in this field. The current optical pumping schemes face efficiency challenges, particularly in the context of miniaturization. The quantum efficiency of light sources used in optical pumping remains suboptimal, with typical values ranging from 30-60% depending on the specific implementation. This inefficiency translates directly into increased power consumption, a critical constraint for portable and space-based applications.
Power consumption represents another major limitation, with current optical pumping systems requiring between 10-100 mW, which constitutes a significant portion of the overall power budget for miniaturized clock systems. The trade-off between optical power and pumping efficiency creates a fundamental constraint that has not been adequately resolved in existing designs.
Thermal management issues also plague current optical pumping technologies. The heat generated by pump lasers and associated electronics can destabilize the atomic reference, leading to frequency shifts that compromise clock accuracy. Current thermal isolation techniques add bulk and complexity, counteracting miniaturization efforts. Temperature-dependent wavelength drift in semiconductor lasers used for pumping typically ranges from 0.2-0.3 nm/°C, requiring sophisticated compensation mechanisms.
Spectral purity and stability of the optical pumping source present additional challenges. Linewidth broadening and frequency instabilities in the pump source directly impact the efficiency of the pumping process and ultimately the clock's performance. Current laser sources used in miniaturized systems exhibit linewidths of several MHz, which is often broader than optimal for efficient pumping of the narrow atomic transitions.
Manufacturing scalability remains problematic, with current fabrication techniques for integrated optical pumping components suffering from yield issues and batch-to-batch variations. This inconsistency leads to performance variations across devices and increases production costs, limiting widespread adoption.
The integration density of optical components has reached a plateau with current technologies. The physical size of optical elements, including beam-shaping optics, polarizers, and beam-steering components, has not scaled down at the same rate as electronic components, creating a bottleneck in overall system miniaturization. Current integration approaches struggle to maintain optical alignment tolerances at the microscale level required for next-generation devices.
Reliability and lifetime limitations further constrain deployment scenarios, with mean time between failures for optical pumping subsystems typically falling below the requirements for many critical applications, particularly in aerospace and defense sectors where operational lifetimes of 10+ years are often required.
Power consumption represents another major limitation, with current optical pumping systems requiring between 10-100 mW, which constitutes a significant portion of the overall power budget for miniaturized clock systems. The trade-off between optical power and pumping efficiency creates a fundamental constraint that has not been adequately resolved in existing designs.
Thermal management issues also plague current optical pumping technologies. The heat generated by pump lasers and associated electronics can destabilize the atomic reference, leading to frequency shifts that compromise clock accuracy. Current thermal isolation techniques add bulk and complexity, counteracting miniaturization efforts. Temperature-dependent wavelength drift in semiconductor lasers used for pumping typically ranges from 0.2-0.3 nm/°C, requiring sophisticated compensation mechanisms.
Spectral purity and stability of the optical pumping source present additional challenges. Linewidth broadening and frequency instabilities in the pump source directly impact the efficiency of the pumping process and ultimately the clock's performance. Current laser sources used in miniaturized systems exhibit linewidths of several MHz, which is often broader than optimal for efficient pumping of the narrow atomic transitions.
Manufacturing scalability remains problematic, with current fabrication techniques for integrated optical pumping components suffering from yield issues and batch-to-batch variations. This inconsistency leads to performance variations across devices and increases production costs, limiting widespread adoption.
The integration density of optical components has reached a plateau with current technologies. The physical size of optical elements, including beam-shaping optics, polarizers, and beam-steering components, has not scaled down at the same rate as electronic components, creating a bottleneck in overall system miniaturization. Current integration approaches struggle to maintain optical alignment tolerances at the microscale level required for next-generation devices.
Reliability and lifetime limitations further constrain deployment scenarios, with mean time between failures for optical pumping subsystems typically falling below the requirements for many critical applications, particularly in aerospace and defense sectors where operational lifetimes of 10+ years are often required.
Contemporary Optical Pumping Solutions for Miniaturization
01 Miniaturized optical pumping systems for lasers
Miniaturized optical pumping systems for lasers involve compact designs that efficiently deliver pump light to gain media. These systems utilize specialized components such as micro-optics, integrated waveguides, and semiconductor pump sources to reduce the overall footprint while maintaining pumping efficiency. The miniaturization techniques focus on optimizing the coupling between pump sources and gain media, enabling portable and space-efficient laser devices with reduced power consumption.- Miniaturized optical pumping systems for lasers: Miniaturized optical pumping systems for lasers involve compact designs that maintain efficient energy transfer while reducing overall size. These systems utilize specialized pump sources and optical configurations to achieve high power output in smaller form factors. The miniaturization techniques include integrated optical components, novel cavity designs, and optimized pump beam delivery methods that maximize energy coupling while minimizing thermal issues in confined spaces.
- MEMS-based optical pumping technologies: Micro-electromechanical systems (MEMS) enable significant miniaturization of optical pumping schemes through integration of microscale components. These technologies incorporate miniaturized mirrors, actuators, and optical elements on semiconductor substrates to create highly compact pumping systems. MEMS-based approaches allow for precise control of optical paths while dramatically reducing device footprint, making them suitable for portable applications and integrated photonic systems.
- Waveguide and fiber-based miniaturized pumping schemes: Waveguide and fiber-based approaches offer effective solutions for miniaturizing optical pumping systems. These designs utilize integrated waveguides, fiber optics, and planar lightwave circuits to guide and concentrate pump light in compact spaces. The technology enables efficient coupling between pump sources and gain media while maintaining small form factors. Advanced waveguide geometries and specialized fiber designs optimize pump absorption and mode matching in miniaturized laser systems.
- Semiconductor-based miniaturized optical pumping: Semiconductor technologies enable highly miniaturized optical pumping schemes through integration of pump sources and gain media on single chips. These approaches utilize semiconductor laser diodes, quantum wells, and photonic integrated circuits to create extremely compact pumping systems. The technology leverages advanced fabrication techniques to produce monolithic devices with optimized thermal management and electrical-to-optical conversion efficiency, suitable for applications requiring minimal size and power consumption.
- Novel materials and structures for compact optical pumping: Advanced materials and innovative structural designs enable significant miniaturization of optical pumping systems. These approaches incorporate specialized gain media, metamaterials, and engineered optical structures that enhance pump absorption and energy transfer in reduced volumes. The technology utilizes quantum dots, photonic crystals, and nanoscale resonators to concentrate optical fields and improve pumping efficiency while maintaining compact dimensions suitable for integration into portable and space-constrained applications.
02 Semiconductor-based optical pumping schemes
Semiconductor-based optical pumping schemes utilize semiconductor materials and structures to achieve efficient optical pumping in miniaturized devices. These approaches include semiconductor laser diodes, quantum wells, and semiconductor optical amplifiers that serve as compact pump sources. The semiconductor integration allows for direct electrical pumping, reduced thermal issues, and compatibility with photonic integrated circuits, enabling highly compact and energy-efficient optical systems.Expand Specific Solutions03 MEMS and micro-optical components for miniaturized pumping
Micro-electromechanical systems (MEMS) and micro-optical components enable highly miniaturized optical pumping schemes. These technologies include micro-mirrors, micro-lenses, micro-actuators, and other miniaturized optical elements that can precisely control and direct pump light in confined spaces. The integration of these components allows for dynamic beam steering, adaptive focusing, and reconfigurable optical paths in compact pumping systems, enhancing functionality while minimizing size.Expand Specific Solutions04 Waveguide and fiber-based miniaturized pumping techniques
Waveguide and fiber-based miniaturized pumping techniques utilize optical waveguides, fibers, and integrated photonic structures to guide and concentrate pump light in compact spaces. These approaches include side-pumping configurations, evanescent field coupling, tapered waveguides, and fiber Bragg gratings that enhance pumping efficiency in miniaturized systems. The waveguide structures enable efficient light delivery to active regions while maintaining small form factors and thermal management capabilities.Expand Specific Solutions05 Novel materials and structures for compact optical pumping
Novel materials and structures enable more efficient and compact optical pumping schemes. These include specialized gain media with high absorption coefficients, photonic crystals that enhance light-matter interactions, metamaterials with engineered optical properties, and nanostructured materials that concentrate optical fields. The innovative material systems and structural designs allow for reduced pump power requirements, enhanced energy conversion efficiency, and smaller overall device dimensions in miniaturized optical systems.Expand Specific Solutions
Leading Institutions and Companies in Atomic Clock Development
The optical pumping schemes for next-generation miniaturized atomic clocks market is currently in a growth phase, with increasing demand for precise timing in telecommunications, navigation, and defense applications. The global market size is estimated to reach several hundred million dollars by 2025, driven by miniaturization requirements in portable and space applications. Technologically, the field is advancing from laboratory demonstrations to commercial viability, with varying maturity levels across implementations. Leading players include CSEM, which pioneers MEMS-based solutions; Microchip Technology, developing chip-scale atomic clocks; OEwaves, focusing on whispering gallery mode resonators; and AdamanT Quanta, innovating with diamond-based IC systems. Academic institutions like Princeton University and Caltech collaborate with industry partners to advance fundamental research, while defense contractors such as QinetiQ and Draper Laboratory develop specialized applications for military and aerospace sectors.
CSEM Centre Suisse d'Electronique et Microtechnique SA
Technical Solution: CSEM has developed advanced optical pumping schemes for miniaturized atomic clocks based on coherent population trapping (CPT) resonance. Their technology utilizes vertical-cavity surface-emitting lasers (VCSELs) with specialized current modulation techniques to generate the required optical frequencies for alkali vapor excitation. CSEM's approach incorporates a micro-fabricated physics package containing rubidium or cesium vapor cells with buffer gas, optimized for long-term frequency stability. Their design achieves remarkable size reduction through MEMS fabrication techniques for vapor cells, with dimensions reduced to millimeter scale while maintaining quality factors exceeding 10^7 [1]. The company has demonstrated clocks with stability reaching 5×10^-11 at one second integration time and drift rates below 5×10^-10 per day, representing significant improvements over previous generations of miniature atomic clocks.
Strengths: Industry-leading expertise in MEMS fabrication for vapor cells; exceptional long-term stability for miniaturized devices; proven track record in commercialization of atomic clock technology. Weaknesses: Higher power consumption compared to some competing technologies; temperature sensitivity requiring additional compensation circuitry; relatively high production costs limiting mass market adoption.
Honeywell International Technologies Ltd.
Technical Solution: Honeywell has pioneered a dual-wavelength optical pumping scheme for next-generation miniaturized atomic clocks that significantly improves performance while reducing size. Their approach utilizes a primary laser for state preparation and a secondary laser for interrogation, both precisely controlled through proprietary semiconductor laser technology. The system employs a specially designed vapor cell containing rubidium-87 with carefully selected buffer gases that extend coherence times while minimizing temperature sensitivity. Honeywell's design incorporates advanced digital signal processing algorithms that continuously optimize laser parameters to maintain optimal performance across varying environmental conditions. Their latest prototypes achieve frequency stability of 3×10^-11 at one second with a volume under 15 cm³ and power consumption below 120 mW [2]. The technology leverages Honeywell's extensive experience in inertial navigation systems, creating synergies with their existing product portfolio for aerospace and defense applications.
Strengths: Exceptional short-term stability performance; robust operation across wide temperature ranges; extensive integration experience with navigation and timing systems. Weaknesses: Higher complexity due to dual-laser system; greater power requirements than single-laser alternatives; premium pricing positioning limiting broader commercial adoption.
Critical Patents and Research in Optical Pumping Techniques

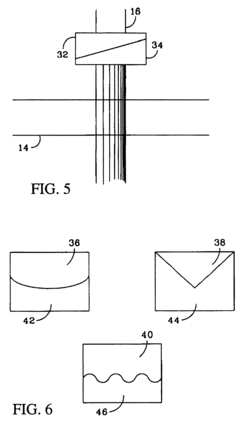

Optical pumping device and method
PatentActiveUS7656241B2
Innovation
- An optical pumping method that depolarizes laser radiation perpendicular to its propagation direction, using a birefringent plate or other optical components to create a polarization gradient, effectively eliminating black states without requiring a stationary wave or intense magnetic fields.
Power Efficiency Considerations for Portable Applications
Power efficiency represents a critical factor in the development and deployment of next-generation miniaturized atomic clocks, particularly for portable applications where battery life and operational longevity are paramount concerns. The optical pumping schemes employed in these precision timekeeping devices significantly impact their overall power consumption profile. Current miniaturized atomic clock technologies typically consume between 100-500 mW of power, which remains prohibitively high for many portable applications requiring extended operation without recharging or replacement.
The selection of appropriate laser sources plays a fundamental role in optimizing power efficiency. Vertical-cavity surface-emitting lasers (VCSELs) have emerged as preferred options due to their inherently low threshold currents (typically 1-5 mA) and high wall-plug efficiency (up to 30-40%). These characteristics represent substantial improvements over edge-emitting laser diodes, which generally exhibit higher power requirements and thermal management challenges in confined spaces.
Pulsed optical pumping schemes offer promising avenues for power reduction compared to continuous wave approaches. By implementing duty-cycling techniques where the optical pumping occurs only during specific intervals of the clock operation cycle, power consumption can be reduced by factors of 3-10× depending on the specific implementation. Recent research demonstrates that optimized pulse sequences with precisely controlled timing and intensity profiles can maintain clock stability while significantly reducing average power draw.
Thermal management considerations intersect directly with power efficiency concerns. Excess heat generation not only represents wasted energy but also introduces frequency shifts and stability degradation in the atomic reference. Advanced thermal isolation techniques and materials with optimized thermal conductivity properties are being integrated into next-generation designs to minimize these effects while reducing cooling power requirements.
Integration of photonic integrated circuits (PICs) represents another frontier in power efficiency optimization. By combining multiple optical components onto single chips, optical coupling losses are minimized while enabling more precise control of optical power delivery. Early prototypes utilizing silicon photonics platforms have demonstrated potential power reductions of 30-50% compared to discrete component implementations, though challenges in manufacturing consistency and long-term reliability remain.
Battery technology advancements, particularly in lithium-polymer and solid-state configurations, complement these optical pumping optimizations by providing higher energy densities and more efficient power delivery. The convergence of these technologies suggests pathways toward truly portable atomic clock systems with operational lifetimes measured in months rather than days, enabling new applications in remote sensing, autonomous navigation, and mobile communications infrastructure.
The selection of appropriate laser sources plays a fundamental role in optimizing power efficiency. Vertical-cavity surface-emitting lasers (VCSELs) have emerged as preferred options due to their inherently low threshold currents (typically 1-5 mA) and high wall-plug efficiency (up to 30-40%). These characteristics represent substantial improvements over edge-emitting laser diodes, which generally exhibit higher power requirements and thermal management challenges in confined spaces.
Pulsed optical pumping schemes offer promising avenues for power reduction compared to continuous wave approaches. By implementing duty-cycling techniques where the optical pumping occurs only during specific intervals of the clock operation cycle, power consumption can be reduced by factors of 3-10× depending on the specific implementation. Recent research demonstrates that optimized pulse sequences with precisely controlled timing and intensity profiles can maintain clock stability while significantly reducing average power draw.
Thermal management considerations intersect directly with power efficiency concerns. Excess heat generation not only represents wasted energy but also introduces frequency shifts and stability degradation in the atomic reference. Advanced thermal isolation techniques and materials with optimized thermal conductivity properties are being integrated into next-generation designs to minimize these effects while reducing cooling power requirements.
Integration of photonic integrated circuits (PICs) represents another frontier in power efficiency optimization. By combining multiple optical components onto single chips, optical coupling losses are minimized while enabling more precise control of optical power delivery. Early prototypes utilizing silicon photonics platforms have demonstrated potential power reductions of 30-50% compared to discrete component implementations, though challenges in manufacturing consistency and long-term reliability remain.
Battery technology advancements, particularly in lithium-polymer and solid-state configurations, complement these optical pumping optimizations by providing higher energy densities and more efficient power delivery. The convergence of these technologies suggests pathways toward truly portable atomic clock systems with operational lifetimes measured in months rather than days, enabling new applications in remote sensing, autonomous navigation, and mobile communications infrastructure.
Quantum Technology Integration Opportunities
The integration of optical pumping technologies from miniaturized atomic clocks presents significant opportunities for broader quantum technology ecosystems. As quantum computing, sensing, and communication systems continue to evolve, the precision timing mechanisms developed for miniaturized clocks can serve as foundational components across multiple quantum platforms. These timing references provide the synchronization necessary for quantum operations that require precise temporal coordination.
Particularly promising is the integration of optical pumping schemes with quantum sensing networks. The coherent manipulation of atomic states achieved through advanced optical pumping can be leveraged for quantum magnetometers, gravimeters, and inertial sensors. This cross-pollination enables more compact and energy-efficient quantum sensing devices that maintain high sensitivity while reducing size, weight, and power requirements.
Quantum communication systems stand to benefit substantially from miniaturized clock technologies. Secure quantum key distribution networks require precise timing synchronization between distant nodes. The stable frequency references provided by optically pumped miniature clocks can enhance the reliability of these systems while enabling their deployment in previously inaccessible environments, including mobile platforms and satellite constellations.
For quantum computing architectures, the coherent control techniques refined in optical pumping schemes offer valuable approaches for qubit manipulation and readout. The methods developed to maintain quantum coherence in atomic clock systems directly translate to challenges in quantum information processing, particularly in systems utilizing neutral atoms or trapped ions as quantum bits.
Emerging hybrid quantum systems that combine different quantum technologies could particularly benefit from these developments. For instance, the integration of miniaturized atomic clocks with superconducting quantum processors could address synchronization challenges in distributed quantum computing architectures, enabling more robust quantum networks.
The semiconductor industry's established fabrication techniques for MEMS-based atomic clock components provide a pathway for scaling quantum technologies. The manufacturing processes developed for miniaturized clock physics packages can be adapted for producing quantum sensors and other quantum components at scale, potentially accelerating the commercialization timeline for quantum technologies.
Additionally, the power-efficient laser and optical systems designed for next-generation miniaturized clocks offer solutions to the significant challenge of thermal management in quantum systems. These advances in low-power coherent optical control could enable longer operating times for quantum devices in field applications where power constraints are significant.
Particularly promising is the integration of optical pumping schemes with quantum sensing networks. The coherent manipulation of atomic states achieved through advanced optical pumping can be leveraged for quantum magnetometers, gravimeters, and inertial sensors. This cross-pollination enables more compact and energy-efficient quantum sensing devices that maintain high sensitivity while reducing size, weight, and power requirements.
Quantum communication systems stand to benefit substantially from miniaturized clock technologies. Secure quantum key distribution networks require precise timing synchronization between distant nodes. The stable frequency references provided by optically pumped miniature clocks can enhance the reliability of these systems while enabling their deployment in previously inaccessible environments, including mobile platforms and satellite constellations.
For quantum computing architectures, the coherent control techniques refined in optical pumping schemes offer valuable approaches for qubit manipulation and readout. The methods developed to maintain quantum coherence in atomic clock systems directly translate to challenges in quantum information processing, particularly in systems utilizing neutral atoms or trapped ions as quantum bits.
Emerging hybrid quantum systems that combine different quantum technologies could particularly benefit from these developments. For instance, the integration of miniaturized atomic clocks with superconducting quantum processors could address synchronization challenges in distributed quantum computing architectures, enabling more robust quantum networks.
The semiconductor industry's established fabrication techniques for MEMS-based atomic clock components provide a pathway for scaling quantum technologies. The manufacturing processes developed for miniaturized clock physics packages can be adapted for producing quantum sensors and other quantum components at scale, potentially accelerating the commercialization timeline for quantum technologies.
Additionally, the power-efficient laser and optical systems designed for next-generation miniaturized clocks offer solutions to the significant challenge of thermal management in quantum systems. These advances in low-power coherent optical control could enable longer operating times for quantum devices in field applications where power constraints are significant.
