Process Windows And Parameter Maps For Crack-Free Superalloy Printing

SEP 3, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

Superalloy Printing Background and Objectives

Superalloys represent a class of advanced materials engineered to maintain exceptional mechanical strength, thermal stability, and corrosion resistance at elevated temperatures. Historically, these materials have been pivotal in aerospace, power generation, and defense industries, with their development tracing back to the 1940s when the need for high-performance materials in jet engines became critical. The evolution of superalloys has been marked by continuous improvements in composition, processing techniques, and microstructural control to enhance their performance characteristics.

In recent years, additive manufacturing (AM) has emerged as a revolutionary approach for fabricating superalloy components, offering unprecedented design freedom, reduced material waste, and potential cost savings compared to traditional manufacturing methods. However, the printing of crack-free superalloy components remains one of the most significant challenges in the field, primarily due to the inherent susceptibility of these materials to hot cracking during rapid solidification processes typical in AM.

The technical objective of this research is to establish comprehensive process windows and parameter maps that enable consistent, crack-free printing of superalloy components. This involves systematically investigating the complex interrelationships between printing parameters (laser power, scan speed, hatch spacing, layer thickness), material properties, and resultant microstructural characteristics that influence crack formation and propagation.

Current technological trends indicate a growing emphasis on computational modeling approaches coupled with experimental validation to accelerate the development of optimized process parameters. Machine learning algorithms are increasingly being employed to predict suitable parameter combinations based on material composition and desired component properties, reducing the traditional trial-and-error approach that has dominated the field.

The ultimate goal is to develop a standardized methodology for determining optimal process parameters for various superalloy compositions, enabling reliable production of defect-free components with consistent mechanical properties. This would significantly expand the application scope of additively manufactured superalloy parts in critical industries where component failure is not an option.

Furthermore, this research aims to establish correlations between process parameters, resultant microstructures, and mechanical properties, creating a knowledge base that can inform future alloy development specifically tailored for additive manufacturing processes. Success in this endeavor would represent a paradigm shift in how high-performance components are designed and manufactured, potentially enabling new geometries and functionalities previously impossible with conventional manufacturing techniques.

Market Analysis for Crack-Free Superalloy Components

The global market for crack-free superalloy components is experiencing robust growth, driven primarily by increasing demand from aerospace, power generation, and automotive industries. Superalloys, with their exceptional high-temperature strength, corrosion resistance, and thermal stability, are critical materials for components operating in extreme environments. The market value for superalloy components reached approximately $7.2 billion in 2022 and is projected to grow at a compound annual growth rate of 8.3% through 2030.

Aerospace remains the dominant application sector, accounting for nearly 55% of the total market share. The continuous expansion of commercial aviation fleets and increasing defense spending worldwide are major growth drivers. Additionally, the power generation sector represents about 25% of the market, with gas turbines being the primary application. The automotive industry, particularly in high-performance and racing segments, constitutes around 12% of the market.

The demand for crack-free superalloy components manufactured through additive manufacturing (AM) is particularly noteworthy. This segment is growing at nearly twice the rate of traditionally manufactured superalloy components, reflecting the industry's shift toward more efficient, cost-effective production methods that enable complex geometries and reduced material waste.

Geographically, North America leads the market with approximately 38% share, followed by Europe (27%) and Asia-Pacific (25%). However, the Asia-Pacific region is experiencing the fastest growth rate, driven by China's expanding aerospace and energy sectors, as well as India's growing industrial base.

Customer requirements are increasingly focused on reliability, performance consistency, and cost efficiency. End-users are willing to pay premium prices for components that demonstrate superior crack resistance and extended service life, as these factors significantly reduce maintenance costs and downtime. Market research indicates that components with proven crack-free properties command price premiums of 15-30% compared to conventional alternatives.

The market is also witnessing a shift toward customized solutions, with manufacturers developing specific process parameters and material compositions tailored to particular applications. This trend is especially evident in the aerospace sector, where components must meet stringent certification requirements and operate reliably under extreme conditions.

Supply chain considerations are becoming increasingly important, with manufacturers seeking reliable sources of high-quality superalloy powders suitable for additive manufacturing. The recent global supply chain disruptions have highlighted the strategic importance of developing robust procurement strategies and potentially localizing critical aspects of the production process.

Technical Challenges in Superalloy Additive Manufacturing

Additive manufacturing (AM) of superalloys presents significant technical challenges that have hindered widespread industrial adoption despite the technology's immense potential. The primary obstacle lies in the inherent metallurgical properties of nickel-based and other superalloys, which make them prone to cracking during the rapid heating and cooling cycles characteristic of laser powder bed fusion (LPBF) and directed energy deposition (DED) processes.

The high thermal gradients generated during printing induce severe residual stresses that often exceed the material's yield strength, resulting in solidification cracking, liquation cracking, and strain-age cracking. These defects are particularly prevalent in gamma-prime strengthened superalloys such as Inconel 738, Mar-M247, and CM247LC, which are precisely the materials most desirable for high-temperature applications in aerospace and energy sectors.

Material composition plays a crucial role in crack susceptibility, with elements like titanium, aluminum, and carbon significantly influencing cracking behavior. The challenge is further complicated by the complex microstructural evolution during the printing process, including dendrite formation, segregation of alloying elements, and precipitation of secondary phases, all of which affect mechanical properties and crack resistance.

Process parameter optimization represents another major challenge. The processing window for crack-free printing of superalloys is exceptionally narrow, requiring precise control of laser power, scan speed, hatch spacing, and layer thickness. Even minor deviations from optimal parameters can lead to defect formation. This sensitivity necessitates extensive parameter mapping studies specific to each superalloy composition.

Build platform preheating has emerged as a critical factor in reducing thermal gradients and associated stresses. However, maintaining uniform high temperatures (often exceeding 500°C) throughout large build volumes presents significant engineering challenges for machine manufacturers and can lead to powder degradation over extended build times.

Post-processing treatments, including hot isostatic pressing (HIP) and heat treatments, are typically required to heal residual porosity and homogenize microstructures. However, these additional steps increase production costs and complexity, while still not fully addressing all crack-related issues in certain superalloy compositions.

The lack of standardized qualification procedures for additively manufactured superalloy components further complicates industrial adoption. The aerospace and energy sectors, which would benefit most from these materials, have stringent certification requirements that necessitate extensive testing and validation protocols that are still under development for AM superalloys.

Current Process Windows and Parameter Control Methods

  • 01 Composition modification for crack prevention

    Modifying the composition of superalloys can significantly reduce crack formation during printing. This includes adjusting the ratios of key elements like nickel, chromium, and cobalt, or adding specific elements such as hafnium, zirconium, or rare earth elements that improve grain boundary strength. These compositional adjustments help control solidification behavior and reduce thermal stresses that lead to cracking during the additive manufacturing process.
    • Composition modification for crack prevention: Modifying the composition of superalloys can significantly reduce cracking during printing processes. By adjusting the ratios of key elements or adding specific alloying elements, the material's susceptibility to hot cracking and stress-induced defects can be minimized. These modifications can improve grain boundary strength, reduce thermal stresses during solidification, and enhance overall printability while maintaining the superalloy's high-temperature performance characteristics.
    • Process parameter optimization: Optimizing process parameters is crucial for crack-free superalloy printing. This includes careful control of laser power, scanning speed, layer thickness, and build platform temperature. By developing specific parameter sets tailored to different superalloy compositions, thermal gradients can be managed to minimize residual stresses that lead to cracking. Preheating strategies and controlled cooling rates further contribute to crack prevention by reducing thermal shock during the printing process.
    • Post-processing treatments: Various post-processing treatments can effectively eliminate or heal cracks in printed superalloy components. Hot isostatic pressing (HIP) can close internal voids and heal microcracks by applying high temperature and pressure simultaneously. Heat treatment protocols specifically designed for additively manufactured superalloys can relieve residual stresses and optimize microstructure. Additional techniques such as solution treatment and aging can further enhance mechanical properties while ensuring crack-free components.
    • Advanced printing strategies and path planning: Implementing advanced printing strategies and sophisticated path planning can significantly reduce crack formation in superalloy components. Techniques such as island scanning, checkerboard patterns, and rotational scanning strategies help distribute thermal stresses more evenly throughout the build. Multi-laser approaches with optimized overlap regions and specialized border/contour strategies can improve edge quality and reduce crack initiation sites. Adaptive process control systems that modify parameters in real-time based on thermal monitoring further enhance crack prevention capabilities.
    • Substrate and support structure design: Proper design of substrates and support structures plays a critical role in preventing cracks during superalloy printing. Engineered build plates with controlled thermal properties can manage heat dissipation and reduce thermal gradients. Specialized support structures that accommodate thermal expansion while providing adequate mechanical support help minimize distortion and cracking. Gradual transition zones between supports and parts, along with strategic support placement based on thermal simulation, further enhance build success rates for crack-sensitive superalloys.
  • 02 Process parameter optimization

    Optimizing process parameters is crucial for crack-free superalloy printing. This includes controlling laser power, scanning speed, layer thickness, and hatch spacing. Proper heat input management through preheating the build platform and implementing specific scanning strategies can minimize thermal gradients and residual stresses. Carefully calibrated parameters create more uniform solidification conditions that prevent crack initiation and propagation during the printing process.
    Expand Specific Solutions
  • 03 Post-processing treatments

    Various post-processing treatments can eliminate or heal cracks in printed superalloy components. Hot isostatic pressing (HIP) applies high temperature and pressure to close internal voids and heal microcracks. Heat treatments like solution annealing and aging can relieve residual stresses and optimize microstructure. Additional techniques such as shot peening or laser shock peening can introduce compressive stresses at the surface to prevent crack propagation.
    Expand Specific Solutions
  • 04 Microstructure control techniques

    Controlling the microstructure during superalloy printing is essential for crack prevention. This involves techniques to manage grain size, orientation, and boundary characteristics. Methods include seeding with inoculants, implementing specific cooling strategies, and controlling solidification rates. Advanced approaches like epitaxial growth techniques and grain boundary engineering can create more crack-resistant structures by promoting favorable grain orientations and boundary properties.
    Expand Specific Solutions
  • 05 Hybrid and novel manufacturing approaches

    Hybrid and novel manufacturing approaches combine different techniques to achieve crack-free superalloy components. These include combining additive manufacturing with traditional processes like forging or machining, implementing in-situ monitoring and feedback control systems, and developing specialized printing environments with controlled atmospheres. Some approaches use auxiliary heating sources or incorporate interlayer processing steps to manage thermal history and reduce crack formation.
    Expand Specific Solutions

Leading Companies and Research Institutions in Superalloy AM

The superalloy additive manufacturing market is in a growth phase, characterized by increasing adoption across aerospace, energy, and industrial sectors. The market size is expanding rapidly, driven by demand for high-performance components in extreme environments. Technologically, the field is advancing from experimental to commercial maturity, with significant progress in process parameter optimization for crack-free printing. Leading players include established industrial giants like Siemens Energy, United Technologies, and Honeywell International, alongside specialized research institutions such as Central South University and HRL Laboratories. Academic-industrial collaborations are accelerating technological development, with companies like Gaona Aero Material and Proterial Ltd. focusing on material innovations. The competitive landscape shows regional clusters of expertise in North America, Europe, and Asia, with each developing proprietary approaches to overcome the technical challenges of superalloy printing.

Siemens Energy AG

Technical Solution: Siemens Energy has developed a sophisticated process window mapping technology for crack-free superalloy printing specifically tailored for energy sector applications like gas turbine components. Their approach employs a combination of high-fidelity simulation and experimental validation to establish robust processing parameters for nickel and cobalt-based superalloys. Siemens' methodology incorporates multi-physics modeling that accounts for thermal gradients, solidification rates, and mechanical constraints during the printing process. Their parameter maps are geometry-adaptive, automatically adjusting laser parameters based on feature thickness, orientation, and thermal mass to prevent crack formation. Siemens has implemented an innovative pre-heating strategy that creates controlled temperature gradients across the build plate, significantly reducing thermal stresses in large superalloy components. Their technology includes specialized scan strategies that modify laser parameters at critical locations such as thin-to-thick transitions where crack susceptibility is highest. Siemens has successfully demonstrated this approach in production environments, achieving consistent quality in complex superalloy components with internal cooling channels and variable wall thicknesses.
Strengths: Highly optimized for large industrial components with complex geometries; proven implementation in production environments for critical energy applications. Weaknesses: Their approach may require sophisticated thermal management systems not standard in all AM platforms; the geometry-adaptive parameters could increase computational overhead during build preparation.

Institute of Mechanics, Chinese Academy of Sciences

Technical Solution: The Institute of Mechanics at the Chinese Academy of Sciences has developed an innovative process window mapping methodology for crack-free superalloy printing based on fundamental understanding of solidification mechanics and thermal stress evolution. Their approach combines high-resolution in-situ monitoring with multi-scale modeling to establish precise correlations between processing parameters and microstructural development in superalloys. The Institute has pioneered a novel thermal gradient control technique that manipulates heat flow directions during solidification to minimize crack-inducing stresses. Their parameter maps incorporate grain orientation control strategies that promote epitaxial grain growth in preferred crystallographic directions, significantly enhancing crack resistance in directionally solidified structures. The Institute's technology employs adaptive feedback control systems that continuously adjust laser parameters based on thermal measurements, maintaining optimal conditions throughout the build process even as thermal boundary conditions change. They have successfully demonstrated crack-free printing of gamma-prime strengthened superalloys by implementing specialized interlayer dwell times that allow for partial stress relaxation between successive layers.
Strengths: Strong foundation in fundamental materials science principles; sophisticated thermal gradient control techniques enable printing of highly crack-sensitive compositions. Weaknesses: Their approach may require specialized hardware modifications to implement the thermal gradient control features; the adaptive feedback systems demand significant computational resources during printing operations.

Critical Patents and Research on Crack Mitigation Strategies

Method for preventing cracking of nickel-based superalloy fabricated by selective laser melting
PatentActiveUS20220062995A1
Innovation
  • Reducing the content of elements Zr and B, adjusting the total content of (Ti+Al) to 4.5 wt% or below, and controlling specific SLM process parameters such as substrate heating temperature, laser power, scanning speed, and scanning strategy to minimize thermal stress and prevent the formation of low melting point phases that contribute to cracking.

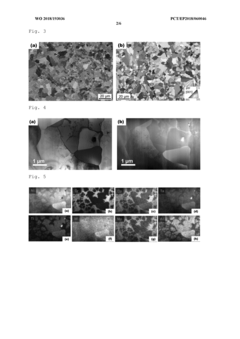

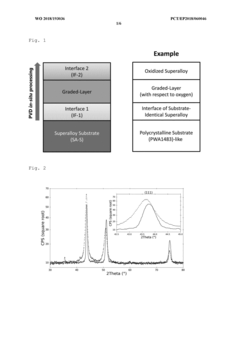

Superalloy sputtering target
PatentWO2018193036A1
Innovation
  • A method involving the use of a superalloy sputtering target with a powder metallurgical production process, specifically spark plasma sintering, to create a bond coat with a graded oxygen content through vacuum arc deposition, comprising an interface layer, transition layer, and barrier layer, where the target's composition matches the superalloy, allowing for in-situ oxide formation and improved adhesion and oxidation resistance.

Material-Process Interaction and Microstructure Development

The interaction between superalloy materials and additive manufacturing processes fundamentally determines the microstructural development and resultant mechanical properties of printed components. Nickel-based superalloys, while offering exceptional high-temperature strength and corrosion resistance, present significant challenges during laser powder bed fusion (LPBF) due to their susceptibility to cracking mechanisms, particularly solidification cracking and strain-age cracking.

During the rapid solidification characteristic of LPBF processes, the material undergoes extreme thermal gradients exceeding 10^6 K/m and cooling rates of 10^3-10^6 K/s. These conditions significantly deviate from conventional casting processes, resulting in unique microstructural features. The primary dendritic structure forms along the build direction, with cellular/dendritic substructures developing perpendicular to the solidification front.

The elemental segregation patterns observed in additively manufactured superalloys differ substantially from conventionally processed counterparts. High cooling rates lead to limited diffusion time, resulting in more pronounced microsegregation of elements like Al, Ti, and Nb at interdendritic regions. This segregation creates localized compositional variations that can promote the formation of brittle phases and increase susceptibility to hot cracking.

Grain boundary characteristics play a crucial role in crack formation and propagation. The process parameters directly influence grain boundary morphology, with higher energy densities typically promoting columnar grain structures aligned with the build direction. These columnar boundaries often become preferential paths for crack propagation when thermal stresses exceed material strength during solidification.

The precipitation behavior of strengthening phases (γ', γ", carbides) is also significantly affected by the thermal history imposed by the printing process. The rapid cooling inhibits the formation of equilibrium precipitates, instead producing supersaturated solid solutions or metastable phases. Subsequent thermal cycles from the deposition of new layers can induce complex precipitation sequences that differ layer by layer.

Residual stress development during processing represents another critical aspect of material-process interaction. The thermal gradient mechanism generates significant tensile stresses in the upper layers of the build, which can exceed the material's yield strength at elevated temperatures, initiating cracks that propagate along weakened microstructural features such as grain boundaries or interdendritic regions.

Understanding these complex interactions enables the development of process parameter maps that correlate laser power, scan speed, hatch spacing, and layer thickness with resulting microstructural features and defect formation tendencies. These maps serve as essential tools for identifying processing windows that minimize crack formation while maintaining desired microstructural characteristics for optimal mechanical performance.

Quality Assurance and In-situ Monitoring Systems

Quality assurance and in-situ monitoring systems represent critical components in achieving crack-free superalloy printing processes. The complexity of superalloy additive manufacturing necessitates sophisticated real-time monitoring capabilities to ensure consistent quality and prevent defect formation, particularly cracks that can compromise structural integrity.

Current state-of-the-art monitoring systems employ multiple sensor technologies working in concert to provide comprehensive process oversight. Thermal imaging cameras capture temperature distributions and cooling rates across the build surface, enabling detection of thermal gradients that often precede crack formation. These systems typically operate at sampling rates of 100-1000 Hz with thermal resolution capabilities of ±5°C, allowing for precise identification of process deviations.

High-speed cameras synchronized with laser scanning patterns provide visual confirmation of melt pool dynamics and powder distribution, while acoustic sensors detect anomalous sounds that may indicate material stress or defect formation. The integration of these data streams through advanced machine learning algorithms enables real-time process adjustments to maintain parameters within the established process windows.

Recent developments have focused on closed-loop control systems that automatically adjust laser power, scan speed, and pattern based on sensor feedback. These systems have demonstrated up to 60% reduction in defect formation compared to open-loop processes in nickel-based superalloys like Inconel 718 and Hastelloy X. Particularly promising are systems utilizing spectroscopic analysis of the plasma plume, which can detect compositional variations indicative of potential microstructural issues.

Digital twin implementations represent another significant advancement, where virtual models of the printing process run parallel to physical builds, predicting outcomes and suggesting parameter adjustments before defects manifest. These systems have shown particular value in identifying parameter drift during long build processes, where thermal accumulation can gradually push conditions outside optimal process windows.

Post-process verification remains essential, with computed tomography (CT) scanning serving as the gold standard for internal defect detection. However, the integration of in-situ monitoring with machine learning has enabled predictive quality assurance models that can identify builds requiring additional inspection with over 85% accuracy, significantly reducing quality control costs while maintaining reliability.

The economic impact of these monitoring systems is substantial, with implementation costs typically offset by reductions in material waste and post-processing requirements. Industry leaders report 30-40% decreases in rejection rates following implementation of comprehensive monitoring solutions, particularly for high-value aerospace and medical components.
