Radiation Hardening Considerations For Spaceborne CSAC Deployments

Radiation hardening represents a critical consideration in space technology development, evolving significantly since the early days of space exploration. The space environment presents unique challenges due to various radiation types including galactic cosmic rays, solar particle events, and trapped radiation in Earth's magnetosphere. These radiation sources can cause single event effects (SEEs), total ionizing dose (TID) damage, and displacement damage in electronic components, potentially leading to system failures in space missions.

The evolution of radiation hardening techniques has progressed through several distinct phases. Initially, radiation tolerance relied heavily on shielding and component overdesign. This evolved into purpose-built radiation-hardened components in the 1970s and 1980s, followed by radiation-hardened-by-design (RHBD) methodologies in the 1990s and 2000s. The current trend emphasizes commercial off-the-shelf (COTS) components with selective hardening techniques, balancing performance with radiation tolerance.

For Chip-Scale Atomic Clocks (CSACs) in space applications, radiation hardening presents unique challenges due to their complex integration of quantum physics and microelectronics. CSACs provide precise timing crucial for satellite navigation, communication, and scientific missions, but their miniaturized nature makes them potentially vulnerable to radiation effects that could compromise timing accuracy and reliability.

The primary objective of radiation hardening for spaceborne CSACs is to ensure timing stability and operational reliability throughout the mission lifetime while maintaining the advantages of their compact form factor. This requires addressing both the physics package (containing the atomic resonance cell) and the control electronics that may be susceptible to different radiation effects.

Specific technical goals include developing CSACs capable of withstanding cumulative radiation doses typical of medium to long-duration space missions (10-100 krad), minimizing susceptibility to single event upsets that could cause frequency jumps, and ensuring stable operation across the temperature fluctuations experienced in space environments. Additionally, there is a focus on maintaining low power consumption despite added radiation protection measures, as power remains a precious resource in spacecraft design.

The advancement of radiation-hardened CSACs aligns with broader trends in space technology miniaturization and the growing demand for precise timing in distributed satellite systems, particularly in low Earth orbit constellations where traditional atomic clock technologies would be prohibitively large and expensive.

The space industry has witnessed a significant surge in demand for radiation-hardened Chip-Scale Atomic Clocks (CSACs) over the past decade. This demand is primarily driven by the exponential growth in satellite deployments, particularly in Low Earth Orbit (LEO) constellations, which require precise timing mechanisms that can withstand the harsh radiation environment of space.

Commercial space companies like SpaceX, OneWeb, and Amazon's Project Kuiper are deploying thousands of satellites, creating substantial market demand for radiation-hardened timing solutions. The global market for space-grade atomic clocks is projected to grow at a compound annual growth rate of 8.2% through 2030, with radiation-hardened CSACs representing an increasingly important segment.

Defense and government space agencies constitute another major demand driver. Organizations such as NASA, ESA, JAXA, and various defense departments require ultra-reliable timing systems for mission-critical applications including navigation, secure communications, and Earth observation. These agencies typically demand the highest radiation tolerance specifications, creating a premium market segment.

Scientific missions to deep space and planetary exploration represent a specialized but growing market for radiation-hardened CSACs. These missions face extreme radiation environments and require timing systems that can maintain stability over many years without the possibility of replacement or servicing.

The emerging space-based quantum communications sector is creating new demand for radiation-hardened precise timing sources. Quantum key distribution and other quantum technologies rely on exceptionally accurate synchronization, making radiation-hardened CSACs essential components in these advanced systems.

Market analysis indicates that customers are increasingly demanding smaller form factors with lower power consumption while maintaining radiation tolerance. This trend is particularly evident in the small satellite (CubeSat) market, where size, weight, and power constraints are severe, yet radiation concerns remain significant.

The industry is also witnessing growing demand for radiation-hardened CSACs with improved performance specifications, particularly regarding frequency stability under radiation exposure. Applications in deep space navigation and inter-satellite links require timing precision at levels previously unattainable in radiation-hardened devices.

Regional market analysis shows that North America currently dominates demand, followed by Europe and Asia. However, emerging space programs in countries like India, UAE, and Brazil are creating new market opportunities and diversifying the customer base for radiation-hardened timing solutions.

The deployment of Chip-Scale Atomic Clocks (CSACs) in space environments presents significant radiation hardening challenges that must be addressed to ensure reliable operation. Space radiation consists of various particles including galactic cosmic rays, solar particles, and trapped radiation in Earth's magnetosphere, all of which can severely impact the performance and longevity of CSAC systems.

Single Event Effects (SEEs) represent one of the most critical challenges for spaceborne CSACs. These include Single Event Upsets (SEUs) that can alter memory states, Single Event Transients (SETs) that create temporary voltage spikes, and potentially catastrophic Single Event Latchups (SELs) that may trigger parasitic structures leading to device failure. The miniaturized nature of CSACs makes them particularly vulnerable to these effects due to their reduced critical charge threshold.

Total Ionizing Dose (TID) effects constitute another major concern, as accumulated radiation exposure gradually degrades semiconductor properties within the CSAC. This degradation manifests as threshold voltage shifts, increased leakage currents, and timing parameter variations that can compromise the clock's precision and stability—the very attributes that make CSACs valuable for space applications.

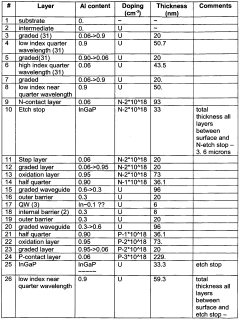

Displacement Damage (DD) caused by non-ionizing energy loss presents additional complications, particularly affecting the semiconductor laser diodes essential to CSAC operation. The resulting lattice defects can alter optical properties and accelerate aging processes, directly impacting the clock's frequency stability and power consumption characteristics.

Temperature fluctuations in space environments exacerbate radiation effects through complex interaction mechanisms. The extreme thermal cycling experienced in orbit can accelerate radiation-induced degradation and create unpredictable failure modes that are difficult to model in terrestrial testing environments.

Current radiation hardening approaches for CSACs face significant trade-offs. Traditional Radiation-Hardened-By-Process (RHBP) techniques often result in larger components that contradict the fundamental "chip-scale" advantage. Meanwhile, Radiation-Hardened-By-Design (RHBD) approaches like triple modular redundancy increase power consumption—a critical constraint for space systems with limited power budgets.

The miniaturization that defines CSACs creates unique shielding challenges, as conventional radiation shields add prohibitive mass and volume. Innovative approaches using advanced composite materials show promise but remain in early development stages and lack extensive flight heritage.

Testing and qualification present further complications, as accelerated radiation testing may not accurately represent the complex radiation environment of space. The limited statistical basis for radiation effects in the relatively new CSAC technology creates uncertainty in reliability predictions for long-duration missions, particularly beyond Low Earth Orbit where radiation exposure intensifies significantly.

The radiation hardening landscape for spaceborne CSAC deployments is evolving through a competitive ecosystem spanning research institutions, aerospace giants, and specialized technology firms. Currently in the growth phase, this market is expanding as space applications proliferate, though precise market size remains limited to specialized defense and scientific applications. Technical maturity varies significantly among key players: NASA, Boeing, and Lockheed Martin lead with established radiation-hardened technologies, while research institutions like Harbin Institute of Technology, Xidian University, and Naval Research Laboratory drive fundamental innovation. Companies such as BAE Systems and Honeywell have developed intermediate solutions, creating a tiered competitive landscape where collaboration between academic research and industrial implementation defines advancement pathways in this highly specialized field.

Space qualification standards for timing devices, particularly for Chip-Scale Atomic Clocks (CSACs) deployed in space environments, require rigorous compliance with established protocols to ensure reliable operation under extreme conditions. The primary standards governing these devices include MIL-STD-883 for microelectronic testing, NASA's GSFC-STD-7000 for general environmental verification, and the European Space Agency's ECSS-Q-ST-60C for electrical component qualification.

These standards mandate comprehensive testing regimes that evaluate timing devices against radiation effects, thermal cycling, vacuum conditions, and mechanical stresses. For CSACs specifically, the IEEE 1193-2011 standard provides guidelines for frequency stability measurements, while MIL-PRF-55310 outlines performance specifications for crystal oscillators that often complement atomic clock systems.

Radiation testing requirements are particularly stringent, with devices typically subjected to Total Ionizing Dose (TID) testing up to 100 krad(Si) or higher depending on mission profile. Single Event Effects (SEE) testing must demonstrate resilience against latchup, upset, and functional interrupts at Linear Energy Transfer (LET) thresholds appropriate for the intended orbit.

Temperature qualification ranges from -55°C to +125°C for most space-grade components, with additional requirements for thermal cycling and thermal vacuum testing to simulate the space environment. Mechanical qualification includes random vibration testing typically between 20-2000 Hz and shock testing up to 10,000 g to simulate launch conditions.

The qualification process also demands extensive documentation, including Radiation Hardness Assurance (RHA) plans, Parts Materials and Processes (PMP) control procedures, and Failure Modes and Effects Analysis (FMEA). For CSACs, additional documentation regarding frequency stability under radiation exposure and long-term drift characteristics is essential.

Manufacturers must implement rigorous lot acceptance testing and screening procedures, including burn-in testing typically conducted at 125°C for 168 hours or more. Non-destructive bond pull tests and internal visual inspections are required before hermetic sealing, with subsequent hermeticity testing to MIL-STD-883 Method 1014 standards.

Recent updates to these standards have begun addressing the unique challenges posed by miniaturized atomic clock technologies, with specialized protocols emerging for evaluating the radiation sensitivity of alkali vapor cells and associated MEMS components that form the core of modern CSACs.

Reliability testing for spaceborne Chip-Scale Atomic Clocks (CSACs) requires comprehensive methodologies that address the unique challenges of the space environment. These methodologies must evaluate performance under radiation exposure, temperature extremes, vacuum conditions, and mechanical stresses encountered during launch and orbital operations.

Standard reliability testing begins with pre-radiation characterization to establish baseline performance metrics. This includes frequency stability measurements across different integration times (short-term and long-term), power consumption analysis, warm-up time evaluation, and phase noise assessment. These parameters serve as reference points for post-radiation comparative analysis.

Radiation testing protocols typically follow MIL-STD-883 Method 1019 for Total Ionizing Dose (TID) effects and ASTM F1192 for Single Event Effects (SEE). CSACs undergo step-stress radiation exposure with incremental dosage levels ranging from 5 krad(Si) to 100 krad(Si) or higher, depending on mission requirements. Performance parameters are monitored in real-time during irradiation when possible, or measured at each dosage step.

Temperature cycling tests must simulate the thermal environment of space missions, with typical ranges from -40°C to +85°C. Extended dwell times at temperature extremes (4-8 hours) are essential to evaluate frequency drift and aging characteristics under thermal stress. Vacuum thermal cycling further replicates the space environment by combining temperature variations with pressures below 10^-5 Torr.

Mechanical reliability testing includes random vibration testing (20-2000 Hz), shock testing (up to 2000g), and constant acceleration testing. These tests verify the robustness of internal CSAC components, particularly the MEMS cell and optical elements that are susceptible to mechanical damage.

Long-term aging tests spanning 1000+ hours help characterize frequency drift over time, which is critical for mission lifetime predictions. These tests are conducted under controlled environmental conditions with continuous monitoring of frequency stability.

Statistical analysis methods such as Weibull distribution modeling and Accelerated Life Testing (ALT) are employed to predict failure rates and establish Mean Time Between Failures (MTBF) metrics. This data informs mission reliability calculations and maintenance scheduling for constellation deployments.

Standardized reporting formats document test conditions, measurement uncertainties, and performance degradation thresholds. These reports typically include Allan Deviation plots, frequency offset data, and power stability measurements that provide comprehensive performance characterization under radiation and environmental stresses.
