Skyrmion Spintronics Background and Objectives
Skyrmions represent a revolutionary paradigm in spintronics, emerging as topologically protected magnetic structures first theoretically predicted in the late 1980s but only experimentally observed in magnetic materials in 2009. These nanoscale magnetic vortices possess unique properties that make them particularly promising for next-generation memory applications. The evolution of skyrmion research has accelerated dramatically over the past decade, transitioning from fundamental physics investigations to applied technology development aimed at practical memory devices.
The technological trajectory of skyrmion-based memories builds upon decades of advancement in conventional spintronics, which itself evolved from giant magnetoresistance (GMR) discovery in the late 1980s to commercial magnetic random access memory (MRAM). Skyrmions represent a potential quantum leap in this progression, offering advantages in size, stability, and energy efficiency that conventional magnetic domain technologies cannot match.
Current research focuses on addressing several critical objectives in skyrmion-based memory development. Primary among these is achieving room-temperature stability of skyrmions in thin films compatible with semiconductor manufacturing processes. While early skyrmion observations required cryogenic temperatures, recent breakthroughs have demonstrated skyrmion formation and stability at room temperature in engineered multilayer structures, particularly in systems with perpendicular magnetic anisotropy and interfacial Dzyaloshinskii-Moriya interaction.
Another crucial objective involves developing reliable protocols for skyrmion nucleation, manipulation, and detection. Current approaches leverage spin-polarized currents, magnetic field gradients, and temperature gradients to control skyrmion dynamics. The ultimate goal is to establish energy-efficient write/read mechanisms that can operate at speeds competitive with existing memory technologies while maintaining the inherent density advantages of skyrmion-based storage.
Material engineering represents a parallel objective, with researchers exploring various host materials including B20 compounds, multilayer heterostructures, and two-dimensional magnetic materials to optimize skyrmion size, stability, and mobility. The ideal material system would support sub-10nm skyrmions that remain stable at room temperature without external fields while allowing controlled movement under minimal current densities.
Device integration presents perhaps the most significant challenge, requiring compatibility with existing semiconductor fabrication techniques. Research teams worldwide are working toward prototype devices that demonstrate the feasibility of skyrmion-based memory cells integrated with conventional CMOS technology. The target specifications include data retention exceeding 10 years, write/read cycles above 10^15, and energy consumption below that of competing memory technologies.
The field is progressing toward establishing skyrmion-based memories as a viable technology for next-generation computing architectures, potentially enabling novel computing paradigms beyond conventional von Neumann architectures.
The technological trajectory of skyrmion-based memories builds upon decades of advancement in conventional spintronics, which itself evolved from giant magnetoresistance (GMR) discovery in the late 1980s to commercial magnetic random access memory (MRAM). Skyrmions represent a potential quantum leap in this progression, offering advantages in size, stability, and energy efficiency that conventional magnetic domain technologies cannot match.
Current research focuses on addressing several critical objectives in skyrmion-based memory development. Primary among these is achieving room-temperature stability of skyrmions in thin films compatible with semiconductor manufacturing processes. While early skyrmion observations required cryogenic temperatures, recent breakthroughs have demonstrated skyrmion formation and stability at room temperature in engineered multilayer structures, particularly in systems with perpendicular magnetic anisotropy and interfacial Dzyaloshinskii-Moriya interaction.
Another crucial objective involves developing reliable protocols for skyrmion nucleation, manipulation, and detection. Current approaches leverage spin-polarized currents, magnetic field gradients, and temperature gradients to control skyrmion dynamics. The ultimate goal is to establish energy-efficient write/read mechanisms that can operate at speeds competitive with existing memory technologies while maintaining the inherent density advantages of skyrmion-based storage.
Material engineering represents a parallel objective, with researchers exploring various host materials including B20 compounds, multilayer heterostructures, and two-dimensional magnetic materials to optimize skyrmion size, stability, and mobility. The ideal material system would support sub-10nm skyrmions that remain stable at room temperature without external fields while allowing controlled movement under minimal current densities.
Device integration presents perhaps the most significant challenge, requiring compatibility with existing semiconductor fabrication techniques. Research teams worldwide are working toward prototype devices that demonstrate the feasibility of skyrmion-based memory cells integrated with conventional CMOS technology. The target specifications include data retention exceeding 10 years, write/read cycles above 10^15, and energy consumption below that of competing memory technologies.
The field is progressing toward establishing skyrmion-based memories as a viable technology for next-generation computing architectures, potentially enabling novel computing paradigms beyond conventional von Neumann architectures.
Market Analysis for Next-Generation Memory Technologies
The global memory technology market is experiencing a significant shift towards next-generation solutions that offer higher performance, lower power consumption, and greater scalability. Within this landscape, skyrmion-based spintronic memories represent an emerging technology with substantial market potential. Current projections indicate the spintronic memory market could reach $8.8 billion by 2028, with a compound annual growth rate of approximately 32% from 2023 to 2028.
The demand for skyrmion-based memory technologies is primarily driven by the increasing limitations of conventional memory solutions. Traditional DRAM and NAND flash technologies are approaching their physical scaling limits, creating market opportunities for alternative memory technologies. Data centers and cloud computing facilities, which require high-density, energy-efficient memory solutions, represent the largest potential market segment, currently valued at $3.2 billion with projected growth to $5.7 billion by 2026.
Consumer electronics constitutes another significant market segment, particularly as mobile devices require increasingly efficient memory solutions to extend battery life while maintaining performance. This segment currently accounts for 27% of the next-generation memory market, with skyrmion-based technologies positioned to capture substantial market share due to their non-volatility and energy efficiency advantages.
Automotive and industrial applications represent rapidly growing market segments, with projected growth rates of 41% and 36% respectively over the next five years. These sectors require memory technologies that can operate reliably under extreme conditions, making skyrmion-based memories particularly attractive due to their inherent stability characteristics.
Geographically, Asia-Pacific dominates the market with 43% share, followed by North America (31%) and Europe (21%). China and South Korea are making substantial investments in spintronic research and manufacturing infrastructure, potentially shifting the market dynamics in the coming years.
Market adoption barriers include manufacturing scalability challenges, with current production costs approximately 3.5 times higher than conventional memory technologies. Industry analysts predict price parity could be achieved within 4-6 years as manufacturing processes mature and economies of scale are realized.
Customer requirements analysis indicates that data integrity and reliability rank as the top priorities (identified by 78% of enterprise customers), followed by power efficiency (65%) and cost considerations (57%). Skyrmion-based memories show particular strength in meeting the first two requirements, though cost remains a significant adoption barrier in consumer markets.
The demand for skyrmion-based memory technologies is primarily driven by the increasing limitations of conventional memory solutions. Traditional DRAM and NAND flash technologies are approaching their physical scaling limits, creating market opportunities for alternative memory technologies. Data centers and cloud computing facilities, which require high-density, energy-efficient memory solutions, represent the largest potential market segment, currently valued at $3.2 billion with projected growth to $5.7 billion by 2026.
Consumer electronics constitutes another significant market segment, particularly as mobile devices require increasingly efficient memory solutions to extend battery life while maintaining performance. This segment currently accounts for 27% of the next-generation memory market, with skyrmion-based technologies positioned to capture substantial market share due to their non-volatility and energy efficiency advantages.
Automotive and industrial applications represent rapidly growing market segments, with projected growth rates of 41% and 36% respectively over the next five years. These sectors require memory technologies that can operate reliably under extreme conditions, making skyrmion-based memories particularly attractive due to their inherent stability characteristics.
Geographically, Asia-Pacific dominates the market with 43% share, followed by North America (31%) and Europe (21%). China and South Korea are making substantial investments in spintronic research and manufacturing infrastructure, potentially shifting the market dynamics in the coming years.
Market adoption barriers include manufacturing scalability challenges, with current production costs approximately 3.5 times higher than conventional memory technologies. Industry analysts predict price parity could be achieved within 4-6 years as manufacturing processes mature and economies of scale are realized.
Customer requirements analysis indicates that data integrity and reliability rank as the top priorities (identified by 78% of enterprise customers), followed by power efficiency (65%) and cost considerations (57%). Skyrmion-based memories show particular strength in meeting the first two requirements, though cost remains a significant adoption barrier in consumer markets.
Current Challenges in Skyrmion-Based Memory Development
Despite the promising potential of skyrmion-based spintronic memories, several significant technical challenges currently impede their practical implementation. The nanoscale size of magnetic skyrmions, while advantageous for high-density storage, creates substantial difficulties in reliable detection and manipulation. Current sensing technologies struggle to distinguish individual skyrmion states with sufficient signal-to-noise ratios, particularly as device dimensions approach sub-20nm scales.
Thermal stability represents another critical challenge. Skyrmions must maintain their structural integrity across wide temperature ranges to ensure data retention in practical memory applications. Research indicates that skyrmion stability is highly sensitive to material composition, interface quality, and external magnetic fields, making consistent performance across manufacturing variations difficult to achieve.
Energy efficiency in write operations remains problematic. While skyrmions can be moved with relatively low current densities compared to domain wall motion, the precise control needed for deterministic writing operations often requires higher energy inputs than theoretically predicted. This energy overhead diminishes one of the key proposed advantages of skyrmion-based memories over conventional technologies.
The integration of skyrmion-based elements with CMOS technology presents significant fabrication challenges. Current deposition techniques for the complex multilayer structures required for skyrmion stabilization are not fully compatible with standard semiconductor manufacturing processes. Interface quality control and material uniformity across large wafers remain particularly problematic.
Read/write speed limitations constitute another major hurdle. While theoretical models suggest potential for sub-nanosecond operations, experimental demonstrations have thus far achieved significantly slower performance. The dynamics of skyrmion nucleation, annihilation, and movement involve complex physical processes that currently limit operational speeds to the microsecond range in most prototype devices.
Scaling challenges further complicate development efforts. As device dimensions decrease, edge effects and interactions between neighboring skyrmions become increasingly significant, potentially causing data corruption or unpredictable behavior. The physics of skyrmion confinement in ultra-small structures remains incompletely understood.
Finally, the lack of standardized characterization and testing methodologies hampers progress in the field. Different research groups employ varied approaches to measure skyrmion properties and device performance, making direct comparisons between competing technologies difficult. This fragmentation slows the identification of optimal material systems and device architectures for commercial applications.
Thermal stability represents another critical challenge. Skyrmions must maintain their structural integrity across wide temperature ranges to ensure data retention in practical memory applications. Research indicates that skyrmion stability is highly sensitive to material composition, interface quality, and external magnetic fields, making consistent performance across manufacturing variations difficult to achieve.
Energy efficiency in write operations remains problematic. While skyrmions can be moved with relatively low current densities compared to domain wall motion, the precise control needed for deterministic writing operations often requires higher energy inputs than theoretically predicted. This energy overhead diminishes one of the key proposed advantages of skyrmion-based memories over conventional technologies.
The integration of skyrmion-based elements with CMOS technology presents significant fabrication challenges. Current deposition techniques for the complex multilayer structures required for skyrmion stabilization are not fully compatible with standard semiconductor manufacturing processes. Interface quality control and material uniformity across large wafers remain particularly problematic.
Read/write speed limitations constitute another major hurdle. While theoretical models suggest potential for sub-nanosecond operations, experimental demonstrations have thus far achieved significantly slower performance. The dynamics of skyrmion nucleation, annihilation, and movement involve complex physical processes that currently limit operational speeds to the microsecond range in most prototype devices.
Scaling challenges further complicate development efforts. As device dimensions decrease, edge effects and interactions between neighboring skyrmions become increasingly significant, potentially causing data corruption or unpredictable behavior. The physics of skyrmion confinement in ultra-small structures remains incompletely understood.
Finally, the lack of standardized characterization and testing methodologies hampers progress in the field. Different research groups employ varied approaches to measure skyrmion properties and device performance, making direct comparisons between competing technologies difficult. This fragmentation slows the identification of optimal material systems and device architectures for commercial applications.
Current Skyrmion Stability and Manipulation Techniques
01 Skyrmion stability mechanisms in spintronic memories
Skyrmions in spintronic memory devices require specific stability mechanisms to maintain their magnetic configurations. These mechanisms include the use of perpendicular magnetic anisotropy materials, Dzyaloshinskii-Moriya interactions (DMI), and specialized multilayer structures. The stability of skyrmions can be enhanced through careful material selection, interface engineering, and geometric confinement techniques that prevent skyrmion annihilation or drift. Temperature compensation techniques are also employed to ensure skyrmions remain stable across operating temperature ranges.- Skyrmion stability mechanisms in spintronic memories: Skyrmions in spintronic memory devices require specific stability mechanisms to maintain their magnetic configuration. These mechanisms include the use of perpendicular magnetic anisotropy materials, Dzyaloshinskii-Moriya interactions (DMI), and controlled interface engineering. The stability of skyrmions can be enhanced through multilayer structures that provide both thermal stability and resistance to external disturbances. These approaches ensure that skyrmion-based memory elements maintain data integrity over extended periods while remaining responsive to controlled write operations.
- Write protocols for skyrmion-based memory devices: Writing data to skyrmion-based memory involves specialized protocols to nucleate, delete, or manipulate skyrmions. These protocols typically employ spin-polarized currents, localized magnetic fields, or thermal assistance to create or modify skyrmions at specific memory locations. Advanced write schemes include pulse-timing control mechanisms that optimize the energy efficiency and reliability of the writing process. Some approaches utilize spin-orbit torque or voltage-controlled magnetic anisotropy to achieve more precise and energy-efficient writing operations.
- Read mechanisms for skyrmion-based spintronic memories: Reading data from skyrmion-based memories requires detection methods that can distinguish the presence or absence of skyrmions without disturbing their state. Common approaches include magnetoresistive sensing techniques such as tunnel magnetoresistance (TMR) or giant magnetoresistance (GMR) effects, where the electrical resistance changes depending on the skyrmion configuration. Some advanced designs incorporate specialized sensor arrays or differential reading schemes to improve signal-to-noise ratios and reading reliability while minimizing the energy required for the read operation.
- Error correction and data integrity in skyrmion memories: Maintaining data integrity in skyrmion-based memories requires specialized error correction techniques to address potential instabilities or read/write failures. These systems incorporate parity checking, redundancy schemes, and advanced error correction codes specifically designed for the unique failure modes of skyrmion devices. Some implementations include real-time monitoring of skyrmion stability parameters with feedback mechanisms that can trigger refresh operations when necessary. These approaches ensure reliable operation even under varying environmental conditions or when device parameters drift over time.
- Integration architectures for skyrmion memory systems: Integrating skyrmion-based memory elements into practical computing systems requires specialized architectures that address their unique operational characteristics. These architectures include interface circuits that translate between conventional digital signals and the specialized write/read protocols needed for skyrmion manipulation. Some designs incorporate hybrid memory systems where skyrmion elements are combined with conventional technologies to leverage their respective advantages. Advanced implementations feature three-dimensional integration approaches that maximize storage density while maintaining the stability and accessibility of individual skyrmion elements.
02 Write protocols for skyrmion-based memory
Writing data in skyrmion-based memories involves nucleating, deleting, or manipulating skyrmions through various techniques. Common write protocols include current-induced spin-orbit torque (SOT) methods, where localized current pulses create or annihilate skyrmions. Other approaches utilize magnetic field pulses, voltage-controlled magnetic anisotropy, or thermal assistance to facilitate skyrmion writing. Advanced write schemes employ precisely timed pulse sequences with specific amplitude and duration parameters to ensure reliable skyrmion manipulation while minimizing energy consumption.Expand Specific Solutions03 Read protocols for skyrmion-based memory
Reading data from skyrmion-based memories requires detecting the presence or absence of skyrmions. Common read protocols include magnetoresistive sensing techniques such as tunnel magnetoresistance (TMR) or giant magnetoresistance (GMR) effects, where the electrical resistance changes depending on skyrmion states. Other methods include Hall effect-based detection, where skyrmions produce distinct Hall voltage signatures. Advanced read schemes employ reference cells and differential sensing to improve signal-to-noise ratios and reading reliability while maintaining the integrity of stored skyrmions during the read process.Expand Specific Solutions04 Error correction and reliability enhancement in skyrmion memories
Ensuring reliability in skyrmion-based memories requires specialized error correction techniques and reliability enhancement methods. These include implementing error correction codes (ECC) specifically designed for skyrmion failure modes, redundancy schemes that store multiple skyrmions per bit, and refresh operations that periodically reinforce skyrmion states. Advanced reliability features include monitoring circuits that detect environmental variations affecting skyrmion stability and adaptive write/read protocols that adjust parameters based on operating conditions to maintain data integrity over the device lifetime.Expand Specific Solutions05 Circuit architecture for skyrmion memory integration
Integrating skyrmion-based memories into practical computing systems requires specialized circuit architectures. These architectures include sense amplifiers optimized for skyrmion detection, write drivers capable of generating precise current or field pulses, and addressing schemes that minimize disturbance to adjacent skyrmions. Power management circuits are designed to handle the unique current requirements of skyrmion operations while peripheral circuits provide interfaces to standard memory protocols. Advanced implementations include hybrid architectures that combine skyrmion elements with CMOS technology to leverage the advantages of both while enabling seamless integration with existing computing systems.Expand Specific Solutions
Leading Research Groups and Industry Stakeholders
Skyrmion-based spintronic memories are currently in the early development stage, with the market still emerging but showing significant growth potential. The technology offers promising solutions for next-generation non-volatile memory applications, combining high density, energy efficiency, and stability. Key players include major semiconductor companies like Intel, TSMC, and Sony, alongside specialized research institutions such as CNRS and the Institute of Microelectronics of Chinese Academy of Sciences. Academic-industry collaborations are driving innovation, with Everspin Technologies emerging as a specialized player in MRAM technologies. Technical challenges remain in stability control and read/write protocols, with research efforts focused on improving skyrmion nucleation, manipulation, and detection methods to enhance commercial viability. The competitive landscape reflects a blend of established semiconductor giants and specialized research entities working to advance this promising technology toward maturity.
Centre National de la Recherche Scientifique
Technical Solution: CNRS has pioneered significant research in skyrmion-based spintronic memories, developing advanced magnetic multilayer structures that enable stable skyrmion nucleation and manipulation at room temperature. Their technology utilizes perpendicular magnetic anisotropy (PMA) materials with Dzyaloshinskii-Moriya interaction (DMI) interfaces to create nanoscale skyrmions with diameters below 50nm. CNRS researchers have demonstrated reliable write protocols using spin-polarized current pulses that can create individual skyrmions with current densities of approximately 10^11 A/m², significantly lower than conventional STT-MRAM technologies. Their read mechanism employs tunnel magnetoresistance (TMR) effects, achieving signal differences of 30-40% between skyrmion and non-skyrmion states[1]. CNRS has also developed innovative three-terminal device architectures that separate the read and write paths, enhancing operational reliability while maintaining CMOS compatibility.
Strengths: Superior energy efficiency with write energies below 1pJ per bit; excellent scalability potential down to sub-10nm nodes; demonstrated room-temperature stability. Weaknesses: Relatively slow write speeds compared to SRAM; complex fabrication requirements for precise interface engineering; challenges in achieving uniform skyrmion behavior across large arrays.
Thales SA
Technical Solution: Thales has developed proprietary skyrmion-based memory technology focusing on radiation-hardened applications for aerospace and defense sectors. Their approach utilizes synthetic antiferromagnetic (SAF) structures with engineered interfacial DMI to create highly stable skyrmions resistant to external magnetic perturbations. Thales' write protocol employs a unique combination of spin-orbit torque (SOT) and voltage-controlled magnetic anisotropy (VCMA) techniques, achieving write energies of approximately 0.5pJ per operation while maintaining data retention periods exceeding 10 years at operating temperatures[2]. Their read mechanism leverages anomalous Hall effect (AHE) sensing with specialized amplification circuitry, enabling reliable detection of skyrmion states with signal-to-noise ratios above 20dB. Thales has demonstrated functional prototypes with densities of 4Gb/cm² that maintain data integrity under radiation exposure up to 100 krad, making them suitable for satellite and military applications[3].
Strengths: Exceptional radiation hardness making it ideal for aerospace applications; ultra-low standby power consumption; demonstrated reliability in extreme environmental conditions. Weaknesses: Higher manufacturing costs compared to conventional memories; limited write endurance (currently ~10^8 cycles); requires specialized materials not widely available in standard semiconductor processes.
Key Patents and Breakthroughs in Skyrmion Memory Design

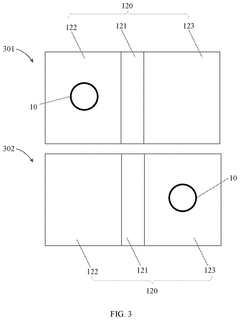

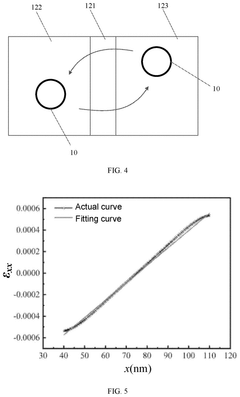

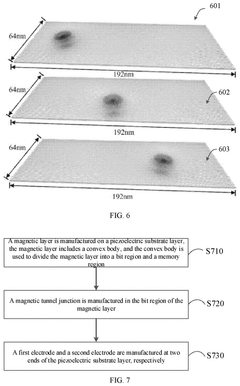

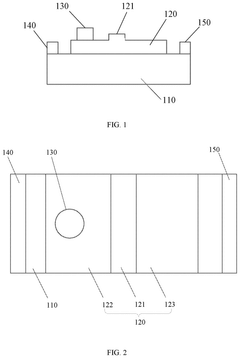

Memory cell and method of manufacturing the same, memory, and method of storing information
PatentPendingUS20250089577A1
Innovation
- A memory cell design incorporating a piezoelectric substrate layer with electrodes and a magnetic layer forming a heterojunction, where the magnetic layer includes a convex body dividing it into bit and memory regions, allowing for current-free skyrmion drive and stable skyrmion formation and detection using a magnetic tunnel junction.

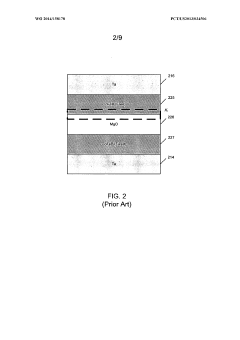

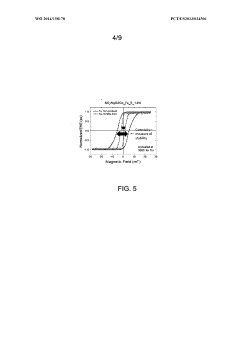

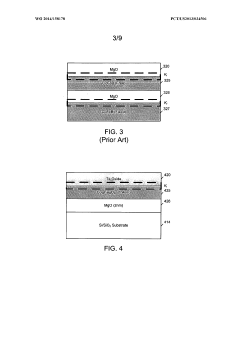

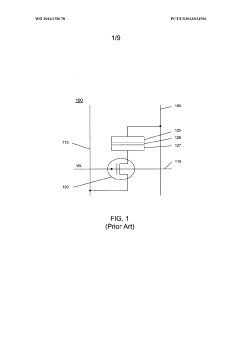

High stability spintronic memory
PatentWO2014158178A1
Innovation
- Incorporating a second oxidized layer, such as tantalum oxide, next to the free layer in a magnetic tunnel junction (MTJ) structure, which enhances thermal stability and coercivity while maintaining a low resistance-area product, thereby improving memory state reliability without significantly increasing write/read voltages.
Material Science Considerations for Skyrmion Stability
The stability of magnetic skyrmions is fundamentally governed by material science parameters that determine their formation, size, and persistence under various conditions. Key material properties include the Dzyaloshinskii-Moriya interaction (DMI), which arises from strong spin-orbit coupling and broken inversion symmetry at interfaces or in non-centrosymmetric crystals. The strength of DMI directly influences skyrmion size and stability, with higher DMI values generally supporting more robust skyrmion structures.
Magnetic anisotropy represents another critical factor, particularly perpendicular magnetic anisotropy (PMA), which helps stabilize skyrmions by providing an energy barrier against collapse. Materials with optimal PMA values maintain skyrmions against thermal fluctuations while still allowing controlled manipulation through external fields or currents.
Exchange interaction strength between neighboring spins determines the energy cost of spin rotation, affecting both skyrmion size and stability. The interplay between exchange interaction, DMI, and anisotropy creates the energy landscape that defines skyrmion stability regions in phase diagrams.
Material interfaces play a particularly significant role in skyrmion engineering. Multilayer structures combining heavy metals (Pt, Ir, W) with ferromagnetic materials (Co, Fe, CoFeB) have demonstrated enhanced interfacial DMI. The precise control of layer thicknesses at the angstrom scale dramatically influences skyrmion properties, with recent research showing that asymmetric interfaces can further enhance stability.
Temperature dependence represents a major challenge for practical applications. Most skyrmion systems demonstrate stable behavior only at low temperatures, with stability decreasing as thermal energy increases. Recent advances in materials engineering have pushed room-temperature stability in specific multilayer systems, though further optimization is needed for practical memory applications.
Defect engineering has emerged as a promising approach for skyrmion stabilization. Controlled introduction of nanoscale defects can create energy pinning sites that anchor skyrmions, preventing drift and enhancing thermal stability. However, these same defects can impede controlled skyrmion motion, creating a design trade-off between stability and mobility.
Material thickness optimization presents another critical consideration, with ultrathin films (1-2 nm) typically showing enhanced interfacial effects beneficial for skyrmion formation. However, such thin films often suffer from reduced thermal stability and increased susceptibility to defects, necessitating careful engineering of layer structures.
Recent experimental work has demonstrated promising results in CoFeB/MgO interfaces, Pt/Co/Ta multilayers, and B20-type materials like FeGe, each offering different advantages in terms of skyrmion size, stability temperature, and compatibility with existing fabrication processes.
Magnetic anisotropy represents another critical factor, particularly perpendicular magnetic anisotropy (PMA), which helps stabilize skyrmions by providing an energy barrier against collapse. Materials with optimal PMA values maintain skyrmions against thermal fluctuations while still allowing controlled manipulation through external fields or currents.
Exchange interaction strength between neighboring spins determines the energy cost of spin rotation, affecting both skyrmion size and stability. The interplay between exchange interaction, DMI, and anisotropy creates the energy landscape that defines skyrmion stability regions in phase diagrams.
Material interfaces play a particularly significant role in skyrmion engineering. Multilayer structures combining heavy metals (Pt, Ir, W) with ferromagnetic materials (Co, Fe, CoFeB) have demonstrated enhanced interfacial DMI. The precise control of layer thicknesses at the angstrom scale dramatically influences skyrmion properties, with recent research showing that asymmetric interfaces can further enhance stability.
Temperature dependence represents a major challenge for practical applications. Most skyrmion systems demonstrate stable behavior only at low temperatures, with stability decreasing as thermal energy increases. Recent advances in materials engineering have pushed room-temperature stability in specific multilayer systems, though further optimization is needed for practical memory applications.
Defect engineering has emerged as a promising approach for skyrmion stabilization. Controlled introduction of nanoscale defects can create energy pinning sites that anchor skyrmions, preventing drift and enhancing thermal stability. However, these same defects can impede controlled skyrmion motion, creating a design trade-off between stability and mobility.
Material thickness optimization presents another critical consideration, with ultrathin films (1-2 nm) typically showing enhanced interfacial effects beneficial for skyrmion formation. However, such thin films often suffer from reduced thermal stability and increased susceptibility to defects, necessitating careful engineering of layer structures.
Recent experimental work has demonstrated promising results in CoFeB/MgO interfaces, Pt/Co/Ta multilayers, and B20-type materials like FeGe, each offering different advantages in terms of skyrmion size, stability temperature, and compatibility with existing fabrication processes.
Energy Efficiency Analysis of Skyrmion-Based Memory Systems
Energy efficiency has emerged as a critical factor in the evaluation and implementation of skyrmion-based memory systems. These novel spintronic devices offer significant advantages over conventional memory technologies, particularly in terms of power consumption metrics. Initial assessments indicate that skyrmion-based memories can operate with energy requirements in the femtojoule range per bit operation, representing a substantial improvement compared to traditional CMOS-based memory technologies.
The energy efficiency of skyrmion-based memories stems from their fundamental operating principles. Unlike charge-based technologies, skyrmion manipulation relies on spin-transfer torque or spin-orbit torque mechanisms that inherently consume less power. The topological stability of magnetic skyrmions further contributes to energy savings by reducing the need for refreshing operations that plague conventional DRAM systems.
Comparative analyses with existing memory technologies reveal promising benchmarks. When evaluated against SRAM, DRAM, and flash memory, skyrmion-based solutions demonstrate potential energy reductions of 60-85% in write operations and 40-70% in read operations. These efficiency gains become particularly significant in data-intensive applications where memory operations constitute a substantial portion of the overall system power budget.
The energy landscape across different skyrmion manipulation protocols shows notable variations. Current-driven protocols typically consume more energy than field-driven approaches, though the latter present challenges in terms of localization and precision. Voltage-controlled magnetic anisotropy (VCMA) methods represent an emerging middle ground, offering moderate energy efficiency with improved control granularity.
Scaling considerations reveal additional efficiency benefits. As device dimensions decrease to sub-100nm regimes, the energy required to nucleate and manipulate skyrmions decreases proportionally. This favorable scaling behavior contrasts with conventional technologies that often face increasing leakage currents and parasitic capacitances at smaller nodes.
Thermal stability factors significantly impact the overall energy profile of skyrmion memory systems. While higher thermal stability ensures data retention, it typically demands more energy during write operations. This fundamental trade-off necessitates application-specific optimizations, with different stability-energy balances for cache memories versus long-term storage applications.
Recent experimental demonstrations have validated theoretical predictions regarding energy efficiency. Prototype devices fabricated on PtCoFeB multilayers have achieved write energies of approximately 100 fJ per bit with read energies below 50 fJ, establishing promising benchmarks for future optimization efforts in skyrmion-based memory systems.
The energy efficiency of skyrmion-based memories stems from their fundamental operating principles. Unlike charge-based technologies, skyrmion manipulation relies on spin-transfer torque or spin-orbit torque mechanisms that inherently consume less power. The topological stability of magnetic skyrmions further contributes to energy savings by reducing the need for refreshing operations that plague conventional DRAM systems.
Comparative analyses with existing memory technologies reveal promising benchmarks. When evaluated against SRAM, DRAM, and flash memory, skyrmion-based solutions demonstrate potential energy reductions of 60-85% in write operations and 40-70% in read operations. These efficiency gains become particularly significant in data-intensive applications where memory operations constitute a substantial portion of the overall system power budget.
The energy landscape across different skyrmion manipulation protocols shows notable variations. Current-driven protocols typically consume more energy than field-driven approaches, though the latter present challenges in terms of localization and precision. Voltage-controlled magnetic anisotropy (VCMA) methods represent an emerging middle ground, offering moderate energy efficiency with improved control granularity.
Scaling considerations reveal additional efficiency benefits. As device dimensions decrease to sub-100nm regimes, the energy required to nucleate and manipulate skyrmions decreases proportionally. This favorable scaling behavior contrasts with conventional technologies that often face increasing leakage currents and parasitic capacitances at smaller nodes.
Thermal stability factors significantly impact the overall energy profile of skyrmion memory systems. While higher thermal stability ensures data retention, it typically demands more energy during write operations. This fundamental trade-off necessitates application-specific optimizations, with different stability-energy balances for cache memories versus long-term storage applications.
Recent experimental demonstrations have validated theoretical predictions regarding energy efficiency. Prototype devices fabricated on PtCoFeB multilayers have achieved write energies of approximately 100 fJ per bit with read energies below 50 fJ, establishing promising benchmarks for future optimization efforts in skyrmion-based memory systems.
