2D Semiconductor Heterostructures Background and Objectives
Two-dimensional (2D) semiconductor materials have emerged as a revolutionary class of materials since the successful isolation of graphene in 2004. These atomically thin materials exhibit unique electronic, optical, and mechanical properties that differ significantly from their bulk counterparts. The field has rapidly expanded beyond graphene to include transition metal dichalcogenides (TMDs) like MoS2 and WSe2, hexagonal boron nitride (h-BN), phosphorene, and various 2D oxides, creating a rich palette of materials with diverse bandgaps and functionalities.
The evolution of 2D semiconductor technology has progressed through several distinct phases. Initially focused on material discovery and fundamental property characterization, research has now advanced toward engineering complex heterostructures—vertical stacks of different 2D materials held together by van der Waals forces. These heterostructures represent a paradigm shift in semiconductor engineering, enabling the creation of atomically precise interfaces without the constraints of lattice matching that limit conventional epitaxial growth.
A critical aspect of 2D semiconductor heterostructures is their thermal stability, which directly impacts device reliability and performance. As these materials transition from laboratory curiosities to practical applications, understanding their behavior under various thermal conditions becomes paramount. Thermal stability affects not only the structural integrity of individual layers but also the interfaces between them, potentially altering electronic properties and device characteristics over time.
The primary objectives of research in this field are multifaceted. First, to develop comprehensive understanding of the fundamental mechanisms governing thermal behavior in 2D heterostructures, including heat transport across interfaces, thermal expansion mismatches, and temperature-induced phase transitions. Second, to establish reliable fabrication techniques that ensure consistent performance and stability across a wide temperature range. Third, to design novel heterostructure architectures that leverage thermal properties for enhanced functionality or mitigate thermal degradation pathways.
From an applications perspective, thermally stable 2D semiconductor heterostructures hold promise for next-generation electronics, optoelectronics, and quantum technologies. These include flexible electronics that can withstand temperature fluctuations, high-power devices with efficient heat dissipation, and quantum computing components operating at cryogenic temperatures. The potential for atomically thin, thermally robust devices represents a significant advancement over conventional semiconductor technologies.
Looking forward, the trajectory of this field points toward increasingly sophisticated heterostructures with engineered thermal properties, potentially incorporating more exotic 2D materials and complex architectures. The convergence of experimental techniques with computational modeling is expected to accelerate progress, enabling predictive design of thermally optimized heterostructures for specific applications and operating environments.
The evolution of 2D semiconductor technology has progressed through several distinct phases. Initially focused on material discovery and fundamental property characterization, research has now advanced toward engineering complex heterostructures—vertical stacks of different 2D materials held together by van der Waals forces. These heterostructures represent a paradigm shift in semiconductor engineering, enabling the creation of atomically precise interfaces without the constraints of lattice matching that limit conventional epitaxial growth.
A critical aspect of 2D semiconductor heterostructures is their thermal stability, which directly impacts device reliability and performance. As these materials transition from laboratory curiosities to practical applications, understanding their behavior under various thermal conditions becomes paramount. Thermal stability affects not only the structural integrity of individual layers but also the interfaces between them, potentially altering electronic properties and device characteristics over time.
The primary objectives of research in this field are multifaceted. First, to develop comprehensive understanding of the fundamental mechanisms governing thermal behavior in 2D heterostructures, including heat transport across interfaces, thermal expansion mismatches, and temperature-induced phase transitions. Second, to establish reliable fabrication techniques that ensure consistent performance and stability across a wide temperature range. Third, to design novel heterostructure architectures that leverage thermal properties for enhanced functionality or mitigate thermal degradation pathways.
From an applications perspective, thermally stable 2D semiconductor heterostructures hold promise for next-generation electronics, optoelectronics, and quantum technologies. These include flexible electronics that can withstand temperature fluctuations, high-power devices with efficient heat dissipation, and quantum computing components operating at cryogenic temperatures. The potential for atomically thin, thermally robust devices represents a significant advancement over conventional semiconductor technologies.
Looking forward, the trajectory of this field points toward increasingly sophisticated heterostructures with engineered thermal properties, potentially incorporating more exotic 2D materials and complex architectures. The convergence of experimental techniques with computational modeling is expected to accelerate progress, enabling predictive design of thermally optimized heterostructures for specific applications and operating environments.
Market Demand Analysis for 2D Semiconductor Applications
The global market for 2D semiconductor applications is experiencing robust growth, driven by increasing demand for miniaturized electronic devices with enhanced performance capabilities. Current market projections indicate that the 2D semiconductor market will reach approximately $7.2 billion by 2030, with a compound annual growth rate of 19.8% from 2023 to 2030. This significant growth trajectory is primarily fueled by the exceptional properties of 2D semiconductor materials, including their atomic thinness, flexibility, and superior electronic characteristics.
The telecommunications sector represents the largest market segment for 2D semiconductor applications, particularly in the development of next-generation communication systems. With the ongoing global rollout of 5G networks and research into 6G technologies, demand for high-frequency, low-power semiconductor components is escalating rapidly. Industry analysts report that approximately 35% of current 2D semiconductor research is directed toward telecommunications applications.
Consumer electronics constitutes another substantial market segment, with manufacturers increasingly exploring 2D semiconductor heterostructures for flexible displays, wearable devices, and ultra-compact computing systems. Market research indicates that consumer electronics applications account for roughly 28% of the current 2D semiconductor market value, with particular emphasis on devices requiring exceptional thermal management capabilities.
The automotive industry is emerging as a promising growth sector for 2D semiconductor applications. As vehicle electrification accelerates and autonomous driving technologies mature, demand for advanced semiconductor components with superior thermal stability is intensifying. Industry forecasts suggest that automotive applications of 2D semiconductors will grow at a CAGR of 24.3% through 2030, outpacing the overall market growth rate.
Healthcare and biomedical applications represent a nascent but rapidly expanding market segment. The unique properties of 2D semiconductor heterostructures make them ideal candidates for next-generation biosensors, implantable medical devices, and diagnostic equipment. This sector is projected to achieve the highest growth rate among all application areas, with an estimated CAGR of 26.7% over the next decade.
Geographically, North America and East Asia currently dominate the market for 2D semiconductor applications, collectively accounting for approximately 68% of global market value. However, significant investments in semiconductor research and manufacturing capabilities in Europe and emerging economies are gradually reshaping the global market landscape. The European market share is expected to increase from 17% to 23% by 2028, reflecting strategic initiatives to strengthen domestic semiconductor capabilities.
The telecommunications sector represents the largest market segment for 2D semiconductor applications, particularly in the development of next-generation communication systems. With the ongoing global rollout of 5G networks and research into 6G technologies, demand for high-frequency, low-power semiconductor components is escalating rapidly. Industry analysts report that approximately 35% of current 2D semiconductor research is directed toward telecommunications applications.
Consumer electronics constitutes another substantial market segment, with manufacturers increasingly exploring 2D semiconductor heterostructures for flexible displays, wearable devices, and ultra-compact computing systems. Market research indicates that consumer electronics applications account for roughly 28% of the current 2D semiconductor market value, with particular emphasis on devices requiring exceptional thermal management capabilities.
The automotive industry is emerging as a promising growth sector for 2D semiconductor applications. As vehicle electrification accelerates and autonomous driving technologies mature, demand for advanced semiconductor components with superior thermal stability is intensifying. Industry forecasts suggest that automotive applications of 2D semiconductors will grow at a CAGR of 24.3% through 2030, outpacing the overall market growth rate.
Healthcare and biomedical applications represent a nascent but rapidly expanding market segment. The unique properties of 2D semiconductor heterostructures make them ideal candidates for next-generation biosensors, implantable medical devices, and diagnostic equipment. This sector is projected to achieve the highest growth rate among all application areas, with an estimated CAGR of 26.7% over the next decade.
Geographically, North America and East Asia currently dominate the market for 2D semiconductor applications, collectively accounting for approximately 68% of global market value. However, significant investments in semiconductor research and manufacturing capabilities in Europe and emerging economies are gradually reshaping the global market landscape. The European market share is expected to increase from 17% to 23% by 2028, reflecting strategic initiatives to strengthen domestic semiconductor capabilities.
Current Challenges in 2D Heterostructure Thermal Stability
Despite significant advancements in 2D semiconductor heterostructures, thermal stability remains a critical challenge that impedes their widespread commercial application. The atomically thin nature of these materials makes them inherently susceptible to thermal degradation at temperatures far below those encountered in conventional semiconductor processing and device operation. Current fabrication processes for 2D heterostructures typically involve transfer methods that introduce contaminants at interfaces, creating thermal weak points that can lead to premature failure under thermal stress.
A major technical hurdle is the mismatch in thermal expansion coefficients between different 2D materials in heterostructures. During thermal cycling, this mismatch generates mechanical strain that can cause delamination, cracking, or permanent deformation of the layered structure. For example, the thermal expansion coefficient of MoS2 differs significantly from graphene, creating substantial interfacial stress when these materials are combined in heterostructures and subjected to temperature variations.
Defect migration and atomic diffusion across interfaces accelerate dramatically at elevated temperatures, compromising the electronic properties that make these heterostructures valuable. Research has shown that even moderate heating (200-300°C) can trigger sulfur vacancy migration in transition metal dichalcogenides (TMDs), altering band structures and degrading device performance. This poses significant challenges for applications requiring thermal stability during operation or post-fabrication processing.
The chemical reactivity of 2D materials with ambient gases increases exponentially with temperature. Oxidation processes that might be negligible at room temperature become dominant degradation mechanisms at elevated temperatures, particularly for materials like black phosphorus and silicene. Current encapsulation technologies provide insufficient protection against these thermally-activated chemical reactions.
Substrate interactions present another significant challenge. The thermal conductivity mismatch between 2D materials and conventional substrates creates localized heating issues that can accelerate degradation. Additionally, chemical reactions between 2D materials and substrates can be catalyzed at elevated temperatures, forming unwanted compounds at interfaces.
Characterization of thermal degradation mechanisms remains difficult due to the challenges in performing in-situ measurements at atomic scales under controlled temperature conditions. This knowledge gap hinders the development of effective mitigation strategies. Current analytical techniques often provide only post-mortem analysis, failing to capture the dynamic processes occurring during thermal stress.
The lack of standardized thermal stability testing protocols for 2D heterostructures further complicates the assessment of different material combinations and protective strategies. Without reliable benchmarking methods, comparing solutions across research groups becomes problematic, slowing progress toward thermally robust heterostructures suitable for commercial applications.
A major technical hurdle is the mismatch in thermal expansion coefficients between different 2D materials in heterostructures. During thermal cycling, this mismatch generates mechanical strain that can cause delamination, cracking, or permanent deformation of the layered structure. For example, the thermal expansion coefficient of MoS2 differs significantly from graphene, creating substantial interfacial stress when these materials are combined in heterostructures and subjected to temperature variations.
Defect migration and atomic diffusion across interfaces accelerate dramatically at elevated temperatures, compromising the electronic properties that make these heterostructures valuable. Research has shown that even moderate heating (200-300°C) can trigger sulfur vacancy migration in transition metal dichalcogenides (TMDs), altering band structures and degrading device performance. This poses significant challenges for applications requiring thermal stability during operation or post-fabrication processing.
The chemical reactivity of 2D materials with ambient gases increases exponentially with temperature. Oxidation processes that might be negligible at room temperature become dominant degradation mechanisms at elevated temperatures, particularly for materials like black phosphorus and silicene. Current encapsulation technologies provide insufficient protection against these thermally-activated chemical reactions.
Substrate interactions present another significant challenge. The thermal conductivity mismatch between 2D materials and conventional substrates creates localized heating issues that can accelerate degradation. Additionally, chemical reactions between 2D materials and substrates can be catalyzed at elevated temperatures, forming unwanted compounds at interfaces.
Characterization of thermal degradation mechanisms remains difficult due to the challenges in performing in-situ measurements at atomic scales under controlled temperature conditions. This knowledge gap hinders the development of effective mitigation strategies. Current analytical techniques often provide only post-mortem analysis, failing to capture the dynamic processes occurring during thermal stress.
The lack of standardized thermal stability testing protocols for 2D heterostructures further complicates the assessment of different material combinations and protective strategies. Without reliable benchmarking methods, comparing solutions across research groups becomes problematic, slowing progress toward thermally robust heterostructures suitable for commercial applications.
Current Thermal Stability Enhancement Techniques
01 Thermal stability enhancement in 2D semiconductor heterostructures
Various methods can be employed to enhance the thermal stability of 2D semiconductor heterostructures. These include the use of specific substrate materials, buffer layers, and thermal management techniques. By carefully selecting materials with compatible thermal expansion coefficients and implementing proper thermal interfaces, the stability of these heterostructures at elevated temperatures can be significantly improved, leading to more reliable device performance under thermal stress.- Thermal stability enhancement in 2D semiconductor heterostructures: Various methods can be employed to enhance the thermal stability of 2D semiconductor heterostructures. These include the use of specific substrate materials, buffer layers, and interface engineering techniques that minimize thermal stress and prevent degradation at high temperatures. Such approaches help maintain the structural integrity and electronic properties of the heterostructures during thermal cycling and extended operation at elevated temperatures.
- Material selection for thermally stable 2D heterostructures: The selection of appropriate 2D materials for heterostructure formation plays a crucial role in determining thermal stability. Certain combinations of 2D materials exhibit superior thermal properties due to compatible thermal expansion coefficients and strong interlayer bonding. Materials such as transition metal dichalcogenides, hexagonal boron nitride, and graphene derivatives can be strategically combined to create heterostructures with enhanced resistance to thermal degradation.
- Characterization techniques for thermal stability assessment: Advanced characterization techniques are essential for evaluating the thermal stability of 2D semiconductor heterostructures. These include in-situ transmission electron microscopy, Raman spectroscopy under controlled temperature conditions, differential scanning calorimetry, and thermogravimetric analysis. These methods allow researchers to monitor structural changes, phase transitions, and degradation mechanisms in real-time as the heterostructures are subjected to thermal stress.
- Interface engineering for improved thermal performance: Interface engineering techniques can significantly improve the thermal stability of 2D semiconductor heterostructures. These include the introduction of atomic defects, dopants, or functional groups at the interfaces between different 2D materials. Such modifications can strengthen interlayer bonding, reduce thermal boundary resistance, and prevent delamination or degradation at elevated temperatures, resulting in heterostructures with superior thermal performance.
- Encapsulation and protective layers for thermal stability: Encapsulation strategies and protective layers can be employed to enhance the thermal stability of 2D semiconductor heterostructures. These include the use of thermally resistant polymers, dielectric materials, or additional 2D materials as capping layers. Such protective measures shield the heterostructures from environmental factors that could accelerate thermal degradation, such as oxidation or moisture, thereby extending their operational lifetime under thermal stress conditions.
02 Interface engineering for improved thermal properties
Interface engineering plays a crucial role in determining the thermal stability of 2D semiconductor heterostructures. By controlling the atomic structure at interfaces between different 2D materials, thermal boundary resistance can be minimized. Techniques such as van der Waals epitaxy, atomic layer deposition, and the introduction of transition layers help create thermally robust interfaces that maintain structural integrity during temperature fluctuations, thereby enhancing overall thermal stability.Expand Specific Solutions03 Novel material combinations for thermally stable heterostructures
Research has identified specific combinations of 2D materials that exhibit superior thermal stability when formed into heterostructures. These include transition metal dichalcogenides paired with hexagonal boron nitride, graphene-based heterostructures with silicon carbide, and various other combinations that demonstrate minimal lattice mismatch and compatible thermal properties. These material systems maintain their structural and electronic properties even under significant thermal cycling and elevated temperature conditions.Expand Specific Solutions04 Characterization and modeling of thermal behavior
Advanced characterization techniques and computational modeling approaches have been developed to understand and predict the thermal behavior of 2D semiconductor heterostructures. These include Raman spectroscopy for temperature mapping, scanning thermal microscopy, and first-principles calculations of phonon transport. Such methods enable the assessment of thermal stability limits, identification of failure mechanisms, and optimization of heterostructure designs for improved thermal performance in electronic and optoelectronic applications.Expand Specific Solutions05 Encapsulation and protection strategies
Various encapsulation and protection strategies have been developed to enhance the thermal stability of 2D semiconductor heterostructures. These include the use of protective capping layers, hermetic sealing techniques, and specialized packaging materials that shield the heterostructures from environmental factors that could accelerate thermal degradation. Additionally, the incorporation of thermal dissipation structures helps manage heat flow and prevent localized hotspots that could compromise structural integrity at elevated temperatures.Expand Specific Solutions
Key Industry Players in 2D Semiconductor Research
The 2D semiconductor heterostructures market is currently in a growth phase, with increasing research and commercial applications driving expansion. The global market is projected to reach significant scale due to rising demand in electronics, optoelectronics, and sensing applications. From a technological maturity perspective, leading players demonstrate varying levels of advancement. Samsung Electronics, TSMC, and GLOBALFOUNDRIES are at the forefront with established manufacturing capabilities for 2D materials integration. Research institutions like Fraunhofer-Gesellschaft, MIT, and University of Houston are advancing fundamental thermal stability analysis techniques. Companies including ROHM, Semiconductor Energy Laboratory, and Mitsubishi Electric are developing specialized applications focusing on thermal performance optimization. The competitive landscape shows a balance between established semiconductor manufacturers and research-focused entities working to overcome thermal stability challenges in 2D heterostructures.
Samsung Electronics Co., Ltd.
Technical Solution: Samsung has developed advanced 2D semiconductor heterostructures using transition metal dichalcogenides (TMDs) like MoS2 and WSe2. Their approach involves precise layer-by-layer stacking techniques to create van der Waals heterostructures with atomically sharp interfaces. Samsung's thermal stability analysis employs in-situ transmission electron microscopy (TEM) combined with Raman spectroscopy to monitor structural changes at elevated temperatures (up to 800°C). They've pioneered a proprietary encapsulation method using hexagonal boron nitride (h-BN) that significantly enhances thermal stability by preventing oxidation and preserving interface integrity. Their research demonstrates that properly engineered TMD heterostructures can maintain electrical performance at temperatures up to 400°C, with minimal degradation in carrier mobility and on/off ratios. Samsung has also developed computational models to predict thermal behavior and optimize device architectures for high-temperature applications.
Strengths: Samsung's extensive manufacturing infrastructure enables rapid prototyping and scaling of 2D heterostructure production. Their encapsulation techniques provide superior thermal stability compared to conventional approaches. Weaknesses: Their heterostructures still face challenges with contact resistance at elevated temperatures, and the complex fabrication process increases production costs compared to traditional semiconductor technologies.
Taiwan Semiconductor Manufacturing Co., Ltd.
Technical Solution: TSMC has developed a comprehensive approach to 2D semiconductor heterostructures focusing on integration with silicon CMOS technology. Their technique involves direct growth of transition metal dichalcogenide (TMD) heterostructures on silicon substrates using metal-organic chemical vapor deposition (MOCVD). TSMC's thermal stability analysis utilizes a multi-modal characterization platform combining temperature-dependent electrical measurements, in-situ X-ray photoelectron spectroscopy (XPS), and thermal imaging to evaluate performance degradation mechanisms. They've engineered specialized interlayer passivation techniques that mitigate interfacial degradation at elevated temperatures. Their research shows that MoS2/WSe2 heterostructures with their proprietary passivation can maintain stable electrical characteristics at temperatures up to 350°C for over 1000 hours of continuous operation. TSMC has also developed thermal management solutions specifically for 2D materials, including specialized heat dissipation structures that reduce thermal hotspots and improve overall device reliability.
Strengths: TSMC's advanced manufacturing capabilities allow for precise control of 2D material growth and integration with existing silicon technology. Their thermal management solutions effectively address heat dissipation challenges in 2D heterostructures. Weaknesses: Their approach requires specialized equipment for large-scale production, and the thermal stability of their heterostructures decreases significantly above 400°C, limiting applications in extreme environments.
Critical Patents and Research in 2D Heterostructure Interfaces

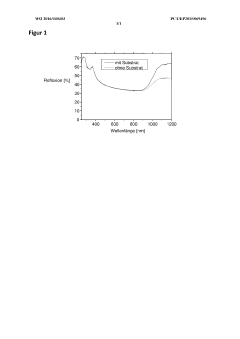

Semiconductor structure, method for the production thereof and use thereof
PatentWO2016030403A1
Innovation
- A semiconductor structure is developed using a thermally and/or chemically cured adhesion promoter with materials like SiOx, AlOx, SiCx, ZnO:Al, TiN, and fillers, providing thermal stability up to 700-1300°C and minimizing impurity release, and can be conductive or insulating depending on the substrate type, with the option to apply multiple semiconductor layers and a reflector function.
Materials Characterization Methods for 2D Heterostructures
The characterization of 2D semiconductor heterostructures requires sophisticated analytical techniques to understand their structural, electronic, and thermal properties. Raman spectroscopy stands as a cornerstone method, providing non-destructive analysis of vibrational modes that reveal critical information about layer thickness, strain distribution, and interfacial coupling in heterostructures. The technique's sensitivity to phonon modes makes it particularly valuable for monitoring thermal stability through temperature-dependent measurements.
X-ray photoelectron spectroscopy (XPS) offers complementary insights by probing the electronic structure and chemical bonding at interfaces. The technique's surface sensitivity allows for detailed analysis of elemental composition and oxidation states, which is crucial for understanding degradation mechanisms during thermal stress. High-resolution XPS can detect subtle chemical shifts that indicate interfacial reactions occurring at elevated temperatures.
Transmission electron microscopy (TEM) and scanning TEM (STEM) provide direct visualization of atomic arrangements in heterostructures. These techniques enable researchers to observe structural changes, defect formation, and interlayer diffusion processes that may occur during thermal cycling. Advanced TEM methods such as in-situ heating experiments allow for real-time monitoring of thermal stability, revealing phase transformations and structural evolution at atomic resolution.
Atomic force microscopy (AFM) and its variants offer nanoscale topographical information that is essential for assessing surface morphology changes induced by thermal treatment. Kelvin probe force microscopy (KPFM), a specialized AFM technique, measures work function variations across heterostructure interfaces, providing insights into band alignment alterations resulting from thermal processing.
Photoluminescence (PL) spectroscopy serves as a powerful tool for probing the optical properties and electronic band structure of 2D heterostructures. Temperature-dependent PL measurements can track changes in exciton binding energies and quantum yields, offering early indicators of thermal degradation before structural changes become apparent.
Synchrotron-based techniques, including grazing-incidence X-ray diffraction (GIXRD) and X-ray absorption spectroscopy (XAS), provide detailed structural and electronic information with exceptional sensitivity. These methods are particularly valuable for in-operando studies of thermal stability, allowing researchers to monitor structural and chemical changes under realistic device operating conditions.
Time-resolved characterization methods, such as ultrafast optical spectroscopy and time-resolved electrical measurements, enable the investigation of carrier dynamics and transport properties as functions of temperature. These techniques reveal how thermal stress affects fundamental electronic processes in heterostructures, providing insights into performance degradation mechanisms in electronic and optoelectronic devices.
X-ray photoelectron spectroscopy (XPS) offers complementary insights by probing the electronic structure and chemical bonding at interfaces. The technique's surface sensitivity allows for detailed analysis of elemental composition and oxidation states, which is crucial for understanding degradation mechanisms during thermal stress. High-resolution XPS can detect subtle chemical shifts that indicate interfacial reactions occurring at elevated temperatures.
Transmission electron microscopy (TEM) and scanning TEM (STEM) provide direct visualization of atomic arrangements in heterostructures. These techniques enable researchers to observe structural changes, defect formation, and interlayer diffusion processes that may occur during thermal cycling. Advanced TEM methods such as in-situ heating experiments allow for real-time monitoring of thermal stability, revealing phase transformations and structural evolution at atomic resolution.
Atomic force microscopy (AFM) and its variants offer nanoscale topographical information that is essential for assessing surface morphology changes induced by thermal treatment. Kelvin probe force microscopy (KPFM), a specialized AFM technique, measures work function variations across heterostructure interfaces, providing insights into band alignment alterations resulting from thermal processing.
Photoluminescence (PL) spectroscopy serves as a powerful tool for probing the optical properties and electronic band structure of 2D heterostructures. Temperature-dependent PL measurements can track changes in exciton binding energies and quantum yields, offering early indicators of thermal degradation before structural changes become apparent.
Synchrotron-based techniques, including grazing-incidence X-ray diffraction (GIXRD) and X-ray absorption spectroscopy (XAS), provide detailed structural and electronic information with exceptional sensitivity. These methods are particularly valuable for in-operando studies of thermal stability, allowing researchers to monitor structural and chemical changes under realistic device operating conditions.
Time-resolved characterization methods, such as ultrafast optical spectroscopy and time-resolved electrical measurements, enable the investigation of carrier dynamics and transport properties as functions of temperature. These techniques reveal how thermal stress affects fundamental electronic processes in heterostructures, providing insights into performance degradation mechanisms in electronic and optoelectronic devices.
Environmental Impact and Sustainability Considerations
The environmental footprint of 2D semiconductor heterostructures represents a critical consideration in their development and deployment. These atomically thin materials offer significant advantages over traditional semiconductors in terms of resource efficiency, as they require substantially less raw material per functional unit. This inherent material efficiency translates to reduced mining impacts and lower energy consumption during the extraction phase, positioning 2D heterostructures as potentially more sustainable alternatives to conventional semiconductor technologies.
Manufacturing processes for 2D semiconductor heterostructures currently present mixed environmental implications. While techniques such as chemical vapor deposition (CVD) and molecular beam epitaxy (MBE) enable precise atomic-level control, they often require high temperatures and vacuum conditions that demand considerable energy inputs. The use of certain precursor chemicals, particularly those containing heavy metals or toxic compounds, raises additional environmental concerns regarding waste streams and potential contamination.
Thermal stability considerations intersect with sustainability in several important dimensions. Enhanced thermal stability in 2D heterostructures extends device lifespans, reducing electronic waste generation and the associated environmental burden of premature replacements. Furthermore, thermally stable materials enable more efficient operation at elevated temperatures, potentially decreasing cooling requirements and associated energy consumption in electronic systems.
Life cycle assessment (LCA) studies of 2D semiconductor heterostructures remain limited but indicate promising directions for sustainability improvements. Preliminary analyses suggest that while production phases may carry higher environmental burdens than conventional semiconductors, these impacts could be offset by efficiency gains and extended operational lifetimes. The recyclability of these materials presents both challenges and opportunities, with research needed to develop effective recovery methods for the valuable elements contained within these structures.
The potential for 2D semiconductor heterostructures to enable more energy-efficient electronics represents perhaps their most significant environmental benefit. Devices incorporating these materials have demonstrated substantial reductions in power consumption compared to conventional alternatives, particularly in applications such as sensors, computing elements, and energy harvesting systems. This efficiency improvement could translate to meaningful reductions in global energy demand as these technologies achieve widespread adoption.
Regulatory frameworks governing the environmental aspects of 2D semiconductor materials continue to evolve. Current gaps in specific regulations for nanomaterials highlight the need for proactive approaches to environmental risk assessment and management throughout the research, development, and commercialization pipeline. Industry-academic partnerships focused on green chemistry principles and sustainable manufacturing techniques will be essential to realizing the full environmental benefits of these promising materials.
Manufacturing processes for 2D semiconductor heterostructures currently present mixed environmental implications. While techniques such as chemical vapor deposition (CVD) and molecular beam epitaxy (MBE) enable precise atomic-level control, they often require high temperatures and vacuum conditions that demand considerable energy inputs. The use of certain precursor chemicals, particularly those containing heavy metals or toxic compounds, raises additional environmental concerns regarding waste streams and potential contamination.
Thermal stability considerations intersect with sustainability in several important dimensions. Enhanced thermal stability in 2D heterostructures extends device lifespans, reducing electronic waste generation and the associated environmental burden of premature replacements. Furthermore, thermally stable materials enable more efficient operation at elevated temperatures, potentially decreasing cooling requirements and associated energy consumption in electronic systems.
Life cycle assessment (LCA) studies of 2D semiconductor heterostructures remain limited but indicate promising directions for sustainability improvements. Preliminary analyses suggest that while production phases may carry higher environmental burdens than conventional semiconductors, these impacts could be offset by efficiency gains and extended operational lifetimes. The recyclability of these materials presents both challenges and opportunities, with research needed to develop effective recovery methods for the valuable elements contained within these structures.
The potential for 2D semiconductor heterostructures to enable more energy-efficient electronics represents perhaps their most significant environmental benefit. Devices incorporating these materials have demonstrated substantial reductions in power consumption compared to conventional alternatives, particularly in applications such as sensors, computing elements, and energy harvesting systems. This efficiency improvement could translate to meaningful reductions in global energy demand as these technologies achieve widespread adoption.
Regulatory frameworks governing the environmental aspects of 2D semiconductor materials continue to evolve. Current gaps in specific regulations for nanomaterials highlight the need for proactive approaches to environmental risk assessment and management throughout the research, development, and commercialization pipeline. Industry-academic partnerships focused on green chemistry principles and sustainable manufacturing techniques will be essential to realizing the full environmental benefits of these promising materials.
