Energy Consumption Patterns in Electrolytic Cells for Chlor-Alkali Production

AUG 1, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

Chlor-Alkali Electrolysis: Background and Objectives

The chlor-alkali industry has been a cornerstone of chemical manufacturing for over a century, producing essential chemicals such as chlorine, sodium hydroxide, and hydrogen. The electrolysis of brine, the primary process in chlor-alkali production, has undergone significant technological advancements since its inception in the late 19th century. This evolution has been driven by the need for increased efficiency, reduced environmental impact, and improved product quality.

The chlor-alkali process relies on the electrolysis of sodium chloride solution, where an electric current is passed through a brine solution to produce chlorine gas at the anode, hydrogen gas at the cathode, and sodium hydroxide in the catholyte. The technology has progressed through three main generations: mercury cell, diaphragm cell, and membrane cell processes. Each iteration has aimed to address the limitations of its predecessor, particularly in terms of energy efficiency and environmental concerns.

Energy consumption has always been a critical factor in chlor-alkali production, as electricity accounts for a substantial portion of operating costs. The industry has consistently sought ways to reduce energy requirements while maintaining or improving product quality. Early mercury cell technology, while efficient, posed significant environmental risks. The transition to diaphragm cells addressed these concerns but initially resulted in higher energy consumption and lower product purity.

The introduction of membrane cell technology in the 1970s marked a significant milestone in the industry's evolution. This technology offered a more energy-efficient and environmentally friendly alternative, quickly becoming the preferred choice for new installations and retrofits. Membrane cells have since undergone continuous improvements, with advancements in electrode materials, membrane properties, and cell design contributing to further reductions in energy consumption.

Current research and development efforts in chlor-alkali electrolysis focus on several key objectives. These include further reducing energy consumption, enhancing the longevity and performance of cell components, improving product quality, and developing more sustainable production methods. Innovations in electrode materials, such as dimensionally stable anodes (DSA) and oxygen-depolarized cathodes, are being explored to increase current efficiency and reduce overpotential.

Additionally, there is growing interest in integrating renewable energy sources into chlor-alkali production to reduce the carbon footprint of the industry. This aligns with broader sustainability goals and the transition towards a circular economy. The development of more efficient and flexible electrolysis systems that can operate effectively with intermittent power sources is becoming increasingly important.

As the chlor-alkali industry continues to evolve, understanding and optimizing energy consumption patterns in electrolytic cells remain crucial for maintaining competitiveness and meeting environmental standards. The ongoing technological advancements and research initiatives in this field aim to address these challenges, paving the way for more sustainable and efficient chlor-alkali production processes in the future.

Market Analysis: Chlor-Alkali Industry Demand

The chlor-alkali industry plays a crucial role in the global chemical sector, producing essential chemicals such as chlorine, caustic soda, and hydrogen. These products serve as fundamental building blocks for a wide range of industries, including plastics, pharmaceuticals, water treatment, and paper production. The demand for chlor-alkali products is closely tied to economic growth and industrial development.

In recent years, the global chlor-alkali market has experienced steady growth, driven by increasing demand from end-use industries. The Asia-Pacific region, particularly China and India, has emerged as a major consumer and producer of chlor-alkali products due to rapid industrialization and urbanization. North America and Europe continue to be significant markets, with a focus on high-value applications and environmental sustainability.

The chlorine segment of the chlor-alkali industry has seen robust demand, primarily from the production of polyvinyl chloride (PVC) and other chlorinated compounds. PVC, used extensively in construction, automotive, and packaging industries, remains a key driver of chlorine consumption. Additionally, the water treatment sector's growing need for chlorine-based disinfectants has further bolstered demand.

Caustic soda, another primary product of the chlor-alkali process, has witnessed increased demand from the alumina and paper industries. The expanding use of caustic soda in various chemical processes, including the production of detergents and soaps, has contributed to market growth. Moreover, the rising adoption of caustic soda in textile manufacturing and water treatment applications has further fueled market expansion.

The hydrogen produced as a by-product of the chlor-alkali process has gained significance in recent years, particularly in the context of the growing hydrogen economy. With increasing focus on clean energy solutions, hydrogen's potential as a fuel source and its use in various industrial processes have attracted attention, potentially opening new avenues for market growth.

Despite the overall positive outlook, the chlor-alkali industry faces challenges related to environmental regulations and energy efficiency concerns. Stringent environmental policies, particularly in developed regions, have led to increased pressure on manufacturers to adopt cleaner production technologies and reduce their carbon footprint. This has driven investments in energy-efficient electrolytic cells and membrane-based production processes.

The industry's demand patterns are also influenced by cyclical fluctuations in end-use sectors and geopolitical factors affecting raw material prices. The volatility in energy prices, a significant component of production costs, has a direct impact on the competitiveness and profitability of chlor-alkali producers. As a result, there is a growing emphasis on optimizing energy consumption patterns in electrolytic cells to enhance operational efficiency and reduce production costs.

Energy Efficiency Challenges in Chlor-Alkali Production

The chlor-alkali industry faces significant energy efficiency challenges due to the energy-intensive nature of its production processes. Electrolytic cells, which are at the heart of chlor-alkali production, consume substantial amounts of electricity to drive the electrochemical reactions that produce chlorine, sodium hydroxide, and hydrogen. The primary energy efficiency challenge lies in reducing the overall energy consumption of these cells while maintaining or improving production output.

One of the main factors contributing to energy inefficiency is the resistance within the electrolytic cell. This resistance leads to energy losses in the form of heat, reducing the overall efficiency of the process. The membrane or diaphragm separating the anode and cathode compartments also introduces resistance, further impacting energy efficiency. Optimizing the design and materials of these components is crucial for minimizing energy losses.

Another significant challenge is the management of gas bubbles formed during electrolysis. These bubbles can increase the electrical resistance of the cell and reduce the active surface area of the electrodes, leading to decreased efficiency. Developing effective bubble management techniques and electrode designs that promote efficient gas release is essential for improving energy efficiency.

The choice of electrode materials also plays a critical role in energy efficiency. Traditional electrodes may suffer from degradation over time, leading to increased energy consumption. Research into advanced electrode materials, such as dimensionally stable anodes (DSA) and high-performance cathodes, aims to improve durability and reduce overpotential, thereby enhancing energy efficiency.

Temperature control within the electrolytic cell presents another challenge. While higher temperatures can improve conductivity and reaction kinetics, they also increase energy losses through heat dissipation. Striking the right balance between operating temperature and energy efficiency requires careful optimization and advanced heat management strategies.

The concentration and purity of the brine feed also impact energy efficiency. Impurities in the brine can lead to side reactions and electrode fouling, increasing energy consumption. Developing more efficient brine purification methods and maintaining optimal brine concentration are crucial for maximizing energy efficiency in chlor-alkali production.

Lastly, the integration of renewable energy sources into chlor-alkali production poses both opportunities and challenges. While renewable energy can reduce the carbon footprint of the industry, its intermittent nature requires innovative approaches to energy storage and load management to ensure consistent and efficient operation of electrolytic cells.

Current Energy Consumption Reduction Strategies

  • 01 Optimization of electrode materials

    Improving electrode materials can significantly reduce energy consumption in electrolytic cells. This includes developing high-performance catalysts, using nanostructured electrodes, and exploring novel materials with enhanced conductivity and durability. These advancements can lead to more efficient electron transfer and reduced overpotential, ultimately lowering the overall energy requirements of the electrolytic process.
    • Optimization of electrode materials: Improving electrode materials can significantly reduce energy consumption in electrolytic cells. This includes developing high-performance catalysts, using nanostructured electrodes, and exploring novel materials with enhanced conductivity and durability. These advancements can lead to more efficient electron transfer and reduced overpotential, ultimately lowering the overall energy requirements of the electrolytic process.
    • Advanced cell design and configuration: Innovative electrolytic cell designs can minimize energy losses and improve overall efficiency. This involves optimizing cell geometry, enhancing electrolyte circulation, and implementing advanced membrane technologies. Improved cell configurations can reduce internal resistance, promote uniform current distribution, and facilitate better heat management, all contributing to reduced energy consumption.
    • Process control and monitoring systems: Implementing sophisticated control and monitoring systems can optimize the operation of electrolytic cells. This includes real-time monitoring of key parameters, adaptive control algorithms, and predictive maintenance strategies. By maintaining optimal operating conditions and quickly addressing any deviations, these systems can significantly reduce energy waste and improve overall process efficiency.
    • Energy recovery and utilization: Developing methods to recover and utilize waste energy from electrolytic processes can greatly improve overall energy efficiency. This may involve heat recovery systems, gas recirculation techniques, or integration with other industrial processes. By harnessing energy that would otherwise be lost, these approaches can reduce the net energy consumption of electrolytic cells.
    • Alternative energy sources and power management: Exploring the use of renewable energy sources and implementing smart power management strategies can reduce the environmental impact and cost of energy consumption in electrolytic cells. This includes integrating solar or wind power, utilizing off-peak electricity, and developing energy storage solutions to balance load fluctuations. These approaches can lead to more sustainable and cost-effective operation of electrolytic processes.
  • 02 Advanced cell design and configuration

    Innovative electrolytic cell designs can minimize energy losses and improve overall efficiency. This involves optimizing cell geometry, enhancing electrolyte circulation, and implementing advanced membrane technologies. Such improvements can reduce internal resistance, improve mass transfer, and allow for more uniform current distribution, resulting in lower energy consumption per unit of product.
    Expand Specific Solutions
  • 03 Process control and automation

    Implementing sophisticated process control systems and automation can lead to significant energy savings in electrolytic cells. This includes real-time monitoring of key parameters, adaptive control algorithms, and predictive maintenance strategies. By optimizing operating conditions and quickly responding to process variations, these systems can maintain peak efficiency and minimize unnecessary energy expenditure.
    Expand Specific Solutions
  • 04 Energy recovery and integration

    Developing methods to recover and reuse energy within the electrolytic process can substantially reduce overall energy consumption. This may involve heat recovery systems, pressure energy recovery, and integration with other industrial processes. By capturing and utilizing waste energy, these approaches can improve the overall energy efficiency of electrolytic cell operations.
    Expand Specific Solutions
  • 05 Alternative energy sources and power management

    Incorporating renewable energy sources and implementing advanced power management strategies can optimize energy usage in electrolytic cells. This includes integrating solar or wind power, using smart grid technologies, and developing energy storage solutions to balance load fluctuations. These approaches can reduce reliance on conventional energy sources and improve the overall sustainability of electrolytic processes.
    Expand Specific Solutions

Key Players in Chlor-Alkali Electrolysis Equipment

The energy consumption patterns in electrolytic cells for chlor-alkali production represent a mature yet evolving technological landscape. The industry is in a consolidation phase, with established players like Industrie De Nora SpA and ThyssenKrupp Uhde Chlorine Engineers GmbH dominating the market. The global chlor-alkali market size is substantial, driven by demand in various sectors. Technological maturity is high, with companies focusing on incremental improvements in energy efficiency and sustainability. Research institutions such as MIT and California Institute of Technology contribute to advancing the field, while companies like Covestro Deutschland AG and Evonik Operations GmbH work on industrial applications, indicating a collaborative ecosystem for innovation in this sector.

Industrie De Nora SpA

Technical Solution: De Nora has developed advanced electrode technologies for chlor-alkali production, focusing on energy efficiency and sustainability. Their NaCl-ODC (Oxygen Depolarized Cathode) technology reduces electricity consumption by up to 30% compared to standard membrane cells[1]. This innovative approach uses oxygen instead of water for the cathode reaction, significantly lowering the cell voltage and energy requirements. De Nora's electrodes feature optimized catalytic coatings that enhance reaction kinetics and reduce overpotential, further improving energy efficiency. They have also implemented advanced membrane technology and optimized cell design to minimize ohmic losses and improve current distribution[2].
Strengths: Significant energy savings, reduced carbon footprint, and lower operating costs. Weaknesses: Higher initial investment costs and potential complexity in retrofitting existing plants.

ThyssenKrupp Uhde Chlorine Engineers GmbH

Technical Solution: ThyssenKrupp Uhde Chlorine Engineers has developed the NaCl-ODC electrolysis technology, which utilizes oxygen-depolarized cathodes to reduce energy consumption in chlor-alkali production. This technology can achieve energy savings of up to 30% compared to conventional membrane electrolysis[3]. They have also optimized cell design and electrode materials to enhance current efficiency and reduce voltage drop. Their advanced membrane technology features reinforced perfluorinated membranes with improved ion selectivity and mechanical stability, contributing to overall energy efficiency. Additionally, they have implemented intelligent control systems that optimize operating parameters in real-time, further reducing energy consumption[4].
Strengths: Substantial energy savings, reduced operating costs, and improved process efficiency. Weaknesses: High initial capital investment and potential challenges in integrating with existing infrastructure.

Innovative Electrode Materials and Cell Designs

Process for reducing energy requirements in the electrolytic production of chlorine and sodium hydroxide
PatentInactiveUS5154806A
Innovation
  • Introducing a small amount of water-soluble polyacrylic acid with polar functional groups into the cell feed brine reduces cell voltage and overall power consumption by inhibiting the formation of interfering precipitates and altering chemical reactivity, while also acting as a clarifying agent to remove contaminants.
Electrode coating

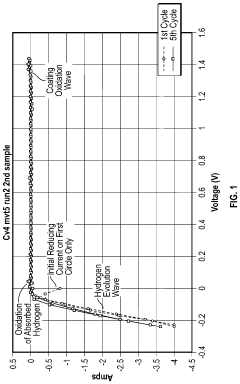

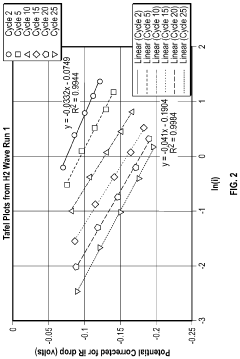

PatentPendingUS20220243338A1
Innovation
  • The development of electrodes comprising a core substrate with an internal layer coating of palladium or silver alloys and an external layer coating of zirconium, ruthenium, or platinum group metals, which are calcined multiple times to enhance adhesion and resistance to oxidation, reducing hydrogen absorption and overpotential.

Environmental Impact and Sustainability Considerations

The chlor-alkali industry, while essential for producing vital chemicals, has significant environmental implications. The electrolytic process used in chlor-alkali production is energy-intensive, contributing to greenhouse gas emissions and climate change. The industry's substantial electricity consumption, primarily derived from fossil fuels, results in considerable carbon dioxide emissions. This environmental impact necessitates a shift towards more sustainable practices and cleaner energy sources.

Water usage is another critical environmental concern in chlor-alkali production. The process requires large volumes of water, potentially straining local water resources and affecting aquatic ecosystems. Proper water management and recycling systems are crucial to mitigate these impacts and ensure sustainable operations.

The use and potential release of mercury in some older chlor-alkali plants pose severe environmental and health risks. While many facilities have transitioned to mercury-free technologies, legacy contamination remains a concern. Strict regulations and proper disposal methods are essential to prevent mercury pollution and protect ecosystems and human health.

Chlorine production also carries the risk of accidental releases, which can have devastating effects on air quality and aquatic environments. Implementing robust safety measures and emergency response protocols is vital to prevent and mitigate such incidents.

On the sustainability front, the chlor-alkali industry is making strides towards more environmentally friendly practices. The adoption of membrane cell technology, which is more energy-efficient and mercury-free, represents a significant improvement. This technology not only reduces energy consumption but also eliminates the use of hazardous substances, aligning with circular economy principles.

Efforts to increase energy efficiency and reduce carbon footprint are ongoing. These include optimizing electrolytic cell designs, improving electrode materials, and implementing advanced process control systems. Additionally, the industry is exploring the integration of renewable energy sources to power chlor-alkali plants, further reducing their environmental impact.

Waste reduction and byproduct utilization are also key focus areas for sustainability. Innovations in recycling brine and recovering valuable byproducts contribute to resource efficiency and minimize waste generation. These practices not only reduce environmental impact but also improve the economic viability of chlor-alkali production.

As environmental regulations become more stringent globally, the chlor-alkali industry must continue to invest in research and development of cleaner technologies and sustainable practices. This includes exploring alternative production methods, such as electrolysis powered by renewable energy, and developing more efficient catalysts to reduce energy consumption.

Regulatory Framework for Chlor-Alkali Production

The regulatory framework for chlor-alkali production plays a crucial role in shaping the industry's energy consumption patterns and environmental impact. Governments and international organizations have implemented stringent regulations to ensure the safe and sustainable operation of electrolytic cells in chlor-alkali plants.

At the global level, the United Nations Environment Programme (UNEP) has established guidelines for the chlor-alkali sector, focusing on reducing mercury emissions and promoting the adoption of mercury-free technologies. These guidelines have led to a significant shift towards membrane cell technology, which is more energy-efficient and environmentally friendly compared to older mercury cell processes.

In the European Union, the Industrial Emissions Directive (IED) sets strict limits on emissions from chlor-alkali plants. This directive requires the use of Best Available Techniques (BAT) for energy efficiency and environmental protection. The BAT Reference Document for the Production of Chlor-alkali (BREF) provides detailed guidance on energy-efficient practices and technologies for electrolytic cells.

The United States Environmental Protection Agency (EPA) regulates chlor-alkali production under the Clean Air Act and the Clean Water Act. The National Emission Standards for Hazardous Air Pollutants (NESHAP) specifically addresses mercury emissions from chlor-alkali plants, encouraging the industry to adopt more energy-efficient membrane cell technology.

China, a major player in the chlor-alkali industry, has implemented the Action Plan for Air Pollution Prevention and Control, which includes measures to reduce energy consumption and emissions in the chemical sector. This plan has accelerated the phase-out of mercury-based processes and promoted the adoption of energy-efficient membrane cell technology.

Many countries have also introduced energy efficiency standards and carbon pricing mechanisms that directly impact the chlor-alkali industry. These measures incentivize companies to invest in energy-efficient technologies and optimize their production processes to reduce overall energy consumption.

The regulatory landscape continues to evolve, with increasing focus on circular economy principles and life-cycle assessments. Future regulations are likely to emphasize the importance of energy recovery, waste heat utilization, and integration of renewable energy sources in chlor-alkali production processes.
