h-BN Underfill Technology Background and Objectives
Hexagonal Boron Nitride (h-BN) filled underfills represent a significant advancement in electronic packaging technology, emerging as a response to the increasing demands for thermal management and reliability in microelectronic devices. The evolution of this technology can be traced back to the early 2000s when conventional underfill materials began showing limitations in addressing the thermal challenges posed by higher-density integrated circuits.
The semiconductor industry has witnessed a continuous trend toward miniaturization, with devices becoming smaller yet more powerful, resulting in higher heat generation within confined spaces. Traditional underfill materials, primarily epoxy-based with silica fillers, have reached their performance ceiling in terms of thermal conductivity and coefficient of thermal expansion (CTE) matching capabilities.
h-BN has emerged as a promising alternative filler material due to its exceptional thermal conductivity (up to 400 W/m·K in-plane), electrical insulation properties, and chemical stability. The layered structure of h-BN, often referred to as "white graphene," provides unique anisotropic properties that can be leveraged in underfill applications to direct heat flow and control CTE.
The technical evolution path of h-BN underfills has progressed through several key phases: initial exploration of h-BN as a filler material (2005-2010), development of surface functionalization techniques to improve h-BN-matrix compatibility (2010-2015), and recent advancements in controlling h-BN orientation and distribution within the polymer matrix (2015-present).
Current technical objectives for h-BN filled underfills focus on three critical challenges: minimizing curing shrinkage, controlling void formation during the underfill process, and enhancing fatigue resistance under thermal cycling conditions. These objectives are driven by the industry's push toward more reliable flip-chip packages, particularly for automotive, aerospace, and high-performance computing applications where operational conditions are increasingly demanding.
The target performance metrics include achieving curing shrinkage below 1%, void content less than 0.5% by volume, and fatigue life exceeding 3000 thermal cycles (-40°C to 125°C). Additionally, there is growing interest in developing h-BN underfills that maintain performance integrity at higher temperatures (>200°C) to support wide-bandgap semiconductor applications.
Research efforts are now concentrated on understanding the fundamental mechanisms governing the interaction between h-BN particles and the polymer matrix during curing, as well as developing predictive models for optimizing filler loading, particle size distribution, and surface treatment parameters to achieve the desired balance of processability and reliability performance.
The semiconductor industry has witnessed a continuous trend toward miniaturization, with devices becoming smaller yet more powerful, resulting in higher heat generation within confined spaces. Traditional underfill materials, primarily epoxy-based with silica fillers, have reached their performance ceiling in terms of thermal conductivity and coefficient of thermal expansion (CTE) matching capabilities.
h-BN has emerged as a promising alternative filler material due to its exceptional thermal conductivity (up to 400 W/m·K in-plane), electrical insulation properties, and chemical stability. The layered structure of h-BN, often referred to as "white graphene," provides unique anisotropic properties that can be leveraged in underfill applications to direct heat flow and control CTE.
The technical evolution path of h-BN underfills has progressed through several key phases: initial exploration of h-BN as a filler material (2005-2010), development of surface functionalization techniques to improve h-BN-matrix compatibility (2010-2015), and recent advancements in controlling h-BN orientation and distribution within the polymer matrix (2015-present).
Current technical objectives for h-BN filled underfills focus on three critical challenges: minimizing curing shrinkage, controlling void formation during the underfill process, and enhancing fatigue resistance under thermal cycling conditions. These objectives are driven by the industry's push toward more reliable flip-chip packages, particularly for automotive, aerospace, and high-performance computing applications where operational conditions are increasingly demanding.
The target performance metrics include achieving curing shrinkage below 1%, void content less than 0.5% by volume, and fatigue life exceeding 3000 thermal cycles (-40°C to 125°C). Additionally, there is growing interest in developing h-BN underfills that maintain performance integrity at higher temperatures (>200°C) to support wide-bandgap semiconductor applications.
Research efforts are now concentrated on understanding the fundamental mechanisms governing the interaction between h-BN particles and the polymer matrix during curing, as well as developing predictive models for optimizing filler loading, particle size distribution, and surface treatment parameters to achieve the desired balance of processability and reliability performance.
Market Analysis for Advanced Semiconductor Packaging Materials
The global market for advanced semiconductor packaging materials is experiencing robust growth, driven by the increasing demand for high-performance computing, artificial intelligence, 5G technology, and Internet of Things (IoT) applications. Within this sector, underfill materials play a critical role in ensuring the reliability and longevity of semiconductor packages, particularly in flip-chip applications where they provide mechanical support and thermal stress management.
The underfill materials market is projected to reach $347 million by 2026, growing at a CAGR of 7.2% from 2021. This growth is primarily fueled by the miniaturization trend in electronics, which necessitates more reliable interconnection solutions. Hexagonal Boron Nitride (h-BN) filled underfills represent an emerging segment within this market, gaining attention for their superior thermal conductivity and mechanical properties.
Consumer electronics remains the largest application segment for advanced underfill materials, accounting for approximately 42% of the market share. However, automotive electronics is emerging as the fastest-growing segment, with increasing adoption of advanced driver-assistance systems (ADAS) and electric vehicles driving demand for reliable semiconductor packaging solutions that can withstand harsh operating environments.
Regionally, Asia-Pacific dominates the market with over 60% share, attributed to the concentration of semiconductor manufacturing facilities in countries like Taiwan, South Korea, China, and Japan. North America follows with approximately 20% market share, driven by technological innovations and high-end applications in computing and telecommunications.
The market for h-BN filled underfills specifically is witnessing increased interest due to their potential to address critical challenges in advanced packaging, including curing shrinkage, void formation, and fatigue resistance. These materials command premium pricing, typically 30-40% higher than conventional underfills, reflecting their enhanced performance characteristics.
Key market drivers include the growing adoption of 2.5D and 3D packaging technologies, increasing thermal management requirements in high-performance applications, and the push for greater reliability in mission-critical systems. The trend toward heterogeneous integration in advanced packaging is creating additional demand for specialized underfill materials that can accommodate different coefficient of thermal expansion (CTE) values between diverse components.
Market challenges include high material costs, processing complexities, and the need for specialized equipment for void-free dispensing. Additionally, environmental regulations regarding halogen-free requirements and REACH compliance are influencing material formulation strategies across the industry.
The underfill materials market is projected to reach $347 million by 2026, growing at a CAGR of 7.2% from 2021. This growth is primarily fueled by the miniaturization trend in electronics, which necessitates more reliable interconnection solutions. Hexagonal Boron Nitride (h-BN) filled underfills represent an emerging segment within this market, gaining attention for their superior thermal conductivity and mechanical properties.
Consumer electronics remains the largest application segment for advanced underfill materials, accounting for approximately 42% of the market share. However, automotive electronics is emerging as the fastest-growing segment, with increasing adoption of advanced driver-assistance systems (ADAS) and electric vehicles driving demand for reliable semiconductor packaging solutions that can withstand harsh operating environments.
Regionally, Asia-Pacific dominates the market with over 60% share, attributed to the concentration of semiconductor manufacturing facilities in countries like Taiwan, South Korea, China, and Japan. North America follows with approximately 20% market share, driven by technological innovations and high-end applications in computing and telecommunications.
The market for h-BN filled underfills specifically is witnessing increased interest due to their potential to address critical challenges in advanced packaging, including curing shrinkage, void formation, and fatigue resistance. These materials command premium pricing, typically 30-40% higher than conventional underfills, reflecting their enhanced performance characteristics.
Key market drivers include the growing adoption of 2.5D and 3D packaging technologies, increasing thermal management requirements in high-performance applications, and the push for greater reliability in mission-critical systems. The trend toward heterogeneous integration in advanced packaging is creating additional demand for specialized underfill materials that can accommodate different coefficient of thermal expansion (CTE) values between diverse components.
Market challenges include high material costs, processing complexities, and the need for specialized equipment for void-free dispensing. Additionally, environmental regulations regarding halogen-free requirements and REACH compliance are influencing material formulation strategies across the industry.
Current Challenges in h-BN Filled Underfill Development
The development of hexagonal boron nitride (h-BN) filled underfills faces several significant technical challenges that currently limit their widespread adoption in advanced electronic packaging applications. These challenges primarily revolve around three critical areas: curing shrinkage control, void formation management, and fatigue resistance enhancement.
Curing shrinkage represents one of the most persistent issues in h-BN filled underfill technology. During the curing process, the epoxy matrix undergoes volumetric contraction, typically ranging from 3-7% depending on the formulation. This shrinkage creates internal stresses at the interface between the underfill and the semiconductor components, potentially leading to delamination, warpage, and premature failure of the electronic assembly.
The incorporation of h-BN particles, while beneficial for thermal conductivity, introduces complexities in shrinkage control. Higher filler loadings (>30% by volume) can reduce overall shrinkage but simultaneously increase viscosity, creating processing difficulties. Current formulations struggle to achieve the optimal balance between shrinkage reduction and processability, particularly for fine-pitch applications where flow characteristics are critical.
Void formation presents another major challenge in h-BN filled underfills. The irregular morphology of h-BN particles, especially in platelet form, creates pathways for air entrapment during the dispensing and curing processes. These voids act as stress concentrators and thermal barriers, significantly compromising the mechanical integrity and thermal performance of the underfill.
Industry data indicates that void content exceeding 2% by volume can reduce thermal conductivity by up to 30% and decrease fatigue life by 40-50%. Current void mitigation strategies, including vacuum degassing and specialized dispensing techniques, add process complexity and cost while still failing to completely eliminate void formation in high-filler-content formulations.
Fatigue resistance remains particularly challenging for h-BN filled underfills in applications subjected to thermal cycling. The coefficient of thermal expansion (CTE) mismatch between the underfill and surrounding materials creates cyclic stresses that eventually lead to crack initiation and propagation. While h-BN fillers can modify the CTE of the composite, they also create localized stress concentrations at the filler-matrix interface.
Recent studies have shown that after 1000 thermal cycles (-40°C to 125°C), conventional h-BN filled underfills can exhibit microcrack formation, particularly at filler concentrations above 40% by weight. These microcracks progressively coalesce, ultimately leading to electrical connection failure and device malfunction.
Additionally, moisture absorption presents a compounding challenge, as h-BN filled underfills can absorb 0.2-0.5% moisture by weight under standard operating conditions. This moisture absorption accelerates degradation mechanisms and further compromises long-term reliability, particularly in automotive and industrial applications where environmental exposure is severe.
Curing shrinkage represents one of the most persistent issues in h-BN filled underfill technology. During the curing process, the epoxy matrix undergoes volumetric contraction, typically ranging from 3-7% depending on the formulation. This shrinkage creates internal stresses at the interface between the underfill and the semiconductor components, potentially leading to delamination, warpage, and premature failure of the electronic assembly.
The incorporation of h-BN particles, while beneficial for thermal conductivity, introduces complexities in shrinkage control. Higher filler loadings (>30% by volume) can reduce overall shrinkage but simultaneously increase viscosity, creating processing difficulties. Current formulations struggle to achieve the optimal balance between shrinkage reduction and processability, particularly for fine-pitch applications where flow characteristics are critical.
Void formation presents another major challenge in h-BN filled underfills. The irregular morphology of h-BN particles, especially in platelet form, creates pathways for air entrapment during the dispensing and curing processes. These voids act as stress concentrators and thermal barriers, significantly compromising the mechanical integrity and thermal performance of the underfill.
Industry data indicates that void content exceeding 2% by volume can reduce thermal conductivity by up to 30% and decrease fatigue life by 40-50%. Current void mitigation strategies, including vacuum degassing and specialized dispensing techniques, add process complexity and cost while still failing to completely eliminate void formation in high-filler-content formulations.
Fatigue resistance remains particularly challenging for h-BN filled underfills in applications subjected to thermal cycling. The coefficient of thermal expansion (CTE) mismatch between the underfill and surrounding materials creates cyclic stresses that eventually lead to crack initiation and propagation. While h-BN fillers can modify the CTE of the composite, they also create localized stress concentrations at the filler-matrix interface.
Recent studies have shown that after 1000 thermal cycles (-40°C to 125°C), conventional h-BN filled underfills can exhibit microcrack formation, particularly at filler concentrations above 40% by weight. These microcracks progressively coalesce, ultimately leading to electrical connection failure and device malfunction.
Additionally, moisture absorption presents a compounding challenge, as h-BN filled underfills can absorb 0.2-0.5% moisture by weight under standard operating conditions. This moisture absorption accelerates degradation mechanisms and further compromises long-term reliability, particularly in automotive and industrial applications where environmental exposure is severe.
Current Approaches to Curing Shrinkage and Void Mitigation
01 Hexagonal Boron Nitride as filler for reducing curing shrinkage
Hexagonal Boron Nitride (h-BN) can be incorporated into underfill formulations to effectively reduce curing shrinkage. The unique platelet structure of h-BN particles provides dimensional stability during the curing process. By controlling the concentration and particle size distribution of h-BN fillers, the coefficient of thermal expansion can be matched to surrounding materials, minimizing stress during temperature cycling and improving reliability of electronic packages.- Hexagonal Boron Nitride as filler for reducing curing shrinkage: Hexagonal Boron Nitride (h-BN) can be incorporated into underfill formulations to effectively reduce curing shrinkage. The unique platelet structure of h-BN particles provides dimensional stability during the curing process. By controlling the concentration and particle size distribution of h-BN fillers, the coefficient of thermal expansion can be matched with surrounding materials, minimizing stress during thermal cycling and reducing overall shrinkage during curing.
- Void control techniques in h-BN filled underfills: Various techniques can be employed to control void formation in hexagonal boron nitride filled underfills. These include optimizing the viscosity of the underfill material, using vacuum-assisted processes during application, and controlling the curing profile. Surface treatment of h-BN particles improves wetting and dispersion within the polymer matrix, reducing the likelihood of void formation. Additionally, incorporating specific degassing agents and using staged curing processes helps eliminate trapped air bubbles and voids.
- Fatigue resistance enhancement with h-BN fillers: Hexagonal Boron Nitride fillers significantly enhance the fatigue resistance of underfill materials. The incorporation of h-BN improves mechanical properties by reinforcing the polymer matrix and distributing stress more evenly throughout the material. The thermal conductivity of h-BN also helps dissipate heat more efficiently, reducing thermal stress during operation cycles. These properties collectively contribute to improved reliability and extended fatigue life of electronic assemblies under thermal and mechanical cycling conditions.
- Hybrid filler systems with h-BN for optimized performance: Combining hexagonal boron nitride with other fillers creates hybrid systems that optimize multiple properties simultaneously. These hybrid formulations typically include silica, alumina, or other ceramic particles alongside h-BN to balance thermal conductivity, coefficient of thermal expansion, and mechanical strength. The synergistic effect of different filler morphologies and properties allows for customized underfill solutions that address specific application requirements while maintaining excellent curing characteristics and minimizing shrinkage and void formation.
- Processing techniques for h-BN filled underfills: Specialized processing techniques are essential for effectively incorporating hexagonal boron nitride into underfill formulations. These include surface functionalization of h-BN particles to improve compatibility with the resin matrix, high-shear mixing methods to ensure uniform dispersion, and controlled heating profiles during curing. Advanced dispensing methods such as capillary underfill or no-flow underfill processes can be optimized for h-BN filled systems to ensure proper flow characteristics and minimize trapped air. These processing considerations are critical for achieving the desired shrinkage control and void-free underfill applications.
02 Void control techniques in h-BN filled underfills
Various techniques can be employed to control void formation in hexagonal boron nitride filled underfills. These include optimizing the viscosity of the underfill material, using vacuum-assisted processes during application, controlling the surface treatment of h-BN particles to improve wetting, and implementing specific dispensing patterns. Proper void control ensures complete filling of gaps between components and substrates, preventing reliability issues such as delamination and electrical failures.Expand Specific Solutions03 Fatigue resistance enhancement with h-BN fillers
Hexagonal Boron Nitride fillers significantly enhance the fatigue resistance of underfill materials used in electronic packaging. The incorporation of h-BN improves mechanical properties by reinforcing the polymer matrix and distributing stress more evenly throughout the material. This results in improved thermal cycling performance and extended device lifetime. The high thermal conductivity of h-BN also helps dissipate heat more efficiently, reducing thermal stress that contributes to fatigue failure.Expand Specific Solutions04 Surface modification of h-BN for improved dispersion and adhesion
Surface modification of hexagonal Boron Nitride particles is crucial for achieving optimal performance in underfill applications. Various functionalization methods can be employed to improve the dispersion of h-BN in the polymer matrix and enhance adhesion at interfaces. Silane coupling agents, plasma treatments, and polymer grafting are common approaches to modify the surface chemistry of h-BN. These modifications prevent agglomeration, improve filler-matrix interaction, and enhance overall reliability of the underfill material.Expand Specific Solutions05 Hybrid filler systems combining h-BN with other materials
Hybrid filler systems that combine hexagonal Boron Nitride with other materials offer synergistic benefits for underfill applications. By incorporating h-BN with materials such as silica, alumina, or carbon-based fillers, properties like thermal conductivity, mechanical strength, and coefficient of thermal expansion can be precisely tailored. These hybrid systems allow for optimization of multiple properties simultaneously, addressing challenges related to curing shrinkage, void formation, and fatigue resistance while maintaining processability.Expand Specific Solutions
Leading Manufacturers and Research Institutions in Underfill Technology
Hexagonal Boron Nitride (h-BN) filled underfills for electronic packaging are emerging as a critical technology in the semiconductor industry, currently in the growth phase with an expanding market driven by demands for thermal management solutions. The global market for advanced underfill materials is projected to reach several billion dollars by 2025, with h-BN variants gaining traction due to superior thermal conductivity and reduced curing shrinkage. Companies like Momentive Performance Materials, Tokuyama Corp., and Sumitomo Electric Industries are leading commercial development, while academic institutions including Rice University and Jilin University are advancing fundamental research. Denka Corp. and DuPont are commercializing proprietary formulations, with Kyocera and Infineon Technologies implementing these materials in high-reliability applications where void control and fatigue resistance are paramount.
Momentive Performance Materials, Inc.
Technical Solution: Momentive has developed a comprehensive h-BN filled underfill platform specifically addressing curing shrinkage and void formation challenges in advanced packaging applications. Their technology utilizes hexagonal boron nitride particles with tailored morphologies (platelet vs. spherical) and controlled size distributions (0.8-3μm) to optimize both flow characteristics and thermal performance. The company's proprietary surface modification techniques enable h-BN loadings of up to 50 wt% while maintaining acceptable viscosity profiles for capillary flow applications. Momentive's formulations incorporate specialized stress-relieving additives that work synergistically with h-BN to reduce curing shrinkage by approximately 45% compared to unfilled systems. Their advanced curing protocols employ a staged temperature ramp (typically 80°C → 125°C → 165°C) with optimized dwell times to minimize internal stress development during polymerization, resulting in significantly improved fatigue resistance under thermal cycling conditions.
Strengths: Exceptional balance of flow properties and thermal performance; superior adhesion to diverse substrate materials; excellent long-term reliability under thermal cycling conditions. Weaknesses: Sensitive to moisture absorption during storage and application; requires tight process control for consistent performance; higher cost structure compared to conventional underfill materials.
General Electric Company
Technical Solution: GE has developed an advanced h-BN filled underfill technology specifically engineered for high-reliability power electronics and aerospace applications. Their approach incorporates hexagonal boron nitride particles with optimized aspect ratios (typically 15:1 to 25:1) and proprietary surface treatments to enhance dispersion stability and matrix compatibility. GE's formulations utilize a hybrid filler system where h-BN (20-30 wt%) is combined with spherical silica particles (15-25 wt%) to simultaneously address thermal management and coefficient of thermal expansion (CTE) matching requirements. This hybrid approach has demonstrated significant improvements in curing shrinkage reduction (approximately 35% lower than conventional underfills) while maintaining excellent flow characteristics. The company's technology also incorporates specialized toughening agents that enhance crack resistance during thermal cycling, resulting in superior fatigue performance. GE has implemented a proprietary vacuum-assisted underfill application process that effectively minimizes void formation, achieving void content below 1.5% by volume in production environments.
Strengths: Exceptional thermal cycling reliability (>3500 cycles from -55°C to 175°C); excellent resistance to moisture-induced degradation; superior mechanical stability under extreme conditions. Weaknesses: Higher viscosity limiting flow in fine-pitch applications; requires specialized equipment for optimal application; higher material costs compared to standard underfill solutions.
Key Patents and Research on h-BN Filled Underfill Formulations

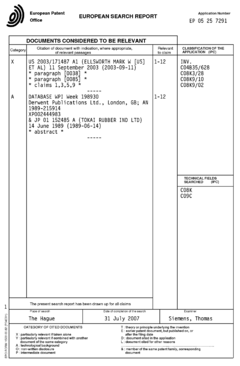

Enhanced boron nitride composition and polymer-based compositions made therewith
PatentActiveEP1702907A3
Innovation
- Surface functionalization of BN powder with a zirconate coupling agent, zirconium aluminate coupling agent, or aluminate coupling agent, allowing for higher loading concentrations and improved thermal conductivity by reducing viscosity and enhancing dispersion in polymer composites.
Surface-roughened hexagonal boron nitride particles, composition, cured product, monolayer resin sheet, multilayer resin sheet, prepreg, metal foil-coated multilayer plate, printed circuit board, sealing material, fiber-reinforced composite material and adhesive
PatentInactiveJP2019137581A
Innovation
- Surface-roughened hexagonal boron nitride (hBN) particles with a recessed structure on the (0001) surface, providing enhanced affinity for resins and improved thermal conductivity.
- Functionalization of hBN particles with metal coupling agents on the surface to improve compatibility with resin matrices and reduce interfacial thermal resistance.
- Application of surface-roughened hBN particles in various high-performance electronic materials including resin sheets, prepregs, and printed circuit boards to achieve enhanced thermal management.
Reliability Testing Standards and Qualification Methods
Reliability testing standards and qualification methods for hexagonal boron nitride (h-BN) filled underfills must adhere to rigorous protocols to ensure their performance in electronic packaging applications. The primary standards governing these materials include JEDEC JESD22-A104 for temperature cycling, IPC-9701 for interconnect reliability, and ASTM D7867 for underfill material characterization.
Temperature cycling tests typically follow JEDEC standards with cycles ranging from -40°C to 125°C, with dwell times of 10-15 minutes at temperature extremes. These tests evaluate the material's ability to withstand thermal expansion mismatches without developing cracks or delamination. For h-BN filled underfills specifically, extended cycling (1000+ cycles) is recommended due to their application in high-reliability electronics.
Moisture sensitivity testing according to JEDEC J-STD-020 is crucial for evaluating how h-BN filled underfills perform under humid conditions. The standard 85°C/85% relative humidity test for 168 hours provides insights into moisture absorption characteristics and potential void formation mechanisms during subsequent reflow processes.
Mechanical shock and vibration testing follows MIL-STD-883 Method 2002 (shock) and Method 2007 (vibration) protocols. These tests are particularly important for h-BN filled underfills due to their application in automotive and aerospace electronics where mechanical reliability is paramount.
Adhesion strength qualification employs die shear testing (ASTM D5528) and four-point bend testing (JEDEC JESD22-B115) to quantify the interfacial adhesion between the underfill and substrate. For h-BN filled systems, modified test parameters may be necessary due to their unique filler-matrix interactions affecting adhesion properties.
Accelerated life testing methodologies include Highly Accelerated Stress Testing (HAST) and Highly Accelerated Life Testing (HALT), which subject the underfill materials to extreme conditions to predict long-term reliability. For curing shrinkage evaluation, ASTM D2566 provides standardized measurement techniques, while void analysis typically employs C-SAM (C-mode Scanning Acoustic Microscopy) inspection following JEDEC JESD22-A112.
Fatigue resistance qualification requires specialized testing approaches. The Coffin-Manson relationship is commonly applied to analyze thermal cycling data, while Paris Law models help predict crack propagation rates in h-BN filled underfills under cyclic loading conditions.
Recent developments in qualification methods include in-situ monitoring techniques that allow real-time observation of void formation during thermal cycling. Digital Image Correlation (DIC) has emerged as a valuable tool for strain mapping during mechanical testing, providing deeper insights into the deformation behavior of h-BN filled underfills under stress.
Temperature cycling tests typically follow JEDEC standards with cycles ranging from -40°C to 125°C, with dwell times of 10-15 minutes at temperature extremes. These tests evaluate the material's ability to withstand thermal expansion mismatches without developing cracks or delamination. For h-BN filled underfills specifically, extended cycling (1000+ cycles) is recommended due to their application in high-reliability electronics.
Moisture sensitivity testing according to JEDEC J-STD-020 is crucial for evaluating how h-BN filled underfills perform under humid conditions. The standard 85°C/85% relative humidity test for 168 hours provides insights into moisture absorption characteristics and potential void formation mechanisms during subsequent reflow processes.
Mechanical shock and vibration testing follows MIL-STD-883 Method 2002 (shock) and Method 2007 (vibration) protocols. These tests are particularly important for h-BN filled underfills due to their application in automotive and aerospace electronics where mechanical reliability is paramount.
Adhesion strength qualification employs die shear testing (ASTM D5528) and four-point bend testing (JEDEC JESD22-B115) to quantify the interfacial adhesion between the underfill and substrate. For h-BN filled systems, modified test parameters may be necessary due to their unique filler-matrix interactions affecting adhesion properties.
Accelerated life testing methodologies include Highly Accelerated Stress Testing (HAST) and Highly Accelerated Life Testing (HALT), which subject the underfill materials to extreme conditions to predict long-term reliability. For curing shrinkage evaluation, ASTM D2566 provides standardized measurement techniques, while void analysis typically employs C-SAM (C-mode Scanning Acoustic Microscopy) inspection following JEDEC JESD22-A112.
Fatigue resistance qualification requires specialized testing approaches. The Coffin-Manson relationship is commonly applied to analyze thermal cycling data, while Paris Law models help predict crack propagation rates in h-BN filled underfills under cyclic loading conditions.
Recent developments in qualification methods include in-situ monitoring techniques that allow real-time observation of void formation during thermal cycling. Digital Image Correlation (DIC) has emerged as a valuable tool for strain mapping during mechanical testing, providing deeper insights into the deformation behavior of h-BN filled underfills under stress.
Environmental and Regulatory Considerations for Advanced Underfills
The environmental and regulatory landscape surrounding advanced underfills, particularly those incorporating hexagonal boron nitride (h-BN), is becoming increasingly complex as electronics manufacturing faces stricter sustainability requirements. Current regulations from agencies such as the Environmental Protection Agency (EPA) and European Chemicals Agency (ECHA) are imposing limitations on volatile organic compounds (VOCs) and hazardous substances in electronic materials, directly impacting underfill formulations.
Hexagonal boron nitride filled underfills present specific environmental considerations throughout their lifecycle. During manufacturing, the production process must address potential airborne particulate concerns from h-BN powder handling. The fine particle nature of high-quality h-BN fillers necessitates proper industrial hygiene protocols and engineering controls to prevent worker exposure and environmental release.
The curing process of these advanced underfills generates concerns regarding outgassing and VOC emissions. As regulatory bodies worldwide continue to lower acceptable emission thresholds, manufacturers must develop low-shrinkage formulations that maintain performance while reducing harmful emissions. Recent research indicates that optimized h-BN loading can actually contribute to reduced overall VOC emissions compared to conventional underfills.
End-of-life considerations represent another critical regulatory dimension. The growing emphasis on electronic waste management and circular economy principles is driving requirements for easier disassembly and material recovery. The thermal stability of h-BN presents both challenges and opportunities in this context - while improving device longevity, it may complicate recycling processes due to its high temperature resistance.
RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) compliance remains mandatory for market access. While h-BN itself is generally considered environmentally benign, the resin systems and curing agents used in underfill formulations must be carefully selected to avoid restricted substances. Several major electronics manufacturers have established their own restricted substance lists that exceed regulatory requirements.
Carbon footprint considerations are increasingly influencing material selection decisions. Life cycle assessment (LCA) studies suggest that despite energy-intensive production, h-BN filled underfills may offer net environmental benefits through extended device lifespans and improved thermal management, potentially reducing overall electronic waste generation.
Industry consortia such as iNEMI (International Electronics Manufacturing Initiative) are developing standardized protocols for evaluating the environmental impact of advanced underfills. These efforts aim to establish consistent metrics for comparing different formulations based on their environmental performance throughout the product lifecycle, from raw material extraction through disposal or recycling.
Hexagonal boron nitride filled underfills present specific environmental considerations throughout their lifecycle. During manufacturing, the production process must address potential airborne particulate concerns from h-BN powder handling. The fine particle nature of high-quality h-BN fillers necessitates proper industrial hygiene protocols and engineering controls to prevent worker exposure and environmental release.
The curing process of these advanced underfills generates concerns regarding outgassing and VOC emissions. As regulatory bodies worldwide continue to lower acceptable emission thresholds, manufacturers must develop low-shrinkage formulations that maintain performance while reducing harmful emissions. Recent research indicates that optimized h-BN loading can actually contribute to reduced overall VOC emissions compared to conventional underfills.
End-of-life considerations represent another critical regulatory dimension. The growing emphasis on electronic waste management and circular economy principles is driving requirements for easier disassembly and material recovery. The thermal stability of h-BN presents both challenges and opportunities in this context - while improving device longevity, it may complicate recycling processes due to its high temperature resistance.
RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) compliance remains mandatory for market access. While h-BN itself is generally considered environmentally benign, the resin systems and curing agents used in underfill formulations must be carefully selected to avoid restricted substances. Several major electronics manufacturers have established their own restricted substance lists that exceed regulatory requirements.
Carbon footprint considerations are increasingly influencing material selection decisions. Life cycle assessment (LCA) studies suggest that despite energy-intensive production, h-BN filled underfills may offer net environmental benefits through extended device lifespans and improved thermal management, potentially reducing overall electronic waste generation.
Industry consortia such as iNEMI (International Electronics Manufacturing Initiative) are developing standardized protocols for evaluating the environmental impact of advanced underfills. These efforts aim to establish consistent metrics for comparing different formulations based on their environmental performance throughout the product lifecycle, from raw material extraction through disposal or recycling.
