AFM and IR Spectroscopy Background and Objectives
Atomic Force Microscopy (AFM) and Infrared (IR) Spectroscopy represent two distinct yet complementary analytical techniques that have revolutionized materials characterization across multiple scientific disciplines. AFM emerged in the mid-1980s as an evolution of scanning tunneling microscopy, pioneered by Gerd Binnig and Heinrich Rohrer, who were awarded the Nobel Prize in Physics for their work. The technique has since evolved from basic topographical imaging to include various modes that can measure mechanical, electrical, and magnetic properties at the nanoscale.
IR spectroscopy, with roots dating back to the early 20th century, has undergone significant technological advancements, particularly with the development of Fourier Transform Infrared (FTIR) spectroscopy in the 1960s. This technique has been fundamental in molecular structure determination by analyzing the interaction between infrared radiation and matter, providing crucial information about chemical bonds and molecular structures.
The convergence of these technologies has led to hybrid techniques such as AFM-IR, which combines the high spatial resolution of AFM with the chemical specificity of IR spectroscopy, addressing limitations inherent to each individual method. This synergistic approach represents a significant trend in analytical instrumentation development, moving toward multimodal characterization systems.
Current technological objectives in this field include enhancing spatial resolution beyond the diffraction limit for IR spectroscopy, improving the speed of data acquisition for both techniques, and developing more sophisticated data analysis algorithms to extract meaningful information from increasingly complex datasets. There is also a growing emphasis on in-situ and operando measurements to observe dynamic processes under realistic conditions.
The evolution of both AFM and IR spectroscopy has been driven by demands from various scientific fields, including materials science, biology, pharmaceuticals, and semiconductor research. Each field presents unique challenges that have spurred technological innovations, such as environmental control chambers for biological samples and ultra-high vacuum systems for surface science applications.
Looking forward, the integration of artificial intelligence and machine learning algorithms with these analytical techniques represents a promising frontier, potentially enabling automated feature recognition, anomaly detection, and predictive analysis. Additionally, efforts are underway to make these sophisticated technologies more accessible through cost reduction and simplified user interfaces, which could democratize access to advanced analytical capabilities across research institutions globally.
IR spectroscopy, with roots dating back to the early 20th century, has undergone significant technological advancements, particularly with the development of Fourier Transform Infrared (FTIR) spectroscopy in the 1960s. This technique has been fundamental in molecular structure determination by analyzing the interaction between infrared radiation and matter, providing crucial information about chemical bonds and molecular structures.
The convergence of these technologies has led to hybrid techniques such as AFM-IR, which combines the high spatial resolution of AFM with the chemical specificity of IR spectroscopy, addressing limitations inherent to each individual method. This synergistic approach represents a significant trend in analytical instrumentation development, moving toward multimodal characterization systems.
Current technological objectives in this field include enhancing spatial resolution beyond the diffraction limit for IR spectroscopy, improving the speed of data acquisition for both techniques, and developing more sophisticated data analysis algorithms to extract meaningful information from increasingly complex datasets. There is also a growing emphasis on in-situ and operando measurements to observe dynamic processes under realistic conditions.
The evolution of both AFM and IR spectroscopy has been driven by demands from various scientific fields, including materials science, biology, pharmaceuticals, and semiconductor research. Each field presents unique challenges that have spurred technological innovations, such as environmental control chambers for biological samples and ultra-high vacuum systems for surface science applications.
Looking forward, the integration of artificial intelligence and machine learning algorithms with these analytical techniques represents a promising frontier, potentially enabling automated feature recognition, anomaly detection, and predictive analysis. Additionally, efforts are underway to make these sophisticated technologies more accessible through cost reduction and simplified user interfaces, which could democratize access to advanced analytical capabilities across research institutions globally.
Market Applications and Demand Analysis
The global market for advanced microscopy and spectroscopy technologies continues to expand rapidly, driven by increasing demands across multiple sectors including materials science, semiconductor manufacturing, pharmaceuticals, and life sciences. The combined market value for analytical instruments, including AFM and IR spectroscopy, exceeded $60 billion in 2022, with a projected CAGR of 6.8% through 2028.
Atomic Force Microscopy (AFM) has established a strong market presence in nanotechnology research and development, with particular growth in semiconductor metrology where sub-nanometer resolution is critical for next-generation chip manufacturing. The semiconductor industry's push toward smaller node sizes (below 5nm) has created substantial demand for AFM solutions that can provide accurate surface characterization. This segment alone represents approximately 35% of the total AFM market.
In contrast, Infrared Spectroscopy enjoys broader industrial adoption due to its versatility in chemical identification and analysis. The pharmaceutical and biotechnology sectors constitute the largest market segment for IR spectroscopy, accounting for nearly 40% of market share. The increasing focus on protein characterization, drug formulation analysis, and quality control has driven consistent growth in this application area.
Healthcare applications represent an emerging high-growth market for both technologies. AFM is gaining traction in medical diagnostics, particularly for cellular imaging and biomolecular interaction studies. Meanwhile, IR spectroscopy has become essential in clinical diagnostics, with applications in tissue analysis, disease biomarker identification, and non-invasive glucose monitoring showing significant commercial potential.
Environmental monitoring and food safety represent additional growth markets, particularly for IR spectroscopy. Regulatory requirements for contaminant detection and compositional analysis have created sustained demand across these sectors. The portable and handheld IR spectroscopy segment has experienced the fastest growth rate at 9.2% annually, reflecting industry demand for field-deployable analytical solutions.
Regional analysis reveals that North America and Europe currently dominate the high-end AFM market, while Asia-Pacific leads in IR spectroscopy adoption, particularly in manufacturing quality control applications. China has emerged as the fastest-growing market for both technologies, with domestic instrument manufacturers rapidly gaining market share through cost-competitive offerings.
Customer demand increasingly focuses on integrated solutions that combine multiple analytical techniques. This trend has driven the development of hybrid systems that incorporate both AFM and IR capabilities (nano-IR or AFM-IR), creating a specialized market segment valued at approximately $320 million with projected annual growth exceeding 12% through 2027.
Atomic Force Microscopy (AFM) has established a strong market presence in nanotechnology research and development, with particular growth in semiconductor metrology where sub-nanometer resolution is critical for next-generation chip manufacturing. The semiconductor industry's push toward smaller node sizes (below 5nm) has created substantial demand for AFM solutions that can provide accurate surface characterization. This segment alone represents approximately 35% of the total AFM market.
In contrast, Infrared Spectroscopy enjoys broader industrial adoption due to its versatility in chemical identification and analysis. The pharmaceutical and biotechnology sectors constitute the largest market segment for IR spectroscopy, accounting for nearly 40% of market share. The increasing focus on protein characterization, drug formulation analysis, and quality control has driven consistent growth in this application area.
Healthcare applications represent an emerging high-growth market for both technologies. AFM is gaining traction in medical diagnostics, particularly for cellular imaging and biomolecular interaction studies. Meanwhile, IR spectroscopy has become essential in clinical diagnostics, with applications in tissue analysis, disease biomarker identification, and non-invasive glucose monitoring showing significant commercial potential.
Environmental monitoring and food safety represent additional growth markets, particularly for IR spectroscopy. Regulatory requirements for contaminant detection and compositional analysis have created sustained demand across these sectors. The portable and handheld IR spectroscopy segment has experienced the fastest growth rate at 9.2% annually, reflecting industry demand for field-deployable analytical solutions.
Regional analysis reveals that North America and Europe currently dominate the high-end AFM market, while Asia-Pacific leads in IR spectroscopy adoption, particularly in manufacturing quality control applications. China has emerged as the fastest-growing market for both technologies, with domestic instrument manufacturers rapidly gaining market share through cost-competitive offerings.
Customer demand increasingly focuses on integrated solutions that combine multiple analytical techniques. This trend has driven the development of hybrid systems that incorporate both AFM and IR capabilities (nano-IR or AFM-IR), creating a specialized market segment valued at approximately $320 million with projected annual growth exceeding 12% through 2027.
Technical Limitations and Resolution Challenges
Despite the advanced capabilities of both Atomic Force Microscopy (AFM) and Infrared Spectroscopy (IR), each technique faces significant technical limitations that impact their resolution capabilities and practical applications. These constraints must be carefully considered when selecting the appropriate analytical method for specific research or industrial applications.
AFM encounters several fundamental physical limitations that affect its resolution performance. The finite size and geometry of the probe tip create an inherent constraint on lateral resolution, typically limiting it to 1-10 nm under optimal conditions. This "tip convolution effect" distorts the true topography of samples, particularly when imaging features with dimensions comparable to or smaller than the tip radius.
Environmental factors also significantly impact AFM performance. Ambient vibrations, acoustic noise, and thermal drift can introduce artifacts and reduce resolution quality. While vibration isolation systems and temperature-controlled environments can mitigate these issues, they add complexity and cost to AFM setups, making high-resolution imaging challenging in standard laboratory conditions.
For IR spectroscopy, the diffraction limit represents the most significant technical barrier. Classical IR spectroscopy is fundamentally limited by the wavelength of infrared radiation (2-25 μm), restricting spatial resolution to approximately 3-10 μm. This limitation makes conventional IR spectroscopy unsuitable for nanoscale chemical mapping applications.
Sample preparation challenges further complicate IR analysis. Many samples require specific preparation techniques to achieve optimal spectral quality, and certain materials may exhibit strong IR absorption that overwhelms the signal from components of interest. Water, in particular, presents a significant challenge due to its strong IR absorption bands that can mask important spectral features.
Signal-to-noise ratio (SNR) constraints affect both techniques but manifest differently. In AFM, low SNR typically results from environmental noise or suboptimal feedback parameters, while in IR spectroscopy, it often stems from weak absorption signals or detector limitations. Advanced AFM-IR hybrid techniques attempt to overcome these limitations but introduce their own technical complexities.
Resolution trade-offs are unavoidable in both methods. AFM offers superior spatial resolution but limited chemical specificity, while IR spectroscopy provides excellent chemical identification but poorer spatial resolution. This fundamental trade-off drives ongoing research into hybrid techniques that aim to combine the strengths of both approaches.
Recent technological advances have partially addressed these limitations through innovations like photothermal-induced resonance (PTIR) and scattering-type scanning near-field optical microscopy (s-SNOM), which push IR spectroscopy beyond the diffraction limit. However, these techniques remain technically demanding, expensive, and not yet widely accessible for routine analytical applications.
AFM encounters several fundamental physical limitations that affect its resolution performance. The finite size and geometry of the probe tip create an inherent constraint on lateral resolution, typically limiting it to 1-10 nm under optimal conditions. This "tip convolution effect" distorts the true topography of samples, particularly when imaging features with dimensions comparable to or smaller than the tip radius.
Environmental factors also significantly impact AFM performance. Ambient vibrations, acoustic noise, and thermal drift can introduce artifacts and reduce resolution quality. While vibration isolation systems and temperature-controlled environments can mitigate these issues, they add complexity and cost to AFM setups, making high-resolution imaging challenging in standard laboratory conditions.
For IR spectroscopy, the diffraction limit represents the most significant technical barrier. Classical IR spectroscopy is fundamentally limited by the wavelength of infrared radiation (2-25 μm), restricting spatial resolution to approximately 3-10 μm. This limitation makes conventional IR spectroscopy unsuitable for nanoscale chemical mapping applications.
Sample preparation challenges further complicate IR analysis. Many samples require specific preparation techniques to achieve optimal spectral quality, and certain materials may exhibit strong IR absorption that overwhelms the signal from components of interest. Water, in particular, presents a significant challenge due to its strong IR absorption bands that can mask important spectral features.
Signal-to-noise ratio (SNR) constraints affect both techniques but manifest differently. In AFM, low SNR typically results from environmental noise or suboptimal feedback parameters, while in IR spectroscopy, it often stems from weak absorption signals or detector limitations. Advanced AFM-IR hybrid techniques attempt to overcome these limitations but introduce their own technical complexities.
Resolution trade-offs are unavoidable in both methods. AFM offers superior spatial resolution but limited chemical specificity, while IR spectroscopy provides excellent chemical identification but poorer spatial resolution. This fundamental trade-off drives ongoing research into hybrid techniques that aim to combine the strengths of both approaches.
Recent technological advances have partially addressed these limitations through innovations like photothermal-induced resonance (PTIR) and scattering-type scanning near-field optical microscopy (s-SNOM), which push IR spectroscopy beyond the diffraction limit. However, these techniques remain technically demanding, expensive, and not yet widely accessible for routine analytical applications.
Current Implementation Approaches and Methodologies
01 AFM-IR integration for nanoscale chemical analysis
Integration of Atomic Force Microscopy (AFM) with Infrared Spectroscopy enables chemical analysis at the nanoscale by combining the high spatial resolution of AFM with the chemical specificity of IR spectroscopy. This technique allows for simultaneous topographical and chemical mapping of samples with resolution beyond the diffraction limit of conventional IR spectroscopy, typically achieving spatial resolution in the range of 10-20 nanometers.- AFM-IR integration for nanoscale chemical analysis: Integration of Atomic Force Microscopy (AFM) with Infrared Spectroscopy (IR) enables chemical analysis at nanoscale resolution. This combination overcomes the diffraction limit of conventional IR spectroscopy by using the AFM tip to detect thermal expansion caused by IR absorption. The technique allows for simultaneous topographical and chemical mapping with resolution down to tens of nanometers, providing insights into material composition at unprecedented spatial scales.
- Resolution enhancement techniques in AFM-IR systems: Various methods have been developed to enhance the resolution of AFM-IR systems. These include specialized probe designs, signal processing algorithms, and mechanical improvements to reduce noise and increase sensitivity. Advanced techniques such as peak force tapping modes and quantum cascade laser integration have pushed spatial resolution below 10 nm in some applications, while maintaining chemical specificity. These enhancements enable the characterization of heterogeneous samples at molecular scales.
- Sample preparation and environmental control for high-resolution measurements: Achieving optimal resolution in AFM-IR measurements requires careful sample preparation and environmental control. Techniques include specialized sample mounting to minimize vibration, temperature and humidity control systems, and methods for preparing ultra-flat surfaces. Vacuum or controlled atmosphere chambers can significantly improve measurement stability and reduce contamination. These approaches are critical for maintaining consistent measurement conditions and achieving reproducible high-resolution results.
- Multi-modal and correlative microscopy approaches: Combining AFM-IR with other analytical techniques creates powerful multi-modal and correlative microscopy approaches. These systems integrate complementary methods such as Raman spectroscopy, scanning electron microscopy, or fluorescence microscopy with AFM-IR. The correlation between different data types provides comprehensive characterization of samples across multiple length scales and physical properties, enabling researchers to connect nanoscale phenomena with macroscale behaviors.
- Advanced data processing and analysis methods: Sophisticated data processing and analysis methods are essential for extracting meaningful information from AFM-IR measurements. These include multivariate statistical techniques, machine learning algorithms for pattern recognition, and computational models that account for tip-sample interactions. Advanced software tools enable spectral unmixing, background correction, and automated feature identification. These computational approaches maximize the information obtained from measurements and help overcome instrumental limitations to achieve effective resolution beyond hardware capabilities.
02 Resolution enhancement techniques in AFM-IR systems
Various techniques have been developed to enhance the resolution of combined AFM-IR systems. These include the use of specialized probes, signal processing algorithms, and advanced detection methods. Photothermal induced resonance (PTIR) and peak force infrared (PFIR) microscopy are examples of techniques that improve spatial resolution by optimizing the interaction between the AFM tip and the sample during IR absorption, allowing researchers to detect and analyze chemical compositions at sub-diffraction limit resolutions.Expand Specific Solutions03 Instrumentation advancements for AFM-IR spectroscopy
Recent advancements in instrumentation have significantly improved the capabilities of AFM-IR systems. These include the development of tunable quantum cascade lasers, improved cantilever designs, and more sensitive detection systems. Such advancements have led to better signal-to-noise ratios, faster acquisition times, and improved resolution in both the spatial and spectral domains, making it possible to analyze increasingly complex samples with greater precision.Expand Specific Solutions04 Applications in material science and biological samples
AFM-IR spectroscopy has found wide applications in material science and biological research. In materials science, it enables the characterization of polymer blends, nanocomposites, and thin films with nanoscale resolution. For biological samples, it allows the study of subcellular structures, protein aggregates, and biomineralization processes. The non-destructive nature of the technique makes it particularly valuable for analyzing delicate biological specimens while providing both structural and chemical information.Expand Specific Solutions05 Data processing and analysis methods
Sophisticated data processing and analysis methods are essential for extracting meaningful information from AFM-IR measurements. These include multivariate analysis techniques, machine learning algorithms, and specialized software for spectral interpretation. Advanced processing methods help to overcome challenges such as background noise, tip artifacts, and sample heterogeneity, ultimately improving the resolution and reliability of the chemical mapping at the nanoscale.Expand Specific Solutions
Leading Manufacturers and Research Institutions
Atomic Force Microscopy (AFM) and Infrared Spectroscopy (IR) technologies are in a mature market phase, with established applications across materials science, nanotechnology, and biomedical research. The global market for these analytical instruments is estimated at $4-5 billion, growing steadily at 5-7% annually. Leading companies like Bruker Nano and Agilent Technologies dominate the commercial landscape, while research institutions such as Lehigh University, Nanjing University, and CNRS drive innovation. Recent technological convergence has produced hybrid systems combining AFM's nanoscale resolution (1-10 nm) with IR spectroscopy's chemical specificity, as demonstrated by Photothermal Spectroscopy Corp.'s O-PTIR technology. This integration addresses traditional limitations, opening new applications in semiconductor, pharmaceutical, and nanomaterials industries where both spatial resolution and chemical characterization are critical.
Bruker Nano, Inc.
Technical Solution: Bruker Nano has developed advanced Atomic Force Microscopy (AFM) systems with integrated infrared spectroscopy capabilities, notably their nanoIR platform. This technology combines AFM's nanoscale spatial resolution with IR spectroscopy's chemical identification capabilities through a technique called Photo-induced Force Microscopy (PiFM). Their systems utilize a tunable IR laser source that illuminates the sample while an AFM tip detects the resulting photo-induced forces between the tip and sample. This allows for simultaneous topographical imaging and chemical mapping at resolutions below 10 nm [1]. Bruker's latest systems incorporate quantum cascade lasers (QCLs) that provide broader spectral ranges (800-1900 cm⁻¹) and higher power output, enabling faster acquisition times and improved signal-to-noise ratios compared to conventional FTIR systems [3]. Their PeakForce IR technology further enhances measurement capabilities by providing mechanical property mapping alongside chemical identification.
Strengths: Superior spatial resolution (sub-10 nm) compared to conventional IR spectroscopy; simultaneous acquisition of topographical, mechanical, and chemical data; non-destructive analysis capability. Weaknesses: High instrument cost; complex operation requiring specialized training; limited penetration depth compared to traditional IR spectroscopy; potential tip-sample interaction artifacts that may affect measurement accuracy.
attocube systems AG
Technical Solution: attocube systems AG has developed specialized low-temperature and cryogenic AFM systems that can be integrated with infrared spectroscopy capabilities. Their technology focuses on nanoscale measurements under extreme conditions, including ultra-low temperatures (down to 10 mK), high magnetic fields (up to 31 T), and high vacuum environments [2]. Their cryogenic AFM systems utilize piezoelectric positioners with sub-nanometer precision that maintain performance even at cryogenic temperatures. For IR integration, attocube has developed specialized optical access pathways that allow infrared radiation to reach samples while maintaining the cryogenic environment. This enables nano-IR spectroscopy studies of quantum materials, superconductors, and other exotic physical systems under conditions where their unique properties emerge. Their systems incorporate interferometric detection methods that provide superior sensitivity compared to conventional AFM feedback mechanisms, allowing for measurements of extremely small forces and displacements [5]. Recent developments include integration capabilities with synchrotron IR beamlines for enhanced spectral brightness and range.
Strengths: Unique capability for nanoscale IR measurements under extreme conditions; high stability and precision positioning even at cryogenic temperatures; compatibility with high magnetic fields for specialized materials research. Weaknesses: Highly specialized equipment with limited general applicability; extremely high cost compared to room-temperature systems; complex operation requiring significant technical expertise; longer measurement times due to cryogenic stabilization requirements.
Key Patents and Scientific Breakthroughs

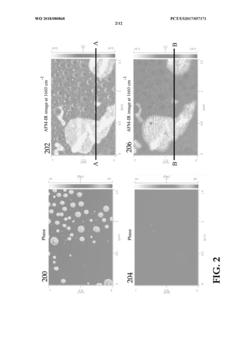

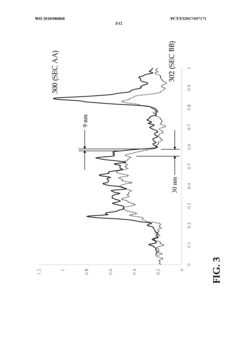

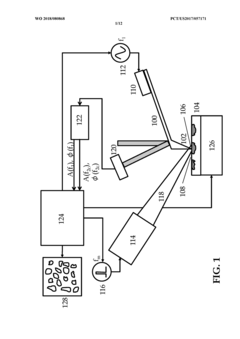

Method and apparatus for chemical imaging atomic force microscope infrared spectroscopy
PatentWO2018080868A1
Innovation
- The method involves illuminating the sample with IR radiation tuned to absorption bands, optimizing mechanical coupling efficiency, and using resonant detection techniques to enhance spatial resolution and sensitivity, allowing for chemical composition mapping with sub-nanometer resolution by modulating the infrared radiation frequency to match probe resonances and adjusting probe interaction parameters for maximum contrast.
Fabrication of patterned and ordered nanoparticles
PatentInactiveEP2179441A1
Innovation
- A novel technique using charged nanoparticles that are deposited in a random pattern on a surface and then reordered using controlled fields, such as an atomic force microscope (AFM) or electron beam, to create large arrays of uniformly spaced nanoparticles with high size uniformity, enabling cost-effective mass production compatible with silicon CMOS technology.
Hybrid AFM-IR Systems and Integration Possibilities
The integration of Atomic Force Microscopy (AFM) and Infrared Spectroscopy (IR) represents a significant advancement in analytical instrumentation, combining the high spatial resolution of AFM with the chemical specificity of IR spectroscopy. Hybrid AFM-IR systems have emerged as powerful tools for nanoscale characterization of materials across multiple disciplines.
Current commercial hybrid systems typically employ one of two main approaches: photothermal-based detection or scattering-based near-field techniques. The photothermal approach, pioneered by companies like Bruker and Anasys Instruments (now part of Bruker), utilizes an IR laser to excite molecular vibrations in the sample, causing thermal expansion that is detected by the AFM cantilever. This method achieves spatial resolution down to 10-20 nm while maintaining excellent spectroscopic capabilities.
Scattering-based techniques, such as scattering-type Scanning Near-field Optical Microscopy (s-SNOM), offered by companies like Neaspec and Molecular Vista, use the AFM tip as an antenna to enhance and scatter the IR field. These systems can achieve even higher spatial resolution, approaching 5-10 nm, though often with more complex data interpretation requirements.
Integration possibilities for next-generation hybrid AFM-IR systems are expanding rapidly. One promising direction involves the incorporation of quantum cascade lasers (QCLs) and frequency combs to provide broader spectral coverage and faster acquisition times. These advancements would enable real-time chemical mapping with unprecedented detail and throughput.
Another integration frontier involves combining AFM-IR with complementary techniques such as Raman spectroscopy or time-resolved measurements. Multimodal systems that incorporate these capabilities could provide comprehensive characterization of samples across multiple dimensions—spatial, chemical, and temporal—offering unprecedented insights into dynamic processes at the nanoscale.
Advanced data processing integration represents another significant opportunity. Machine learning algorithms are being developed to enhance signal processing, reduce noise, and extract meaningful patterns from complex AFM-IR datasets. These computational approaches could dramatically improve both resolution and chemical specificity while reducing acquisition times.
Miniaturization and portability present additional integration challenges and opportunities. Current hybrid systems are typically large, expensive laboratory instruments. Developing more compact, cost-effective systems would expand accessibility and enable new applications in field testing, quality control, and point-of-care diagnostics.
Current commercial hybrid systems typically employ one of two main approaches: photothermal-based detection or scattering-based near-field techniques. The photothermal approach, pioneered by companies like Bruker and Anasys Instruments (now part of Bruker), utilizes an IR laser to excite molecular vibrations in the sample, causing thermal expansion that is detected by the AFM cantilever. This method achieves spatial resolution down to 10-20 nm while maintaining excellent spectroscopic capabilities.
Scattering-based techniques, such as scattering-type Scanning Near-field Optical Microscopy (s-SNOM), offered by companies like Neaspec and Molecular Vista, use the AFM tip as an antenna to enhance and scatter the IR field. These systems can achieve even higher spatial resolution, approaching 5-10 nm, though often with more complex data interpretation requirements.
Integration possibilities for next-generation hybrid AFM-IR systems are expanding rapidly. One promising direction involves the incorporation of quantum cascade lasers (QCLs) and frequency combs to provide broader spectral coverage and faster acquisition times. These advancements would enable real-time chemical mapping with unprecedented detail and throughput.
Another integration frontier involves combining AFM-IR with complementary techniques such as Raman spectroscopy or time-resolved measurements. Multimodal systems that incorporate these capabilities could provide comprehensive characterization of samples across multiple dimensions—spatial, chemical, and temporal—offering unprecedented insights into dynamic processes at the nanoscale.
Advanced data processing integration represents another significant opportunity. Machine learning algorithms are being developed to enhance signal processing, reduce noise, and extract meaningful patterns from complex AFM-IR datasets. These computational approaches could dramatically improve both resolution and chemical specificity while reducing acquisition times.
Miniaturization and portability present additional integration challenges and opportunities. Current hybrid systems are typically large, expensive laboratory instruments. Developing more compact, cost-effective systems would expand accessibility and enable new applications in field testing, quality control, and point-of-care diagnostics.
Sample Preparation Techniques and Optimization
Sample preparation represents a critical determinant of success in both Atomic Force Microscopy (AFM) and Infrared Spectroscopy (IR) applications. The quality of results obtained from these analytical techniques depends significantly on how specimens are prepared prior to analysis. For AFM, sample preparation typically requires creating a flat, clean surface with minimal contamination to ensure accurate topographical imaging at the nanoscale level.
AFM samples generally require mounting on atomically flat substrates such as mica, highly oriented pyrolytic graphite (HOPG), or silicon wafers. Biological samples often need fixation protocols involving glutaraldehyde or formaldehyde to preserve structural integrity. The optimization process for AFM sample preparation involves careful cleaning procedures using solvents like ethanol or acetone, followed by drying techniques that prevent artifact formation.
For Infrared Spectroscopy, sample preparation varies considerably depending on the specific IR technique employed. Transmission IR typically requires thin samples (10-100 μm) or samples dispersed in KBr pellets, while Attenuated Total Reflection (ATR) allows for direct analysis of solid surfaces with minimal preparation. Reflectance techniques may require polishing to achieve optimal surface characteristics for analysis.
The optimization of sample preparation for both techniques involves careful consideration of the sample's physical and chemical properties. For AFM, parameters such as scan rate, cantilever selection, and feedback settings must be optimized based on sample hardness and expected topographical features. Similarly, for IR spectroscopy, parameters including sample thickness, concentration, and homogeneity must be carefully controlled to obtain high-quality spectra with minimal interference.
Cross-contamination prevention represents another critical aspect of sample preparation. For AFM, this involves using clean tools and working environments to prevent the introduction of particulates that could be mistaken for sample features. For IR spectroscopy, background contamination from atmospheric water vapor and carbon dioxide must be minimized through proper purging or background subtraction protocols.
Recent advances in sample preparation include automated systems for reproducible sample mounting in AFM and microfluidic sample handling for IR spectroscopy. Cryogenic sample preparation has also emerged as an important technique for preserving delicate biological structures for AFM imaging, while maintaining their native conformation without fixation artifacts. Similarly, micro-sampling techniques have revolutionized IR analysis of heterogeneous materials by enabling targeted spectroscopic examination of specific regions of interest.
AFM samples generally require mounting on atomically flat substrates such as mica, highly oriented pyrolytic graphite (HOPG), or silicon wafers. Biological samples often need fixation protocols involving glutaraldehyde or formaldehyde to preserve structural integrity. The optimization process for AFM sample preparation involves careful cleaning procedures using solvents like ethanol or acetone, followed by drying techniques that prevent artifact formation.
For Infrared Spectroscopy, sample preparation varies considerably depending on the specific IR technique employed. Transmission IR typically requires thin samples (10-100 μm) or samples dispersed in KBr pellets, while Attenuated Total Reflection (ATR) allows for direct analysis of solid surfaces with minimal preparation. Reflectance techniques may require polishing to achieve optimal surface characteristics for analysis.
The optimization of sample preparation for both techniques involves careful consideration of the sample's physical and chemical properties. For AFM, parameters such as scan rate, cantilever selection, and feedback settings must be optimized based on sample hardness and expected topographical features. Similarly, for IR spectroscopy, parameters including sample thickness, concentration, and homogeneity must be carefully controlled to obtain high-quality spectra with minimal interference.
Cross-contamination prevention represents another critical aspect of sample preparation. For AFM, this involves using clean tools and working environments to prevent the introduction of particulates that could be mistaken for sample features. For IR spectroscopy, background contamination from atmospheric water vapor and carbon dioxide must be minimized through proper purging or background subtraction protocols.
Recent advances in sample preparation include automated systems for reproducible sample mounting in AFM and microfluidic sample handling for IR spectroscopy. Cryogenic sample preparation has also emerged as an important technique for preserving delicate biological structures for AFM imaging, while maintaining their native conformation without fixation artifacts. Similarly, micro-sampling techniques have revolutionized IR analysis of heterogeneous materials by enabling targeted spectroscopic examination of specific regions of interest.
