AFM Resolution Enhancement Background and Objectives

Atomic Force Microscopy (AFM) has revolutionized nanoscale imaging since its invention in 1986 by Binnig, Quate, and Gerber. This scanning probe microscopy technique enables visualization of surface topography at the atomic level by measuring forces between a sharp tip and sample surface. Over the past three decades, AFM has evolved from a basic imaging tool to an essential instrument across multiple scientific disciplines including materials science, biology, and semiconductor research.

The fundamental resolution limitations of AFM stem from several factors: tip geometry, mechanical vibrations, thermal drift, feedback loop dynamics, and environmental noise. Early AFM systems achieved lateral resolutions of 10-50 nm and vertical resolutions of approximately 0.1 nm. While impressive compared to optical microscopy, these limitations have constrained AFM's ability to fully resolve atomic and molecular structures in complex samples.

Recent technological advancements have pushed AFM resolution boundaries, with state-of-the-art systems now capable of true atomic resolution under optimal conditions. However, achieving such resolution consistently across diverse sample types and in ambient conditions remains challenging. The scientific community continues to pursue enhanced resolution capabilities to address emerging research needs in quantum materials, biological membranes, and nanoscale devices.

The primary objective of this technical research report is to comprehensively evaluate current strategies for enhancing AFM image resolution. We aim to identify the most promising approaches that overcome existing limitations while maintaining practical applicability across diverse research environments. Additionally, we seek to establish a technological roadmap for future AFM resolution enhancement based on emerging trends and breakthrough technologies.

This report will examine both hardware and software solutions, including advanced probe designs, novel operational modes, signal processing algorithms, and machine learning approaches. We will assess these technologies based on their theoretical foundations, practical implementation challenges, and demonstrated performance improvements in real-world applications.

Furthermore, we will explore how resolution enhancement strategies vary across different AFM modalities, including contact mode, tapping mode, non-contact mode, and specialized techniques such as peak force tapping and high-speed AFM. Understanding these nuances is crucial for developing targeted solutions for specific research applications.

The ultimate goal is to provide a strategic framework for researchers and instrument developers to systematically improve AFM resolution capabilities, thereby enabling new scientific discoveries and technological innovations at the nanoscale. This report will serve as a foundation for future R&D investments and collaborative research initiatives in advanced microscopy technologies.

Market Demand Analysis for High-Resolution AFM Imaging

The global market for high-resolution Atomic Force Microscopy (AFM) imaging has witnessed substantial growth in recent years, driven primarily by increasing demands in nanotechnology research, materials science, and biological applications. The ability to visualize and manipulate matter at the nanoscale has become crucial for advancing scientific understanding and technological innovation across multiple industries.

In the semiconductor industry, the continuous miniaturization of electronic components has created an urgent need for imaging technologies capable of resolving features at sub-nanometer scales. As chip manufacturers push toward 3nm and smaller process nodes, conventional imaging techniques reach their physical limitations, making enhanced AFM resolution a critical enabler for next-generation semiconductor development and quality control.

The pharmaceutical and biotechnology sectors represent another significant market driver, with researchers requiring increasingly detailed visualization of biomolecules, cell membranes, and drug-target interactions. High-resolution AFM imaging enables real-time observation of biological processes at the molecular level, accelerating drug discovery and development processes while reducing costs associated with failed candidates.

Materials science applications constitute a rapidly expanding market segment, particularly in the development of advanced materials such as graphene, carbon nanotubes, and quantum dots. These materials form the foundation for next-generation technologies in energy storage, flexible electronics, and quantum computing, all of which benefit from improved AFM resolution capabilities.

Market analysis indicates that the global AFM market was valued at approximately $570 million in 2022, with high-resolution systems accounting for nearly 40% of this value. Industry forecasts project a compound annual growth rate of 6.8% through 2028, with the high-resolution segment expected to grow at an accelerated rate of 8.2% during this period.

Geographically, North America and Europe currently dominate the high-resolution AFM market, collectively accounting for over 60% of global demand. However, the Asia-Pacific region, particularly China, Japan, and South Korea, is experiencing the fastest growth rate, driven by substantial investments in nanotechnology research infrastructure and semiconductor manufacturing capabilities.

Customer requirements are increasingly focused on not only improving spatial resolution but also enhancing temporal resolution to capture dynamic processes. This dual demand creates market opportunities for AFM systems that can deliver both high spatial resolution and faster scanning speeds without compromising image quality or sample integrity.

The economic value proposition for enhanced AFM resolution extends beyond the instrument market itself. Improved imaging capabilities enable breakthroughs in product development across multiple industries, potentially generating billions in downstream economic activity through new materials, more efficient processes, and novel technological applications.

Current AFM Resolution Limitations and Technical Challenges

Atomic Force Microscopy (AFM) currently faces several significant technical limitations that constrain its resolution capabilities. The fundamental physical limitation stems from the probe tip geometry, where conventional silicon or silicon nitride tips typically have radii of 5-10 nm, inherently limiting lateral resolution. Even with ultra-sharp tips, achieving consistent sub-nanometer resolution remains challenging due to tip wear and contamination during scanning operations.

Mechanical vibrations present another major challenge, as AFM is extremely sensitive to environmental disturbances. Despite advanced vibration isolation systems, thermal drift and acoustic noise can still introduce artifacts and reduce resolution, particularly during long-duration imaging sessions. These effects become increasingly problematic at higher resolutions where even atomic-scale movements can significantly impact image quality.

Feedback loop limitations constitute a significant technical barrier. The speed and accuracy of the feedback system that maintains constant tip-sample interaction forces directly affects image resolution. Current piezoelectric actuators have response limitations that create a trade-off between scanning speed and resolution, with faster scans typically resulting in degraded image quality due to feedback lag.

Thermal drift remains particularly problematic for high-resolution AFM imaging. Temperature fluctuations cause dimensional changes in the scanner and sample, leading to image distortion. While temperature-controlled environments can mitigate this issue, complete elimination of thermal effects remains elusive, especially for measurements requiring atomic precision over extended periods.

Sample-related challenges further complicate high-resolution imaging. Surface roughness, contamination, and the presence of water or other adsorbates can mask true surface features and reduce effective resolution. Additionally, soft or biological samples present particular difficulties as they may deform under the probe tip, compromising measurement accuracy.

Signal-to-noise ratio (SNR) limitations affect the detection of subtle surface features. Electronic noise from the detection system, particularly in the photodiode array used in most AFMs, can obscure small deflection signals. This becomes increasingly problematic when attempting to resolve atomic-scale features where the signal differences are minimal.

Cross-coupling effects between the x, y, and z piezoelectric scanners introduce additional artifacts. These non-linear behaviors of piezoelectric materials cause distortions in the resulting images that become more pronounced at higher resolutions. Advanced calibration techniques and scanner designs have improved but not eliminated these issues.

Finally, software limitations in data processing and image reconstruction can restrict the effective resolution of AFM systems. Current algorithms may struggle to accurately interpret complex tip-sample interactions, particularly when imaging heterogeneous surfaces with varying mechanical properties.

Current Strategies for AFM Resolution Improvement

  • 01 Probe tip design for improved resolution

    The design of the probe tip significantly impacts the resolution of atomic force microscopy (AFM) images. Advanced tip designs with smaller radii and specialized geometries can achieve higher resolution by more accurately mapping surface features. Materials used for tips, such as carbon nanotubes or functionalized tips, can enhance resolution by providing more precise interaction with sample surfaces. These specialized tips reduce artifacts and allow for better discrimination between closely spaced features.
    • Tip design and modification for improved resolution: The design and modification of AFM tips significantly impact image resolution. Specialized tip geometries, coatings, and materials can enhance the ability to resolve nanoscale features. Techniques such as functionalizing tips with specific molecules or using ultra-sharp tips with small radii of curvature allow for higher resolution imaging by improving the tip-sample interaction and reducing artifacts.
    • Advanced scanning techniques and modes: Various scanning techniques and operational modes have been developed to enhance AFM image resolution. These include tapping mode, non-contact mode, and frequency modulation techniques that minimize sample damage while maximizing resolution. Advanced algorithms for data acquisition and processing help to eliminate noise and artifacts, resulting in clearer images with higher resolution of surface features.
    • Vibration isolation and environmental control: Effective vibration isolation systems and environmental controls are crucial for achieving high-resolution AFM imaging. Specialized platforms, acoustic enclosures, and temperature-controlled chambers minimize external disturbances that can degrade image quality. Maintaining stable environmental conditions prevents thermal drift and other artifacts that limit resolution in atomic force microscopy.
    • Feedback control systems and signal processing: Advanced feedback control systems and signal processing techniques play a vital role in optimizing AFM image resolution. Real-time adjustment of scanning parameters based on surface topography helps maintain consistent tip-sample interaction forces. Digital signal processing algorithms can enhance contrast, remove background noise, and correct for scanner nonlinearities, resulting in higher effective resolution.
    • Novel probe designs and hybrid microscopy approaches: Innovative probe designs and hybrid microscopy approaches combine the strengths of multiple techniques to overcome traditional AFM resolution limitations. Integration with other microscopy methods such as optical or electron microscopy provides complementary information. Specialized probes with unique geometries or functionalities enable detection of specific surface properties while maintaining high spatial resolution.
  • 02 Vibration isolation and noise reduction techniques

    Vibration isolation systems and noise reduction techniques are crucial for achieving high-resolution AFM imaging. These systems minimize environmental disturbances that can degrade image quality. Advanced damping mechanisms, acoustic isolation chambers, and active vibration cancellation technologies help maintain stable tip-sample interactions. By reducing mechanical noise and thermal drift, these techniques enable consistent sub-nanometer resolution imaging even in challenging environments.
    Expand Specific Solutions
  • 03 Feedback control and signal processing algorithms

    Sophisticated feedback control systems and signal processing algorithms enhance AFM image resolution by optimizing tip-sample interactions in real-time. Advanced control algorithms adjust scanning parameters dynamically to maintain optimal imaging conditions. Digital signal processing techniques, including noise filtering, drift correction, and image reconstruction algorithms, extract maximum information from raw data. These computational approaches can achieve resolution improvements without hardware modifications.
    Expand Specific Solutions
  • 04 Operating mode innovations

    Different AFM operating modes offer various advantages for resolution enhancement. Tapping mode reduces lateral forces and sample damage compared to contact mode. Frequency modulation and phase imaging modes provide enhanced contrast for specific sample properties. Non-contact and multifrequency modes can reveal features that might be obscured in traditional imaging approaches. These specialized operating modes can be selected based on sample characteristics to optimize resolution for specific applications.
    Expand Specific Solutions
  • 05 Environmental and sample preparation factors

    Environmental conditions and sample preparation techniques significantly impact AFM image resolution. Temperature control, humidity regulation, and specialized imaging media can enhance resolution by optimizing tip-sample interactions. Sample preparation methods, including cleaning protocols, substrate selection, and immobilization techniques, minimize artifacts and improve image quality. Operating in controlled environments such as vacuum or liquid can reveal features that might be obscured under ambient conditions.
    Expand Specific Solutions

Leading AFM Manufacturers and Research Institutions

Atomic Force Microscopy (AFM) resolution enhancement is currently in a growth phase, with the market expanding due to increasing applications in nanotechnology and materials science. The global AFM market is projected to reach significant scale as research institutions and industries adopt advanced imaging techniques. Technologically, the field is maturing rapidly with key players developing innovative approaches. Bruker Nano leads with comprehensive high-resolution AFM solutions, while IBM contributes groundbreaking research in probe technology. Toshiba and Hitachi are advancing industrial applications, and academic institutions like Tsinghua University and CNRS are pioneering new methodologies. Research organizations such as Korea Research Institute of Standards & Science and HRL Laboratories are developing next-generation techniques that promise to overcome current resolution limitations.

Bruker Nano, Inc.

Technical Solution: Bruker has pioneered PeakForce Tapping technology for AFM that significantly enhances image resolution by precisely controlling the probe-sample interaction forces. Their system maintains constant peak force during scanning, eliminating lateral forces that can damage samples and degrade resolution. Bruker's FastScan technology combines high-speed scanning capabilities with advanced feedback algorithms to reduce noise and increase image clarity. Their proprietary ScanAsyst technology automatically optimizes scanning parameters in real-time, adjusting setpoint, gain, and scan rate to achieve optimal image quality. Additionally, Bruker has developed specialized probes with sharper tips (radius <2nm) that inherently improve spatial resolution by enabling more precise surface mapping. Their latest systems incorporate AI-based noise reduction algorithms that can extract meaningful signals from background noise, further enhancing effective resolution.
Strengths: Industry-leading probe technology with exceptional tip sharpness and durability; comprehensive software suite with automated parameter optimization; high-speed scanning capabilities without sacrificing resolution. Weaknesses: Premium pricing structure limits accessibility for smaller research institutions; proprietary systems can create compatibility issues with third-party components; steep learning curve for utilizing advanced features.

International Business Machines Corp.

Technical Solution: IBM has developed revolutionary AFM enhancement techniques focusing on quantum-limited detection methods. Their approach utilizes quantum sensors based on nitrogen-vacancy (NV) centers in diamond to achieve unprecedented sensitivity in magnetic force microscopy applications. IBM's researchers have implemented advanced signal processing algorithms that employ machine learning to extract maximum information from raw AFM data, effectively enhancing resolution beyond hardware limitations. Their proprietary "noise-cancellation feedback loop" technology continuously monitors and compensates for environmental vibrations and thermal drift, two major factors limiting AFM resolution. IBM has also pioneered heterodyne force microscopy techniques that can detect extremely small force gradients by measuring frequency shifts in the cantilever oscillation, enabling atomic-scale resolution even under challenging conditions. Additionally, IBM's integration of AFM with complementary techniques like scanning tunneling microscopy creates multimodal imaging capabilities that provide enhanced structural and chemical information.
Strengths: Unparalleled expertise in quantum sensing technologies applied to microscopy; sophisticated signal processing algorithms leveraging IBM's computing capabilities; strong integration with complementary characterization techniques. Weaknesses: Solutions often require specialized expertise to implement effectively; technologies primarily developed for internal research rather than commercial applications; higher complexity systems require significant maintenance and calibration.

Key Innovations in AFM Probe and Feedback Systems

Higher harmonics atomic force microscope
PatentInactiveEP1896824A1
Innovation
  • The solution involves operating the atomic force microscope on higher order harmonics of the sensor's oscillation frequency, rather than the fundamental frequency, allowing for the selection of an optimal harmonic that reduces the response time and adapts to the operating conditions, including vacuum or controlled atmospheres, through a control unit that adjusts the excitation frequency and quality factor.
Atomic force microscope
PatentWO2008111433A1
Innovation

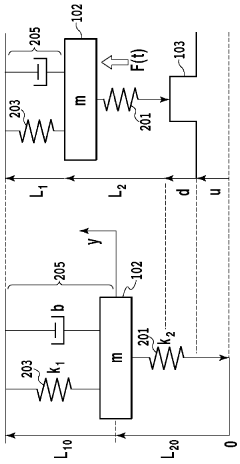

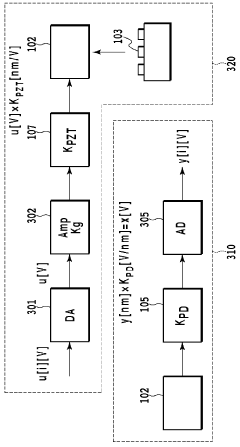

  • The AFM apparatus employs a controller that uses a surface topography observer (STO) and surface shape learning PTC (STL-PTC) to estimate the sample surface shape by detecting cantilever deflection with laser light, reducing follow-up error and improving tracking accuracy through multirate feedforward control.

Interdisciplinary Applications of Enhanced AFM Imaging

Enhanced AFM imaging techniques have transcended their traditional boundaries in materials science and nanotechnology, finding remarkable applications across diverse scientific disciplines. In biomedical research, high-resolution AFM imaging enables detailed visualization of cellular structures, protein-protein interactions, and DNA-drug binding mechanisms at the nanoscale level. This capability has revolutionized our understanding of disease mechanisms and accelerated drug discovery processes by providing direct observation of molecular interactions that were previously inaccessible.

The environmental sciences have embraced enhanced AFM imaging for analyzing microplastics, studying soil nanoparticles, and investigating pollutant interactions with environmental matrices. These applications provide critical insights into contaminant behavior and transport mechanisms, supporting more effective environmental remediation strategies and policy development.

In the semiconductor industry, enhanced AFM resolution has become indispensable for quality control and failure analysis of increasingly miniaturized electronic components. As device dimensions approach atomic scales, the ability to characterize surface defects and structural integrity with nanometer precision directly impacts manufacturing yields and product reliability.

Forensic science represents another frontier where enhanced AFM imaging offers unique capabilities. The technique can reveal latent fingerprints on challenging surfaces, analyze trace evidence at unprecedented resolution, and authenticate documents by examining ink penetration patterns and paper fiber structures at the nanoscale.

Cultural heritage conservation has also benefited significantly from advanced AFM techniques. Conservators can now analyze pigment degradation mechanisms, evaluate cleaning procedures, and monitor restoration efforts with minimal sample requirements, preserving irreplaceable historical artifacts while gaining deeper insights into ancient manufacturing techniques.

Pharmaceutical research utilizes enhanced AFM imaging for drug formulation optimization, studying crystal polymorphism, and characterizing drug delivery systems. The ability to visualize nanoparticle distribution, surface morphology, and interaction with biological membranes provides crucial information for developing more effective therapeutic agents with improved bioavailability and targeted delivery capabilities.

These interdisciplinary applications demonstrate how enhanced AFM resolution serves as a powerful analytical bridge between traditionally separate fields, enabling cross-disciplinary collaboration and accelerating innovation across scientific domains. As resolution enhancement strategies continue to evolve, we can anticipate further expansion of AFM applications into emerging fields such as quantum computing, synthetic biology, and personalized medicine.

Standardization and Validation Methods for AFM Resolution Claims

The standardization and validation of resolution claims in Atomic Force Microscopy (AFM) represents a critical challenge in the field. Currently, there exists significant variability in how researchers and manufacturers report resolution capabilities, making direct comparisons between different systems and methodologies problematic. This inconsistency undermines scientific reproducibility and technological advancement in the field.

Established calibration standards, such as those developed by the National Institute of Standards and Technology (NIST), provide reference materials with known dimensions that can be used to validate resolution claims. These include silicon gratings with precise pitch measurements and step heights, which serve as benchmarks for lateral and vertical resolution verification. However, adoption of these standards remains inconsistent across the industry.

The development of round-robin testing protocols has emerged as a promising approach for validation. In these protocols, identical samples are analyzed across multiple laboratories using different AFM systems, with results compared to establish reliability and reproducibility metrics. Such collaborative efforts have revealed significant variations in resolution capabilities even among systems with similar specifications.

Quantitative metrics for resolution validation have evolved beyond simple visual inspection of images. Modern approaches include power spectral density analysis, which provides frequency-domain information about image features, and signal-to-noise ratio calculations that objectively measure the detectability of features against background noise. These mathematical frameworks offer more rigorous assessments than subjective visual evaluations.

Blind testing methodologies represent another important validation approach, where operators analyze samples with unknown features to eliminate confirmation bias. This approach has proven particularly valuable in evaluating the practical resolution limits of different AFM techniques and systems under real-world conditions rather than idealized scenarios.

International standards organizations, including ISO and ASTM, have begun developing formal guidelines for AFM resolution testing and reporting. These emerging standards aim to establish common protocols for measuring and reporting both lateral and vertical resolution, with specific procedures for different AFM operational modes. The implementation of these standards would significantly improve comparability between published results.

Artificial intelligence and machine learning algorithms are increasingly being employed to validate resolution claims through automated feature recognition and measurement. These computational approaches can process large datasets to establish statistical confidence in resolution measurements while minimizing human bias in the evaluation process.
