How Selective Coatings Enhance Battery Pack Electrochemical Interface

SEP 23, 20259 MIN READ
Generate Your Research Report Instantly with AI Agent
Patsnap Eureka helps you evaluate technical feasibility & market potential.

Battery Coating Technology Background and Objectives

Battery coating technology has evolved significantly over the past two decades, transitioning from basic protective layers to sophisticated multifunctional interfaces that actively enhance electrochemical performance. The development trajectory began with simple polymer coatings primarily designed to prevent electrolyte decomposition and has progressed toward engineered nanoscale architectures that simultaneously address multiple battery degradation mechanisms.

Selective coatings represent a critical advancement in battery technology, offering targeted solutions to interface challenges that have historically limited battery performance and longevity. These specialized coatings modify the electrochemical interface between electrodes and electrolytes, creating controlled environments for ion transport while mitigating parasitic reactions that lead to capacity fade and safety concerns.

The primary objective of modern battery coating technology is to engineer interfaces that optimize the delicate balance between electronic insulation and ionic conductivity. This paradoxical requirement—blocking electrons while facilitating ion movement—has driven significant innovation in materials science and surface chemistry, resulting in increasingly sophisticated coating architectures and compositions.

Recent technological breakthroughs have expanded coating functionality beyond passive protection to include active roles in battery operation. Advanced coatings now serve as artificial solid-electrolyte interphases (SEI), ion-selective membranes, and even as functional components that participate in the electrochemical reactions themselves, contributing to capacity and rate capability improvements.

The evolution of coating technologies has been accelerated by developments in atomic layer deposition (ALD), molecular layer deposition (MLD), and solution-based techniques that enable precise control over coating thickness, composition, and morphology at the nanoscale. These manufacturing advances have made it possible to implement increasingly complex coating designs in commercial battery production.

Looking forward, the field is moving toward intelligent coating systems that can dynamically respond to changing battery conditions, self-heal when damaged, and adapt their properties throughout battery lifetime. The ultimate goal is to develop coating technologies that can simultaneously address multiple degradation mechanisms while enhancing energy density, power capability, and safety across diverse operating conditions.

The technical objectives for next-generation selective coatings include achieving sub-nanometer precision in deposition, developing compositions with tunable ion selectivity, and creating multifunctional layers that can perform several protective and performance-enhancing functions simultaneously while maintaining long-term stability in aggressive electrochemical environments.

Market Analysis for Advanced Battery Coating Solutions

The global market for advanced battery coating solutions is experiencing robust growth, driven primarily by the expanding electric vehicle (EV) sector and increasing demand for high-performance energy storage systems. Current market valuations indicate that selective coatings for battery components represent a significant segment within the broader battery materials market, which is projected to reach $89 billion by 2028, with coatings specifically accounting for approximately $6.2 billion of this total.

Regional analysis reveals that Asia-Pacific dominates the market landscape, with China, Japan, and South Korea collectively holding over 65% of global production capacity for advanced battery coatings. This concentration stems from their established battery manufacturing ecosystems and strategic investments in coating technologies. North America and Europe are rapidly expanding their market shares through aggressive research funding and policy support for domestic battery supply chains.

Consumer demand patterns demonstrate a clear preference for batteries with enhanced performance metrics, particularly longer cycle life and improved safety characteristics—both directly influenced by electrochemical interface coatings. Market research indicates that consumers are willing to pay a premium of 15-20% for batteries with demonstrably superior longevity, creating a strong value proposition for advanced coating solutions.

The competitive landscape features both specialized coating technology providers and integrated battery manufacturers developing proprietary solutions. Key market segments include automotive (representing 58% of demand), consumer electronics (22%), grid storage applications (14%), and emerging applications such as aerospace and medical devices (6%). Growth projections suggest the automotive segment will continue to expand at the fastest rate, with a compound annual growth rate of 24% through 2027.

Economic factors influencing market development include raw material availability, with particular concerns regarding the supply chain for specialized coating precursors. Additionally, manufacturing scalability represents a significant market barrier, as many advanced coating technologies developed in laboratory settings face challenges in high-volume production environments.

Customer adoption analysis reveals that major battery manufacturers are increasingly incorporating selective coatings as standard features rather than premium options, indicating market maturation and recognition of their fundamental value in enhancing electrochemical interfaces. This trend is accelerating technology diffusion across price segments, expanding the addressable market beyond premium applications.

Current Selective Coating Technologies and Challenges

Selective coating technologies for battery pack electrochemical interfaces have evolved significantly over the past decade, with several approaches currently dominating the industry. Atomic Layer Deposition (ALD) represents one of the most precise coating methods, enabling nanometer-scale control over coating thickness and composition. This technique allows for conformal coatings on complex electrode geometries, creating uniform protective layers that enhance interface stability. However, ALD faces challenges in scaling to high-volume manufacturing due to its relatively slow deposition rates and higher equipment costs compared to conventional coating methods.

Chemical vapor deposition (CVD) and physical vapor deposition (PVD) techniques offer alternatives with higher throughput capabilities. These methods have been adapted for battery applications to create functional coatings that mitigate interfacial degradation. While more established in industrial settings, they often struggle with achieving the same level of precision and uniformity as ALD, particularly on high-aspect-ratio structures common in advanced battery designs.

Solution-based coating approaches, including sol-gel methods and slurry-based techniques, have gained traction due to their cost-effectiveness and compatibility with existing manufacturing infrastructure. These methods enable the incorporation of various functional materials, such as ceramic particles, polymers, and carbon-based additives, into electrode coatings. However, achieving consistent thickness and preventing agglomeration remain significant challenges.

Recent innovations in functional polymer coatings have shown promise for enhancing the electrochemical interface. These include ion-conductive polymers that facilitate selective ion transport while blocking unwanted side reactions. Despite their potential, polymer coatings often face stability issues under extreme battery operating conditions, particularly at elevated temperatures or during fast charging cycles.

A major technical challenge across all selective coating technologies is balancing protective properties with ionic conductivity. Coatings must be thick enough to provide effective protection against side reactions but thin enough to maintain acceptable ion transport kinetics. This fundamental trade-off continues to drive research toward advanced materials and deposition techniques.

Manufacturing scalability presents another significant hurdle. Many promising coating technologies demonstrated in laboratory settings face difficulties in translation to high-volume production environments. Issues include process consistency, equipment compatibility, and cost-effectiveness when scaled to commercial battery production volumes.

Quality control and characterization of these thin functional coatings in production settings remain challenging. Current analytical techniques often require specialized equipment and expertise not readily available in manufacturing environments, creating barriers to widespread implementation and quality assurance.

Existing Selective Coating Implementation Methods

  • 01 Electrochemical deposition of selective coatings

    Electrochemical deposition techniques are used to create selective coatings with specific properties for various applications. These methods allow for precise control over coating thickness, composition, and structure. The electrochemical interface plays a crucial role in determining the quality and characteristics of the deposited coating. Various parameters such as current density, electrolyte composition, and deposition time can be optimized to achieve desired coating properties.
    • Electrochemical selective coating techniques: Various electrochemical methods can be used to create selective coatings on different substrates. These techniques include electrodeposition, electroplating, and anodization processes that allow for precise control over coating thickness and composition. The electrochemical interface plays a crucial role in determining the properties of the resulting coating, including adhesion, uniformity, and functionality. These methods enable the development of coatings with specific properties tailored for applications such as corrosion protection, catalysis, and energy conversion.
    • Selective coatings for energy applications: Selective coatings are extensively used in energy applications, particularly in solar thermal systems and battery technologies. These coatings are designed to have specific optical properties, such as high solar absorptance and low thermal emittance, or to enhance electrochemical performance at interfaces. The electrochemical interface between these coatings and the underlying substrate or electrolyte is critical for functionality. Advanced selective coatings can significantly improve energy conversion efficiency and system performance through optimized interface engineering.
    • Interface modification for selective electrochemical sensing: Selective coatings can be applied to electrochemical sensors to enhance their selectivity and sensitivity. By modifying the electrode-electrolyte interface with specialized coatings, sensors can be designed to detect specific analytes while rejecting interference from other substances. These interface modifications often involve nanomaterials, polymers, or biomolecules that create selective binding sites or facilitate specific electrochemical reactions. The design of the electrochemical interface is crucial for achieving high performance in applications such as medical diagnostics, environmental monitoring, and industrial process control.
    • Protective selective coatings with controlled interfaces: Protective selective coatings with carefully engineered electrochemical interfaces can provide enhanced corrosion resistance, wear protection, and chemical stability. These coatings are designed to form a stable interface with the substrate while presenting specific surface properties to the external environment. The electrochemical interface between the coating and substrate determines adhesion strength, barrier properties, and long-term stability. Advanced coating systems may incorporate multiple layers or gradient compositions to optimize both interfacial and surface properties for applications in harsh environments.
    • Novel materials for selective electrochemical interfaces: Research into novel materials is expanding the capabilities of selective coatings at electrochemical interfaces. These materials include advanced composites, 2D materials, conductive polymers, and engineered nanostructures that offer unique combinations of properties. The electrochemical interface between these novel materials and conventional substrates presents both challenges and opportunities for functionality. By controlling the composition, structure, and surface chemistry of these materials, researchers can develop selective coatings with unprecedented performance for applications in electronics, energy storage, catalysis, and biomedical devices.
  • 02 Selective coatings for battery and energy storage applications

    Selective coatings are applied to electrodes and other components in batteries and energy storage devices to enhance performance and durability. These coatings can improve conductivity, prevent corrosion, and enhance electrochemical stability at the interface between electrodes and electrolytes. Advanced coating technologies enable the development of high-performance batteries with improved cycle life and energy density. The electrochemical interface between the coating and the underlying substrate is critical for maintaining optimal performance.
    Expand Specific Solutions
  • 03 Interface engineering for selective coatings

    Interface engineering involves modifying the boundary between selective coatings and substrates to optimize performance. This includes surface treatments, buffer layers, and gradient compositions that enhance adhesion and functionality. The electrochemical interface can be tailored to control electron transfer, ion transport, and other electrochemical processes. Advanced characterization techniques are used to analyze and optimize these interfaces for specific applications.
    Expand Specific Solutions
  • 04 Selective coatings for sensors and analytical devices

    Specialized selective coatings are developed for electrochemical sensors and analytical devices to enhance sensitivity, selectivity, and stability. These coatings can include ion-selective membranes, enzyme layers, and conductive polymers that facilitate specific electrochemical reactions at the interface. The design of the electrochemical interface is crucial for achieving accurate and reliable measurements in various sensing applications, from medical diagnostics to environmental monitoring.
    Expand Specific Solutions
  • 05 Novel materials for selective electrochemical coatings

    Research on new materials for selective electrochemical coatings focuses on enhancing performance and enabling new functionalities. These materials include nanostructured composites, conductive polymers, and advanced ceramics with tailored electrochemical properties. The interface between these novel materials and traditional substrates presents unique challenges and opportunities for optimization. Emerging coating technologies enable precise control over the electrochemical interface to achieve desired properties for specific applications.
    Expand Specific Solutions

Leading Companies in Battery Coating Industry

The selective coating technology for enhancing battery pack electrochemical interfaces is currently in an early growth phase, with the market expected to expand significantly as electric vehicle adoption accelerates. The global market is projected to reach substantial scale by 2030, driven by demands for improved battery performance and longevity. Technologically, the field shows varying maturity levels across players. Industry leaders like CATL, LG Energy Solution, and Samsung SDI have made significant advancements in commercial applications, while Toyota, BYD, and Panasonic are rapidly developing proprietary coating technologies. Research institutions including Kyoto University and University of Michigan are pioneering next-generation solutions, while specialized materials companies like Sumitomo Chemical and Murata Manufacturing provide critical components. The competitive landscape features both vertical integration by major battery manufacturers and specialized innovation from materials science companies.

Contemporary Amperex Technology Co., Ltd.

Technical Solution: CATL has developed advanced selective coating technologies for battery electrochemical interfaces that significantly enhance battery performance and longevity. Their proprietary Cell-to-Pack (CTP) technology incorporates specialized coatings at the electrode-electrolyte interface to minimize unwanted side reactions. These coatings include functionalized carbon-based materials and ceramic-polymer composites that form a stable solid electrolyte interphase (SEI). CATL's selective coatings are engineered with nanoscale precision to allow efficient lithium-ion transport while blocking electrolyte decomposition. Their latest generation coatings incorporate self-healing properties that can repair microcracks during cycling, extending battery life by up to 30% compared to conventional interfaces. CATL has also pioneered gradient coating technologies where the composition changes from the electrode surface to the bulk material, optimizing both ionic conductivity and mechanical stability.
Strengths: Superior cycle life extension and fast-charging capabilities due to optimized ion transport pathways. Their coatings demonstrate excellent thermal stability, reducing thermal runaway risks. Weaknesses: Higher manufacturing costs compared to traditional electrode materials, and some coating processes require precise environmental controls that increase production complexity.

Samsung SDI Co., Ltd.

Technical Solution: Samsung SDI has pioneered atomic layer deposition (ALD) techniques for creating ultra-thin selective coatings on battery electrodes. Their approach focuses on precisely controlling the electrochemical interface at the molecular level to enhance battery performance and safety. Samsung's selective coatings utilize aluminum oxide, titanium oxide, and zirconium oxide layers with thicknesses ranging from 2-50 nanometers, optimized for specific battery chemistries. These coatings form a stable artificial SEI layer that prevents continuous electrolyte decomposition while maintaining excellent ionic conductivity. Samsung has also developed hybrid organic-inorganic coatings that combine the mechanical strength of ceramic materials with the flexibility of polymers. Their proprietary "PRiMX" technology incorporates selective coatings that have demonstrated up to 40% reduction in impedance growth during cycling compared to conventional electrodes, enabling faster charging capabilities while maintaining safety parameters.
Strengths: Exceptional precision in coating thickness and composition control, leading to optimized performance without excessive material use. Their ALD process is compatible with existing manufacturing infrastructure. Weaknesses: Higher initial production costs and slightly reduced initial capacity due to the inactive coating materials occupying volume within the cell.

Key Innovations in Electrochemical Interface Enhancement

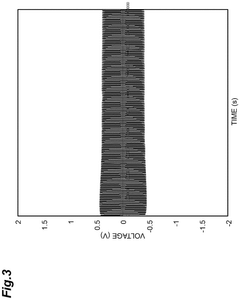

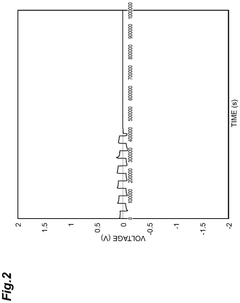

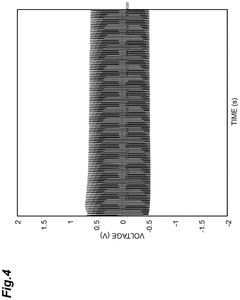

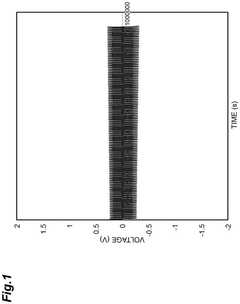

Coating material for battery member, electrolyte, battery, and coating agent for battery member
PatentPendingEP4583227A1
Innovation
  • A coating material for battery members containing a polymer that preferentially conducts metal ions, which can be applied to ion conductive inorganic solid electrolytes, enhancing their electrochemical resistance by including a swelling agent and anionic functional groups capable of scavenging anions.

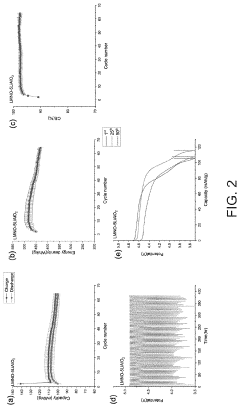

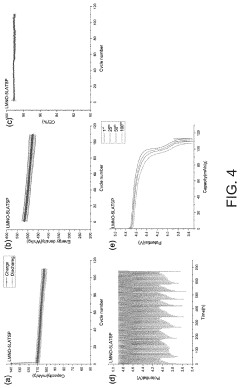

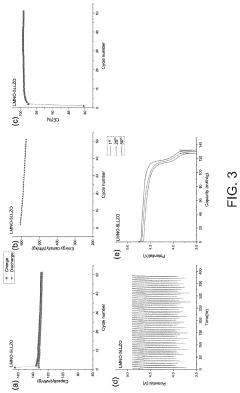

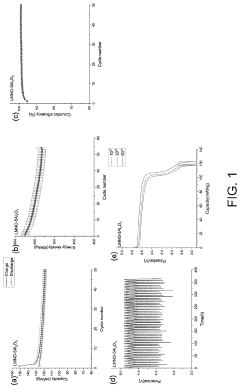

Nanopowder Coatings That Enhance Lithium Battery Component Performance
PatentPendingUS20230216040A1
Innovation
  • Coating active cathode and anode materials with nanopowders that can transform into solid electrolytes during battery operation, using methods like ball milling or electrospray coating, to create porous coatings that improve energy capacity and long-term stability.

Environmental Impact and Sustainability Considerations

The implementation of selective coatings in battery pack electrochemical interfaces carries significant environmental implications that must be thoroughly evaluated. These coatings, while enhancing battery performance and longevity, introduce additional materials and manufacturing processes that impact the overall environmental footprint of battery production and disposal.

The raw materials required for selective coatings often include rare earth elements, transition metals, and specialized polymers. The extraction and processing of these materials contribute to habitat destruction, water pollution, and greenhouse gas emissions. However, when comparing the environmental impact of coated versus uncoated battery components, the extended lifespan achieved through selective coatings can offset initial environmental costs by reducing the frequency of battery replacement and associated waste generation.

Manufacturing processes for applying selective coatings typically involve chemical vapor deposition, plasma-enhanced deposition, or solution-based techniques. These processes consume energy and may utilize volatile organic compounds or other potentially hazardous chemicals. Recent advancements have focused on developing water-based coating solutions and low-temperature application methods that significantly reduce energy consumption and harmful emissions during production.

From a lifecycle perspective, selective coatings contribute to sustainability by improving battery efficiency and extending operational lifespans by up to 40%. This enhancement directly translates to reduced resource consumption and waste generation over time. Additionally, batteries with selective coatings often demonstrate improved thermal stability, reducing the risk of thermal runaway events that can release toxic substances into the environment.

End-of-life considerations reveal both challenges and opportunities. While selective coatings may complicate recycling processes by introducing additional material separation requirements, they can also facilitate more efficient material recovery through designed degradation pathways. Several research initiatives are currently exploring coating formulations specifically engineered for easy separation during recycling processes.

Regulatory frameworks worldwide are increasingly addressing the environmental aspects of battery technologies, including coating materials. The European Union's Battery Directive and similar regulations in North America and Asia are establishing guidelines for sustainable battery design that incorporate considerations for coating materials and their environmental impact throughout the product lifecycle.

Future development of selective coatings is trending toward bio-based alternatives derived from renewable resources. These innovative approaches aim to maintain or exceed the performance benefits of conventional coatings while minimizing environmental impact through biodegradable components and environmentally benign production methods.

Scalability and Manufacturing Process Integration

The scalability of selective coating technologies represents a critical factor in their commercial viability for battery pack applications. Current laboratory-scale coating methods must transition to high-volume manufacturing environments to achieve meaningful industry impact. Established coating techniques such as physical vapor deposition (PVD), chemical vapor deposition (CVD), and atomic layer deposition (ALD) demonstrate varying degrees of scalability potential, with roll-to-roll processing emerging as particularly promising for large-scale electrode coating operations.

Manufacturing integration challenges primarily center around process compatibility with existing battery production lines. Selective coatings must be applied at specific stages of battery assembly to maximize electrochemical interface enhancement while minimizing disruption to established workflows. Temperature sensitivity presents a significant constraint, as many high-performance coating processes require thermal conditions that could potentially damage battery components or alter their properties.

Cost considerations heavily influence scalability decisions, with capital equipment investments ranging from $2-10 million for industrial-scale coating systems. Operational expenses including material consumption, energy requirements, and maintenance further impact the economic feasibility of widespread implementation. Manufacturers must carefully balance enhanced battery performance against increased production costs to ensure market competitiveness.

Quality control systems require significant adaptation to accommodate selective coating processes. In-line monitoring technologies such as optical inspection systems, impedance spectroscopy, and real-time electrochemical analysis become essential for maintaining coating uniformity and performance characteristics at scale. Statistical process control methodologies must evolve to incorporate new parameters specific to interface coating properties.

Environmental and regulatory considerations also shape manufacturing integration strategies. Certain coating processes involve solvents or precursors with environmental implications, necessitating appropriate containment and treatment systems. Regulatory compliance across different markets adds complexity to global manufacturing standardization efforts.

Recent innovations in atmospheric pressure deposition techniques and solution-based coating methods show particular promise for overcoming scalability barriers. These approaches potentially reduce capital equipment requirements while maintaining coating performance. Industry-academic partnerships focused on manufacturing process optimization have accelerated development of specialized equipment designed specifically for battery interface coating applications.
