SiC Wafer Technology Background and Objectives
Silicon Carbide (SiC) wafer technology represents a significant advancement in semiconductor materials, evolving from its initial applications in power electronics to emerging uses in medical imaging systems. The development of SiC began in the early 1900s, but it wasn't until the 1990s that commercial production of SiC wafers became viable. The material's unique properties—wide bandgap, high thermal conductivity, and exceptional chemical stability—make it particularly valuable for high-performance electronic applications.
In the context of medical imaging technologies, SiC wafers offer substantial advantages over traditional silicon-based semiconductors. The evolution of this technology has been driven by increasing demands for higher resolution, faster image processing, and reduced radiation exposure in medical diagnostic equipment. SiC's ability to operate at higher temperatures and voltages while maintaining efficiency positions it as an ideal candidate for next-generation medical imaging devices.
The historical trajectory of SiC wafer development shows a consistent trend toward larger wafer diameters and improved crystal quality. From initial 2-inch wafers with significant defect densities, the industry has progressed to 6-inch wafers with dramatically reduced micropipe densities. This progression has been crucial for enabling the integration of SiC into sophisticated medical imaging applications that require exceptional reliability and performance.
Current technical objectives for SiC wafer integration in medical imaging focus on several key areas. First, reducing production costs remains essential for broader adoption, as SiC wafers typically cost 5-10 times more than silicon alternatives. Second, further improvements in crystal quality and wafer uniformity are necessary to enhance device yield and performance consistency. Third, developing specialized doping profiles optimized for medical imaging sensor applications represents a critical technical goal.
The integration of SiC in medical imaging aims to achieve specific performance targets, including radiation detectors with 30-50% higher sensitivity, imaging systems capable of operating continuously at temperatures exceeding 200°C without cooling systems, and devices with radiation hardness that extends operational lifetimes by 3-5 times compared to conventional technologies.
Looking forward, the technology roadmap for SiC wafers in medical imaging anticipates progression toward 8-inch wafers by 2025, enabling more cost-effective production of larger sensor arrays. Additionally, research is advancing toward epitaxial growth techniques that can produce ultra-thin SiC layers with precisely controlled properties specifically tailored for different medical imaging modalities, including CT scanners, PET systems, and radiography equipment.
In the context of medical imaging technologies, SiC wafers offer substantial advantages over traditional silicon-based semiconductors. The evolution of this technology has been driven by increasing demands for higher resolution, faster image processing, and reduced radiation exposure in medical diagnostic equipment. SiC's ability to operate at higher temperatures and voltages while maintaining efficiency positions it as an ideal candidate for next-generation medical imaging devices.
The historical trajectory of SiC wafer development shows a consistent trend toward larger wafer diameters and improved crystal quality. From initial 2-inch wafers with significant defect densities, the industry has progressed to 6-inch wafers with dramatically reduced micropipe densities. This progression has been crucial for enabling the integration of SiC into sophisticated medical imaging applications that require exceptional reliability and performance.
Current technical objectives for SiC wafer integration in medical imaging focus on several key areas. First, reducing production costs remains essential for broader adoption, as SiC wafers typically cost 5-10 times more than silicon alternatives. Second, further improvements in crystal quality and wafer uniformity are necessary to enhance device yield and performance consistency. Third, developing specialized doping profiles optimized for medical imaging sensor applications represents a critical technical goal.
The integration of SiC in medical imaging aims to achieve specific performance targets, including radiation detectors with 30-50% higher sensitivity, imaging systems capable of operating continuously at temperatures exceeding 200°C without cooling systems, and devices with radiation hardness that extends operational lifetimes by 3-5 times compared to conventional technologies.
Looking forward, the technology roadmap for SiC wafers in medical imaging anticipates progression toward 8-inch wafers by 2025, enabling more cost-effective production of larger sensor arrays. Additionally, research is advancing toward epitaxial growth techniques that can produce ultra-thin SiC layers with precisely controlled properties specifically tailored for different medical imaging modalities, including CT scanners, PET systems, and radiography equipment.
Market Analysis for SiC in Medical Imaging
The medical imaging market is witnessing a significant transformation with the integration of Silicon Carbide (SiC) wafer technology. The global medical imaging equipment market, valued at approximately $37 billion in 2022, is projected to reach $50 billion by 2028, growing at a CAGR of 5.2%. Within this broader market, SiC-based components are emerging as a high-growth segment, particularly in advanced imaging modalities such as CT scanners, MRI machines, and PET scanners.
The demand for SiC in medical imaging is primarily driven by the increasing need for higher resolution images, reduced radiation exposure, and faster scanning times. Healthcare facilities worldwide are upgrading their imaging equipment to improve diagnostic accuracy and patient throughput, creating substantial market opportunities for SiC-based solutions. Additionally, the growing prevalence of chronic diseases and the aging global population are fueling the demand for more frequent and precise diagnostic imaging procedures.
Regional analysis reveals that North America currently dominates the market for SiC in medical imaging, accounting for approximately 40% of global revenue. This dominance is attributed to the region's advanced healthcare infrastructure, substantial R&D investments, and early adoption of cutting-edge medical technologies. Europe follows closely with a 30% market share, while the Asia-Pacific region represents the fastest-growing market with an estimated CAGR of 7.8% through 2028.
The competitive landscape for SiC in medical imaging is characterized by strategic partnerships between semiconductor manufacturers and medical device companies. Major players include Siemens Healthineers, GE Healthcare, and Philips Healthcare on the medical equipment side, collaborating with SiC specialists like Wolfspeed, STMicroelectronics, and Rohm Semiconductor. These collaborations aim to develop customized SiC solutions that address the specific requirements of medical imaging applications.
Price sensitivity analysis indicates that while SiC components command a premium of 30-40% over traditional silicon alternatives, the total cost of ownership is becoming increasingly competitive due to SiC's superior performance characteristics. The return on investment for healthcare providers is justified by improved diagnostic capabilities, extended equipment lifespan, and reduced maintenance requirements.
Market forecasts suggest that SiC penetration in medical imaging will grow from less than 5% currently to approximately 15% by 2028. This growth trajectory is supported by ongoing technological advancements, decreasing production costs, and increasing awareness of SiC benefits among healthcare professionals and equipment manufacturers.
The demand for SiC in medical imaging is primarily driven by the increasing need for higher resolution images, reduced radiation exposure, and faster scanning times. Healthcare facilities worldwide are upgrading their imaging equipment to improve diagnostic accuracy and patient throughput, creating substantial market opportunities for SiC-based solutions. Additionally, the growing prevalence of chronic diseases and the aging global population are fueling the demand for more frequent and precise diagnostic imaging procedures.
Regional analysis reveals that North America currently dominates the market for SiC in medical imaging, accounting for approximately 40% of global revenue. This dominance is attributed to the region's advanced healthcare infrastructure, substantial R&D investments, and early adoption of cutting-edge medical technologies. Europe follows closely with a 30% market share, while the Asia-Pacific region represents the fastest-growing market with an estimated CAGR of 7.8% through 2028.
The competitive landscape for SiC in medical imaging is characterized by strategic partnerships between semiconductor manufacturers and medical device companies. Major players include Siemens Healthineers, GE Healthcare, and Philips Healthcare on the medical equipment side, collaborating with SiC specialists like Wolfspeed, STMicroelectronics, and Rohm Semiconductor. These collaborations aim to develop customized SiC solutions that address the specific requirements of medical imaging applications.
Price sensitivity analysis indicates that while SiC components command a premium of 30-40% over traditional silicon alternatives, the total cost of ownership is becoming increasingly competitive due to SiC's superior performance characteristics. The return on investment for healthcare providers is justified by improved diagnostic capabilities, extended equipment lifespan, and reduced maintenance requirements.
Market forecasts suggest that SiC penetration in medical imaging will grow from less than 5% currently to approximately 15% by 2028. This growth trajectory is supported by ongoing technological advancements, decreasing production costs, and increasing awareness of SiC benefits among healthcare professionals and equipment manufacturers.
SiC Integration Challenges in Medical Devices
The integration of Silicon Carbide (SiC) wafers into medical devices presents significant technical challenges despite their promising properties. The primary obstacle lies in biocompatibility concerns, as SiC must meet stringent regulatory standards for medical applications. While SiC demonstrates excellent chemical inertness, comprehensive long-term biocompatibility studies remain insufficient, particularly regarding potential leaching of dopants or impurities when exposed to biological environments.
Manufacturing precision poses another substantial challenge. Medical imaging technologies demand exceptionally high tolerances and uniformity across wafers. Current SiC wafer production processes struggle to consistently achieve the sub-micron precision required for advanced medical imaging applications, with defect densities remaining higher than those of traditional silicon wafers used in medical devices.
Thermal management issues arise during device operation, as SiC components generate significant heat when operating at high frequencies necessary for high-resolution imaging. This heat can potentially damage surrounding biological tissues and affect the accuracy of diagnostic results. Innovative cooling solutions must be developed specifically for medical contexts where conventional cooling approaches may be impractical.
Interface compatibility between SiC components and existing medical device architectures presents additional integration difficulties. Signal processing systems, power management circuits, and data transmission protocols in current medical imaging equipment are optimized for silicon-based semiconductors. Significant redesign of these peripheral systems is necessary to fully leverage SiC's superior properties, requiring substantial engineering resources.
Cost considerations remain prohibitive for widespread adoption. The manufacturing expenses for medical-grade SiC wafers significantly exceed those of conventional materials, with estimates suggesting a 3-5x cost premium. This economic barrier is particularly challenging for healthcare systems already facing budget constraints, limiting adoption to only the most performance-critical applications where traditional materials cannot meet requirements.
Reliability validation represents perhaps the most critical challenge. Medical devices require exceptional reliability standards with failure rates measured in parts per billion for critical applications. The relatively limited deployment history of SiC in medical contexts means that long-term reliability data remains insufficient compared to established materials, necessitating extensive accelerated life testing and field trials before widespread adoption can occur.
Addressing these integration challenges requires multidisciplinary collaboration between semiconductor manufacturers, medical device engineers, materials scientists, and regulatory experts. Several research institutions and medical technology companies have established dedicated programs to systematically address these barriers, recognizing that overcoming them could enable transformative advances in medical imaging capabilities.
Manufacturing precision poses another substantial challenge. Medical imaging technologies demand exceptionally high tolerances and uniformity across wafers. Current SiC wafer production processes struggle to consistently achieve the sub-micron precision required for advanced medical imaging applications, with defect densities remaining higher than those of traditional silicon wafers used in medical devices.
Thermal management issues arise during device operation, as SiC components generate significant heat when operating at high frequencies necessary for high-resolution imaging. This heat can potentially damage surrounding biological tissues and affect the accuracy of diagnostic results. Innovative cooling solutions must be developed specifically for medical contexts where conventional cooling approaches may be impractical.
Interface compatibility between SiC components and existing medical device architectures presents additional integration difficulties. Signal processing systems, power management circuits, and data transmission protocols in current medical imaging equipment are optimized for silicon-based semiconductors. Significant redesign of these peripheral systems is necessary to fully leverage SiC's superior properties, requiring substantial engineering resources.
Cost considerations remain prohibitive for widespread adoption. The manufacturing expenses for medical-grade SiC wafers significantly exceed those of conventional materials, with estimates suggesting a 3-5x cost premium. This economic barrier is particularly challenging for healthcare systems already facing budget constraints, limiting adoption to only the most performance-critical applications where traditional materials cannot meet requirements.
Reliability validation represents perhaps the most critical challenge. Medical devices require exceptional reliability standards with failure rates measured in parts per billion for critical applications. The relatively limited deployment history of SiC in medical contexts means that long-term reliability data remains insufficient compared to established materials, necessitating extensive accelerated life testing and field trials before widespread adoption can occur.
Addressing these integration challenges requires multidisciplinary collaboration between semiconductor manufacturers, medical device engineers, materials scientists, and regulatory experts. Several research institutions and medical technology companies have established dedicated programs to systematically address these barriers, recognizing that overcoming them could enable transformative advances in medical imaging capabilities.
Current SiC Wafer Implementation Solutions
01 Silicon Carbide Wafer Manufacturing Methods
Various manufacturing methods are employed to produce high-quality silicon carbide wafers for semiconductor applications. These methods include chemical vapor deposition (CVD), physical vapor transport (PVT), and modified Lely processes. The manufacturing techniques focus on controlling crystal growth, reducing defects, and achieving specific polytype formations such as 4H-SiC or 6H-SiC. Advanced processes have been developed to increase wafer diameter while maintaining structural integrity and electrical properties.- Silicon Carbide Wafer Manufacturing Methods: Various manufacturing methods are employed to produce high-quality silicon carbide wafers, including crystal growth techniques, epitaxial growth processes, and wafer slicing technologies. These methods focus on controlling defect density, improving crystal quality, and achieving specific wafer dimensions. Advanced manufacturing techniques help to enhance the electrical and mechanical properties of silicon carbide wafers, making them suitable for high-power and high-temperature electronic applications.
- Defect Reduction in Silicon Carbide Wafers: Techniques for reducing defects in silicon carbide wafers are critical for improving device performance. These include methods for minimizing micropipes, dislocations, and surface defects through optimized growth conditions, post-growth treatments, and specialized polishing processes. Defect reduction strategies may involve thermal annealing, chemical-mechanical polishing, and advanced inspection techniques to identify and mitigate various types of crystal imperfections.
- Surface Treatment and Polishing of Silicon Carbide Wafers: Surface treatment and polishing processes are essential for preparing silicon carbide wafers for device fabrication. These processes include chemical-mechanical polishing, plasma etching, and thermal oxidation to achieve atomically smooth surfaces with minimal subsurface damage. Advanced polishing techniques help to remove scratches, reduce roughness, and create uniform surfaces necessary for subsequent epitaxial growth or device processing steps.
- Silicon Carbide Epitaxial Growth: Epitaxial growth on silicon carbide wafers involves the deposition of controlled semiconductor layers to create specific device structures. Various techniques such as chemical vapor deposition (CVD) and molecular beam epitaxy (MBE) are used to grow high-quality epitaxial layers with precise doping profiles and thickness control. The epitaxial growth process is crucial for creating the active regions of electronic devices and can significantly influence the final device performance characteristics.
- Silicon Carbide Wafer Applications in Power Electronics: Silicon carbide wafers are increasingly used in power electronic applications due to their superior properties compared to traditional silicon. These applications include high-voltage power devices, electric vehicle components, renewable energy systems, and industrial motor drives. The wide bandgap, high thermal conductivity, and high breakdown field strength of silicon carbide enable the development of more efficient, smaller, and more reliable power electronic devices that can operate at higher temperatures and voltages.
02 Defect Reduction Techniques in SiC Wafers
Techniques for reducing defects in silicon carbide wafers are critical for improving semiconductor device performance. These include thermal annealing processes, surface polishing methods, and specialized etching techniques to eliminate micropipes, dislocations, and stacking faults. Advanced inspection and characterization methods help identify and mitigate defects during wafer production. Reducing these defects significantly improves the electrical performance and reliability of devices manufactured on SiC substrates.Expand Specific Solutions03 SiC Wafer Surface Treatment and Preparation
Surface treatment and preparation techniques for silicon carbide wafers include chemical-mechanical polishing (CMP), plasma etching, and thermal oxidation. These processes are designed to achieve atomically flat surfaces with minimal subsurface damage, which is essential for subsequent epitaxial growth and device fabrication. Surface preparation methods also focus on removing contaminants and creating specific surface terminations to enhance device performance and reliability.Expand Specific Solutions04 Epitaxial Growth on SiC Wafers
Epitaxial growth processes on silicon carbide wafers involve the deposition of thin, high-quality crystalline layers that maintain the crystal structure of the substrate. These processes include chemical vapor deposition (CVD) and molecular beam epitaxy (MBE) techniques optimized for SiC. The epitaxial layers can be doped with specific impurities to create n-type or p-type regions for device fabrication. Control of growth parameters such as temperature, pressure, and gas flow rates is crucial for achieving uniform epitaxial layers with desired electrical properties.Expand Specific Solutions05 Applications and Device Fabrication on SiC Wafers
Silicon carbide wafers serve as substrates for manufacturing high-power, high-frequency, and high-temperature electronic devices. Applications include power MOSFETs, Schottky diodes, JFETs, and RF devices that benefit from SiC's wide bandgap properties. Device fabrication processes on SiC wafers involve specialized techniques for ion implantation, metallization, and passivation that accommodate SiC's unique physical and chemical properties. These devices offer superior performance in power conversion, electric vehicles, renewable energy systems, and harsh environment applications.Expand Specific Solutions
Key Industry Players in SiC Medical Technology
The Silicon Carbide (SiC) wafer integration in medical imaging technologies market is in an early growth phase, characterized by increasing adoption but still evolving applications. The global market is expanding rapidly as healthcare facilities seek higher performance imaging solutions, with projections indicating substantial growth over the next decade. Technologically, SiC wafer integration is advancing through collaborative efforts between semiconductor leaders and medical technology companies. Key players like Wolfspeed and Infineon are driving SiC material innovation, while medical imaging specialists such as Koninklijke Philips and Samsung Electronics are developing practical applications. Research institutions including California Institute of Technology and Fudan University are contributing fundamental breakthroughs, creating a dynamic ecosystem that bridges semiconductor manufacturing expertise with healthcare applications.
Wolfspeed, Inc.
Technical Solution: Wolfspeed has pioneered the integration of Silicon Carbide (SiC) wafer technology in medical imaging applications, particularly focusing on high-performance power devices for medical imaging equipment. Their proprietary SiC wafer manufacturing process creates ultra-pure, defect-free substrates that enable superior electrical performance in medical imaging systems. Wolfspeed's 150mm and 200mm SiC wafers provide exceptional thermal conductivity (3-4 times higher than silicon) and breakdown voltage capabilities, allowing for more compact, efficient power supplies in MRI, CT, and X-ray systems. Their vertical integration approach ensures quality control throughout the production process, from crystal growth to wafer polishing. The company has developed specialized doping techniques to optimize SiC wafers specifically for the high-voltage, high-reliability requirements of medical imaging equipment, resulting in devices that can operate at higher temperatures with reduced cooling requirements.
Strengths: Industry-leading SiC substrate quality with lowest defect density; extensive manufacturing experience; vertical integration capabilities. Weaknesses: Higher production costs compared to silicon alternatives; limited production capacity relative to growing demand; longer manufacturing cycle times.
Koninklijke Philips NV
Technical Solution: Philips has developed an innovative approach to integrating Silicon Carbide (SiC) wafer technology in their advanced medical imaging systems, particularly in their high-performance MRI and CT scanners. Their proprietary SiC-based power modules enable more efficient power conversion with significantly reduced switching losses compared to traditional silicon-based solutions. Philips has implemented SiC technology in gradient amplifiers for MRI systems, achieving up to 30% reduction in power consumption while maintaining precise imaging capabilities. Their SiC integration strategy includes custom-designed power modules optimized for the specific voltage and current profiles required in medical imaging applications. Philips has also pioneered the use of SiC in detector readout electronics, where the material's wide bandgap properties enable lower noise operation at elevated temperatures, improving signal-to-noise ratios in imaging applications. The company has developed specialized thermal management solutions to maximize the benefits of SiC's superior thermal conductivity, allowing for more compact system designs with enhanced reliability.
Strengths: Comprehensive system-level integration expertise; established global presence in medical imaging market; strong intellectual property portfolio in SiC applications. Weaknesses: Reliance on external SiC wafer suppliers; higher initial system costs compared to conventional technologies; complex supply chain management requirements.
Critical SiC Innovations for Medical Imaging
Silicon carbide composite wafer and manufacturing method thereof
PatentActiveJP2022181154A
Innovation
- A silicon carbide composite wafer is manufactured by directly bonding a silicon carbide material to a ceramic or glass wafer substrate through surface modification, utilizing methods such as hydrogen bonding, electrostatic bonding, or physical bonding, without an intermediate thin film, and optionally including a crystal layer.
Coated wafer
PatentWO2018078385A1
Innovation

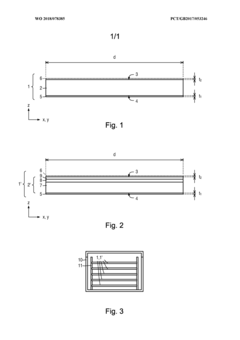

- A coated wafer with a 3C-SiC layer grown using a cold-wall CVD process at temperatures below 1200°C, employing a gas mixture of dichlorosilane and trimethylsilane with hydrogen as a carrier gas, which allows for epitaxial growth on both the reverse and principal surfaces, ensuring uniformity and high thermal conductivity without wafer bow or excessive surface roughness, even on large substrates.
