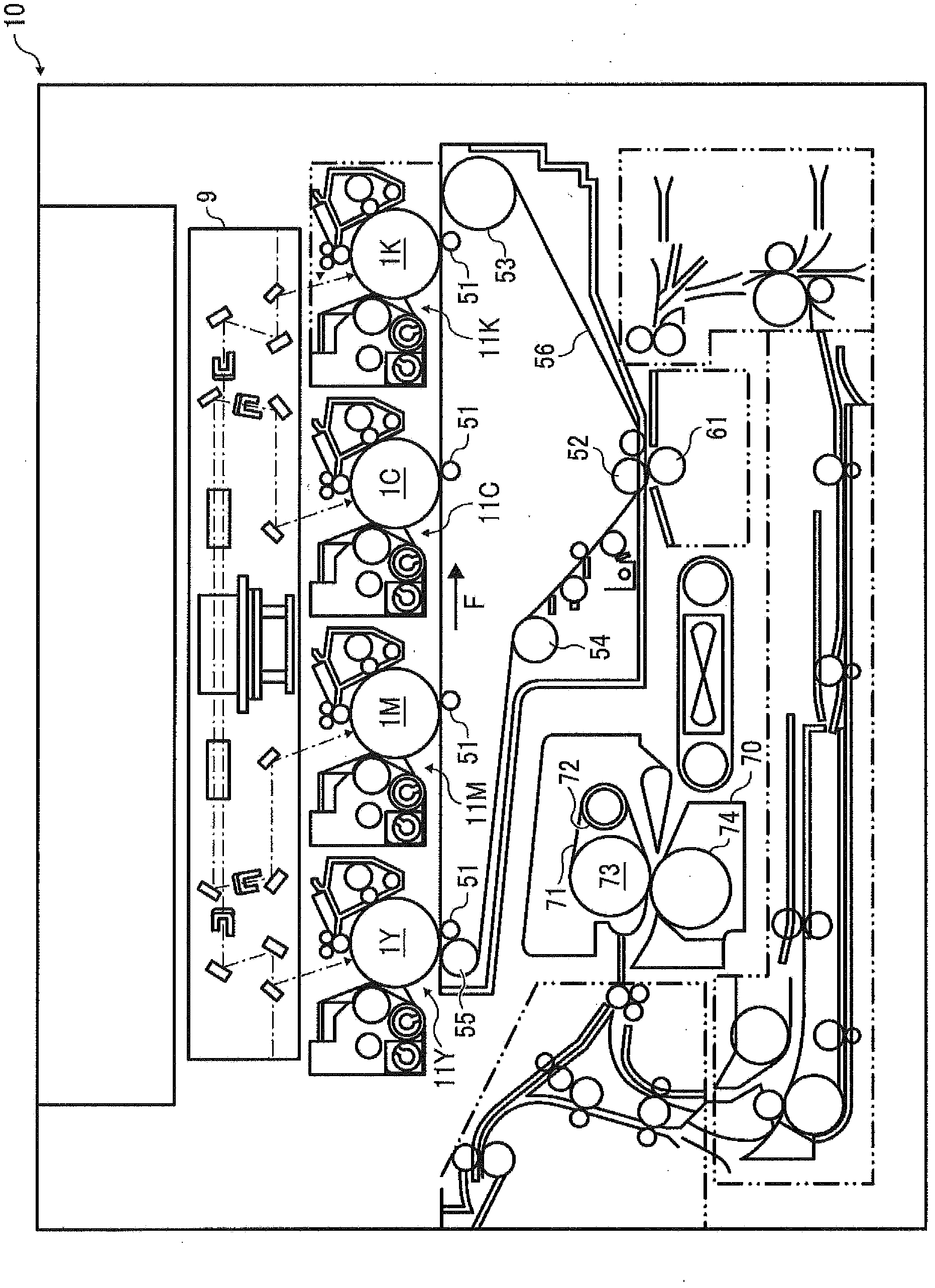

[0048] figure 1 It is a schematic configuration diagram showing a printer according to an embodiment of the present invention.

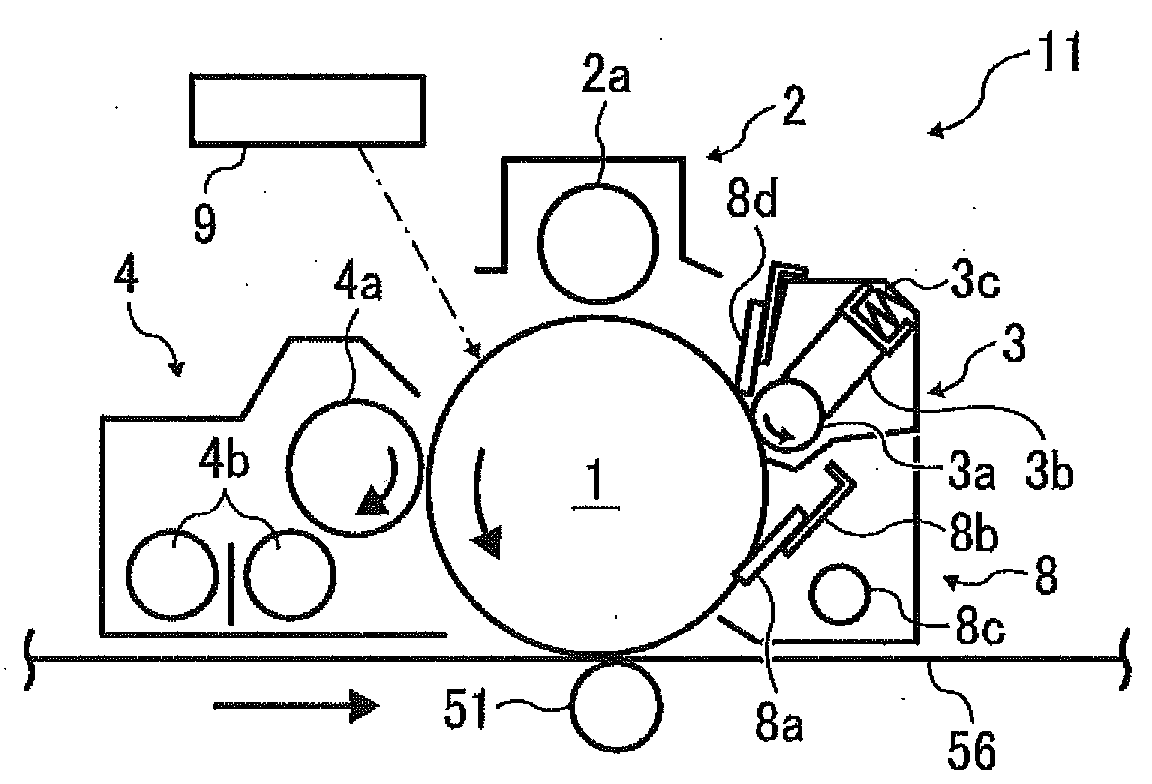

[0049] In the printer 10 , an intermediate transfer belt 56 serving as an image carrier, that is, an intermediate transfer body, is provided approximately at the center thereof. The intermediate transfer belt 56 is made of a heat-resistant material such as polyimide or polyamide, and is an endless belt made of a substrate adjusted ...

the structure of the environmentally friendly knitted fabric provided by the present invention; figure 2 Flow chart of the yarn wrapping machine for environmentally friendly knitted fabrics and storage devices; image 3 Is the parameter map of the yarn covering machine
Login to View More

PUM

No PUM Login to View More

Abstract

A lubricant applicator includes a block of lubricant, a supply member contactable against the block of lubricant to scrape the block of lubricant, and a lubricant gauge including a first electrode and a second electrode. The lubricant gauge is electrically connected to the first electrode and the second electrode to detect whether an amount of lubricant remaining is less than a threshold value based on establishment of electrical continuity between the first electrode and the second electrode. One of the first electrode and the second electrode includes a projection projecting toward the other one of the first electrode and the second electrode.

Description

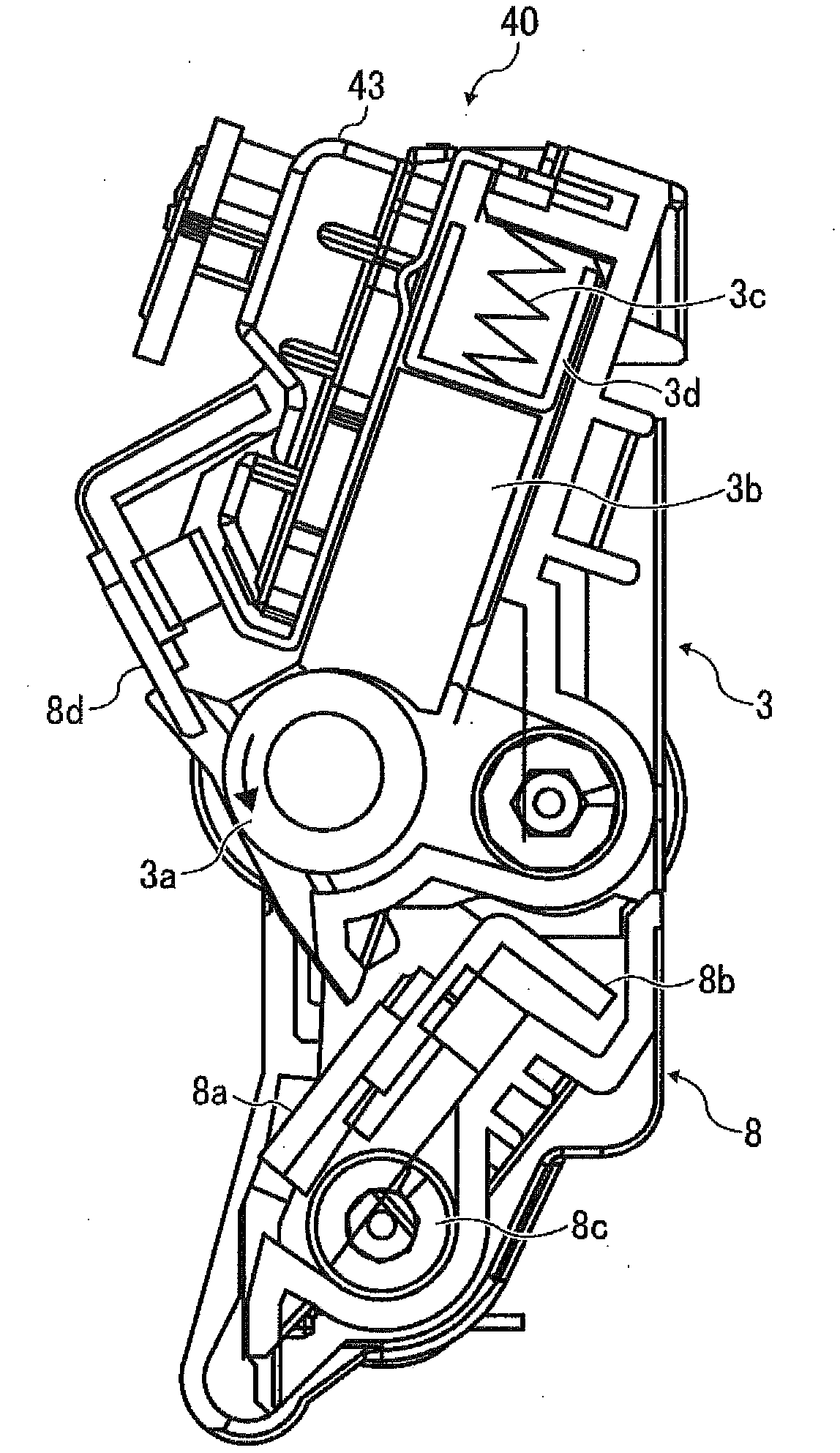

technical field [0001] The present invention relates to a lubricant supply device, an image forming device, and a process cartridge. Background technique [0002] In image forming devices such as printers, facsimile machines, and copiers, a lubricant supply device that supplies lubricant to the surface of an image carrier is provided to protect or reduce friction of an image carrier such as a photoreceptor or an intermediate transfer belt. , which is well known. [0003] If the image forming operation is performed in a state where the lubricant is depleted, the protective effect of the lubricant does not work, and therefore, the image carrier wears and deteriorates. Patent Document 1 describes a lubricant supply device that detects "near end" of lubricant. [0004] Figure 26 It is a schematic perspective view showing a lubricant "near-end" detecting unit of the lubricant supply device described in Patent Document 1. [0005] Such as Figure 26 As shown, the lubricant hol...
